What is the load capacity of the NATE NT33-2AF3 standing desk frame?

The NATE NT33-2AF3 supports up to 160kg / 352lbs load capacity, making it suitable for larger desktop setups and heavy-duty workspace projects.

How fast is the NT33-2AF3 standing desk frame?

The NT33-2AF3 offers up to 50mm/s lifting speed for fast and smooth height adjustment.

What height range does the NT33-2AF3 support?

The NT33-2AF3 supports a 600-1250mm adjustable height range.

Is the NT33-2AF3 suitable for OEM and B2B projects?

Yes. The NT33-2AF3 is suitable for office furniture brands, distributors, project buyers and OEM/ODM standing desk programs.

NT33-2AF3 Dual Motor Standing Desk Frame | 160kg Load

Name: NATE NT33-2AF3 Dual Motor Standing Desk Frame
Brand: NATE
SKU: NT33-2AF3

Home / Products / Office Desk Frames & Workstations / Office Desk Frames / 2-Leg Series / NT33-2AF3 Dual Motor Standing Desk Frame | 160kg Load | 50mm/s

Description

NT33-2AF3 Series

Dual Motor Standing Desk Frame with 160kg Load Capacity

The NATE NT33-2AF3 is a high-performance electric standing desk frame for heavier desktop setups, faster lifting and smoother daily height adjustment.

160kg Load 50mm/s Speed Dual Motors 3-Stage Legs

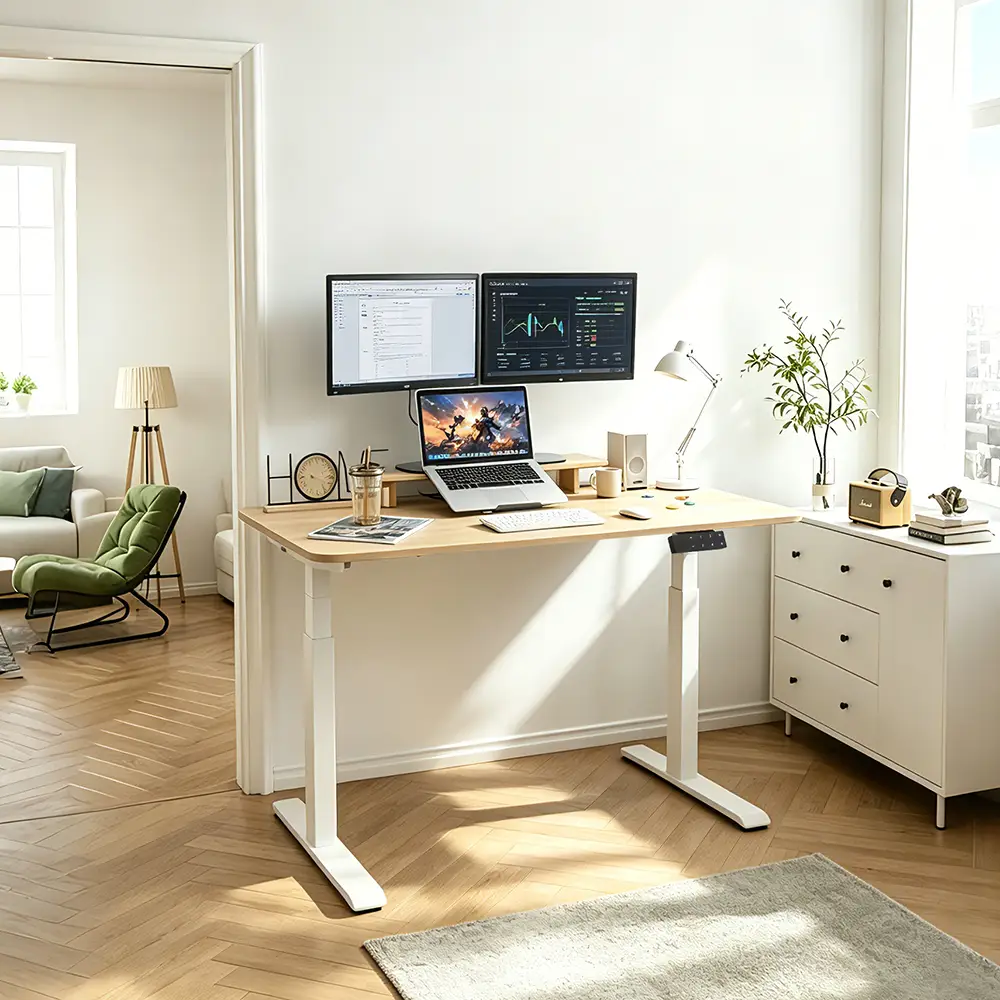

NT33-2AF3 height adjustable standing desk for home office workstation

For Modern Sit-Stand Workspaces

A clean white frame, wide desktop compatibility and stable lifting performance make the NT33-2AF3 suitable for office furniture brands, distributors and project buyers.

160kg Max Load Capacity

50mm/s Fast Lifting Speed

600-1250mm Height Range

1100-1750mm Frame Width

Detailed Features

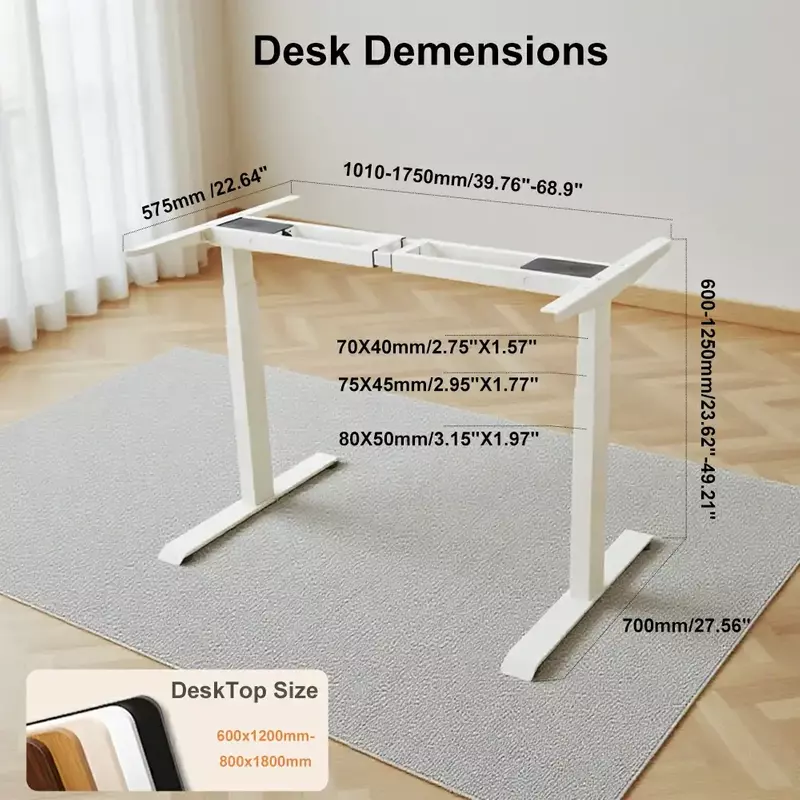

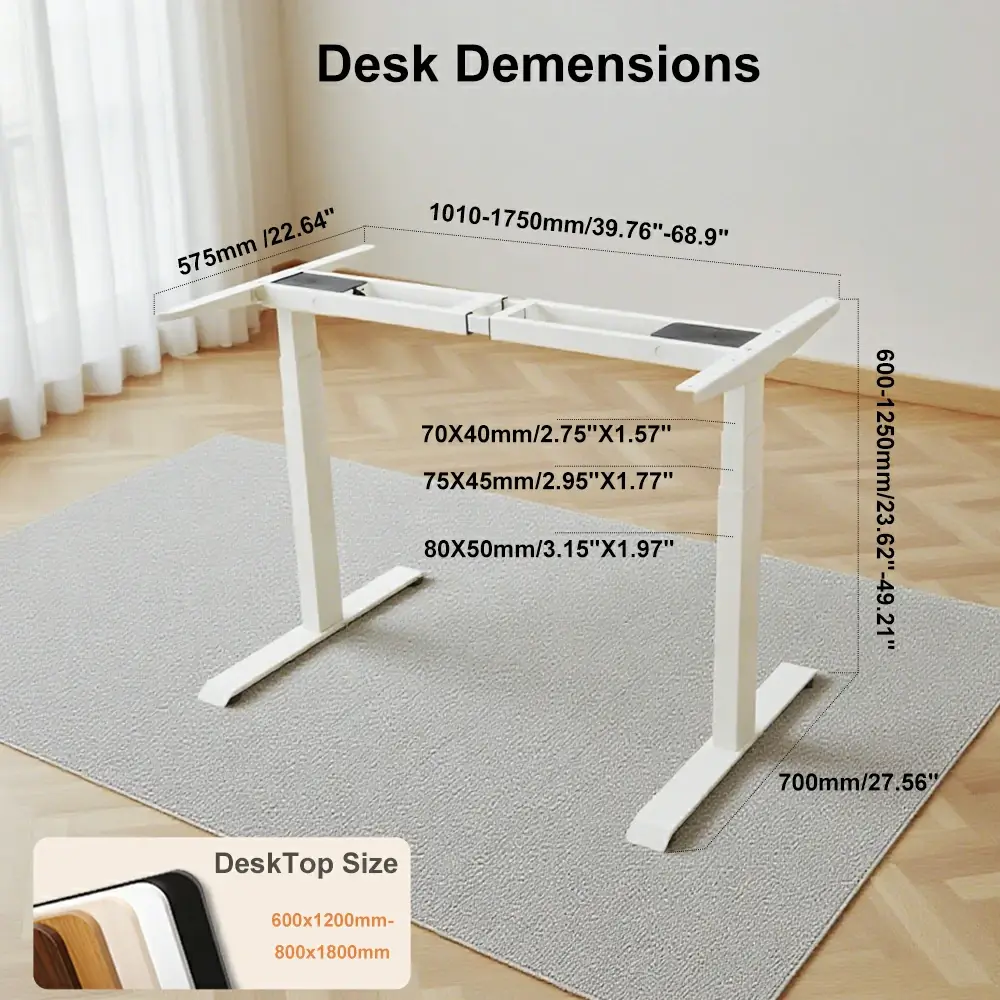

NT33-2AF3 standing desk frame dimensions 600-1250mm height and 1100-1750mm width

Flexible Desk Dimensions

Supports 600-1250mm height adjustment and 1100-1750mm adjustable frame width.

NT33-2AF3 dual motors 160kg load capacity 50mm per second lifting speed

160kg Load & 50mm/s Lifting

Dual motors deliver stronger lifting power for heavier workstations and larger desktops.

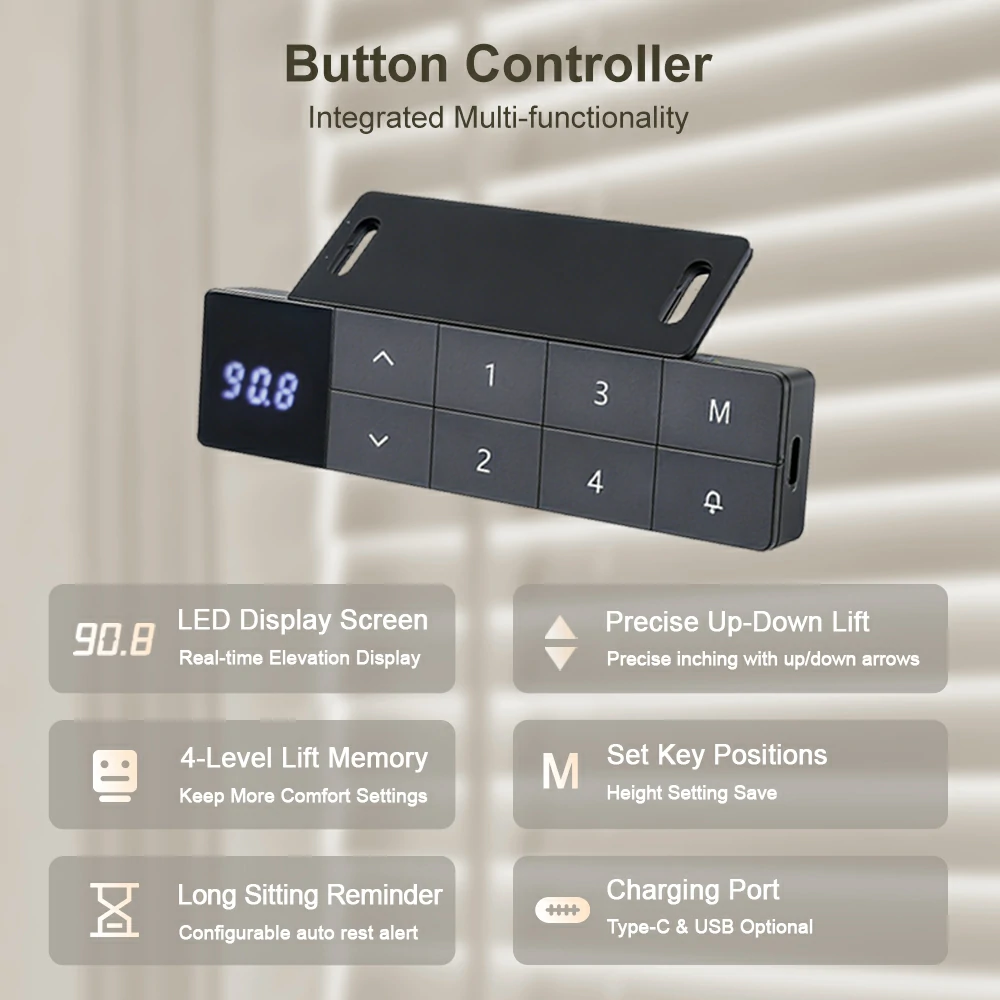

Smart Button Controller

LED display, precise control, 4 memory presets and sitting reminder support easier daily adjustment.

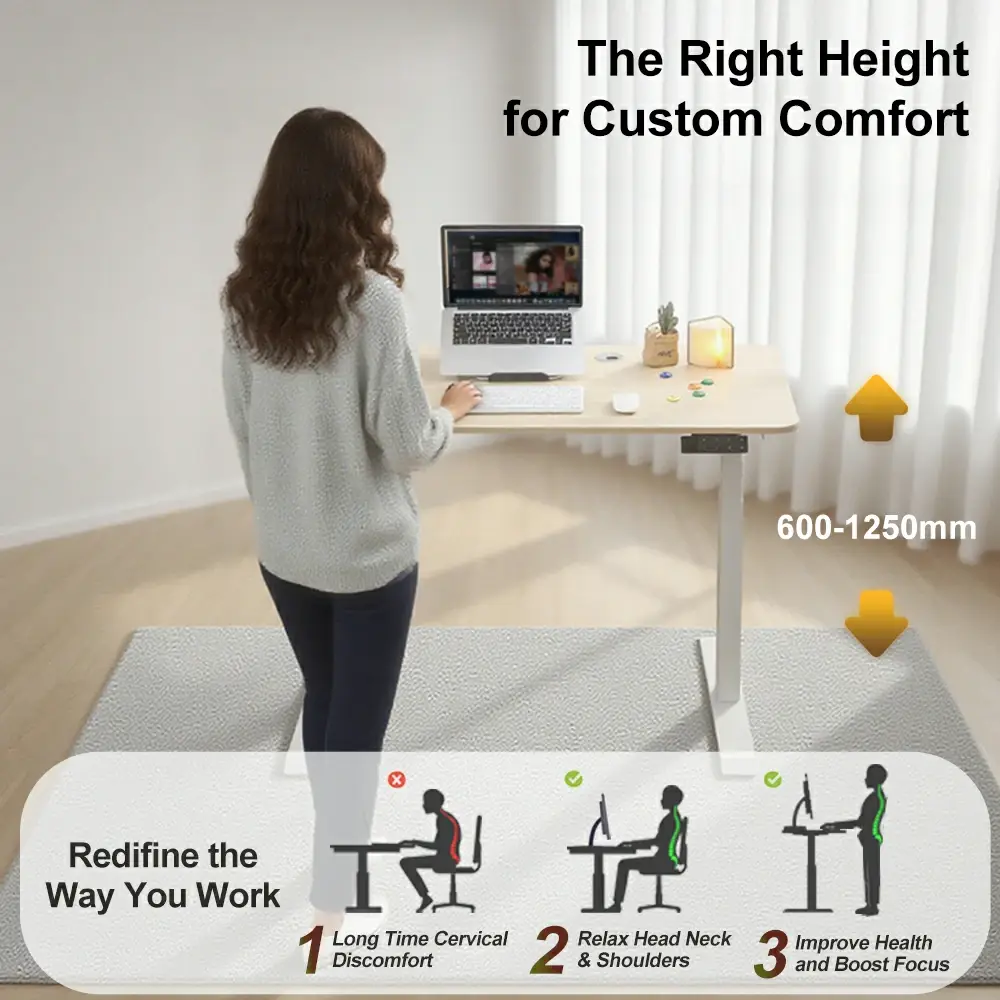

NT33-2AF3 standing desk ergonomic height adjustment from sitting to standing

Right Height for Daily Comfort

The 600-1250mm height range covers common sitting and standing positions.

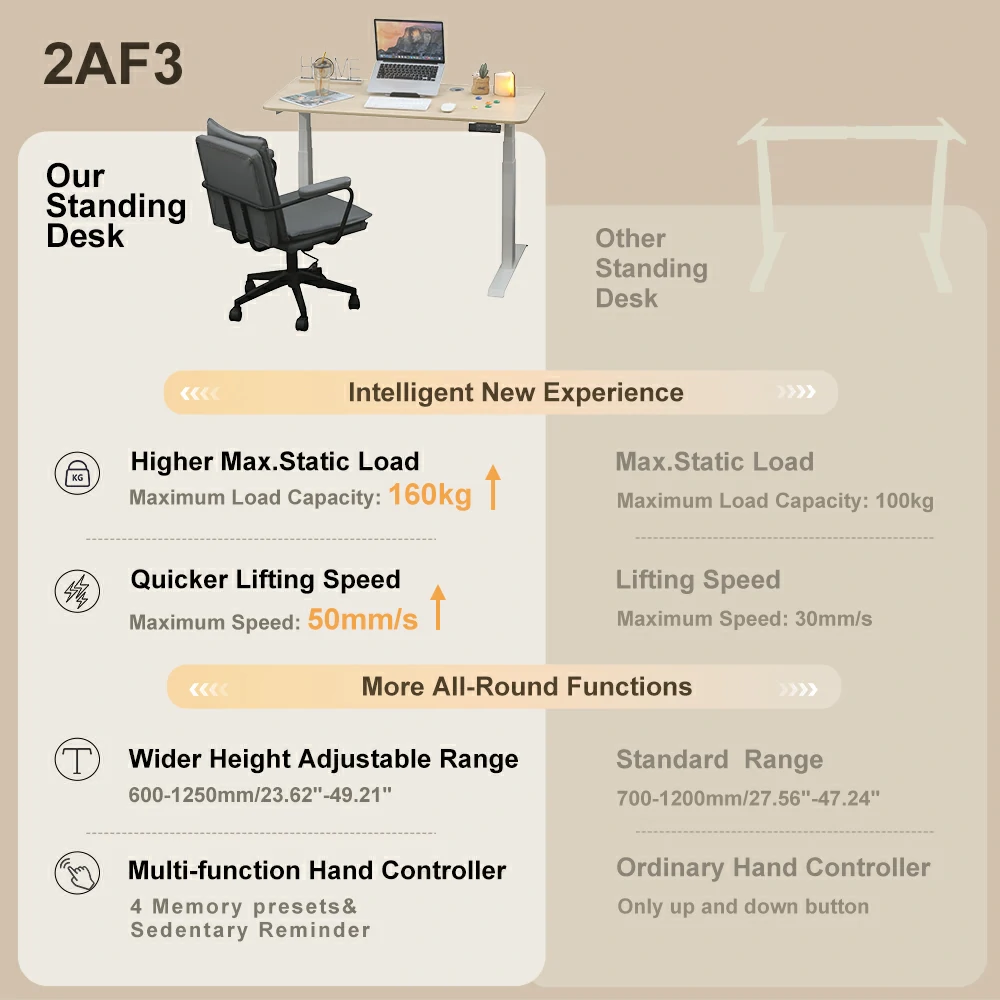

More Power, Wider Range, Better Daily Use

Compared with ordinary standing desk frames, the NT33-2AF3 focuses on stronger static load, faster lifting and a wider height adjustment range.

Higher 160kg maximum load capacity
Faster 50mm/s lifting speed
Wider 600-1250mm height adjustment range
Multi-function hand controller with memory presets

Product Details

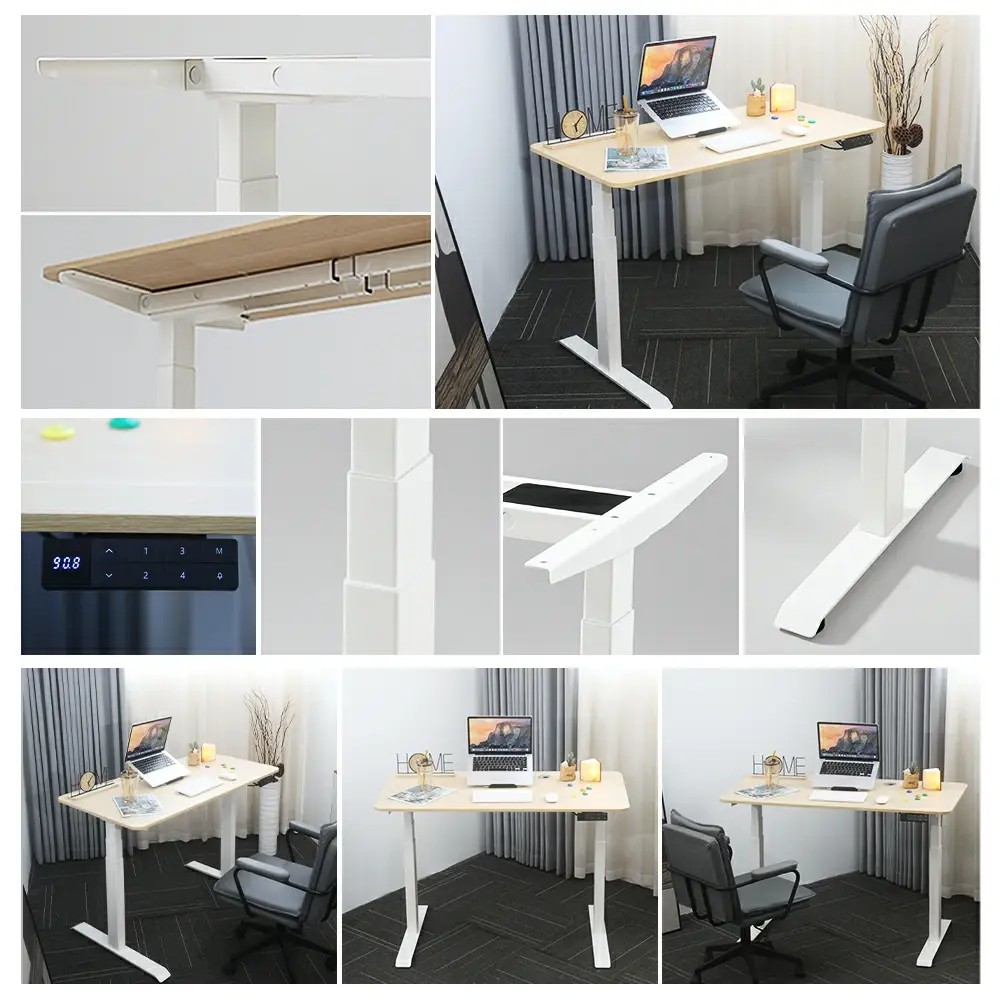

NT33-2AF3 standing desk frame detail gallery with controller column foot and desktop scenes

Clean Structure with Practical Details

From the controller and lifting columns to the desk feet and frame connection, NT33-2AF3 keeps a clean look while supporting stable daily use.

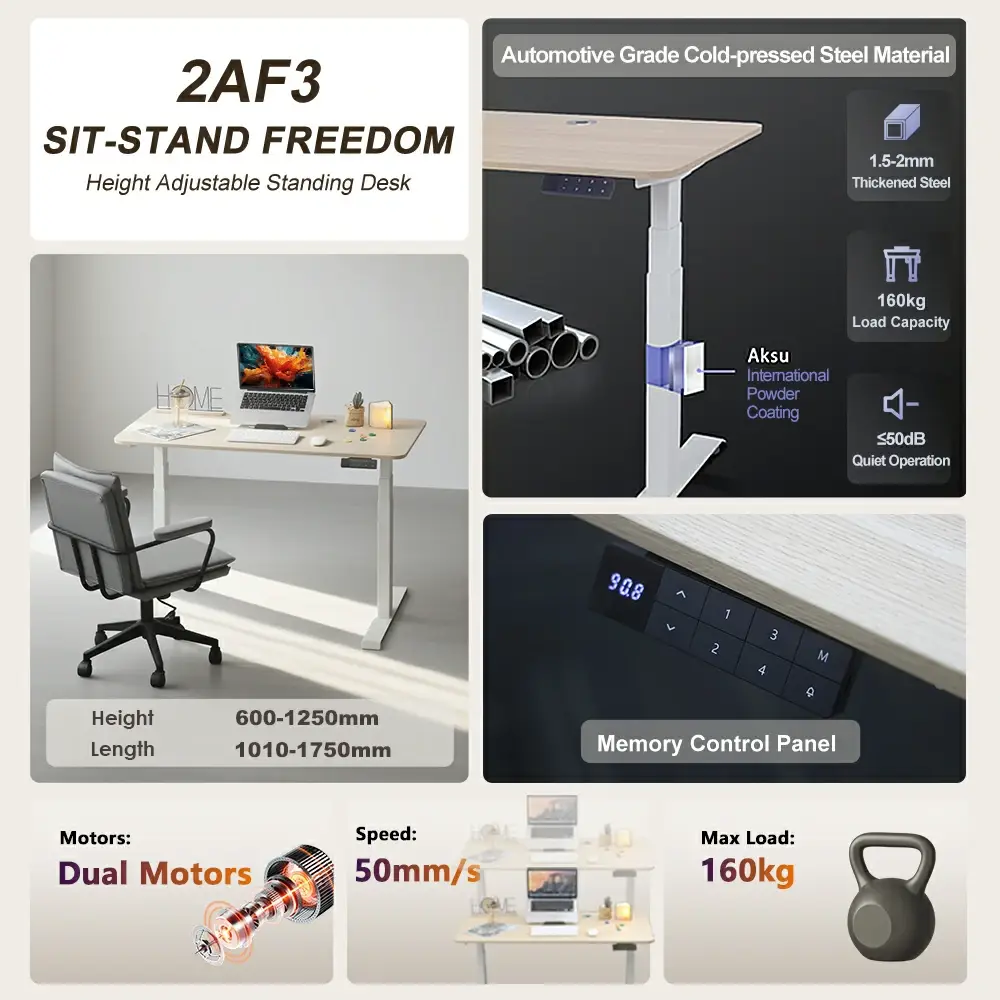

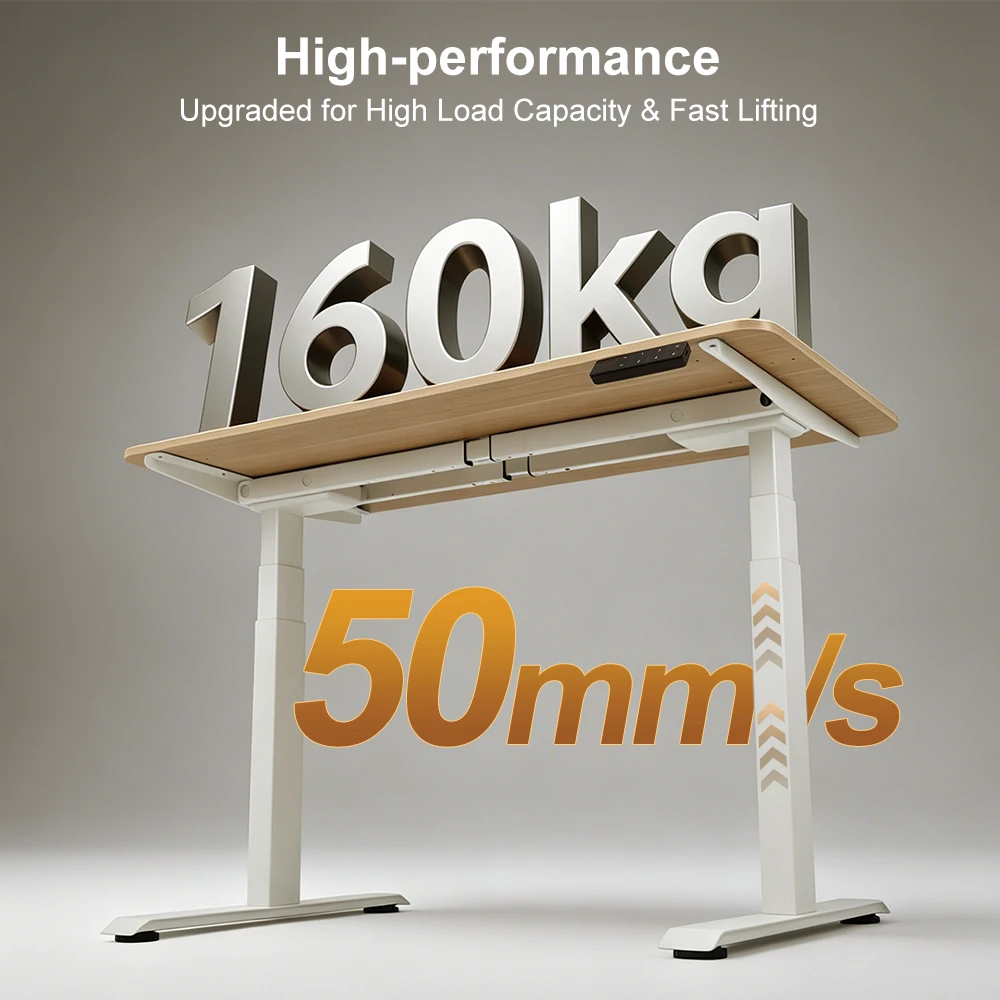

NT33-2AF3 high performance upgraded for 160kg load capacity and 50mm per second fast lifting

High-Performance Version for Heavy-Duty Projects

This 2AF3 version is upgraded for buyers who need higher load capacity and faster lifting.

Workspace Applications

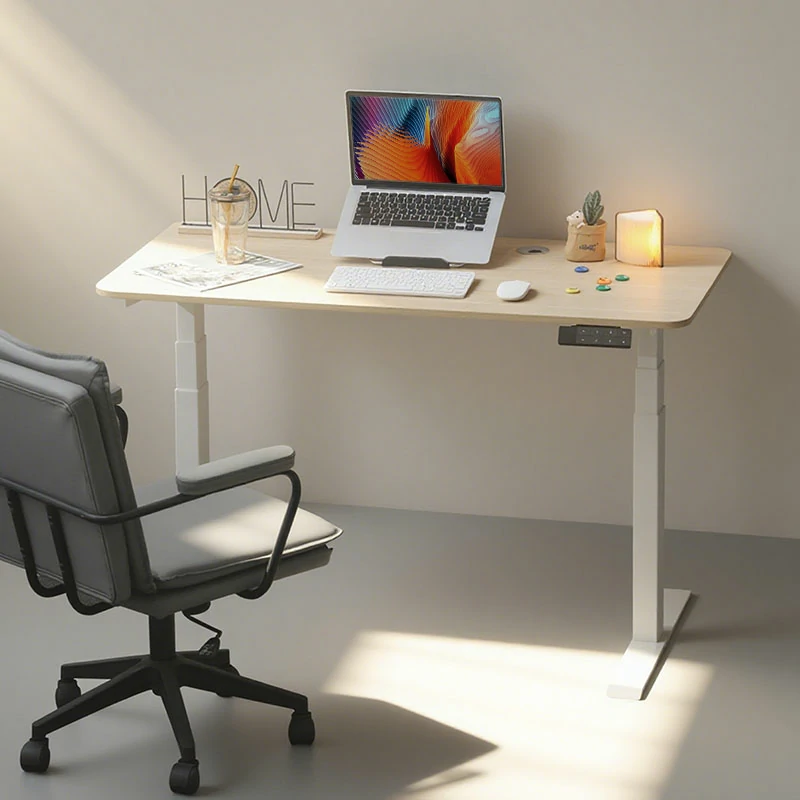

NT33-2AF3 standing desk frame for modern home office

Home Office Desk

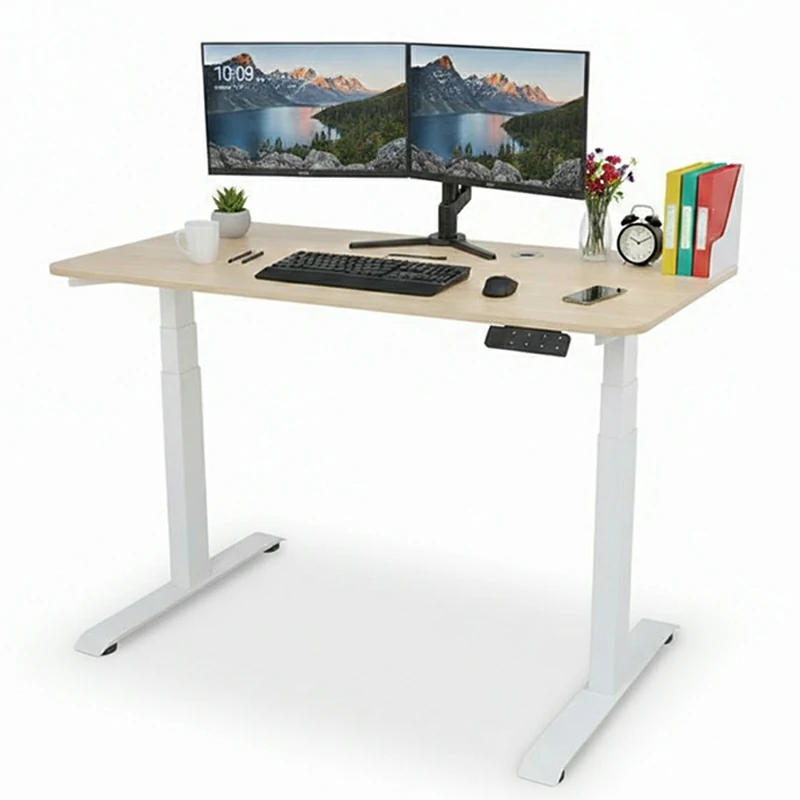

NT33-2AF3 electric standing desk frame with dual monitor setup

Dual Monitor Workstation

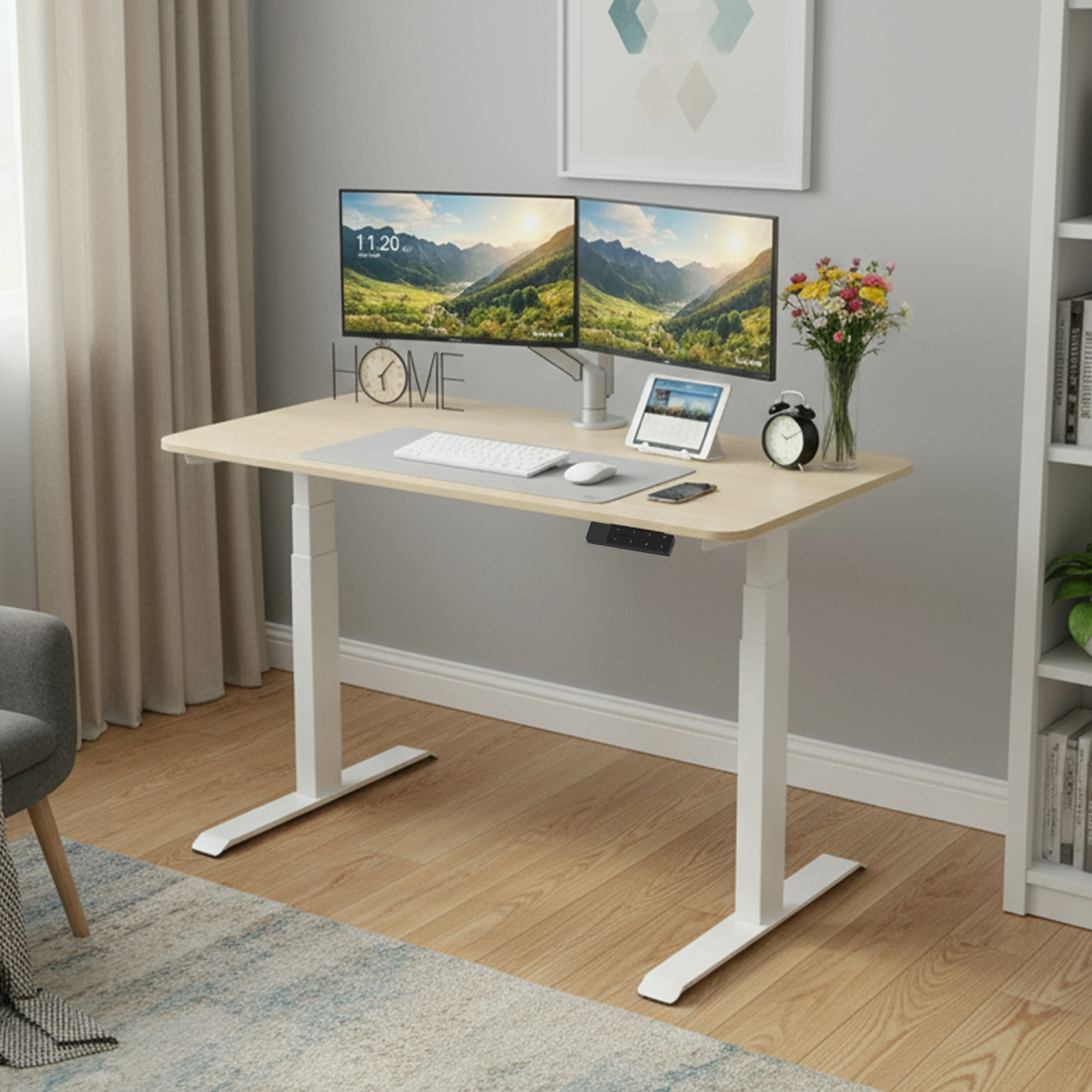

Office Workstation

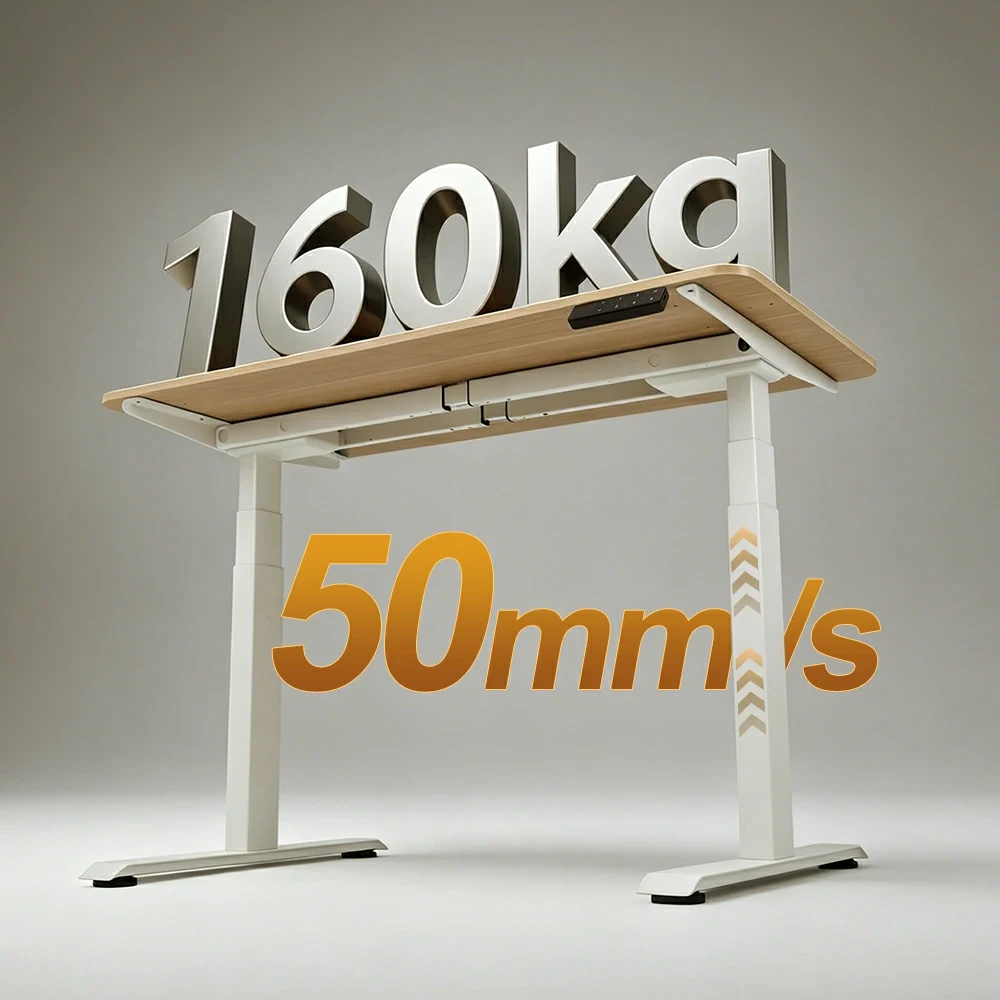

NT33-2AF3 160kg load capacity and 50mm per second lifting speed close-up

Heavy-Duty Performance

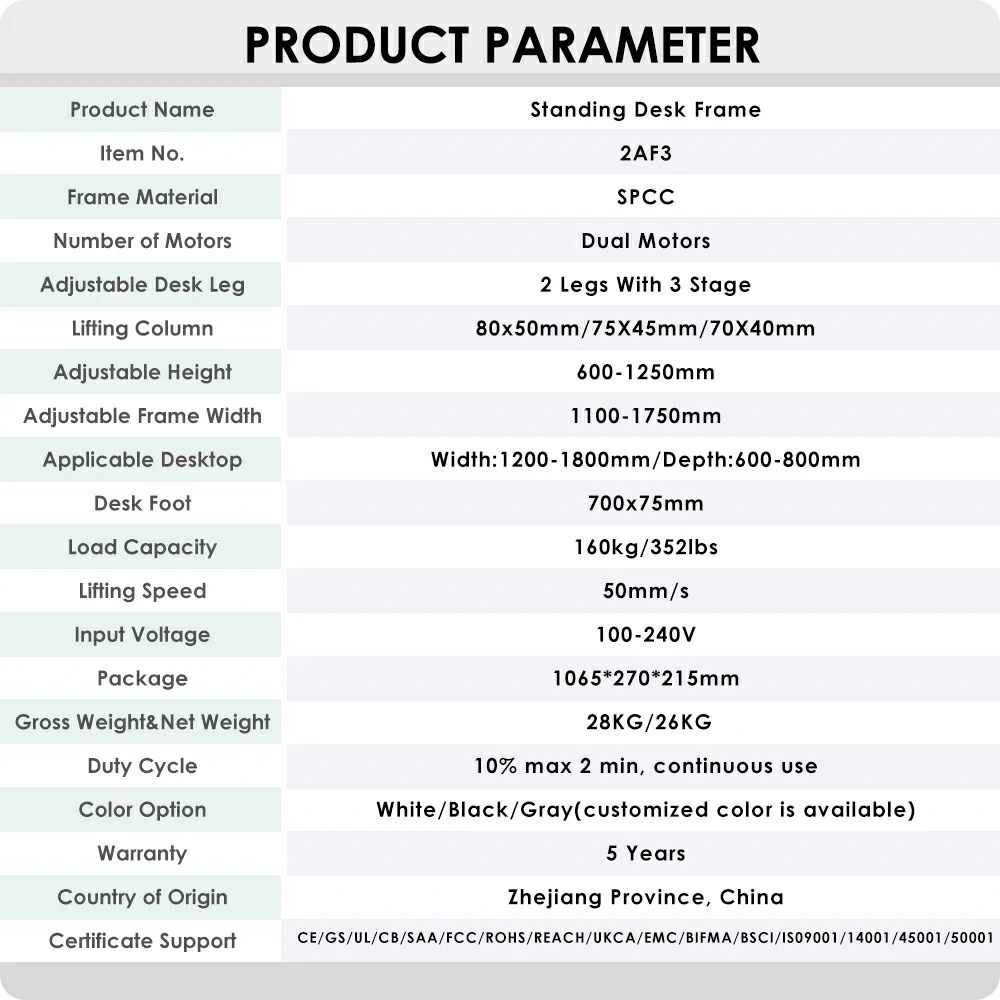

Product Parameters

Customization Overview

Certificate-Warranty

Core Functions

Custom Height Limits: Define your safe zone by setting maximum and minimum height limits to help avoid collisions with nearby furniture or overhead obstacles.

Overload Protection: If your desk exceeds its weight capacity, it will immediately stop moving.

Anti-Collision Retreat: When the desk detects an obstacle during movement, it automatically reverses slightly for added safety.

Specifications

Product Specifications

View / Download Data Sheet

Type	Desk Frame	Model	NT33-2AF3
Material	SPCC	Height Range	600-1250 mm / Stroke: 650 mm
Voltage	100-240 V	Drive Mode	Dual motor
Width Range (Frame)	1100-1750mm	Leg Count	2 legs
Speed	50mm/s	Lift column	Standard 3-Stage Rectangular Columns - 80x50mm / 75x45mm / 70x40mm
Load Capacity	160kg(352lbs)	Feet Size	700x75mm
Tabletop Size(suitable)	Width:1200-1800mm/Depth:600-800mm, customizable	Frame Color	White, Black, Grey, Customizable
Tabletop Color	White, Black, Grey, Customizable	Noise	<50 dB
Features	Anti-collision safety protection	Certificate	CE, UL, BSCI, SAA, BIFMA, RoHS, TÜV, etc.
Warranty	5 years on all parts	Package	Complete set in one EPE carton and pallets for oversea shipment
Delivery Time	Custom drawings in 24 hours; 30 days for standard orders	Package Size

Customization

Custom Support

For height-adjustable desks, we provide four customization solutions to meet different needs:

Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.

Custom Process

Custom-Process

Support For Customization

Customer Satisfaction

Customer-Satisfaction

About Us

Company Info

Our Company Info

Quality Control

Quality-Control-Sample Testing

Quality-Control-Mass Production Quality Control

Quality-Control-After Sales Quality Control

Quality-Control-Certificate

Product Process

Exhibition

Exhibition-desc

Support

packing & Shipping

Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:

Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton

Packaging-List

transportation

After-Sales

Design-Flow

FAQ

Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates

Q2: How about the Warranty of stand up desk ?

A2: 5 Years from factory directly.

Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.

Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote

Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.

Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.

Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.

Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.

Any questions, please don' t hesitate to contact us then. Thanks~
