2SBCF2(E)
NATE
Single Motor
Brushless Motor
Standard Column
Two Stage Column
Description
The NATE 2SBCF2(E) provides a stable and cost-effective lifting platform for furniture brands, distributors and project buyers.

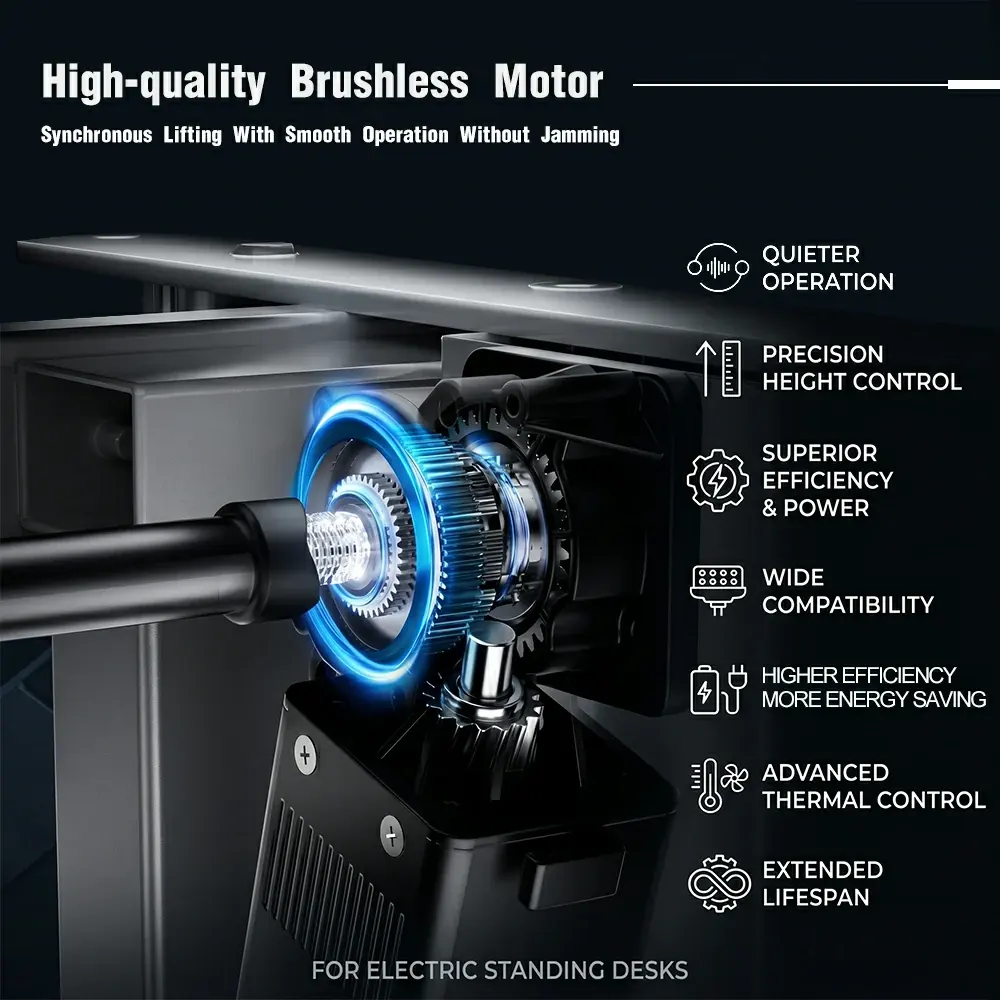

Its brushless motor, reinforced square columns and flexible frame design make it suitable for home office desks, commercial workstations and scalable OEM/ODM product programs.
Efficient and consistent lifting for daily desk applications.
Reinforced steel construction improves structural stability.
Square lifting columns provide a solid and balanced platform.
Designed for heavier desktop and equipment configurations.
Supports multiple desktop sizes for different product programs.
A practical solution for volume purchasing and OEM/ODM projects.
• Black, white, gray or customized frame colors

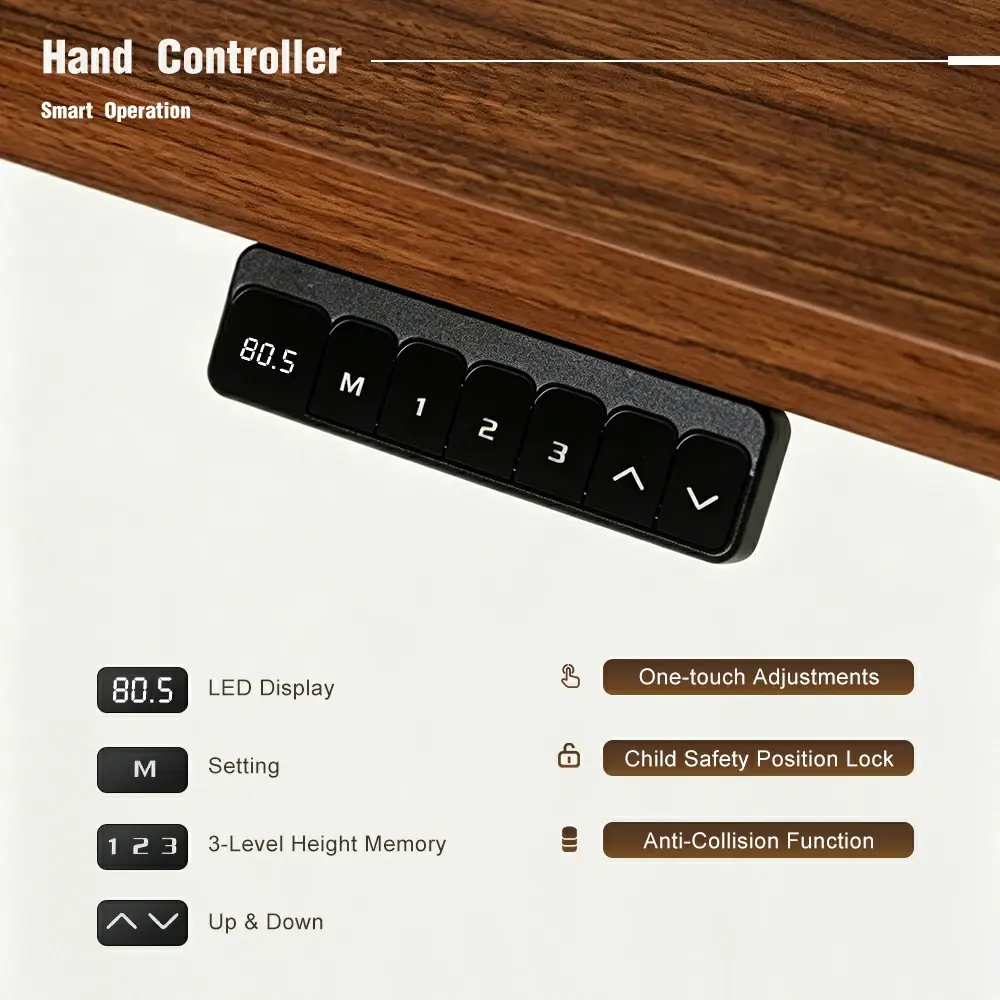

• LED display hand controller
• Three height memory presets
• One-touch height adjustment
• Anti-collision protection
• Child safety lock
• Compatible desktop sizes from 1200 × 600 mm to 1600 × 800 mm
Features and accessories may vary by configuration. Contact NATE for available OEM/ODM options.
Specifications
Specification | Details |
|---|---|
Product Name | Standing Desk Frame |
Model | 2SBCF2(E) |
Frame Material | SPCC Steel |
Motor System | Single Brushless Motor |
Leg Design | 2 Upward Legs |
Column Type | Standard 2-Stage Square Columns |
Column Size | 60 × 60 mm / 55 × 55 mm |

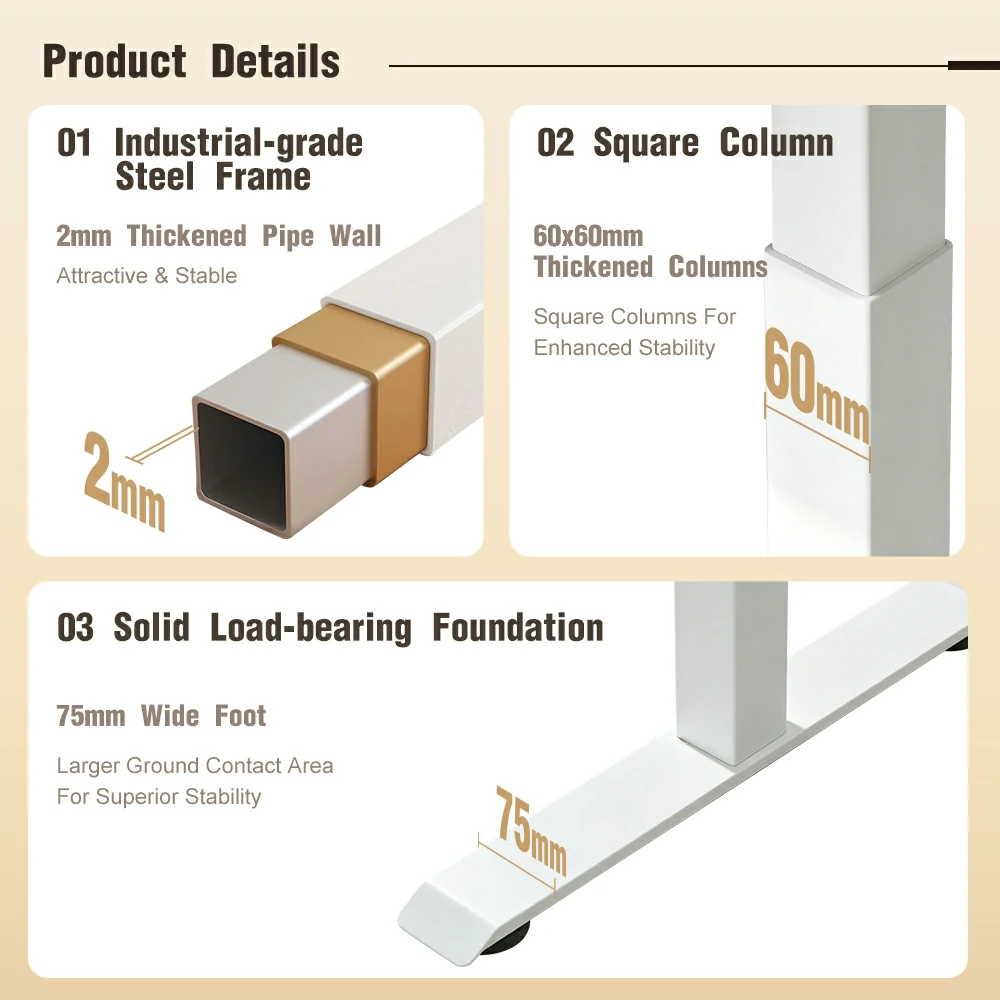

Tube Wall Thickness | 2 mm |

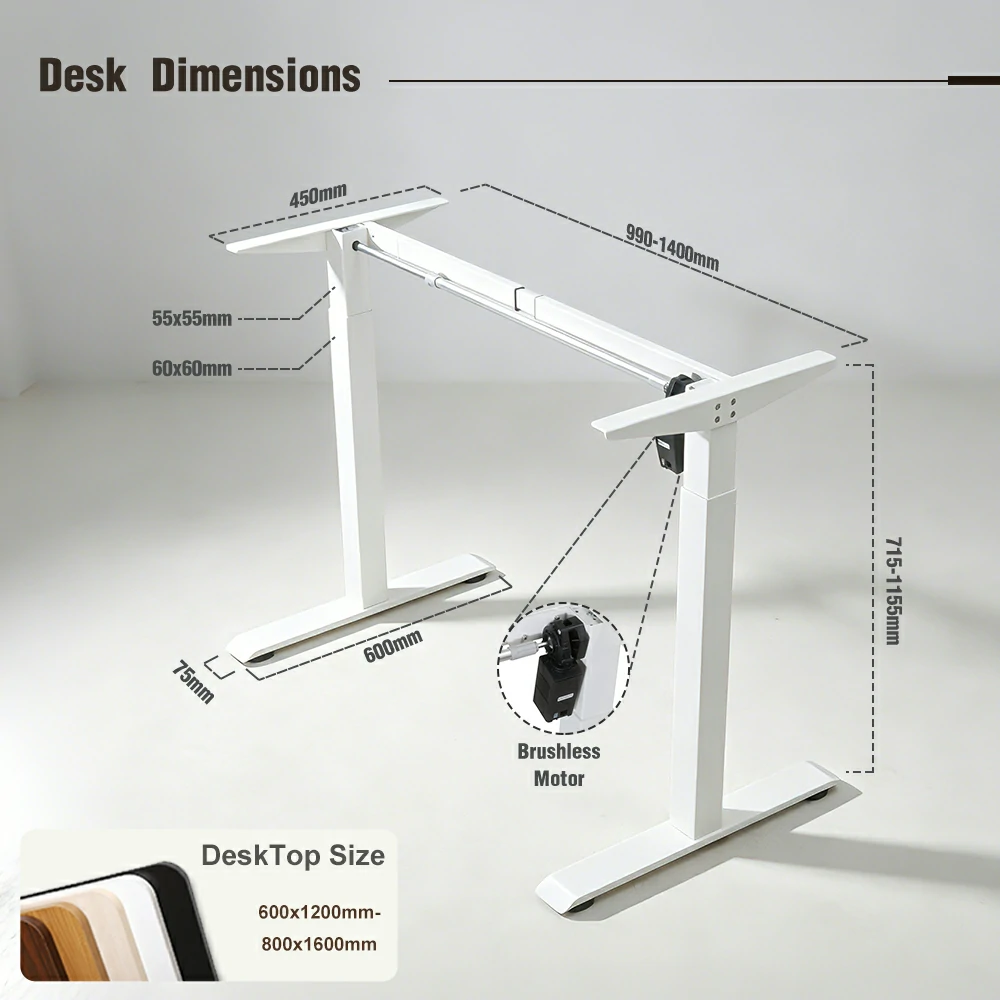

Adjustable Height | 715–1155 mm / 28.15″–45.47″ |
Adjustable Frame Width | 990–1400 mm / 38.98″–55.12″ |
Applicable Desktop Width | 1200–1600 mm / 47.24″–62.99″ |
Applicable Desktop Depth | 600–800 mm / 23.62″–31.50″ |
Desk Foot Size | 600 × 75 mm / 23.62″ × 2.95″ |

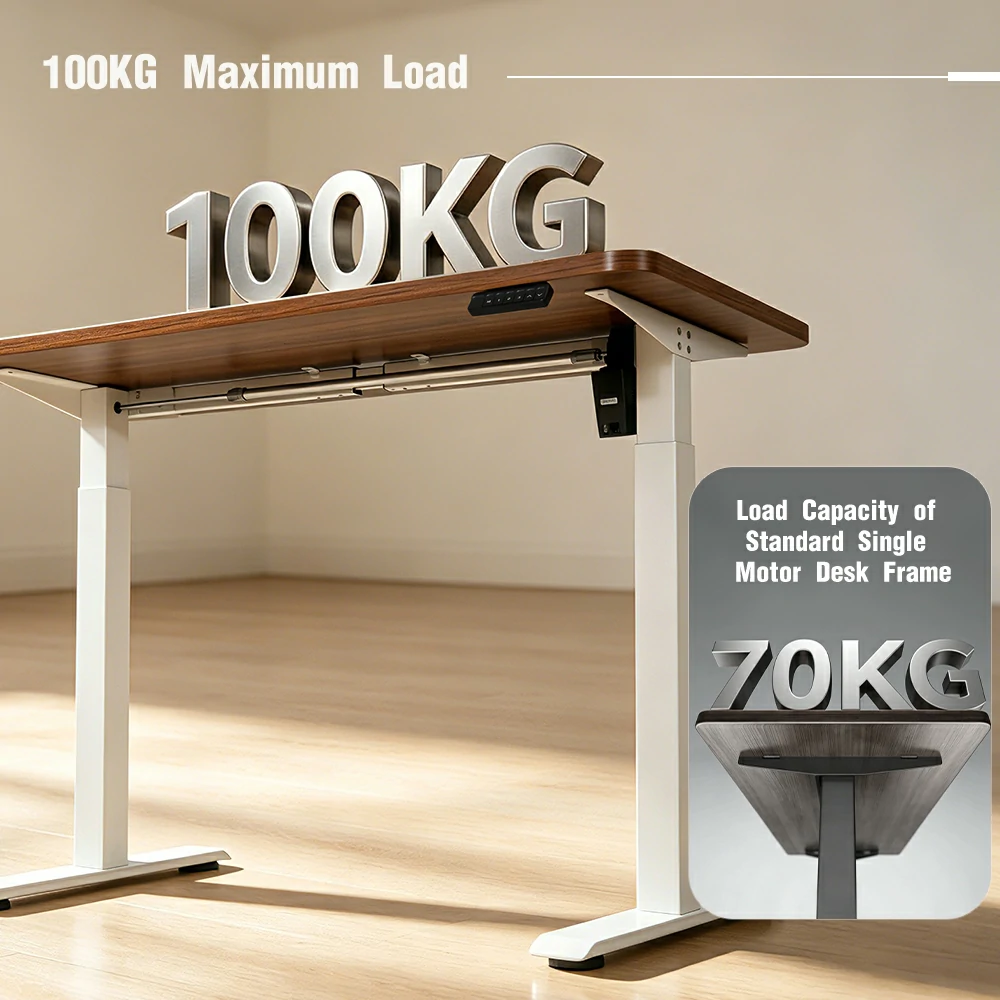

Load Capacity | 100 kg / 220 lbs |
Lifting Speed | 20 mm/s |
Input Voltage | 100–240V |
Duty Cycle | 10%, maximum 2 minutes of continuous operation |
Standard Colors | Black / White / Gray |
Customized Colors | Available |
Warranty | 5 Years |
Country of Origin | Zhejiang, China |
Package | Carton Size | Gross Weight | Net Weight |
|---|---|---|---|
Package | 1065 × 345 × 120 mm | 19.9 kg | 17.3 kg |
Compliance and certificate support may include CE, GS, UL, CB, SAA, FCC, RoHS, REACH, UKCA, EMC and BIFMA, depending on the selected configuration and target market.
Factory and management system support includes BSCI, ISO 9001, ISO 14001, ISO 45001 and ISO 50001.
