NT33-2TDIF3
NATE
Dual Motor
Brushed Motor
Standard Column
Three Stage Column
Description

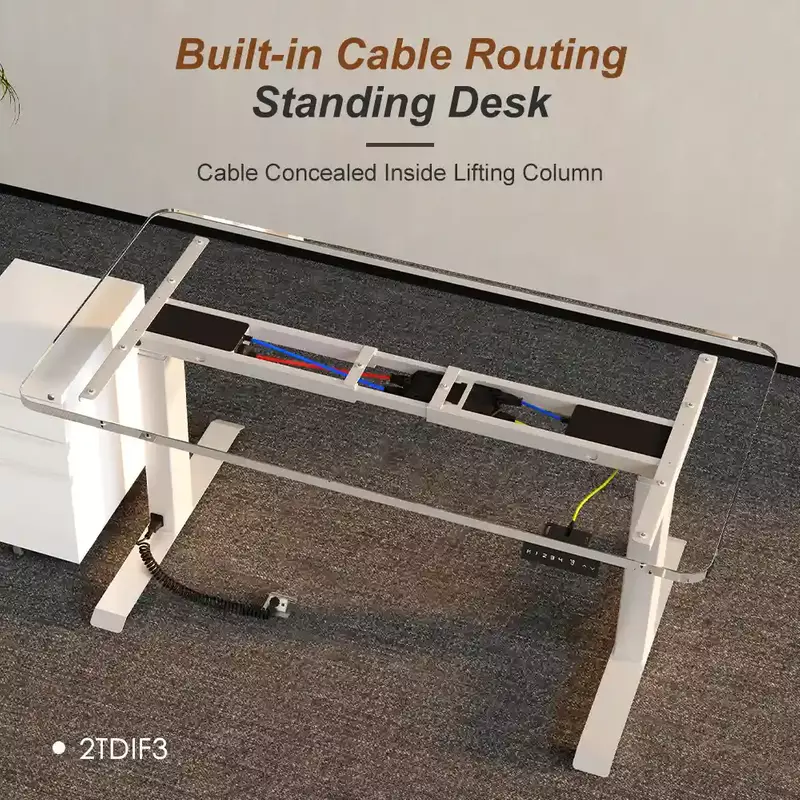

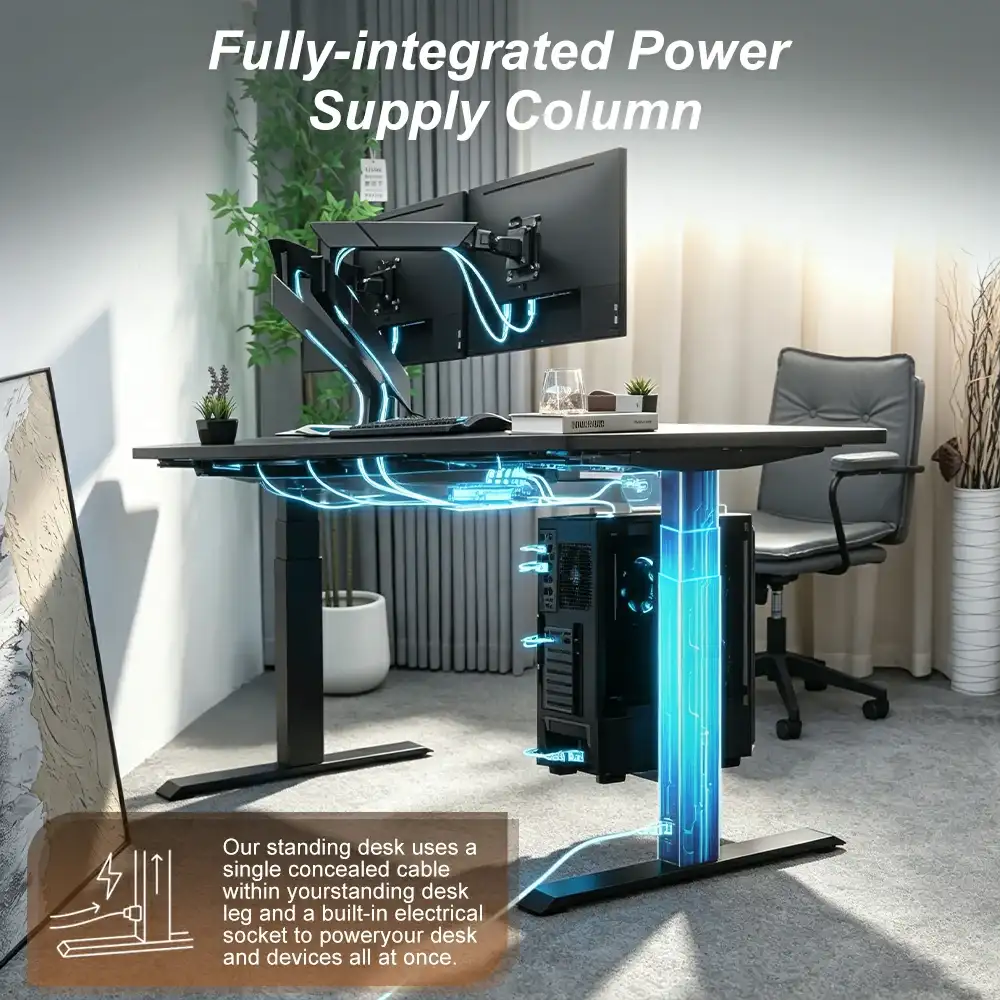

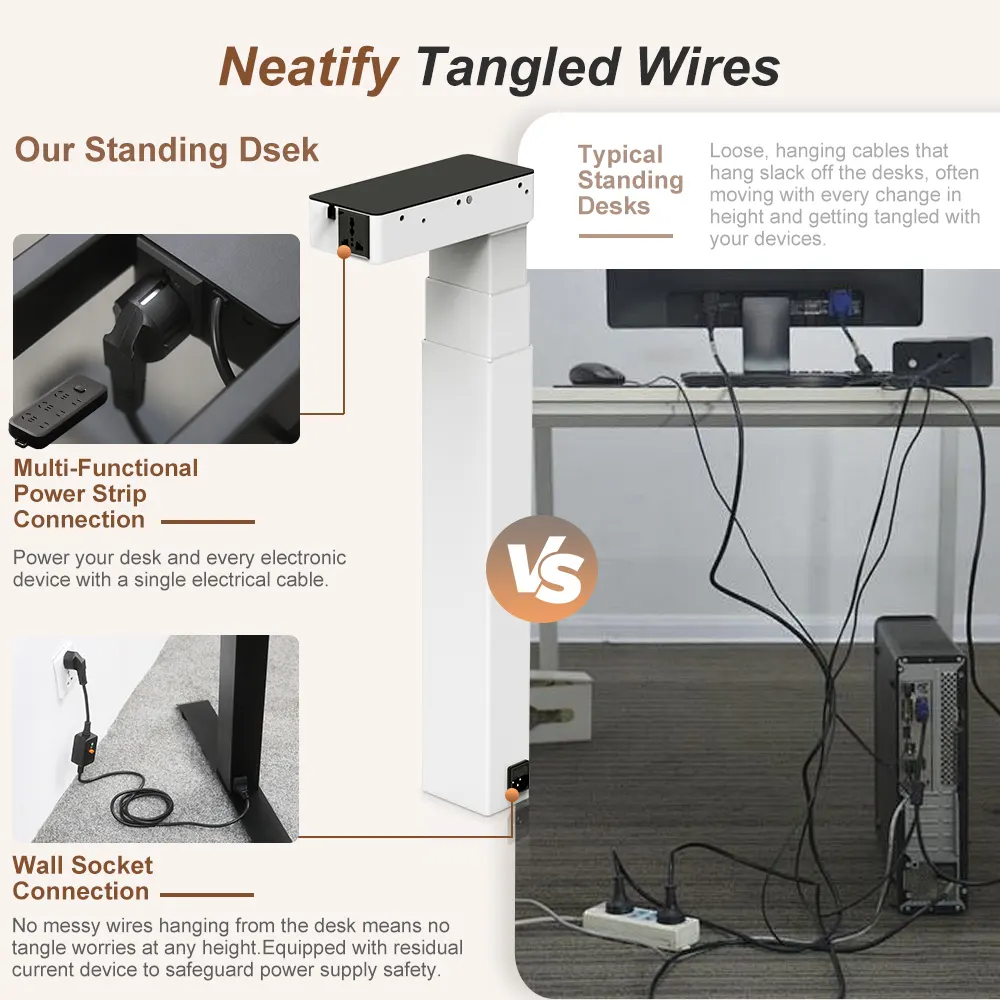

The 2TDIF3 integrates power and cable routing directly into the lifting columns and frame structure. This helps reduce hanging cables beneath the desk and keeps the workspace cleaner during height adjustment.
With fewer exposed cables and less clutter under the desktop, users gain more usable space and a more organized sit-stand workstation.
What is the product?
Dual-motor 3-stage standing desk frame.
What makes it different?
Fully integrated power and cable routing.
What problem does it solve?
Cable clutter and loss of under-desk space.
Who is it for?
Office, home office, contract furniture, OEM/ODM.
What sizes does it support?
1200–1800 mm desktop width.
What are the main specs?
120KG / 40mm/s / 600–1250mm.
Can it be customized?
Yes.
Specifications
Specification | Details |
|---|---|
Product Name | Integrated In-Column Power Standing Desk Frame |
Model | NT33-2TDIF3 |
Frame Material | SPCC |
Number of Motors | Dual Motors |
Leg Structure | 2 Legs, 3-Stage |

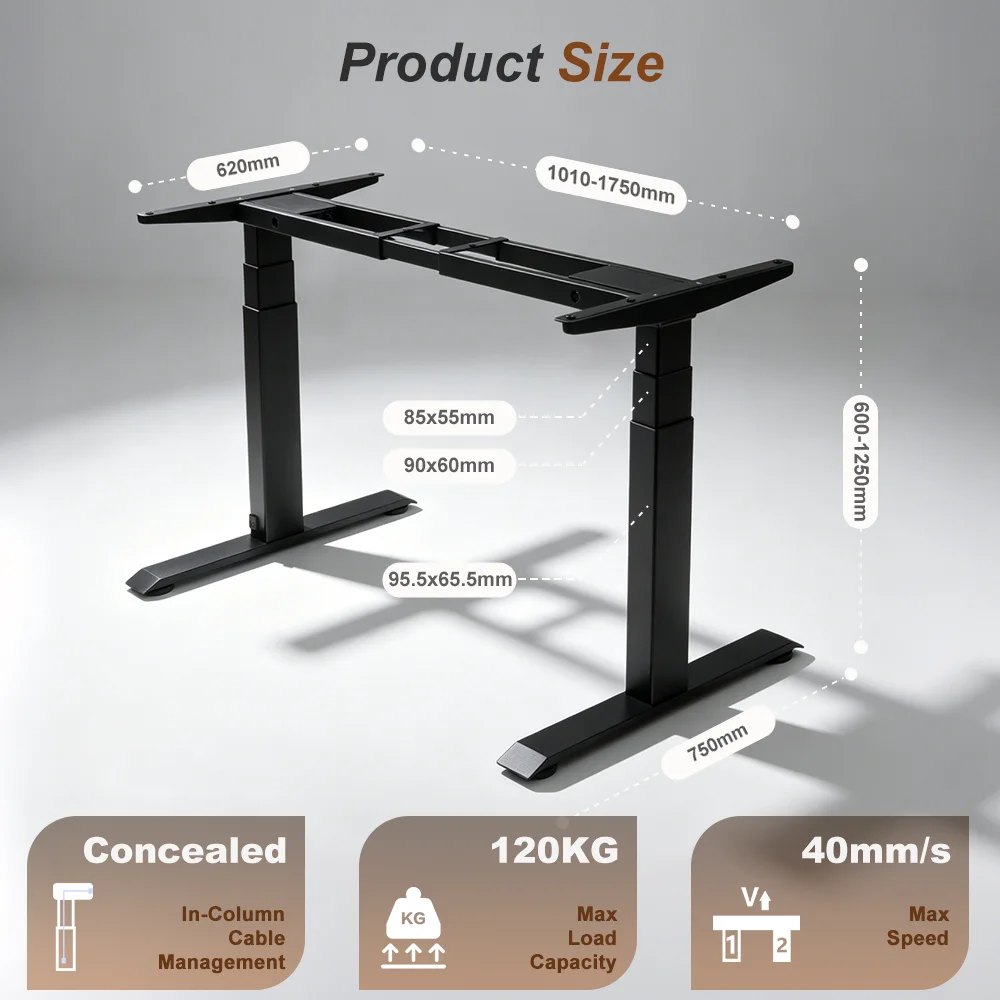

Lifting Column | 85 × 55 mm / 90 × 60 mm / 95.5 × 65.5 mm Rectangular Tube |
Height Range | 600–1250 mm |
Adjustable Frame Width | 1010–1750 mm |
Recommended Desktop Size | Width: 1200–1800 mm / Depth: 600–800 mm |
Foot Size | 750 × 85 mm |
Load Capacity | 120 kg / 264 lbs |

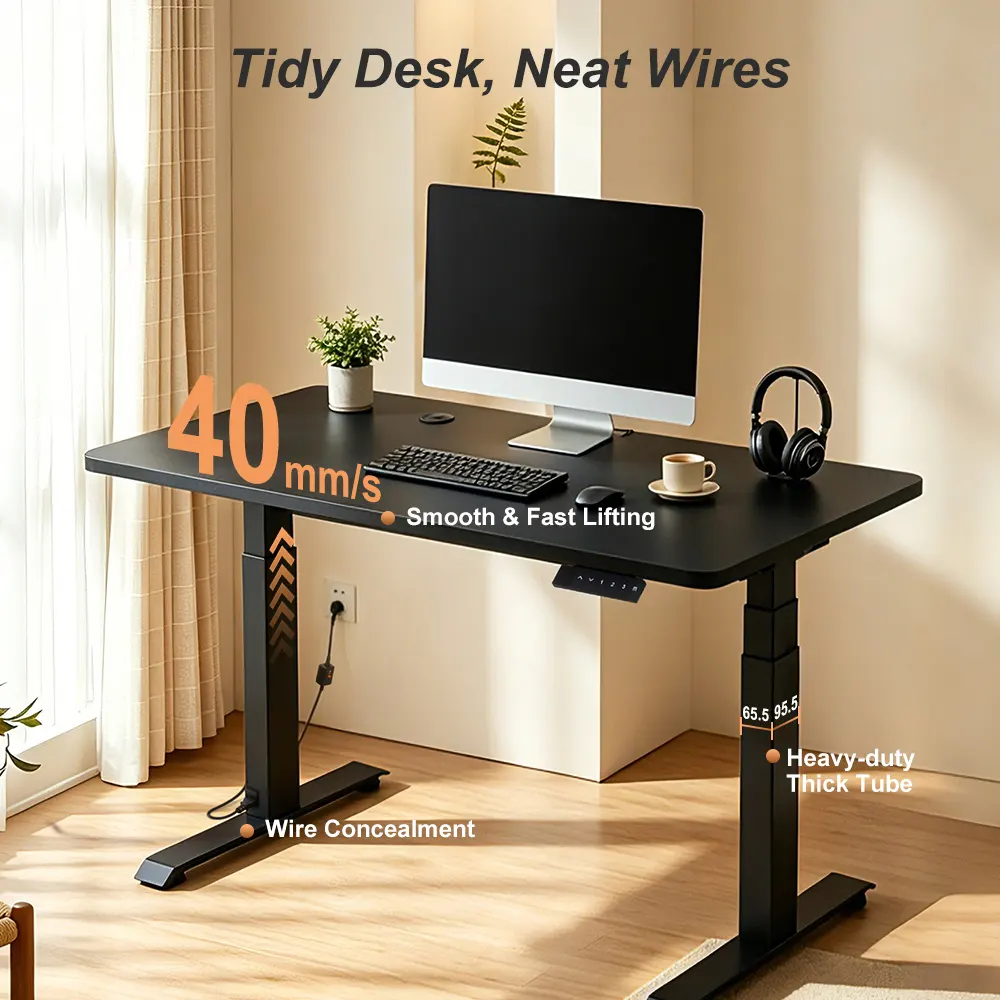

Lifting Speed | 40 mm/s |
Input Voltage | 100–240V |
Duty Cycle | 10%, max. 2 min continuous use |
Color Options | White / Black / Gray / Customized |
Warranty | 5 Years |
Country of Origin | Zhejiang Province, China |
Package | Carton Size | Gross Weight | Net Weight |
|---|---|---|---|
Package | 1060 × 290 × 210 mm | 30.73 kg | 28.73 kg |
Compliance and certificate support may include CE, GS, UL, CB, SAA, FCC, RoHS, REACH, UKCA, EMC and BIFMA, depending on the selected configuration and target market.
Factory and management system support includes BSCI, ISO 9001, ISO 14001, ISO 45001 and ISO 50001.
Related Videos
Custom/FAQ
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
