NT33-2AF3-D5
NATE
Dual Motor
Brushed Motor
Standard Column
Three Stage Column
Description

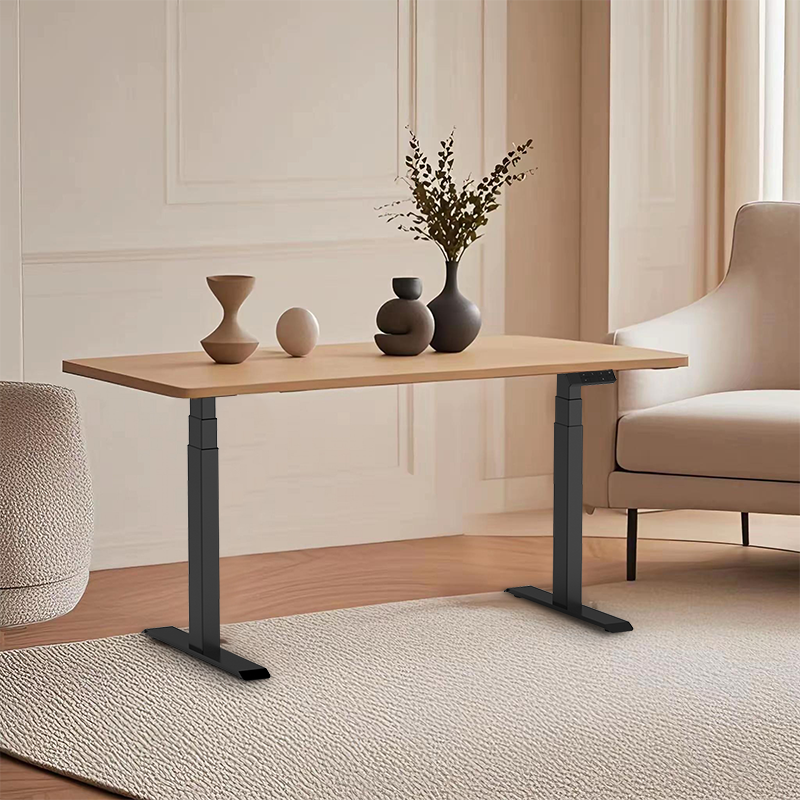

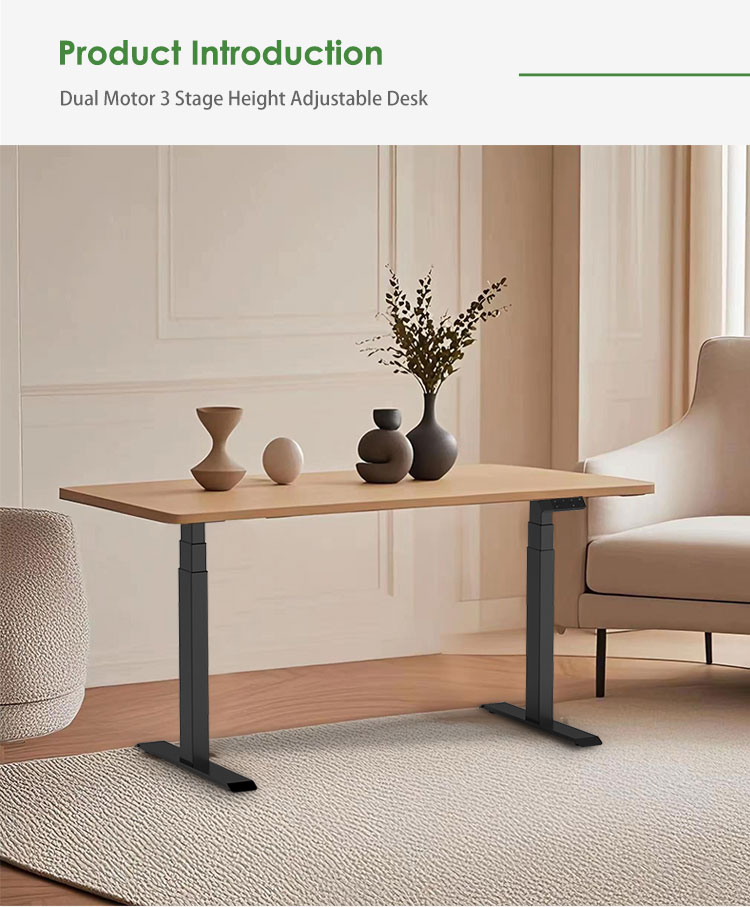

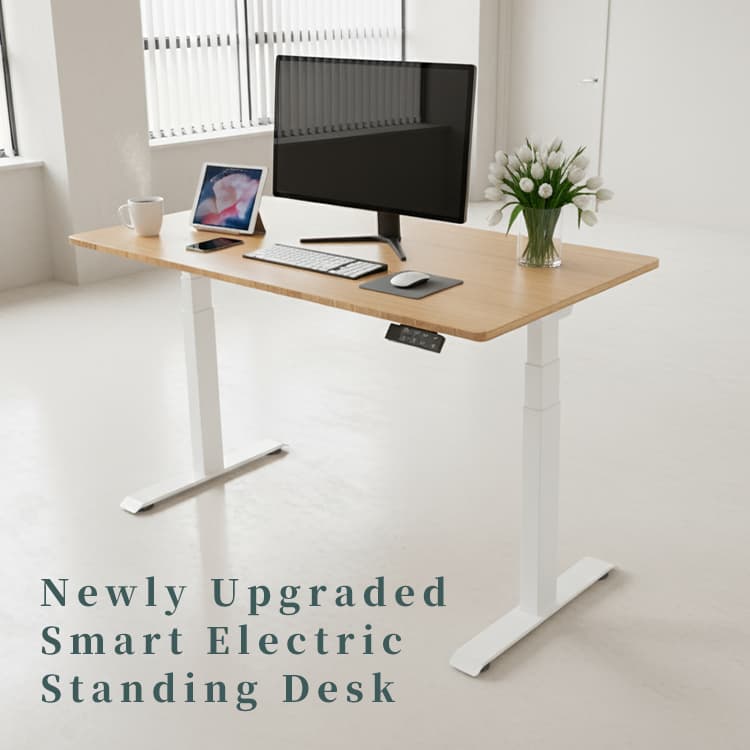

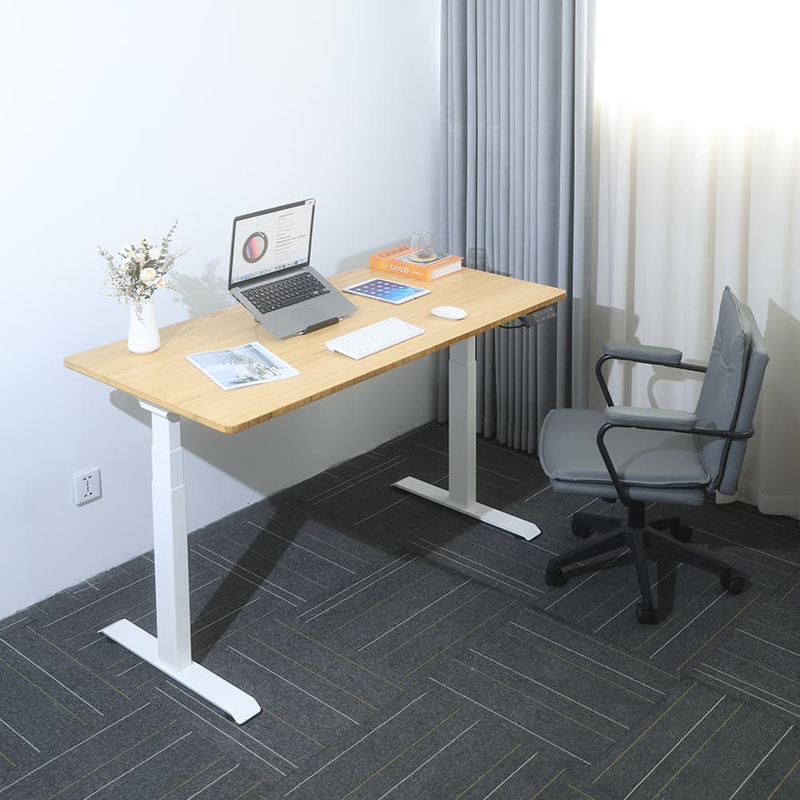

Elevate any workspace with the 2AF3-D5 electric desk frame. Its robust dual-motor, 3-stage lifting system ensures smooth, quiet, and swift height adjustments at 30mm/s. The sturdy steel construction provides exceptional stability at any height, creating a solid foundation for productivity and style.

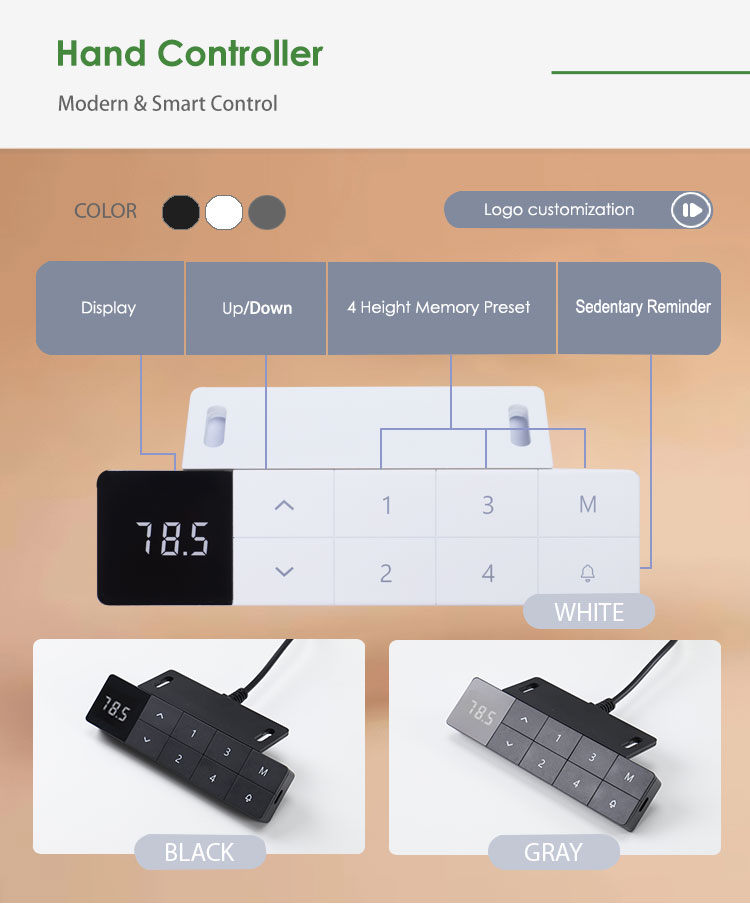

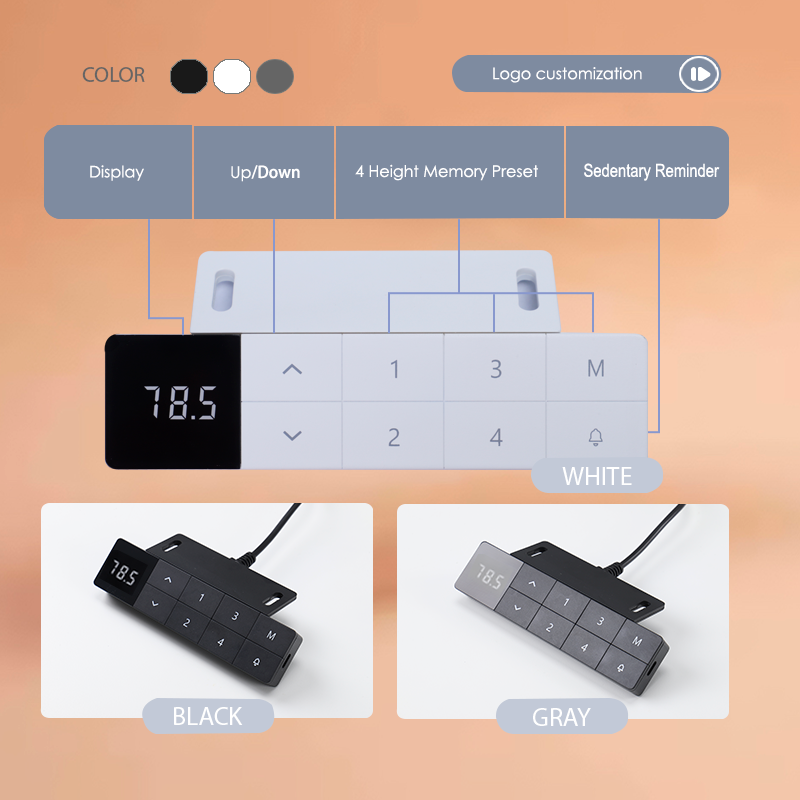

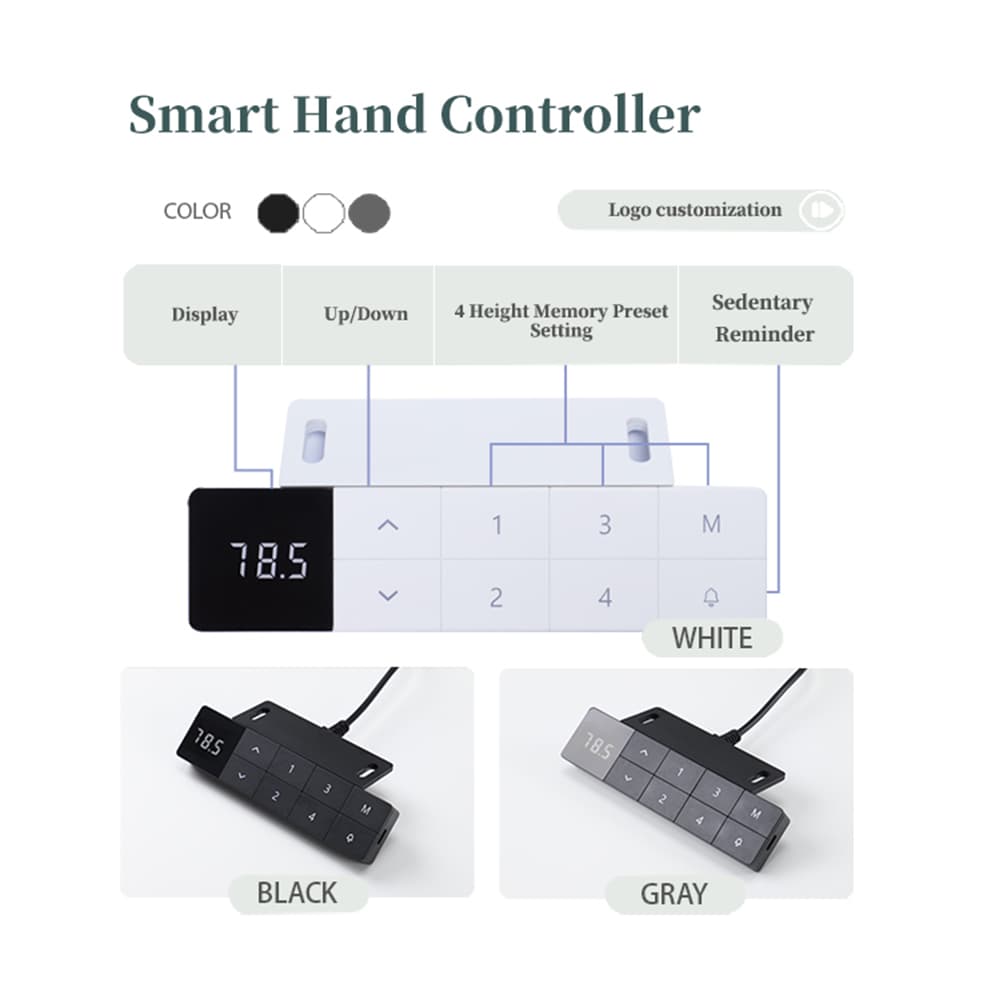

Experience seamless transitions with the modern smart controller. Featuring a clear digital display, 4 programmable memory presets, and a helpful sedentary reminder, you can effortlessly switch between your favorite sitting and standing heights, personalizing your ergonomic comfort throughout the day.
Built to handle demanding setups, our desk frame boasts a powerful load capacity of up to 120kg. This ensures your entire workstation, including multiple monitors and equipment, is fully supported with unwavering stability, giving you the confidence to focus on your work.

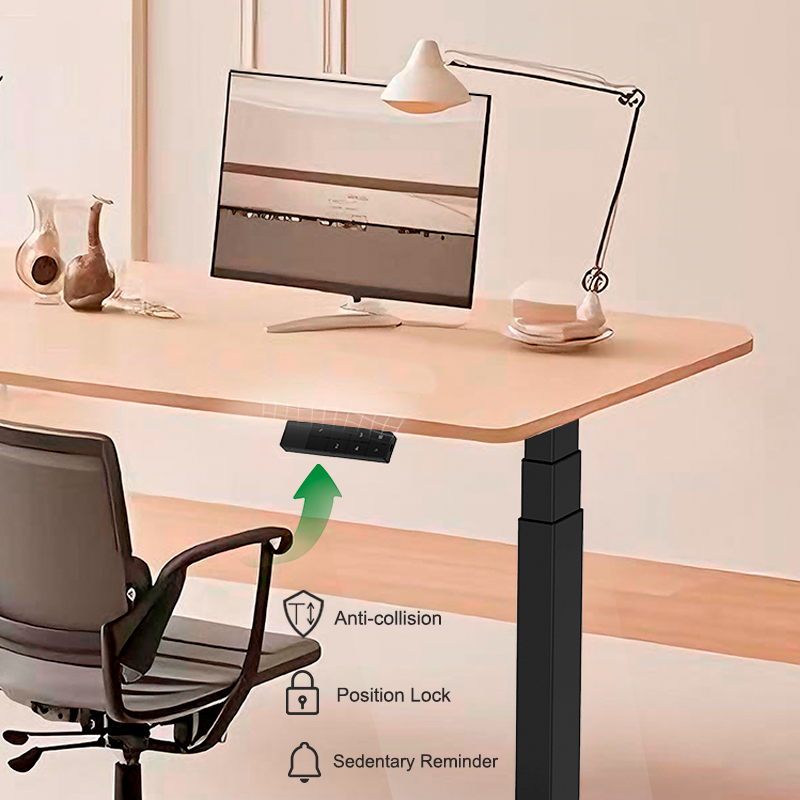

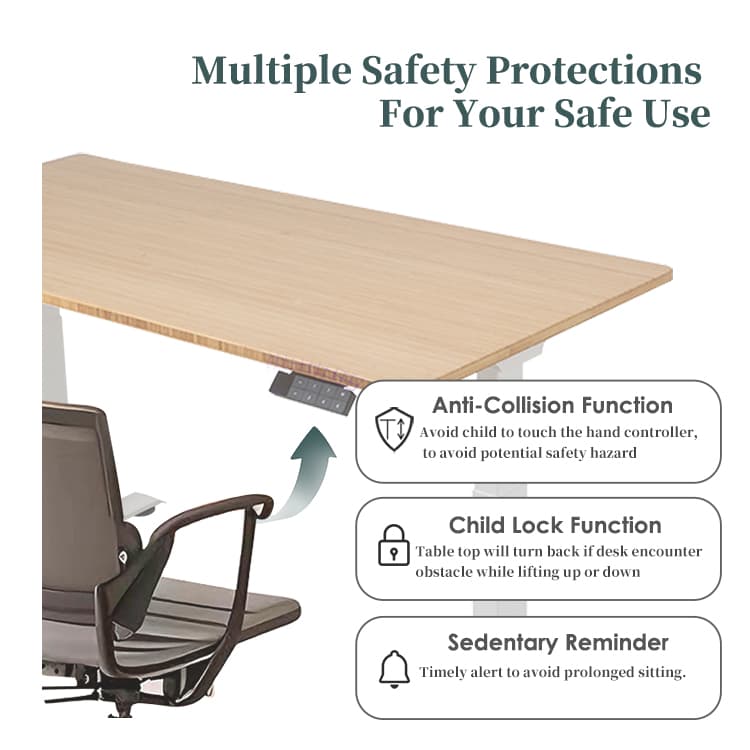

Work with confidence knowing our desk is designed with your safety first. The integrated anti-collision system automatically stops and retracts when it detects an obstacle. Features like Position Lock add an extra layer of safety, guarding every move with care.

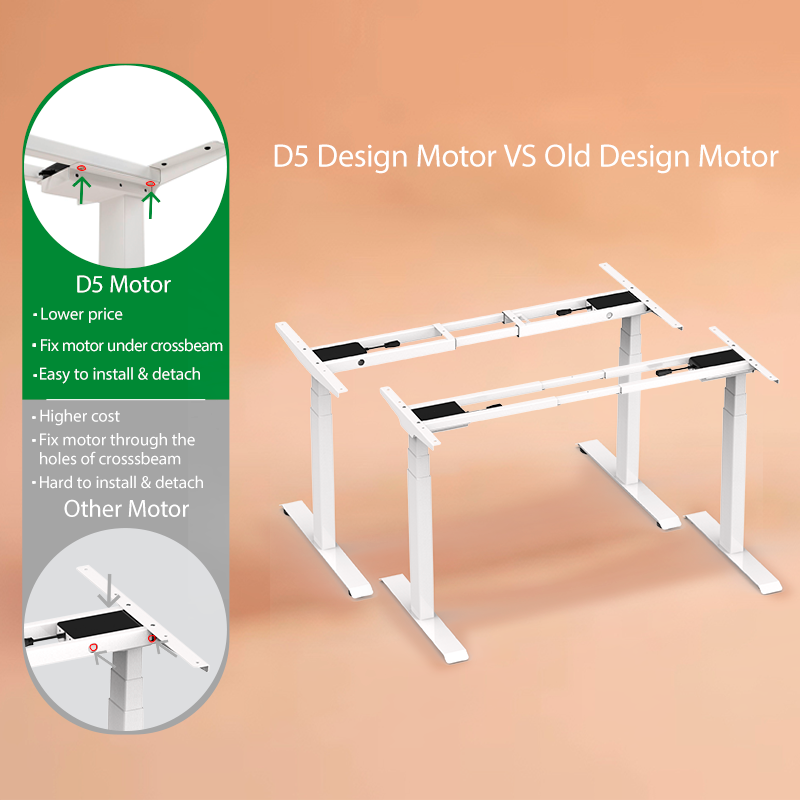

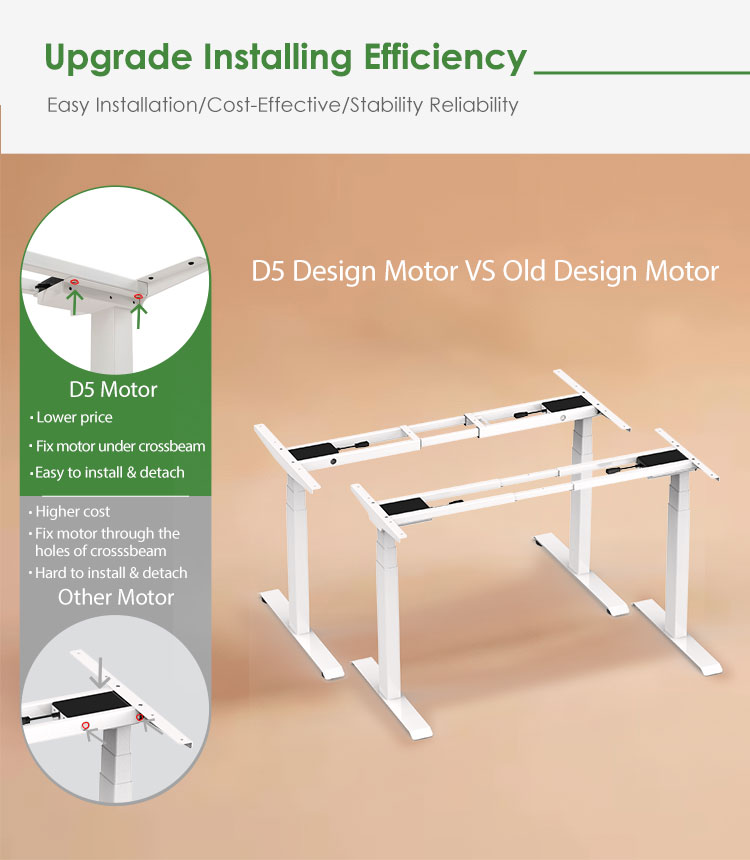

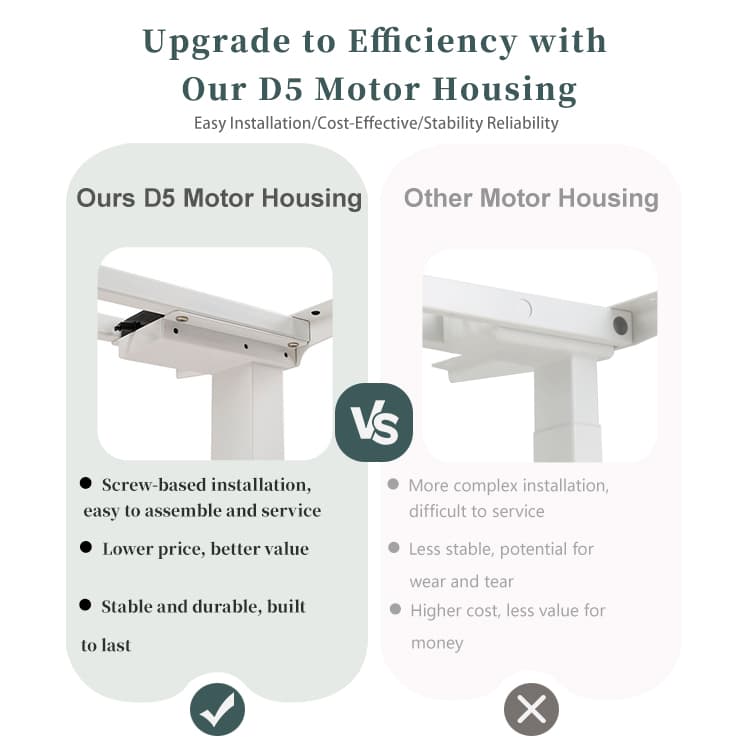

The advanced D5 motor design streamlines the installation process. By fixing the motor directly under the crossbeam, we've made assembly and detachment quicker and easier than ever. This cost-effective and reliable innovation enhances both installation efficiency and long-term stability.

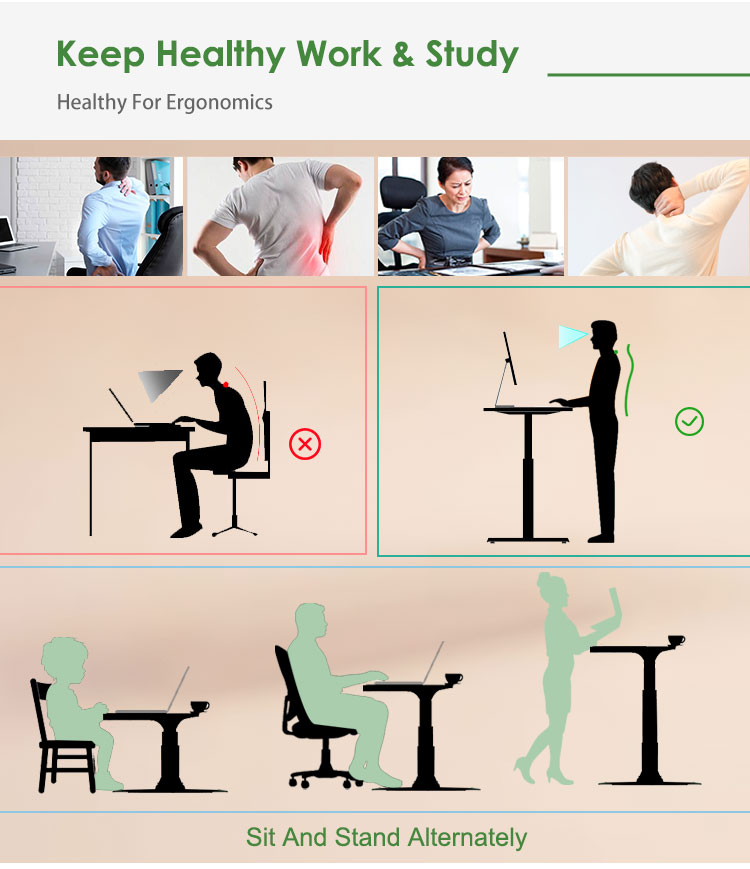

Break free from a static posture. Alternating between sitting and standing throughout the day is key to reducing back pain, improving circulation, and boosting focus. Our adjustable desk empowers you to seamlessly integrate movement into your workday for enhanced well-being and productivity.

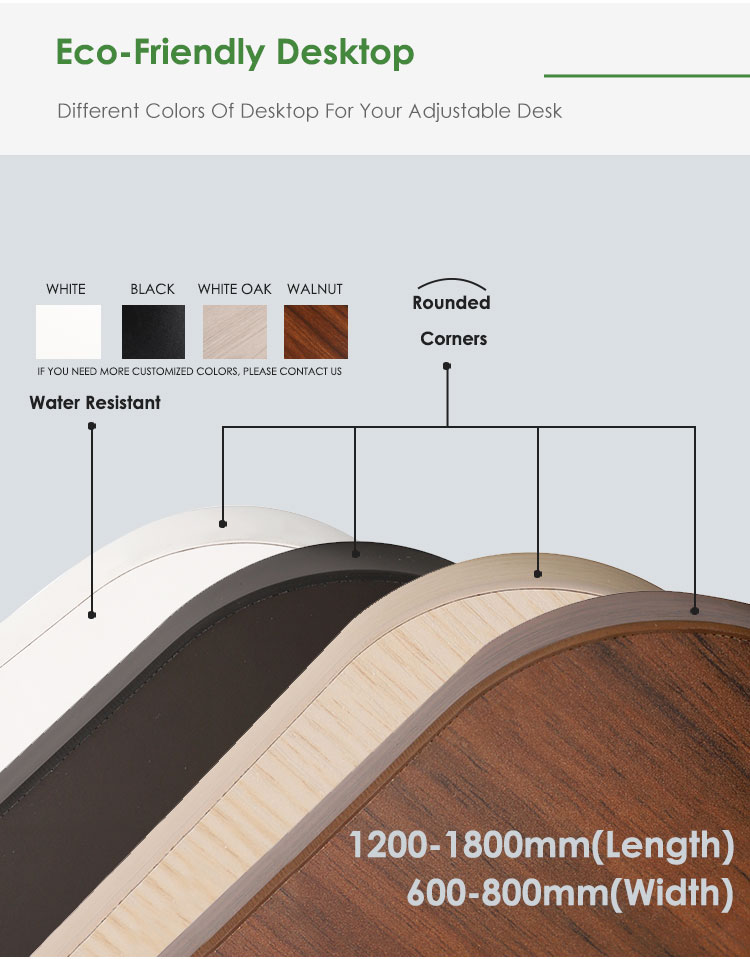

Create a desk that perfectly matches your aesthetic. Choose from a variety of eco-friendly desktop colors, including White, Black, White Oak, and Walnut. Each top is crafted with family-friendly rounded corners and a durable, water-resistant finish, available in lengths from 1200-1800mm to fit your space.

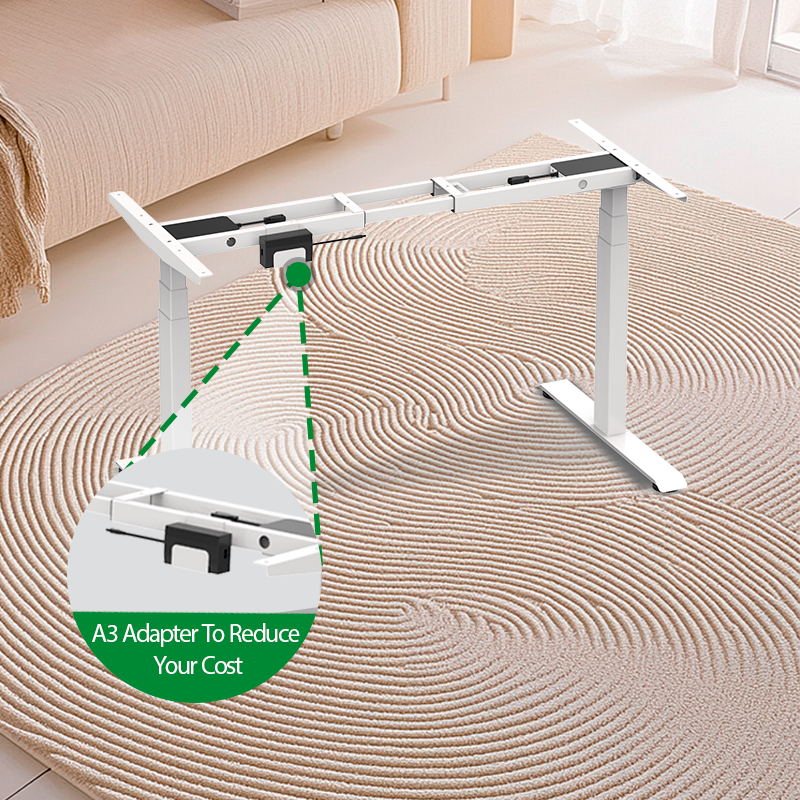

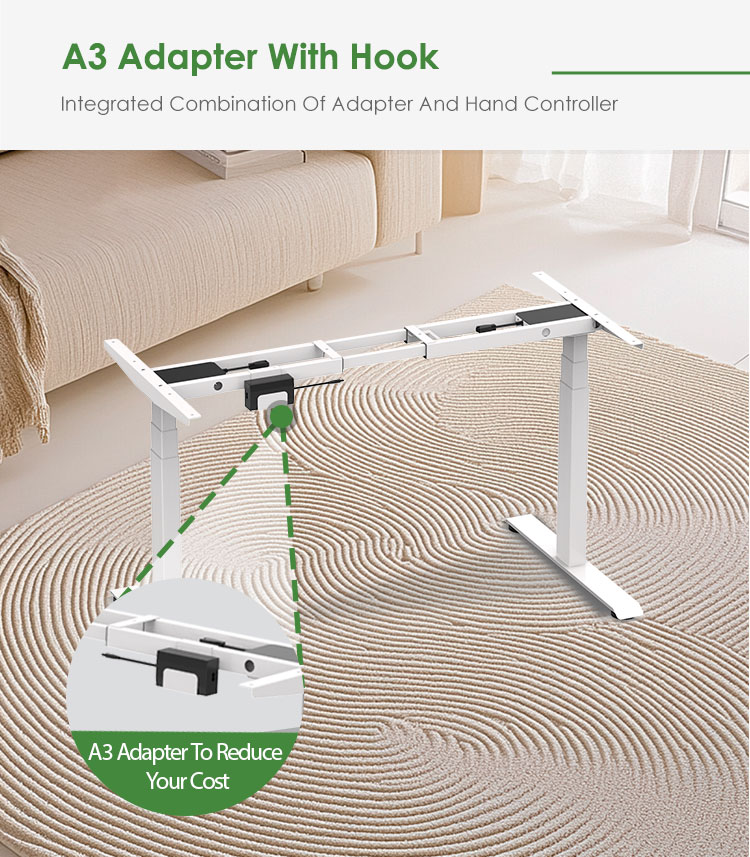

Our innovative A3 adapter combines the power adapter and hand controller into a single, streamlined unit. This smart integration not only reduces clutter but also significantly lowers your costs. The thoughtful addition of a built-in hook provides convenient storage for headphones or cables, adding to its practical value.

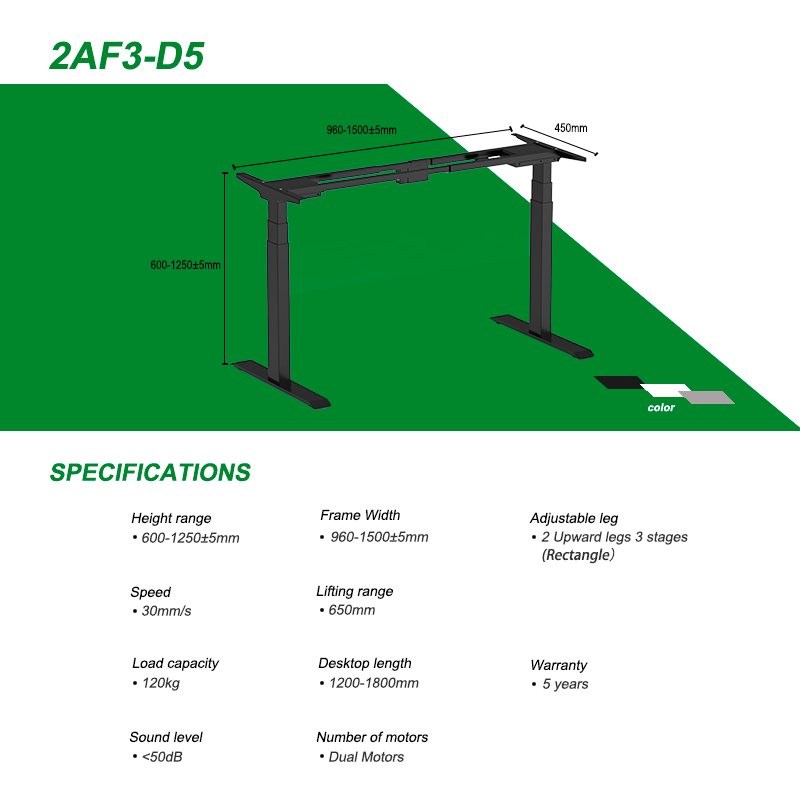

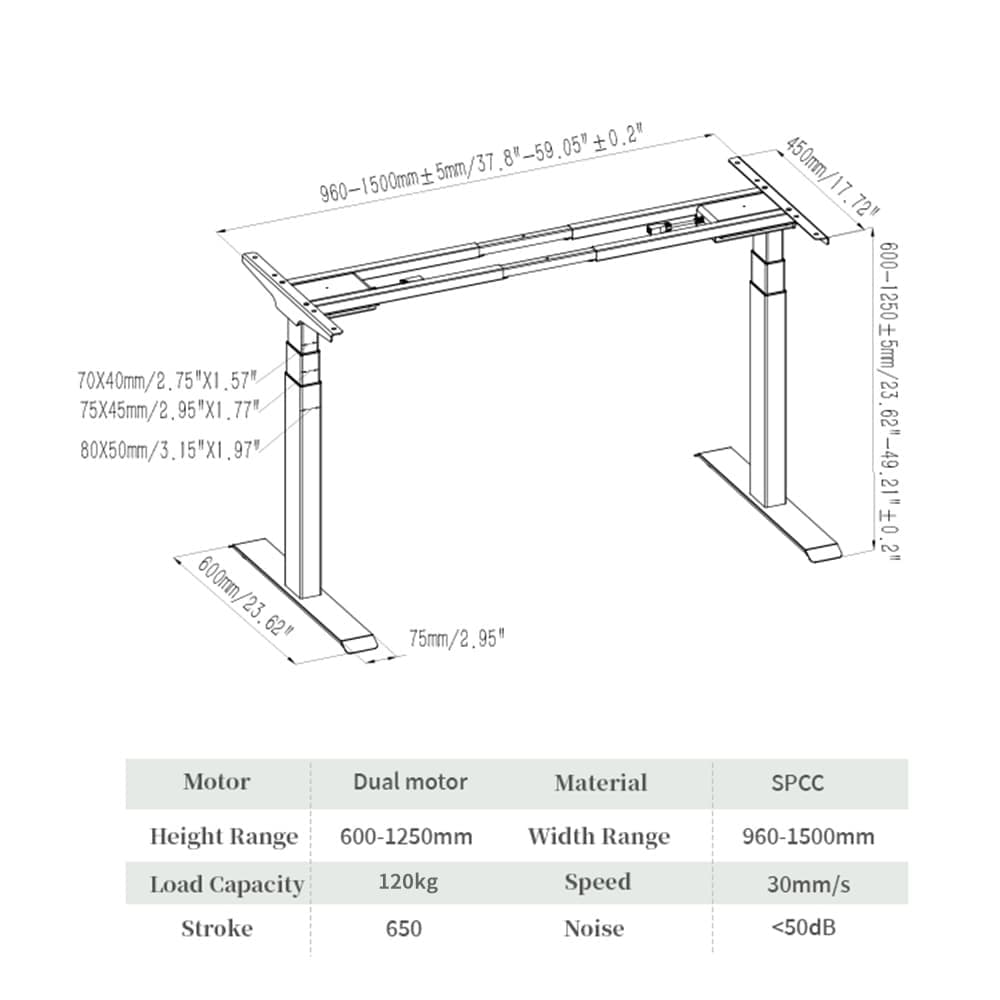

Specifications
| Model | 2AF3-D5 |
| Type | Desk Frame |
| Material | SPCC Steel |
| Height Range(Frame) | 600–1250 mm (23.62″–49.21″) / Stroke: 650 mm (25.59″) |
| Speed | 30mm/s |
| Load Capacity | 120 kg (264.55 lb) |
| Leg Count | 2 legs |
| Frame Color | White, Black, Grey, Customizable |
| Controller | 4 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
| Customization | Accepted |
| Width Range(Frame) | 960–1500 mm (37.80″–59.06″) |
| Voltage | 100-240 V |
| Drive Mode | Dual motor |

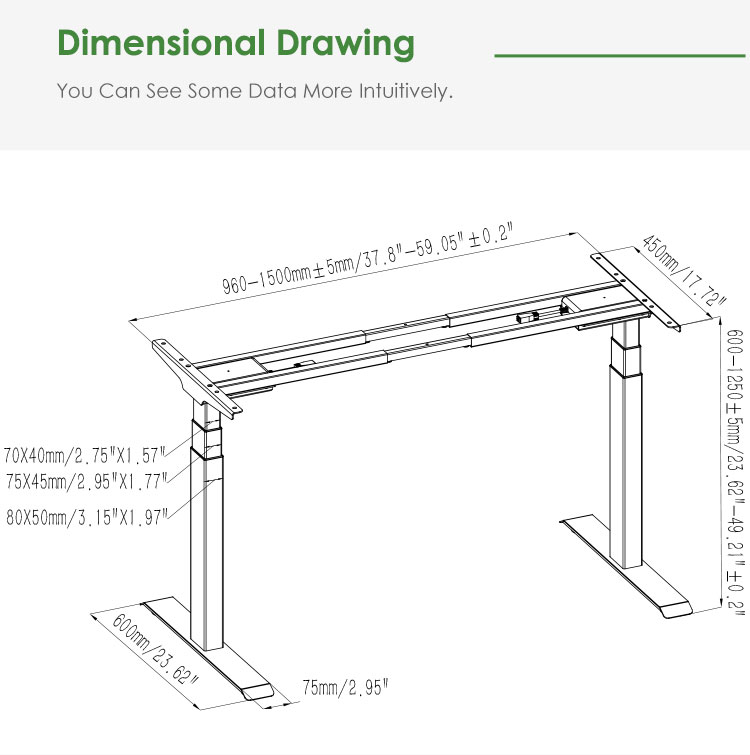

| Lift column | Standard 2-Stage Rectangular Columns: 60×40 mm & 65×45 mm |
| Feet Size and Type | 600 mm (22.05″), leveling studs / customizable |
| Tabletop Color | White, Black, Grey, Customizable |
| Tabletop Size(optional) | 1200–1800 mm × 600–800 mm / Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, BSCI, SAA, BIFMA, RoHS, etc. |
| Package | Complete set in one EPE carton and pallets |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
Company Overview
Shipping&Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
