NT33-2SCAF2
NATE
Single Motor
Brushed Motor
Standard Column
Two Stage Column
Description

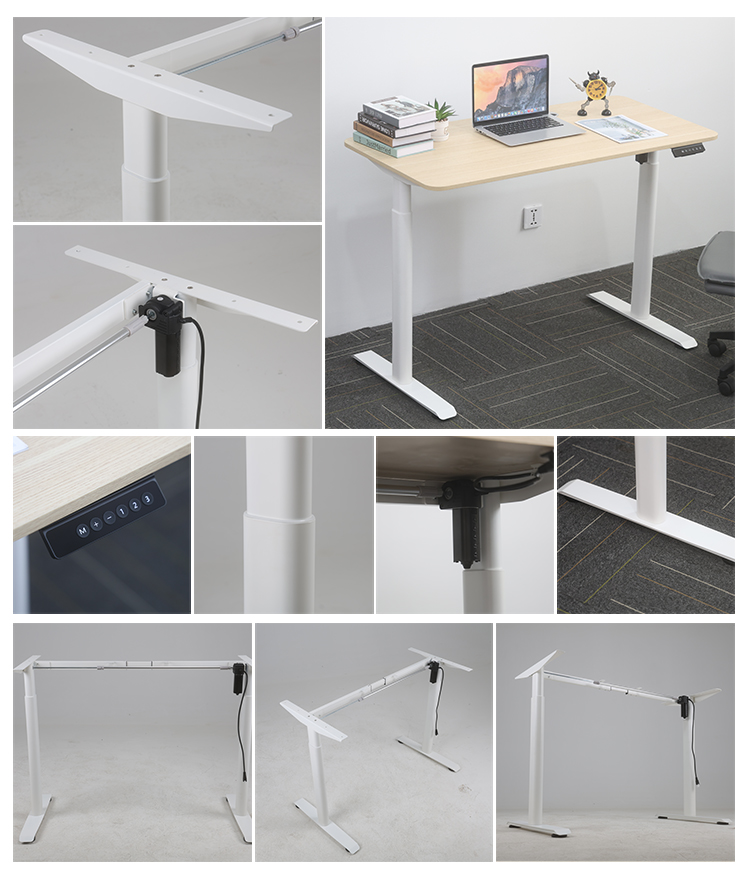

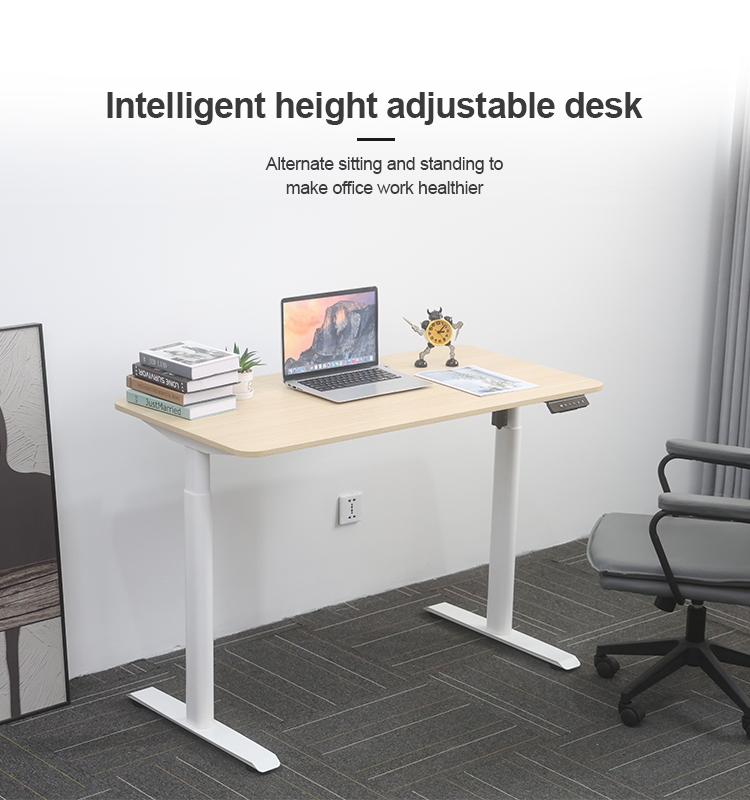

Powered by a robust and reliable single motor, the 2SCAF2 adjusts smoothly and quietly. With an operating noise level of less than 50dB, you can change your desk height without disturbing your colleagues or your concentration. The motor provides a steady lifting speed of 20mm/s, allowing for quick and seamless transitions throughout your day.

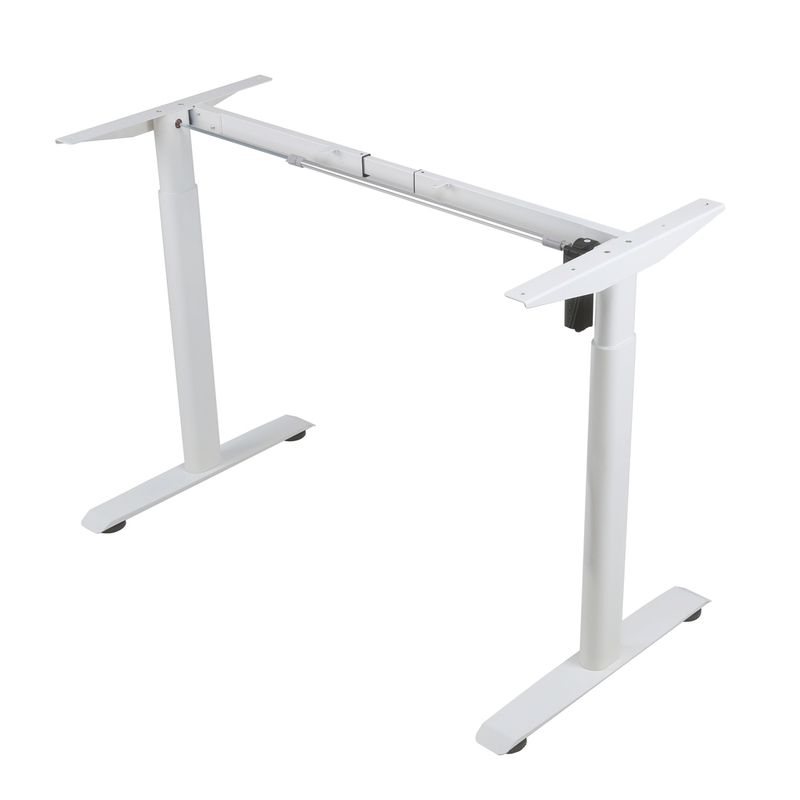

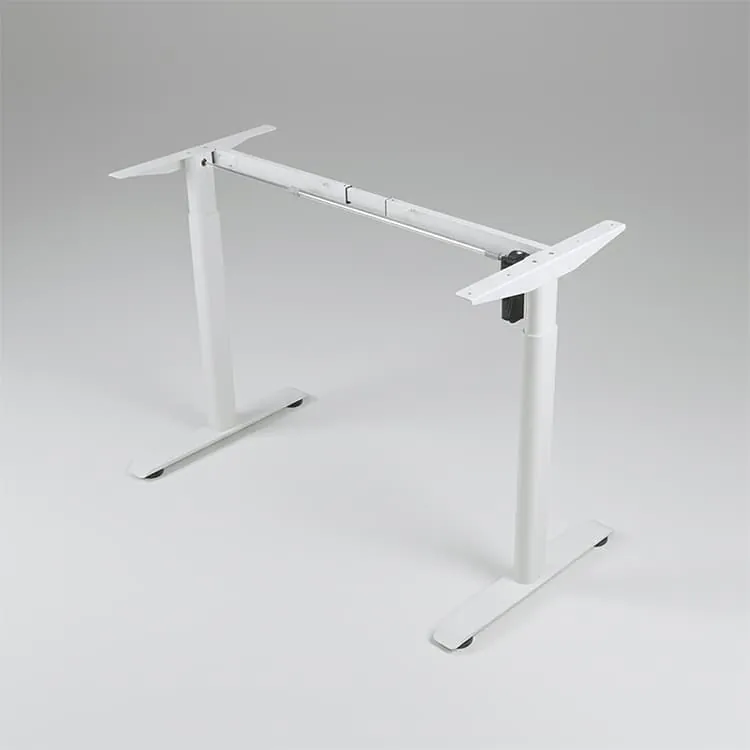

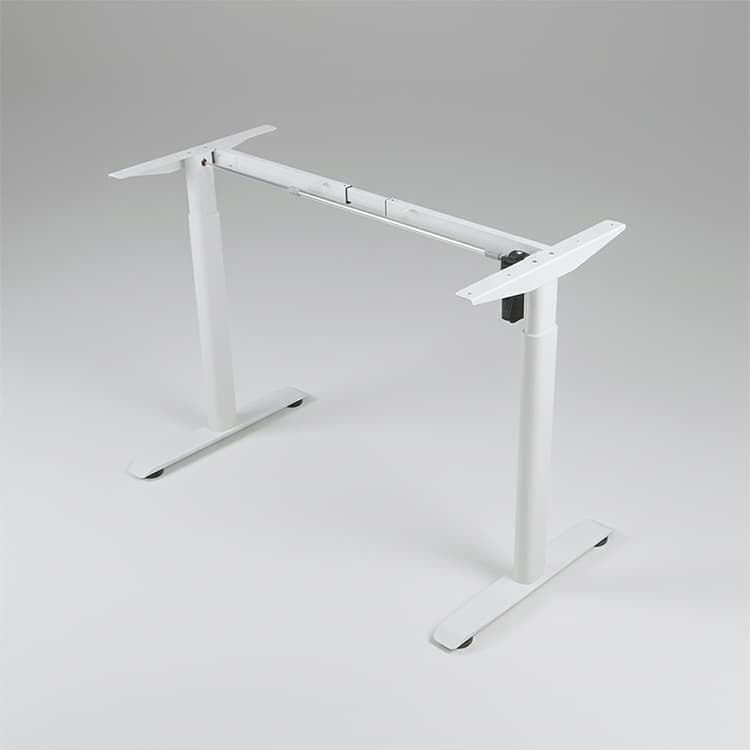

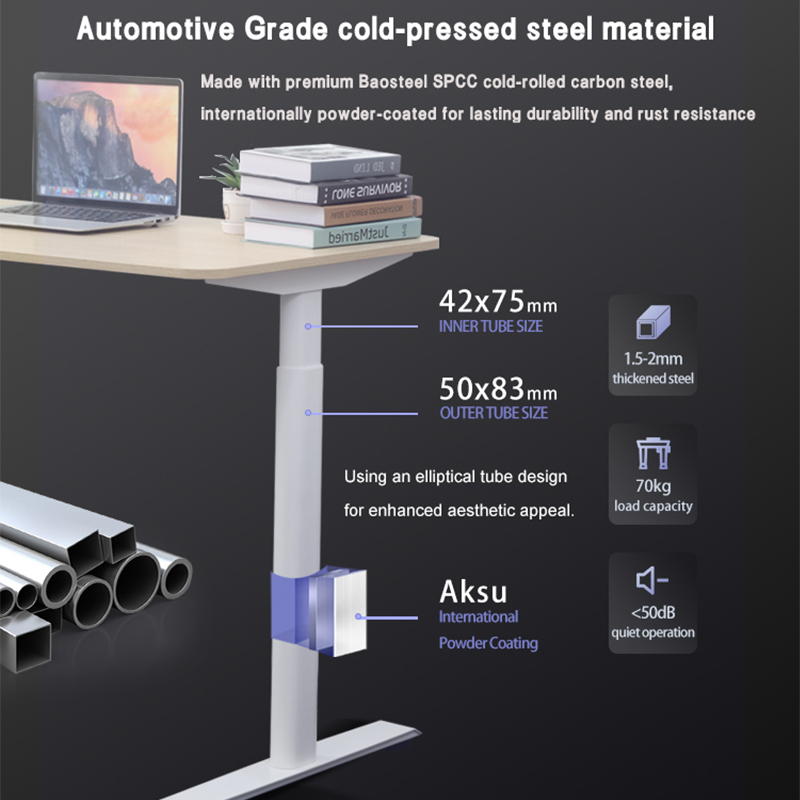

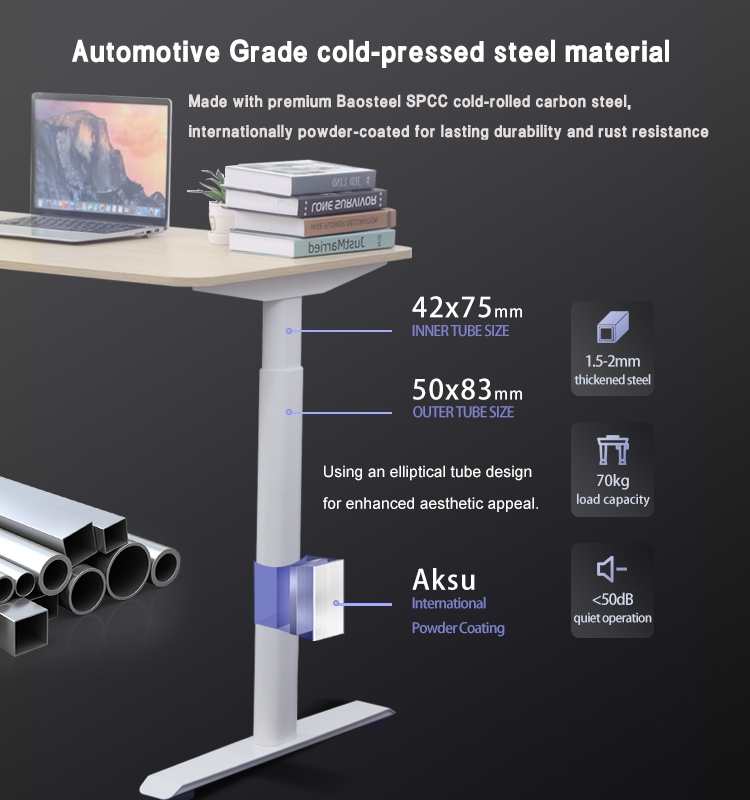

Durability is at the core of the 2SCAF2's design. The frame is constructed from automotive-grade SPCC cold-rolled steel with a thickness of 1.5-2mm, ensuring exceptional stability and a load capacity of up to 70kg. The entire frame is finished with an internationally certified Aksu powder coating, providing a durable, rust-resistant surface that stands up to daily use.

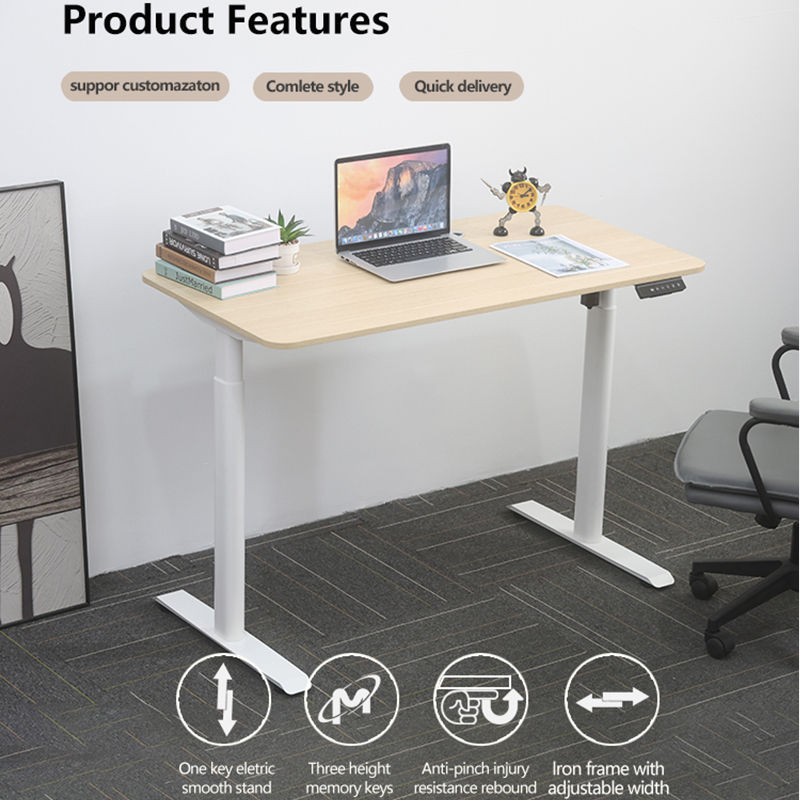

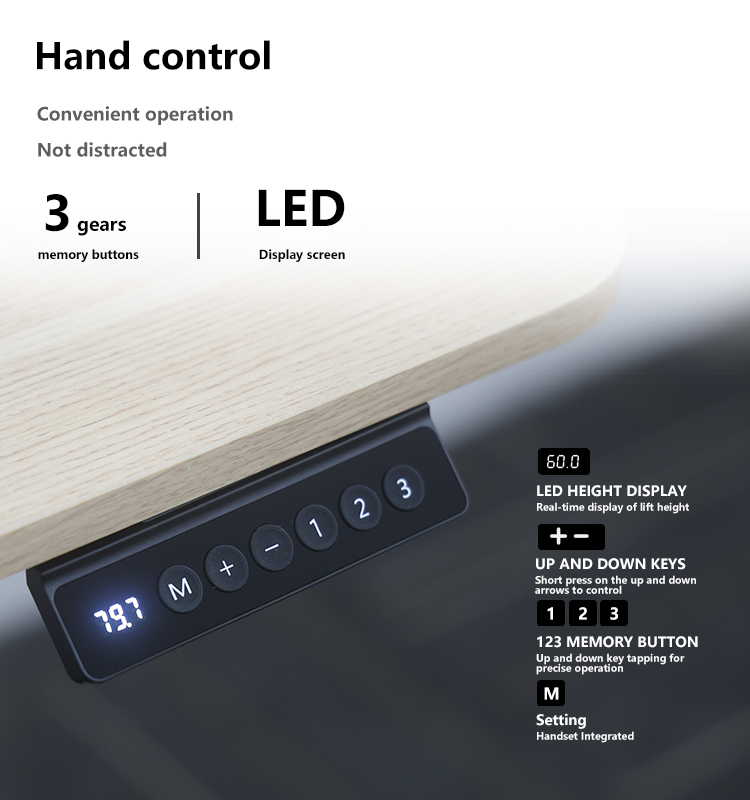

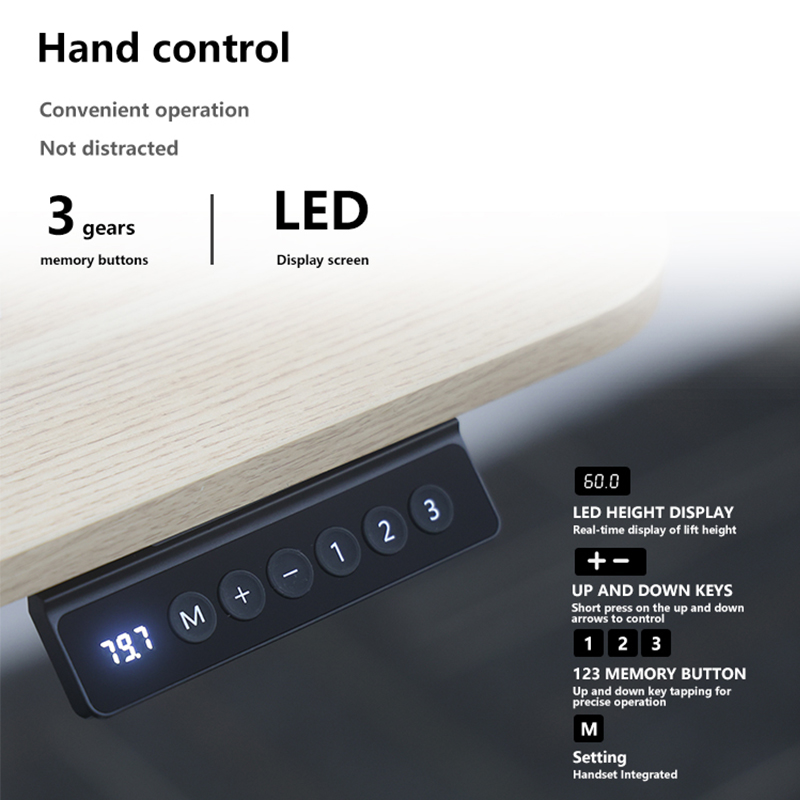

The intuitive hand controller makes adjusting your desk effortless. The clear LED screen displays the exact height in real-time. With three programmable memory buttons, you can save your preferred sitting and standing heights and return to them with a single touch. The controller also includes an anti-pinch safety feature, which automatically rebounds if it senses an obstacle, protecting you and your equipment.

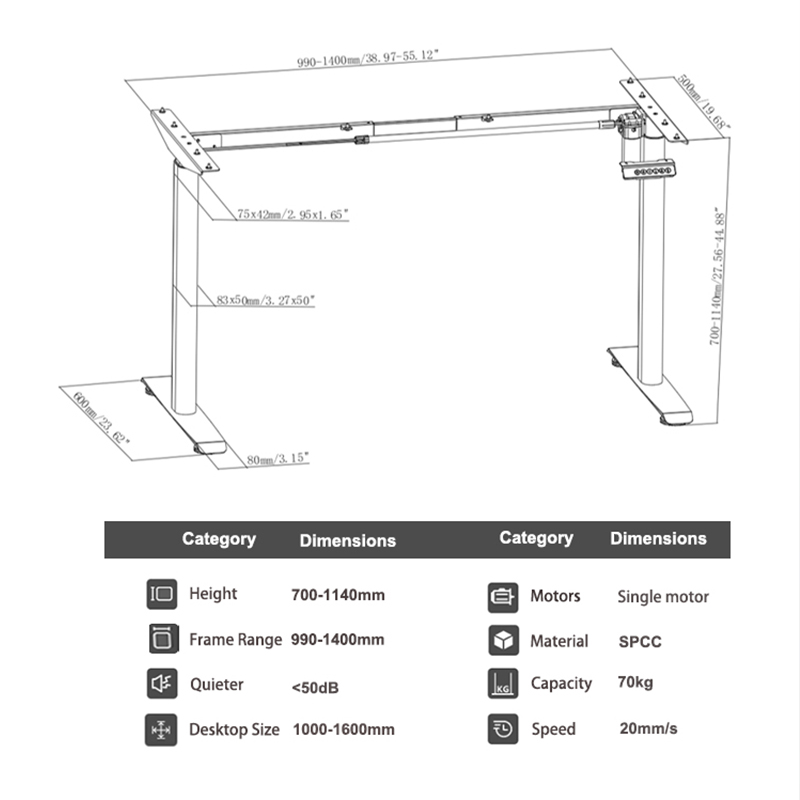

The 2SCAF2 frame features an adjustable width, extending from 990mm to 1400mm. This versatility allows it to support a wide range of desktop sizes, from 1000mm to 1600mm in length, giving you the freedom to create a workspace that perfectly fits your needs. As a factory-direct product, we also offer customization options to meet your specific requirements.
Specifications
Technical Specifications at a Glance:
| Model | 2SCAF2 |
| Type | Desk Frame |
| Material | SPCC Steel |
| Height Range(Frame) | 700–1140 mm (27.56″–47.24″) / Stroke: 500 mm (19.69″) |
| Speed | 20mm/s |
| Load Capacity | 70 kg (154.5 lb) |
| Leg Count | 2 legs |
| Frame Color | White, Black, Grey, Customizable |
| Controller | 3 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
| Customization | Accepted / Supports Full Desk |
| Width Range(Frame) | 990–1400 mm (38.98″–55.12″) |
| Voltage | 100-240 V |
| Drive Mode | Dual motor |
| Lift column | Standard Upright Oval Columns: 75×42 mm (2.95"×1.65"), 83×50 mm (3.15"×1.97") |
| Feet Size and Type | 600 mm (23.62"), equipped with leveling studs / customizable options |
| Tabletop Color | White, Black, Grey, Customizable |
| Tabletop Size(optional) | (W) 1000–1600 mm (39.37"–62.99") × (D) 600–700 mm (23.62"–27.56") / Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, BSCI, SAA, BIFMA, RoHS, etc. |
| Package | Complete set in one EPE carton and pallets for oversea shipment |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
Company Overview
Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
