NT33-2AF3
NATE
Dual Motor
Brushed Motor
Standard Column
Three Stage Column
Description
Two-motor lifting system delivers stronger and smoother height adjustment for daily sit-stand work.
600-1250mm adjustment range supports different users and flexible sitting or standing positions.

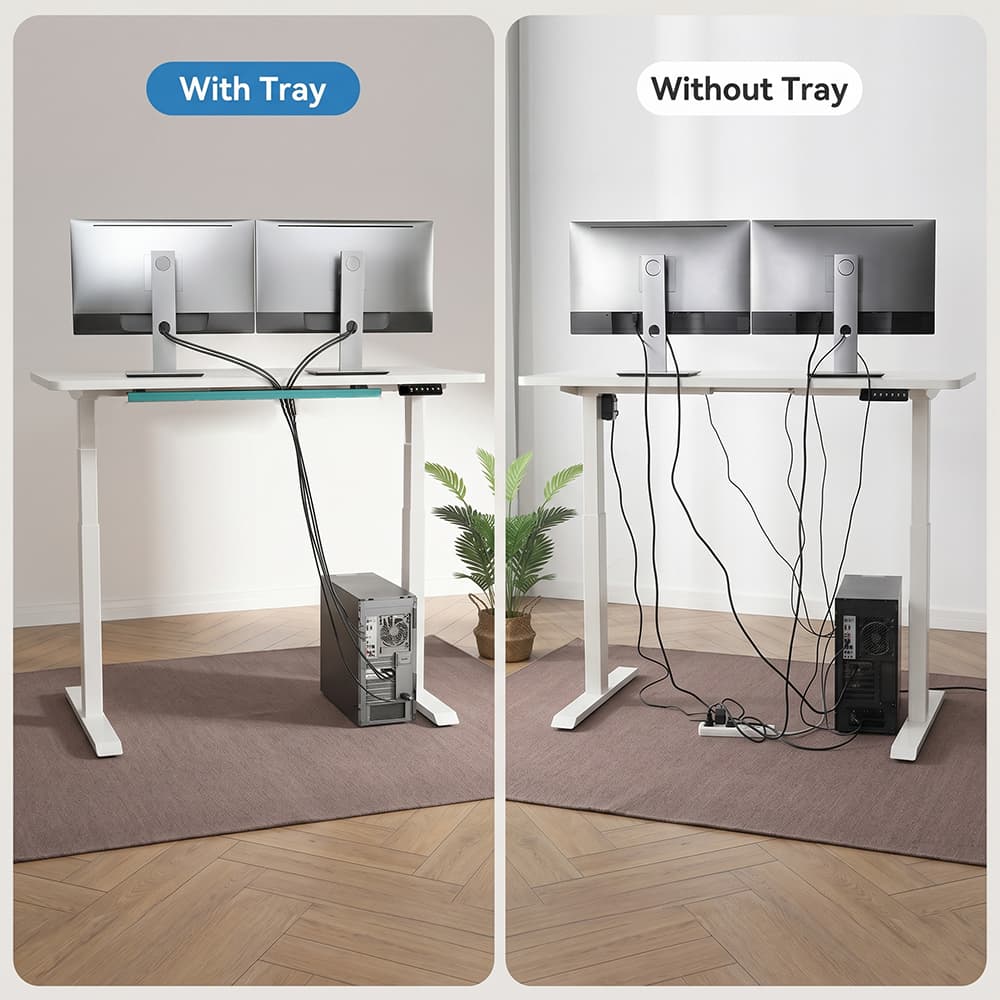

Optional magnetic cable tray helps organize wires under the desktop for a cleaner workstation.
Supports color, tabletop, controller, packaging, and project-based customization for B2B buyers.

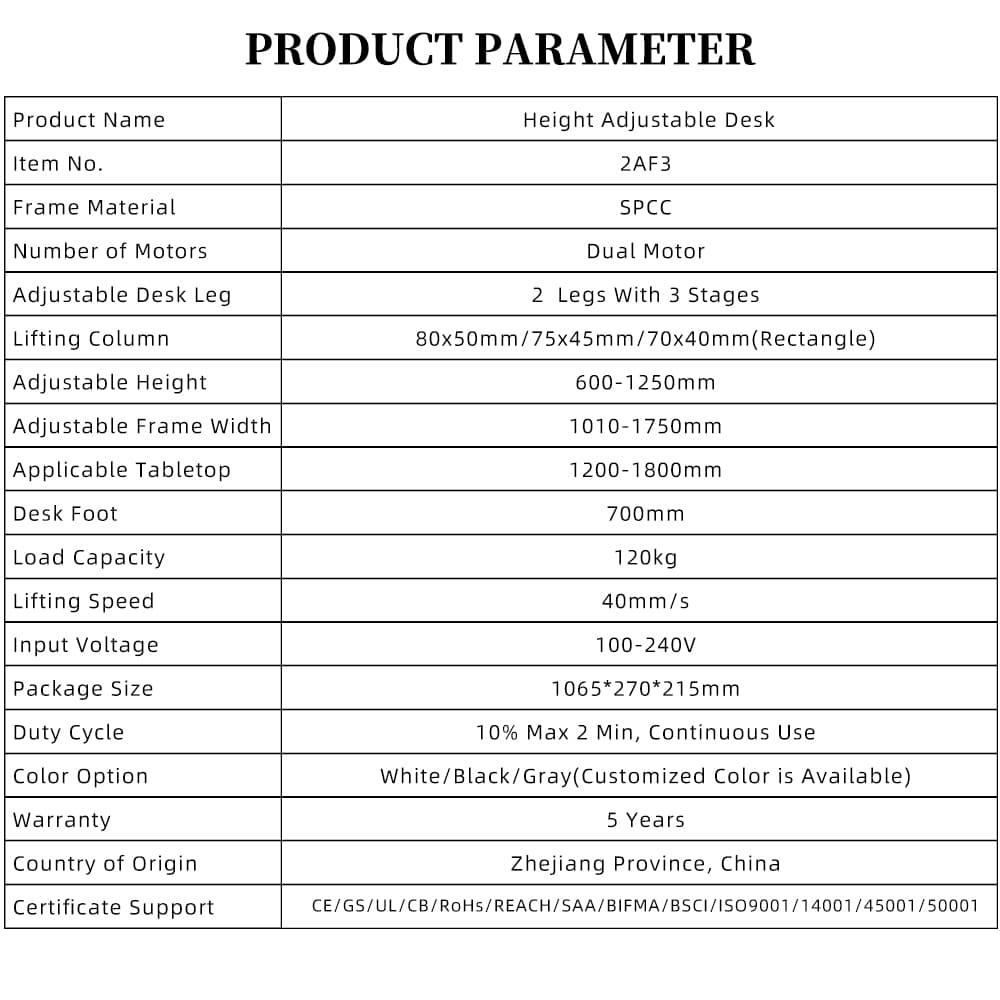

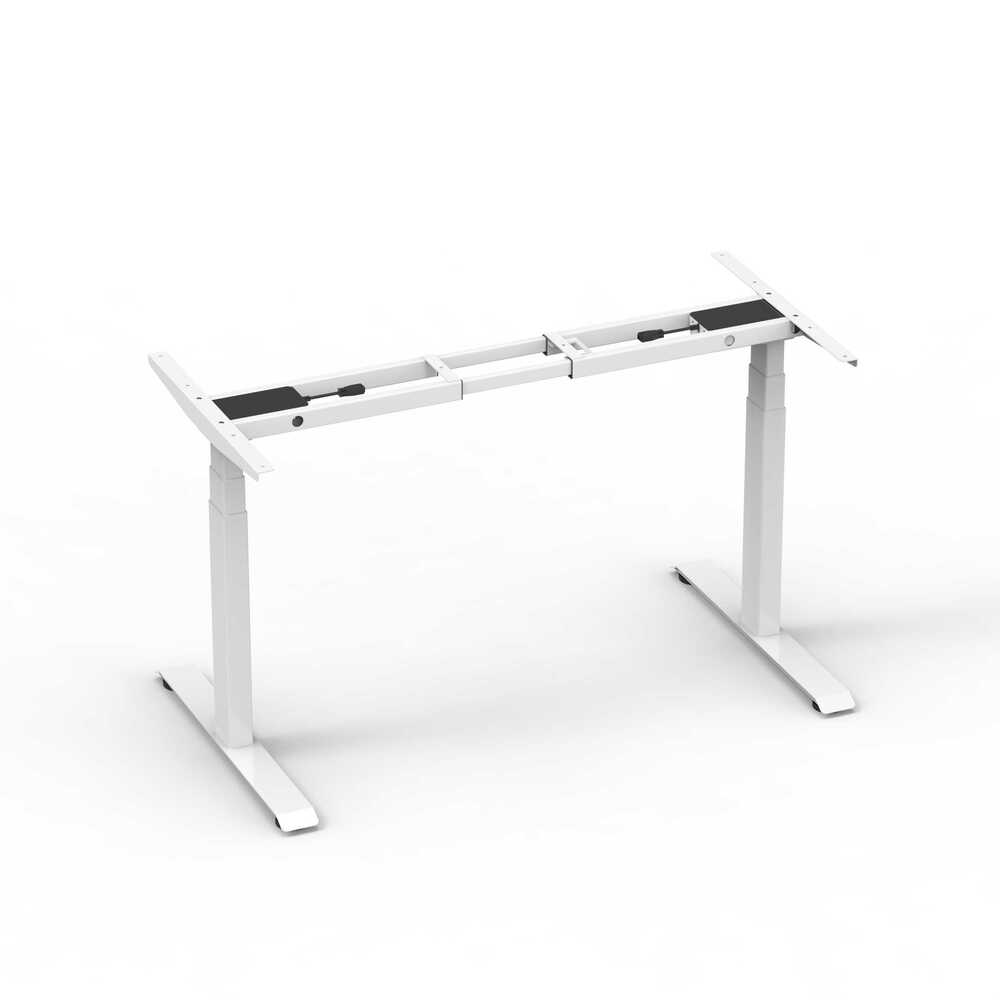

| Product Name | Height Adjustable Desk Frame |
| Item No. | 2AF3 |
| Frame Material | SPCC |
| Number of Motors | Dual Motor |
| Adjustable Desk Leg | 2 Legs with 3 Stages |

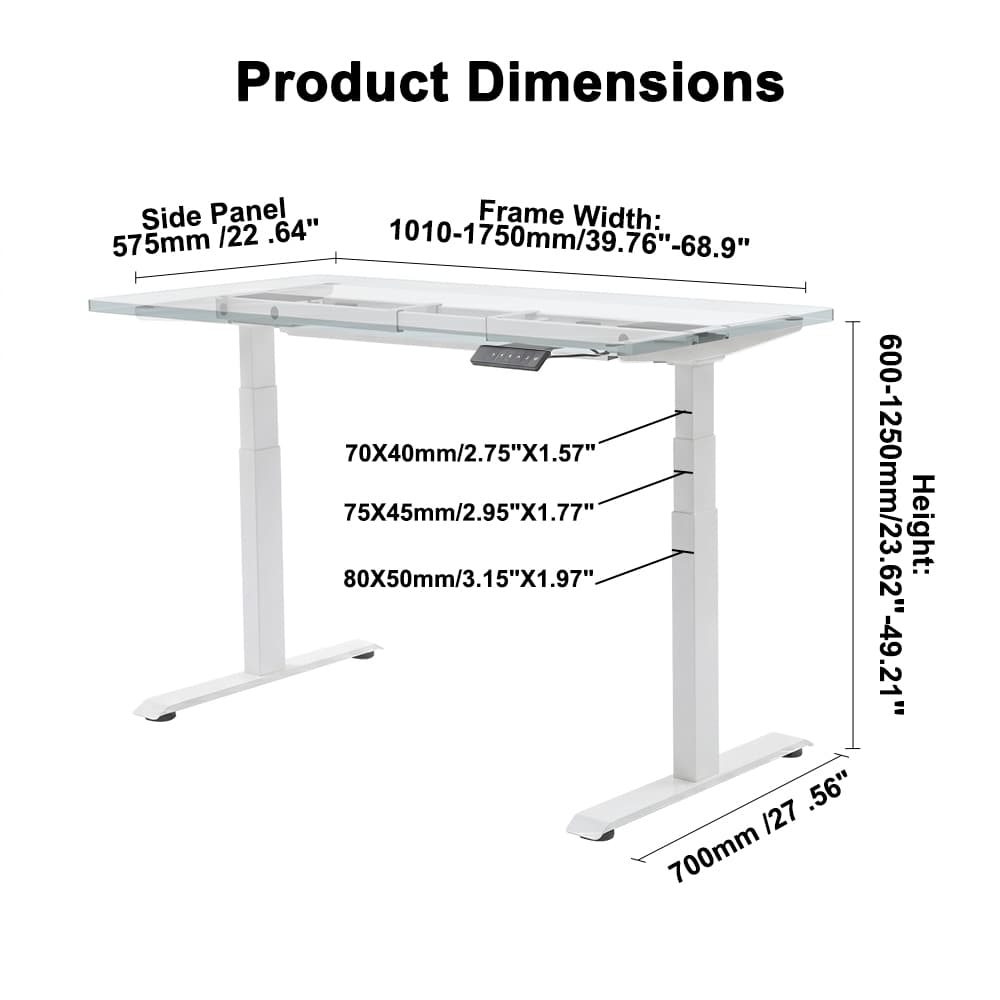

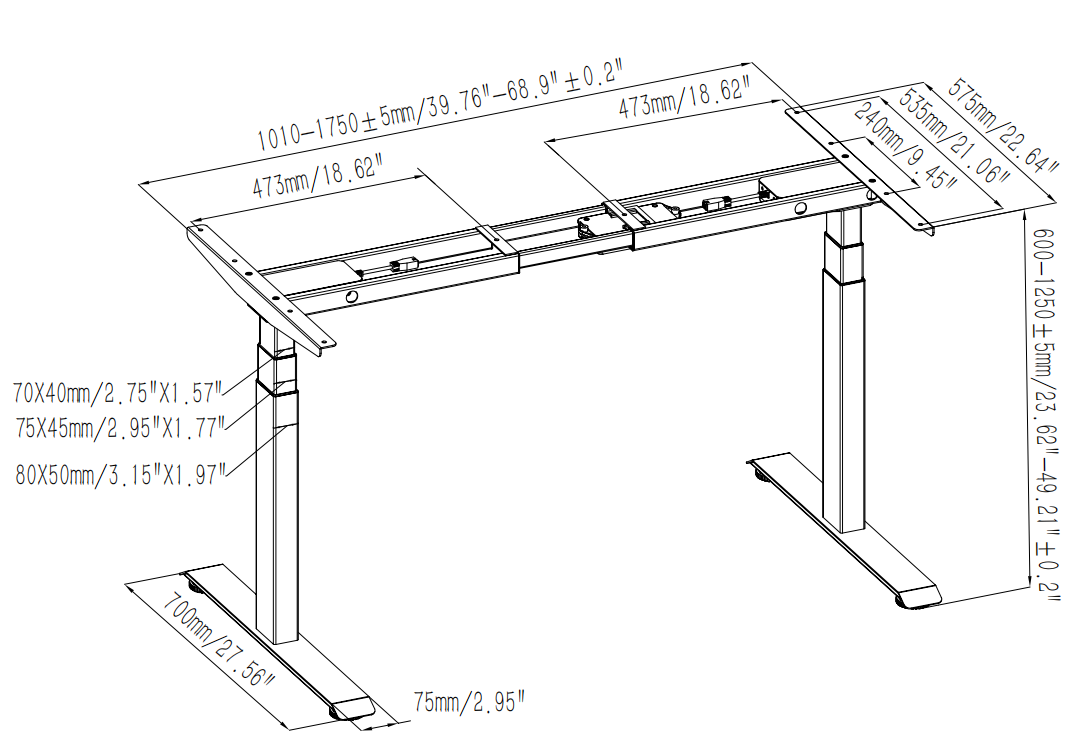

| Lifting Column | 80×50mm / 75×45mm / 70×40mm Rectangle Column |
| Adjustable Height | 600-1250mm |
| Adjustable Frame Width | 1010-1750mm |
| Applicable Tabletop | 1200-1800mm |
| Desk Foot | 700mm |

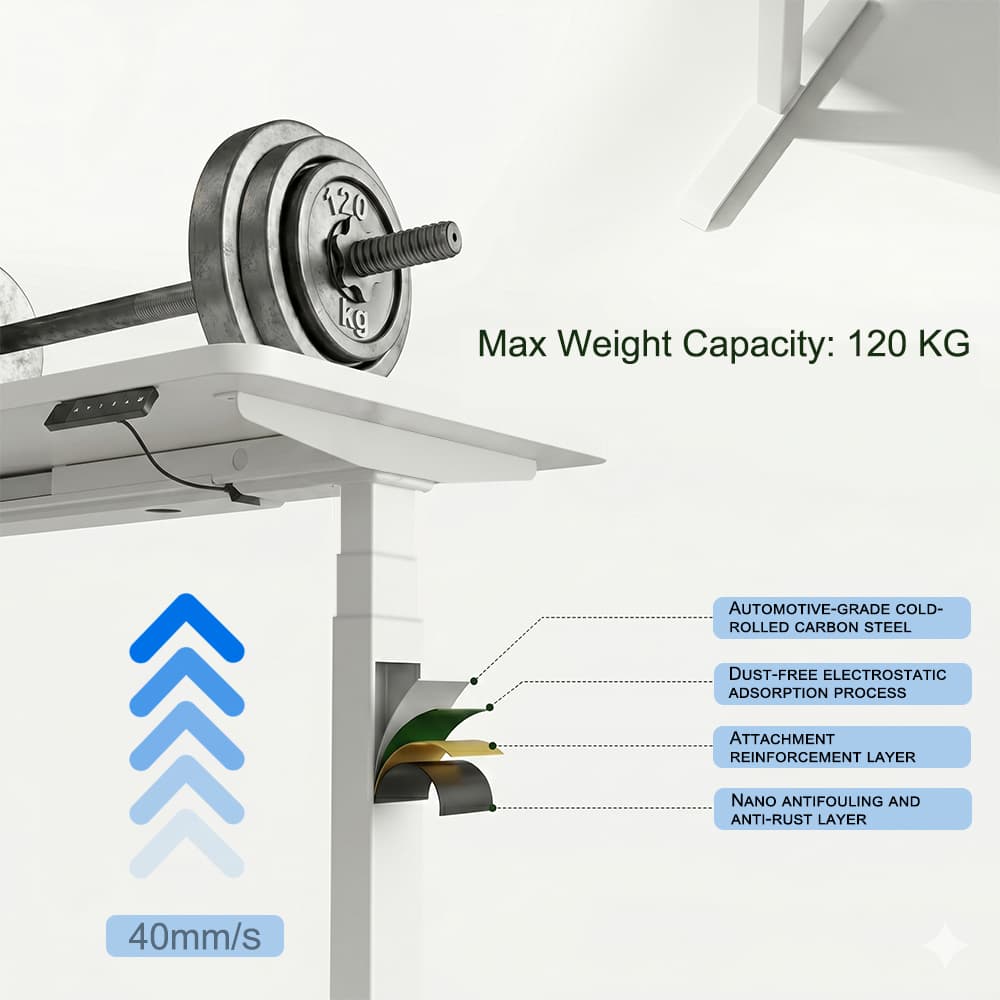

| Load Capacity | 120kg |
| Lifting Speed | 40mm/s |
| Input Voltage | 100-240V |
| Package Size | 1065×270×215mm |
| Duty Cycle | 10% Max 2 Min Continuous Use |
| Color Option | White / Black / Gray, customized color available |
| Optional Accessory | Magnetic Cable Tray |
| Warranty | 5 Years |
| Certificate Support | CE / GS / UL / CB / RoHS / REACH / SAA / BIFMA / BSCI / ISO9001 / ISO14001 / ISO45001 / ISO50001 |

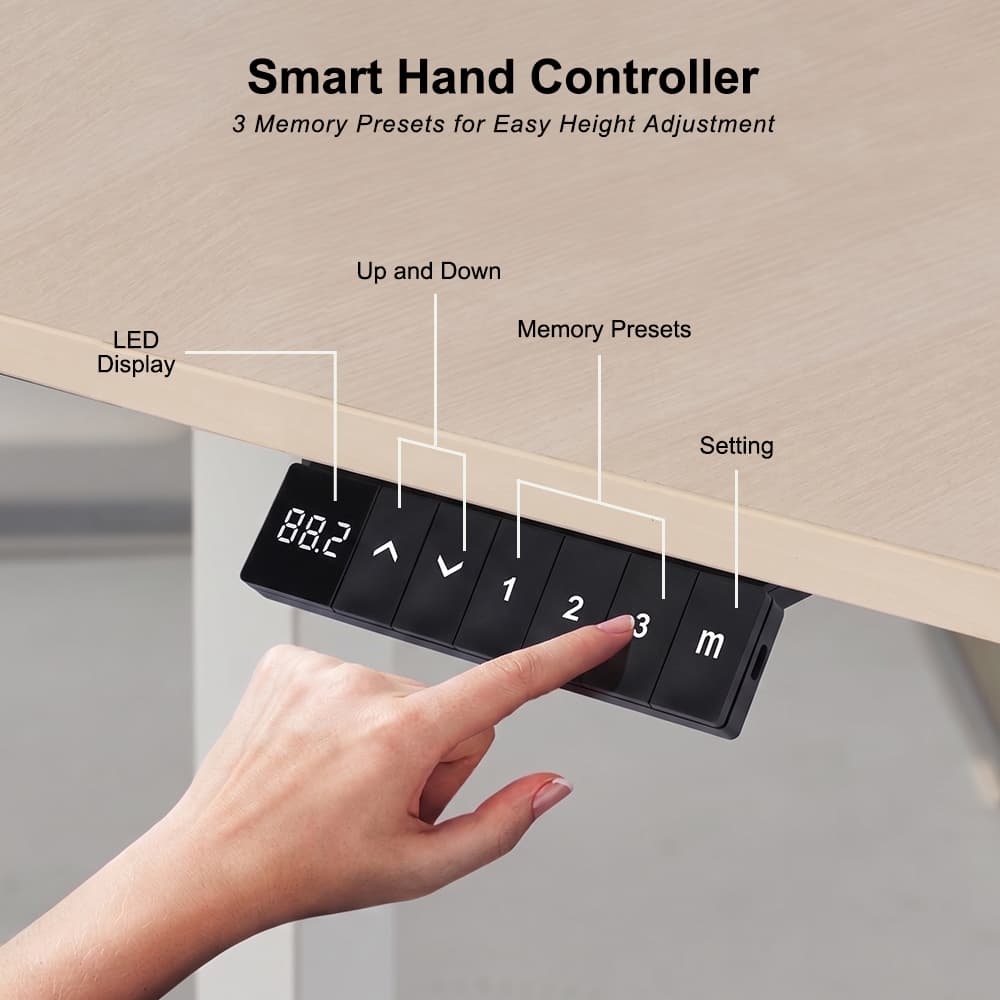

Custom Height Limits: Define your safe zone by setting maximum and minimum height limits to help avoid collisions with nearby furniture or overhead obstacles.
Overload Protection: If the desk exceeds its weight capacity, the system will immediately stop moving to help protect the frame and lifting components.
Anti-Collision Retreat: When the desk detects an obstacle during movement, it automatically reverses slightly for added safety.
Specifications
Type | Desk Frame | Model | 2AF3 |
|---|---|---|---|
Material | SPCC | Height Range | 600-1250mm / Stroke: 625 mm |
Voltage | 100-240 V | Number of Motors | Dual Motor |
Adjustable Frame Width | 1010-1750mm | Adjustable Desk Leg | 2 Legs with 3 Stages |

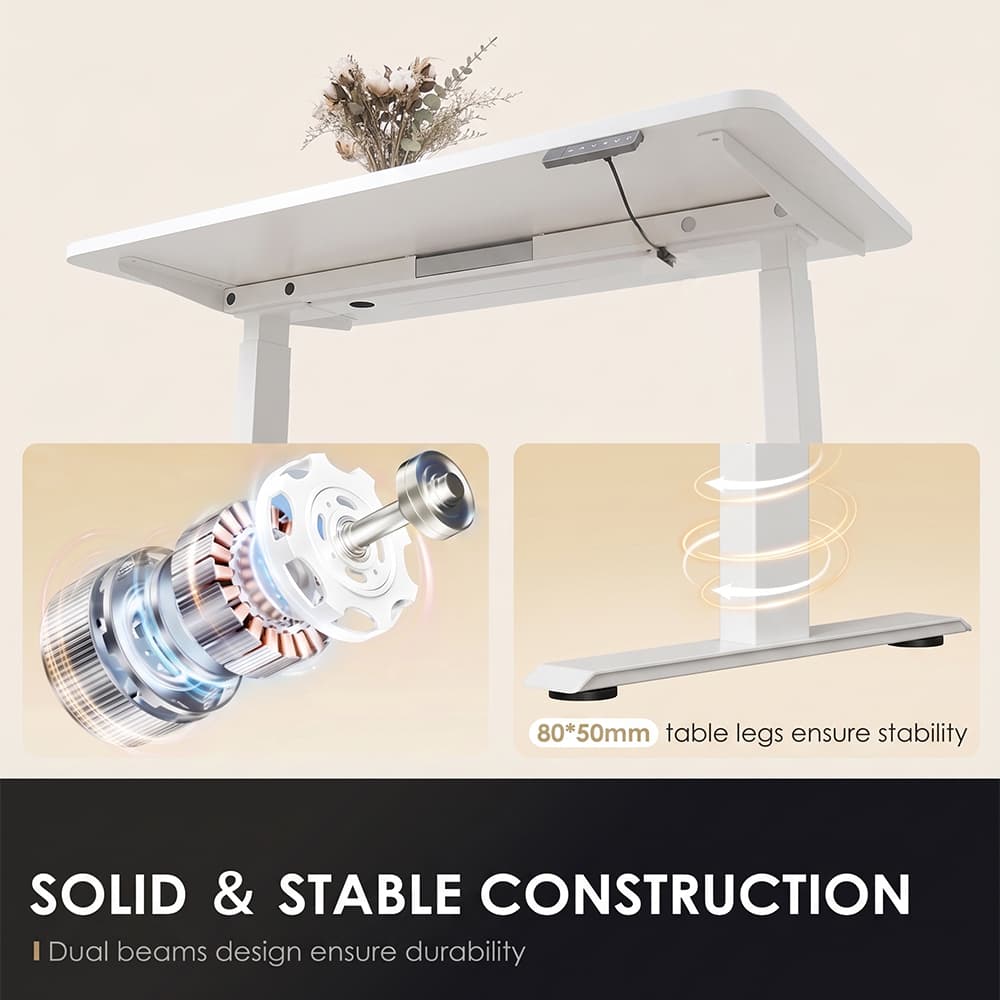

Speed | 40mm/s | Lift column | Standard 3-Stage Rectangular Column - 80×50mm / 75×45mm / 70×40mm |
Load Capacity | 120kg / 264lbs | Feet Size and Type | 700mm, equipped with leveling studs / customizable options |
Applicable Desktop | Width: 1200-1800mm, customizable | Frame Color | White, Black, Grey, Customizable |
Tabletop Color | White, Black, Grey, Customizable | Noise | <50 dB |
Features | Anti-collision safety protection | Certificate | CE / GS / UL / CB / RoHS / REACH / EMC / BIFMA / BSCI / ISO9001 / ISO14001 / ISO45001 / ISO50001 |
Warranty | 5 years on all parts | Package | Complete set in one EPE carton and pallets for oversea shipment |
Delivery Time | Custom drawings in 24 hours; 30 days for standard orders | Package Size | 1065×270×215mm |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
About Us
Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
