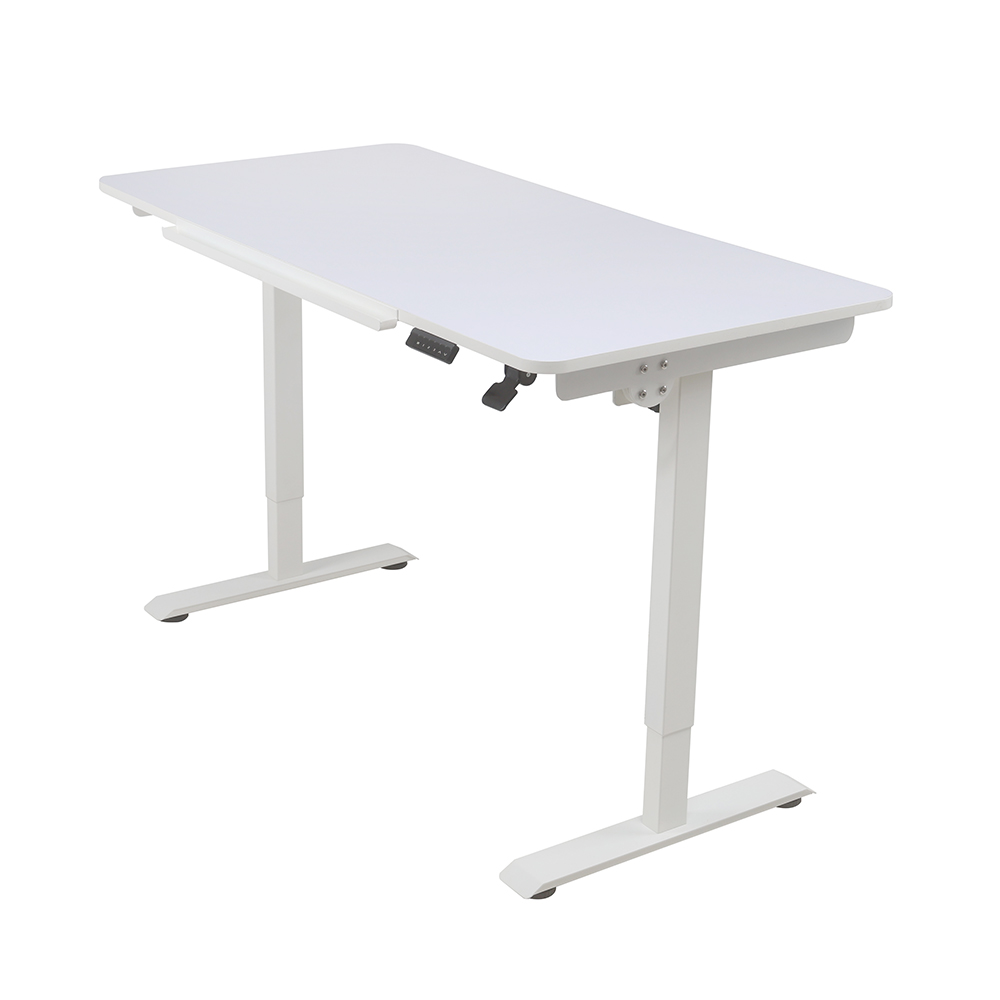

ST1-2SACRHF2(A)
NATE
Single Motor
Brushless Motor
Reversed Column
Two Stage Column
Description
Meet the ST1-2SACRHF2(A). By combining our advanced Brushless Motor Technology with a versatile 0-90° Pneumatic Tilt, we've created the ultimate hybrid workspace for designers, architects, and agile teams.

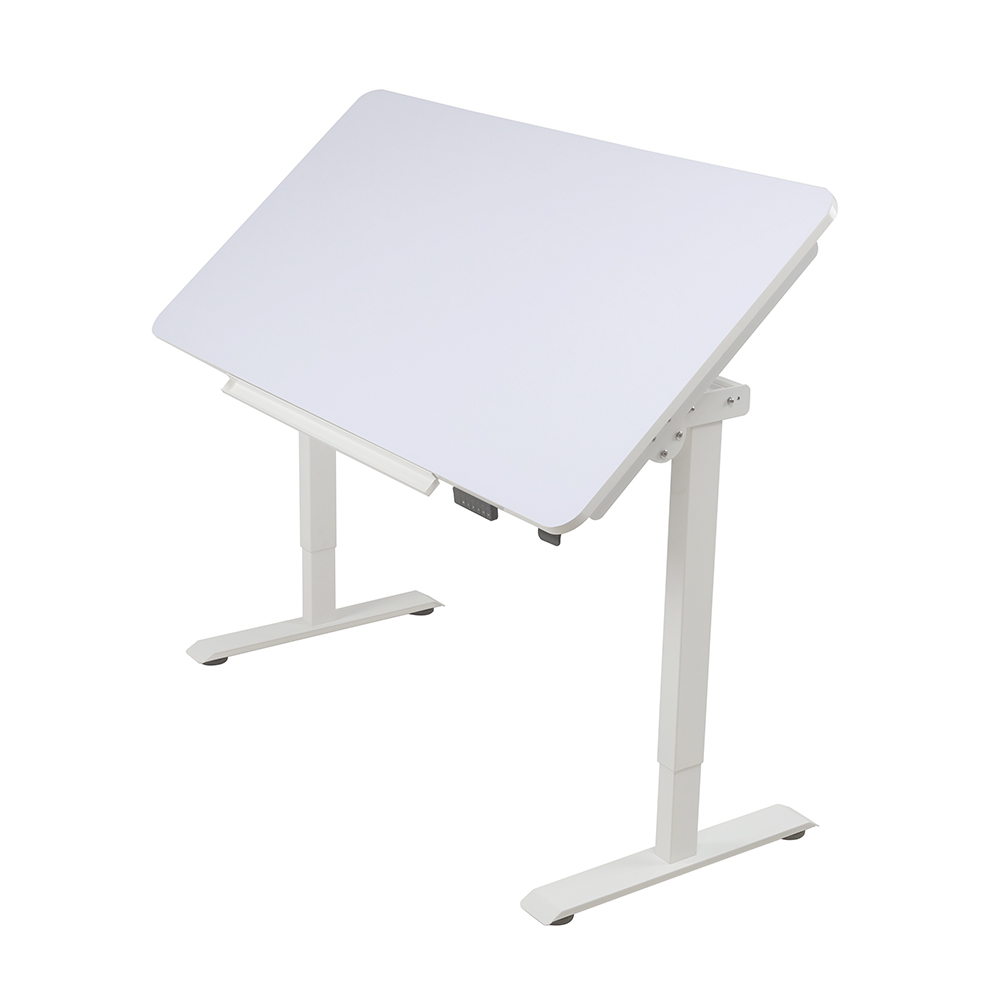

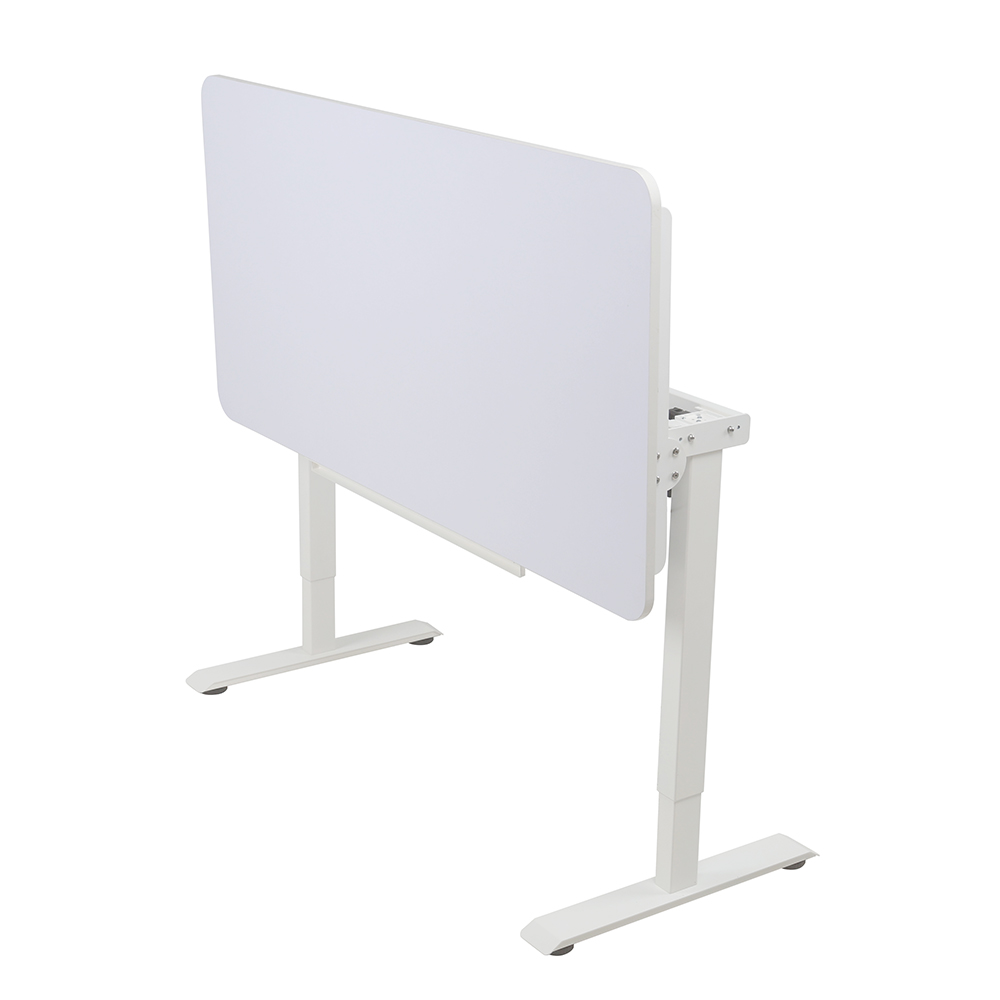

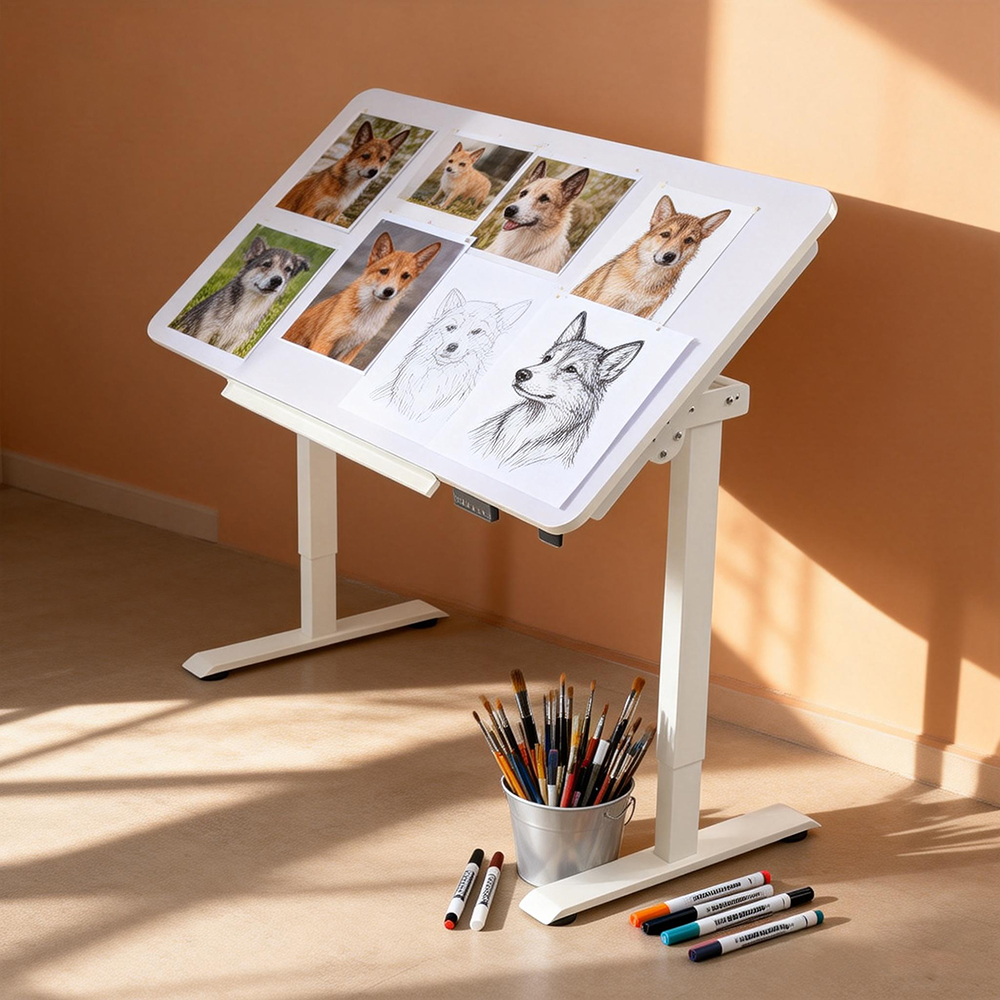

Ergonomic Versatility: Whether you need a flat surface for typing, a 45° angle for reading, or a vertical whiteboard for meetings, the ST1-2SACRHF2(A) adapts instantly.

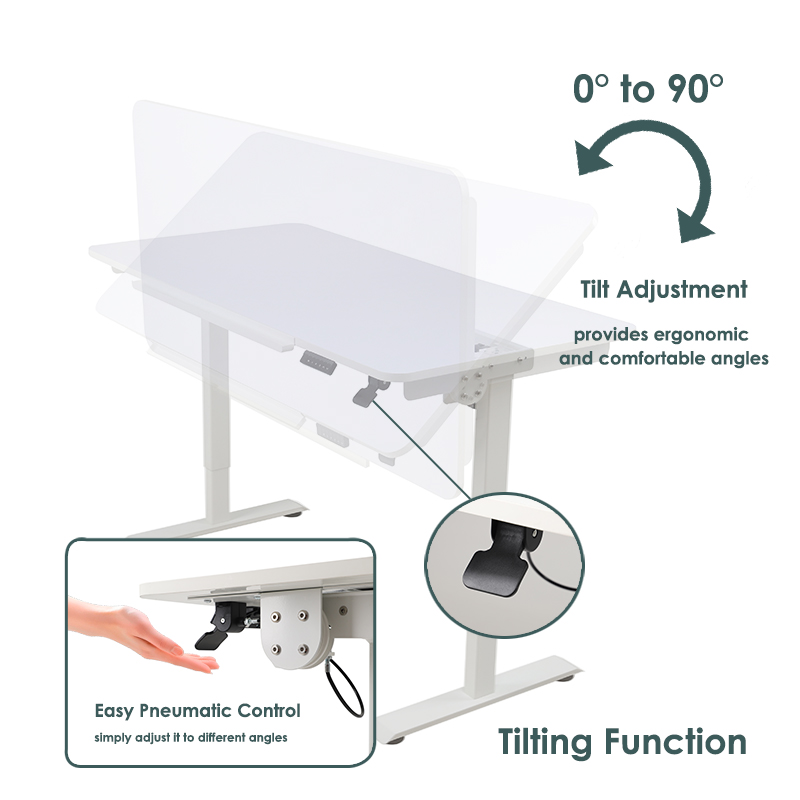

✓ Easy Pneumatic Control: The high-quality gas spring paddle ensures smooth, effortless angle adjustments. No heavy lifting required.
✓ Secure Lock: Stays rock-solid at any chosen angle.
✓ Built-in Pen Slot: Prevents tools from sliding off when tilted (See detail shot).
Experience the next generation of lifting technology.
<50dB noise level for focused environments.

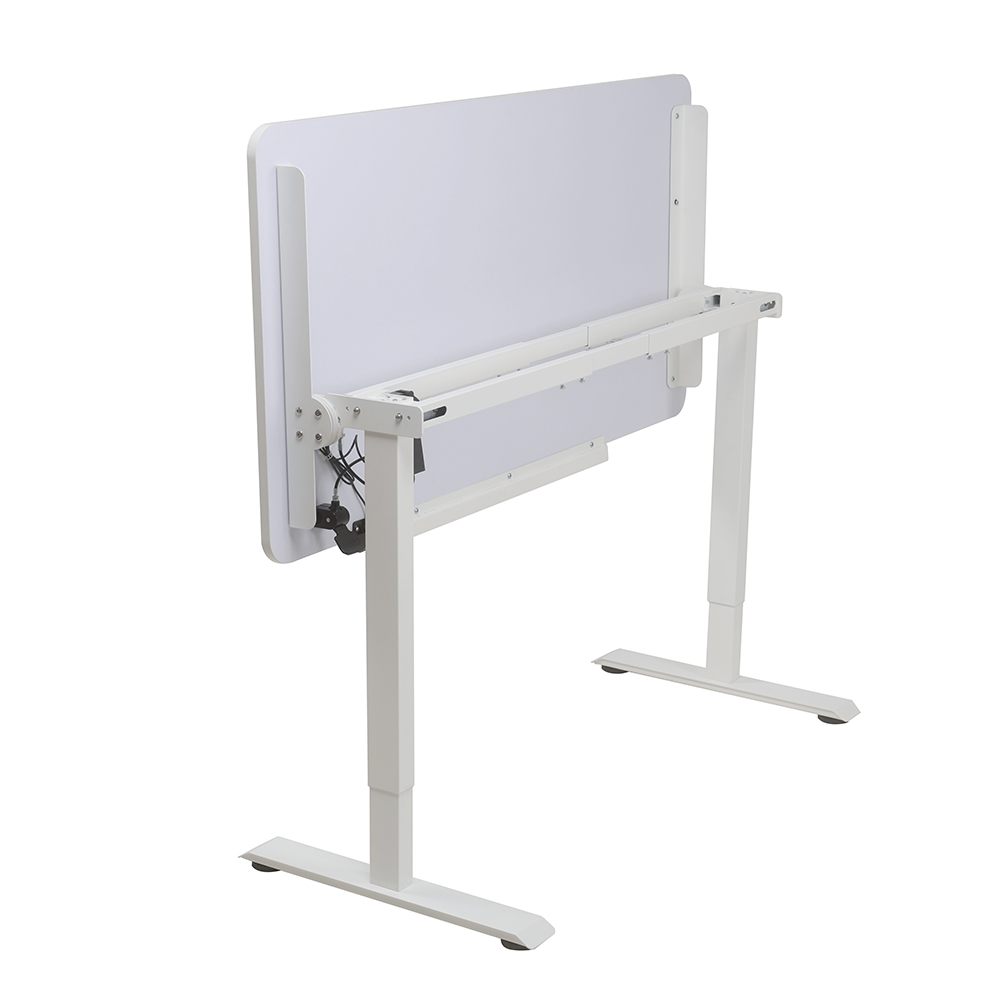

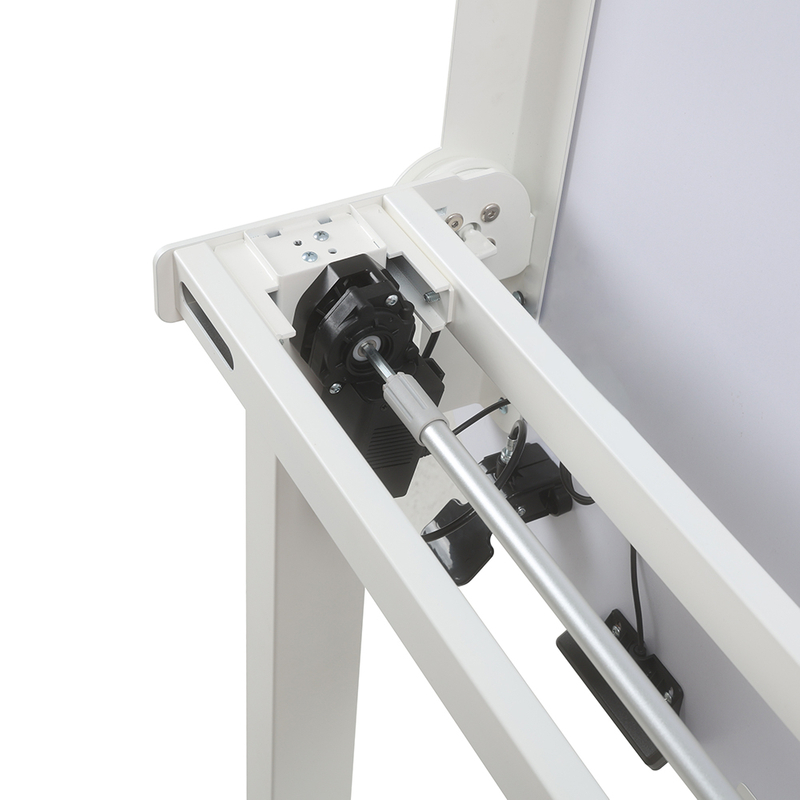

Reinforced crossbar ensures no wobble, even when writing.
Friction-free motor design lasts 50% longer than brushed motors.

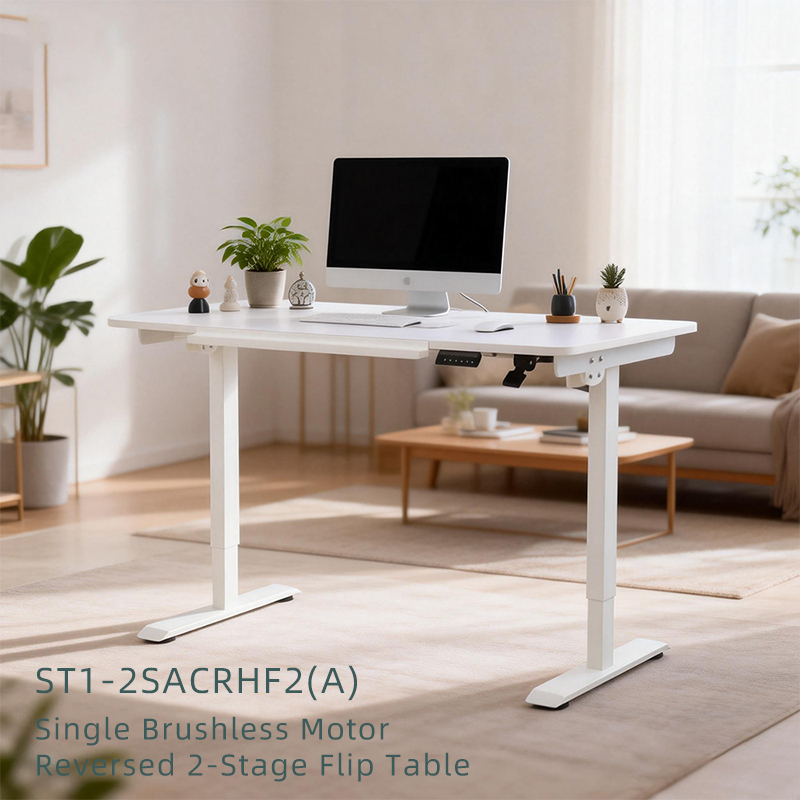

Perfect for Architecture Firms, Creative Studios, Agile Meeting Rooms, and Home Offices.

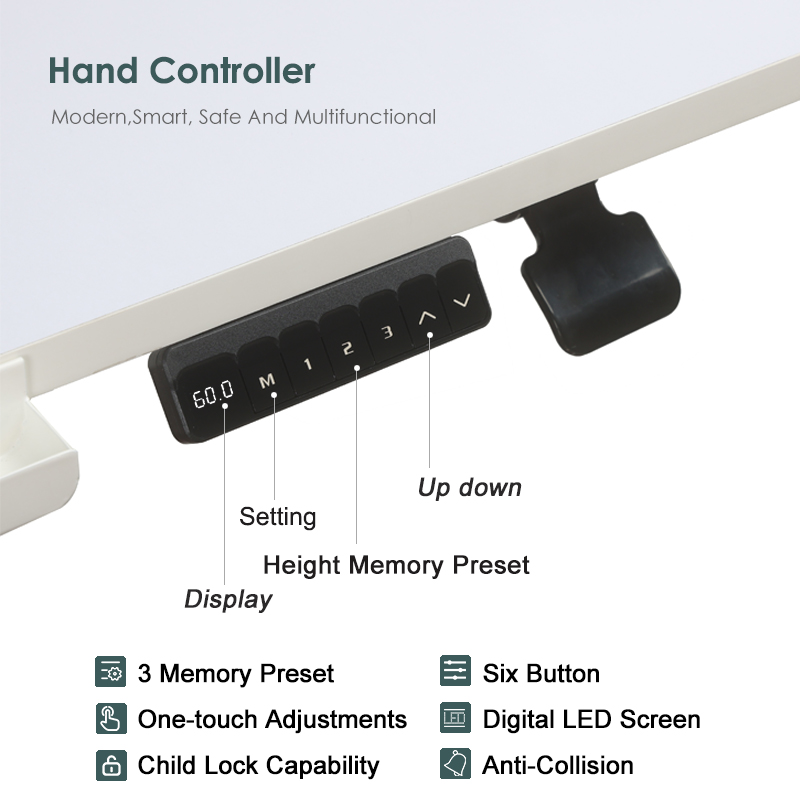

3 Memory Presets: Switch from sitting to standing instantly.
Child Safety Lock: Prevents accidental operation.
Anti-Collision: Automatic retreat upon detecting resistance.

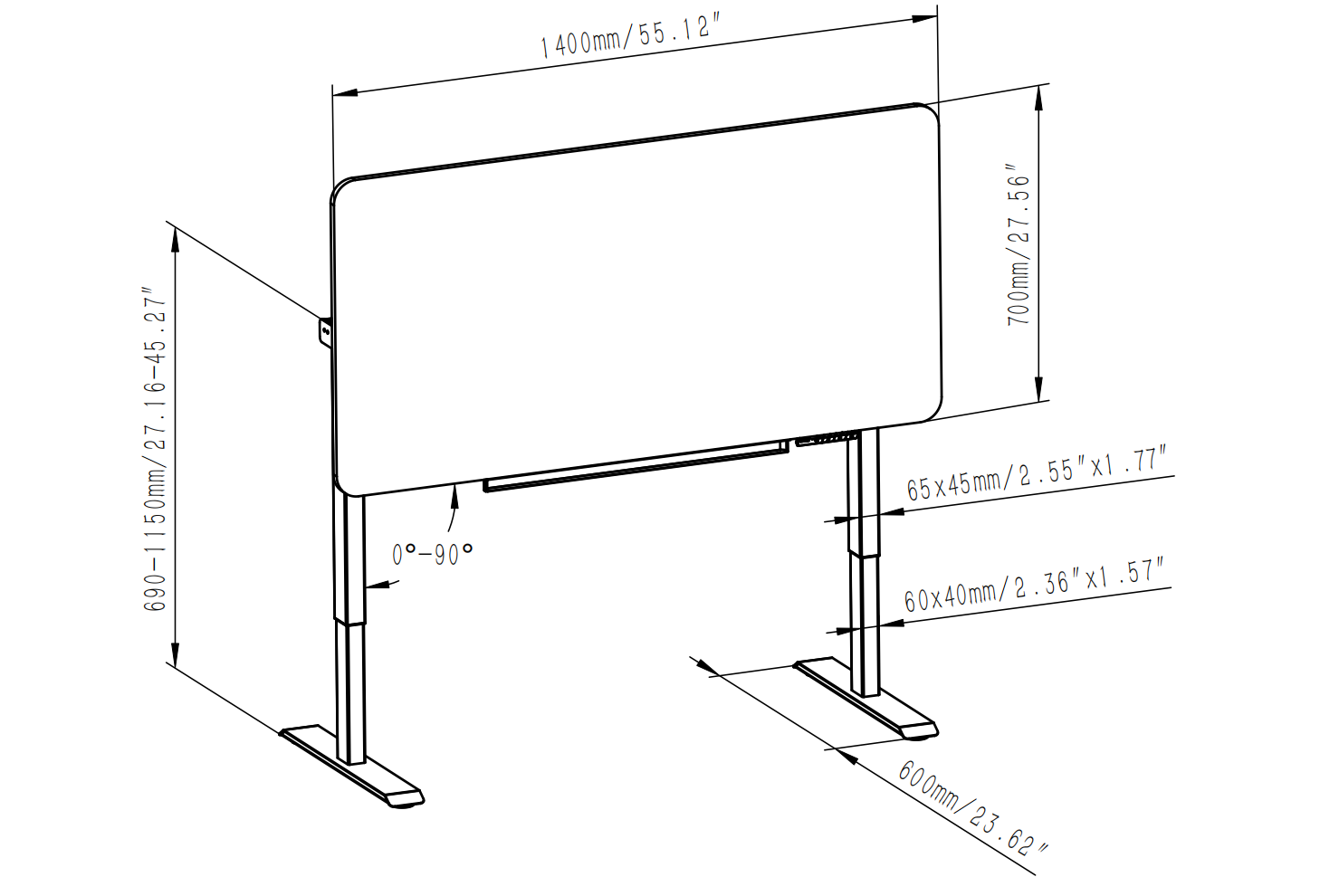

| Item No. | ST1-2SACRHF2(A) |
| Motor Type | Brushless Single Motor |
| Lift Column | Reversed 2-Stage (65x45mm / 60x40mm) |
| Height Range | 690mm - 1150mm (27.1" - 45.2") |
| Frame Width | 1110mm - 1300mm (Extendable) |
| Tilt Range | 0° - 90° (Pneumatic) |
| Load Capacity | 70kg (154lbs) |
| Speed | 20mm/s |
| Warranty | 5 Years |
Specifications
Technical Specifications at a Glance:
| Model | ST1-2SACRHF2(A) |
| Type | Complete Desk(Flip-Top) |
| Material | SPCC Steel |
| Height Range(Frame) | 690–1150 mm (27.17″–45.28″) / Stroke: 460 mm (18.11″) |
| Speed | 20mm/s |
| Load Capacity | 70 kg (154.5 lb) |
| Leg Count | 2 legs |
| Frame Color | White, Black, Grey, Customizable |
| Controller | 4 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
| Customization | Accepted |
| Width Range(Frame) | 1110–1300 mm (43.70″–51.18″) |
| Voltage | 100-240 V |
| Drive Mode | Dual motor |
| Lift column | Reverse 2-Stage Rectangular Tubes: 60×40 mm (2.36"×1.57") & 65×45 mm (2.56"×1.77") |
| Feet Size and Type | 600 mm, equipped with leveling studs / customizable options |
| Tabletop Color | White, Black, Grey, Customizable |
| Tabletop Size(optional) | Length: 1200–1400 mm (47.24″–55.12″) / Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, BSCI, SAA, BIFMA, RoHS, etc. |
| Package | Complete set in one EPE carton and pallets for oversea shipment |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
About Us
Shipping&Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
