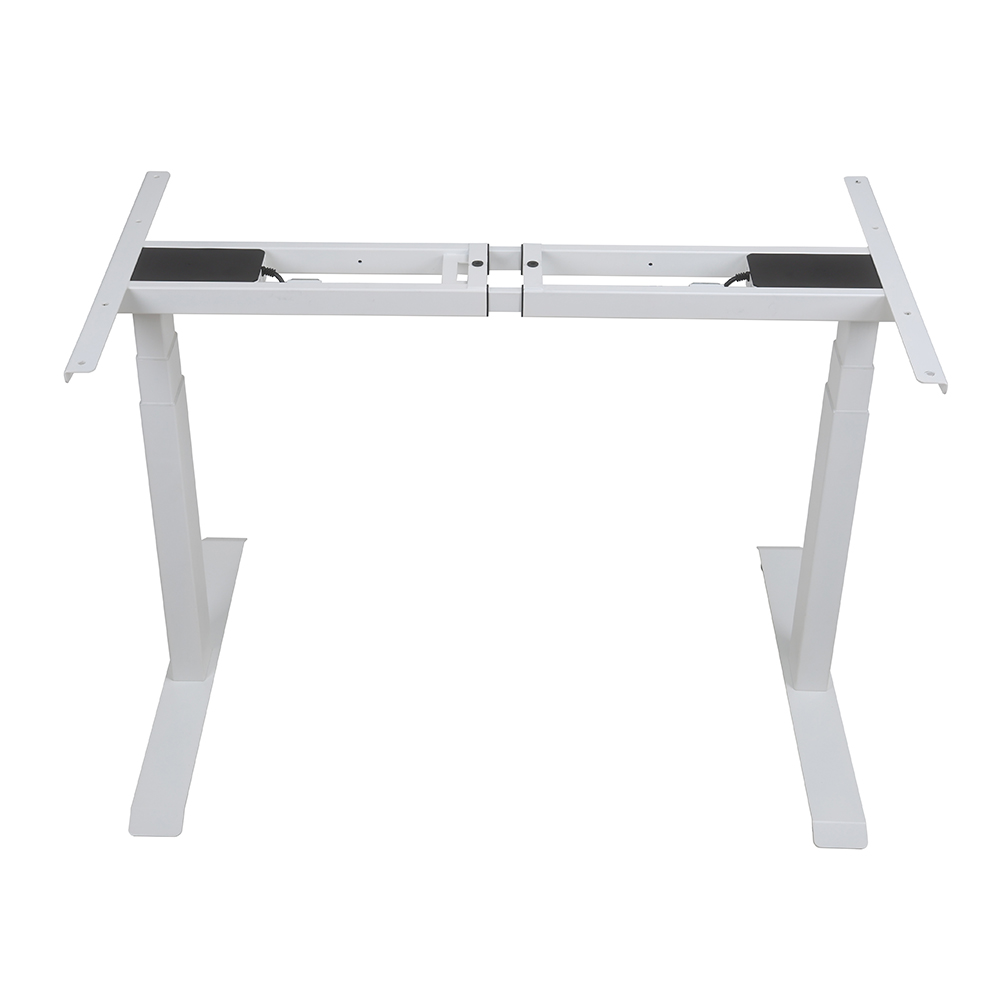

NT33-2AF3-KZB2
NATE
Dual Motor
Brushed Motor
Standard Column
Three Stage Column
Product Description

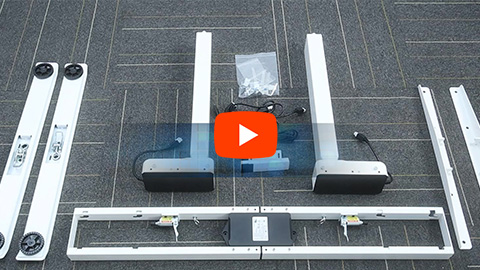

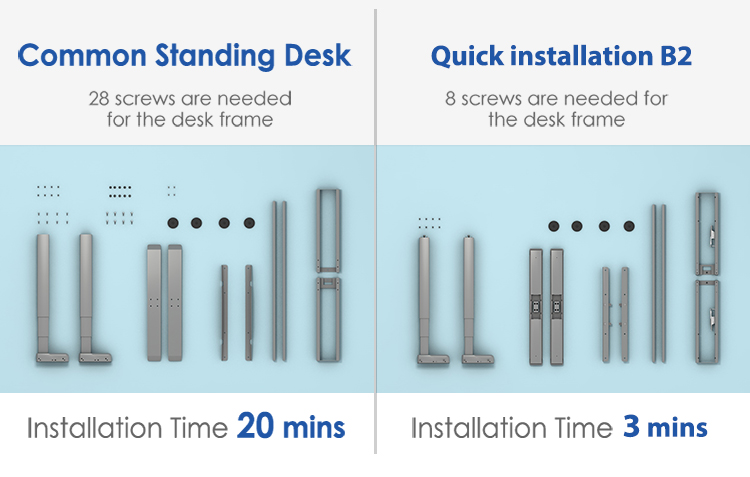

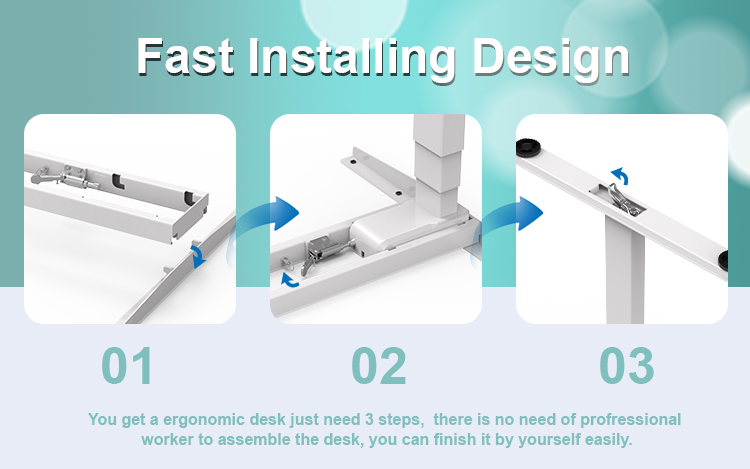

3-Minute Quick Assembly: Effortlessly Install the Modern 2AF3-KZB2 Height-Adjustable Desk — Hassle-Free
Features & Functions:

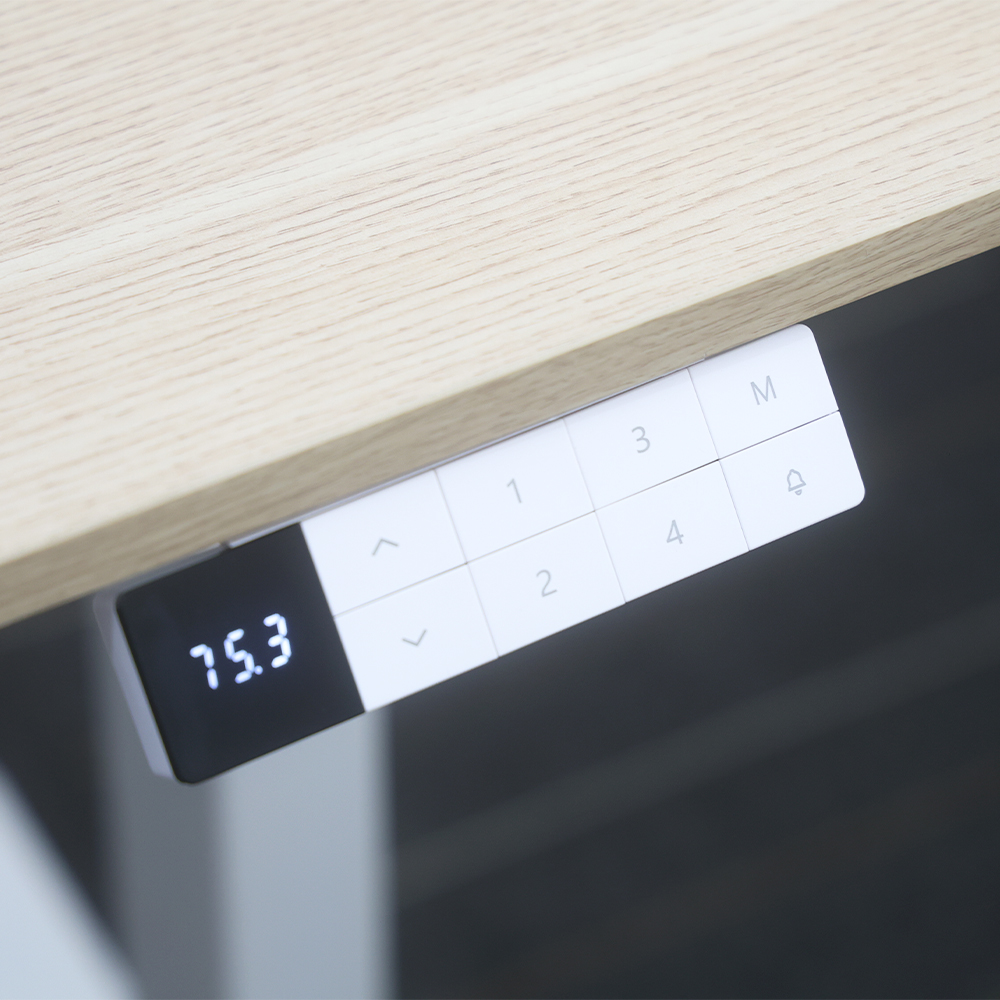

4-Memory Button Smart Remote with Sedentary Reminder

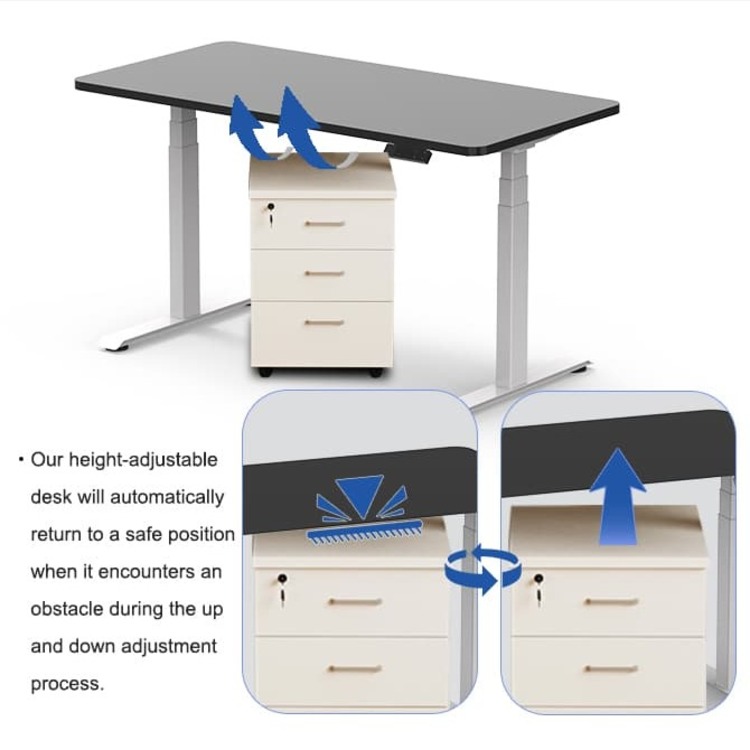

Advanced Safety Retreat: Detects resistance and automatically retracts to protect users and desk
Excellent Overload Protection

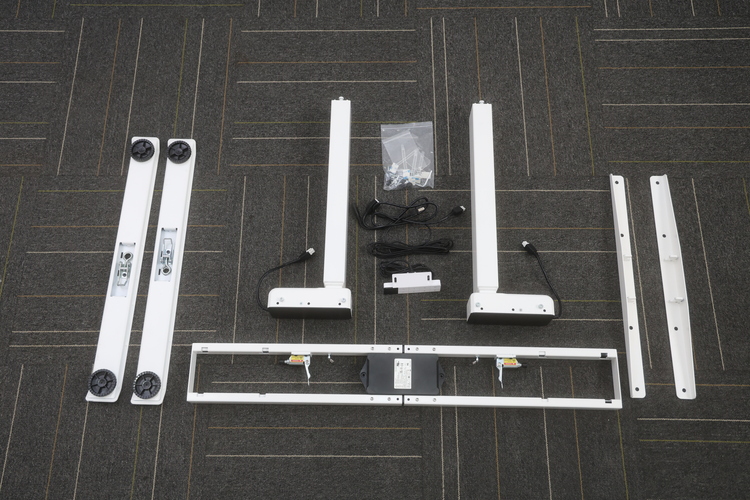

Package Components

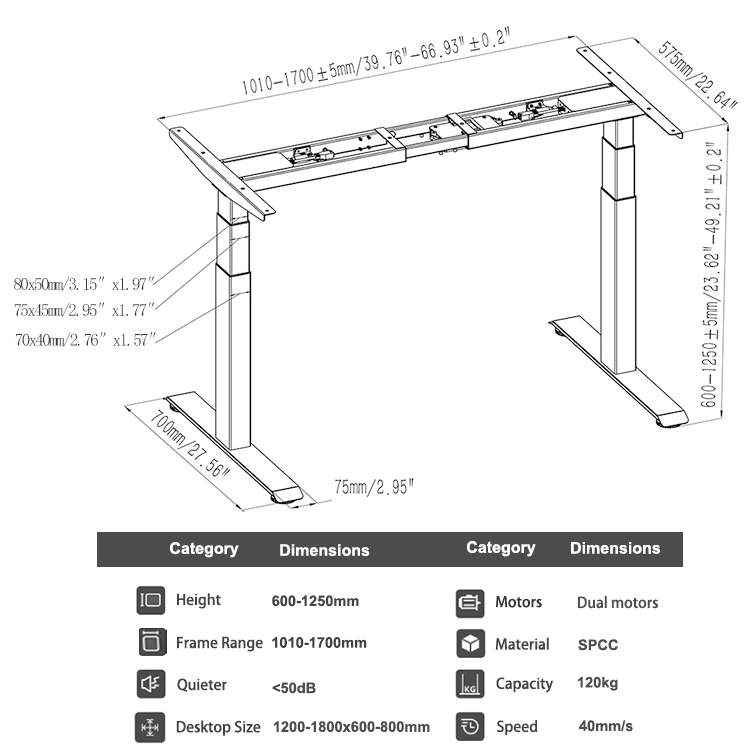

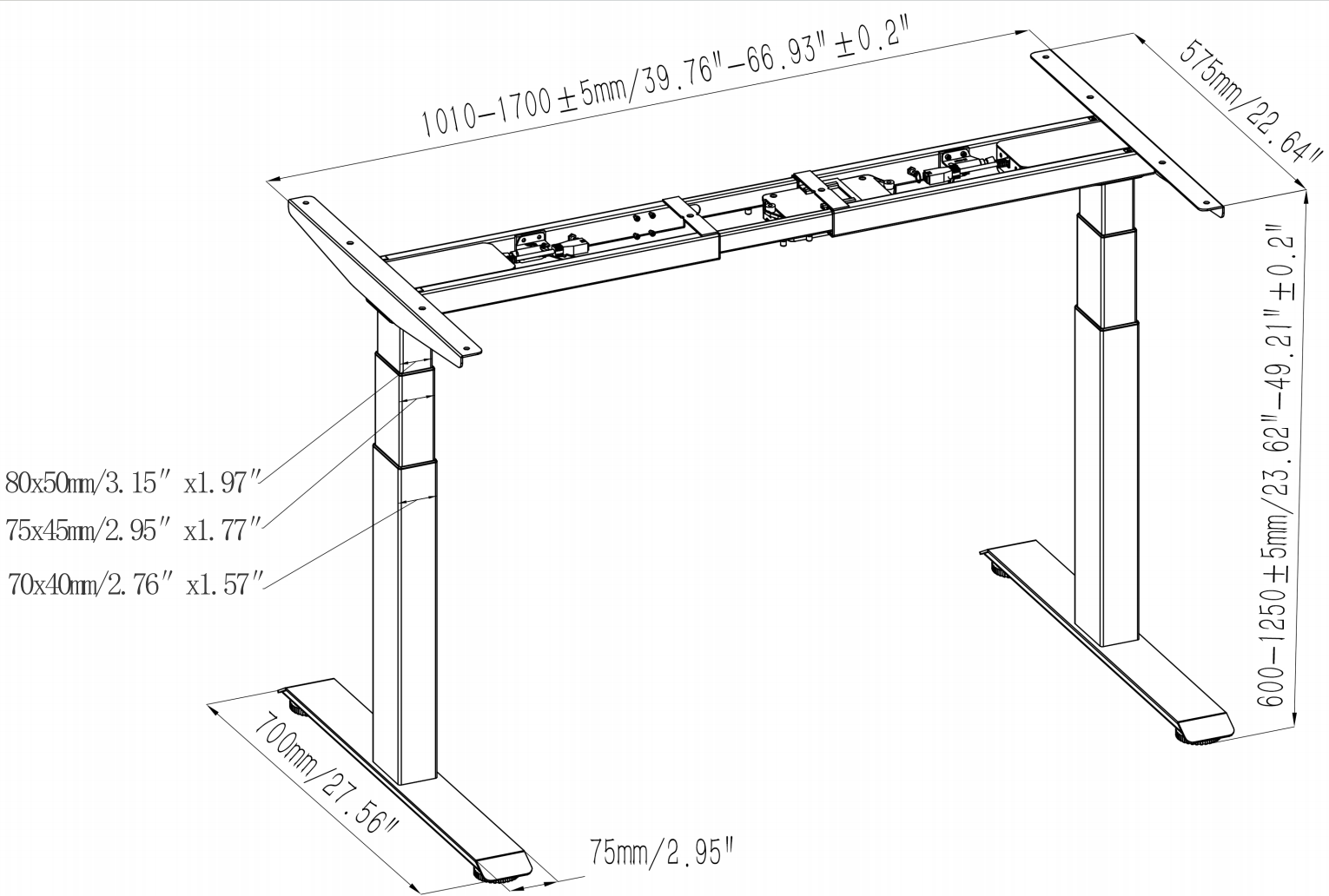

Specifications
| Model | 2AF3-KZB2 |
| Type | Desk Frame |
| Material | SPCC Steel |
| Height Range(Frame) | 600–1250 mm (23.62″–49.21″) / Stroke: 650 mm (25.59″) |
| Speed | 40mm/s |
| Load Capacity | 120 kg (264.5 lb) |
| Leg Count | 2 legs |
| Frame Color | White, Black, Grey, Customizable |
| Controller | 4 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
| Width Range(Frame) | 1010–1700 mm (39.76″–66.93″) |
| Voltage | 100-240 V |
| Drive Mode | Dual motor |
| Lift column | Standard 3-Stage Rectangular Tubes: 80×50 mm, 75×45 mm, 70×40 mm (3.15"×1.97", 2.95"×1.77", 2.76"×1.57") |
| Feet Size and Type | 700 mm (22.05"), equipped with leveling studs / customizable options |
| Tabletop Color | White, Black, Grey, Customizable |
| Tabletop Size(optional) | 1200-1800mm (47-71") × 600–800 mm (23.62–31.50") optional / Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, GS,UKCA,BSCI, SAA, REACH, RoHS, etc. |
| Package | Complete set in one EPE carton and pallets for oversea shipment |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
About Us
Shipping&Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
