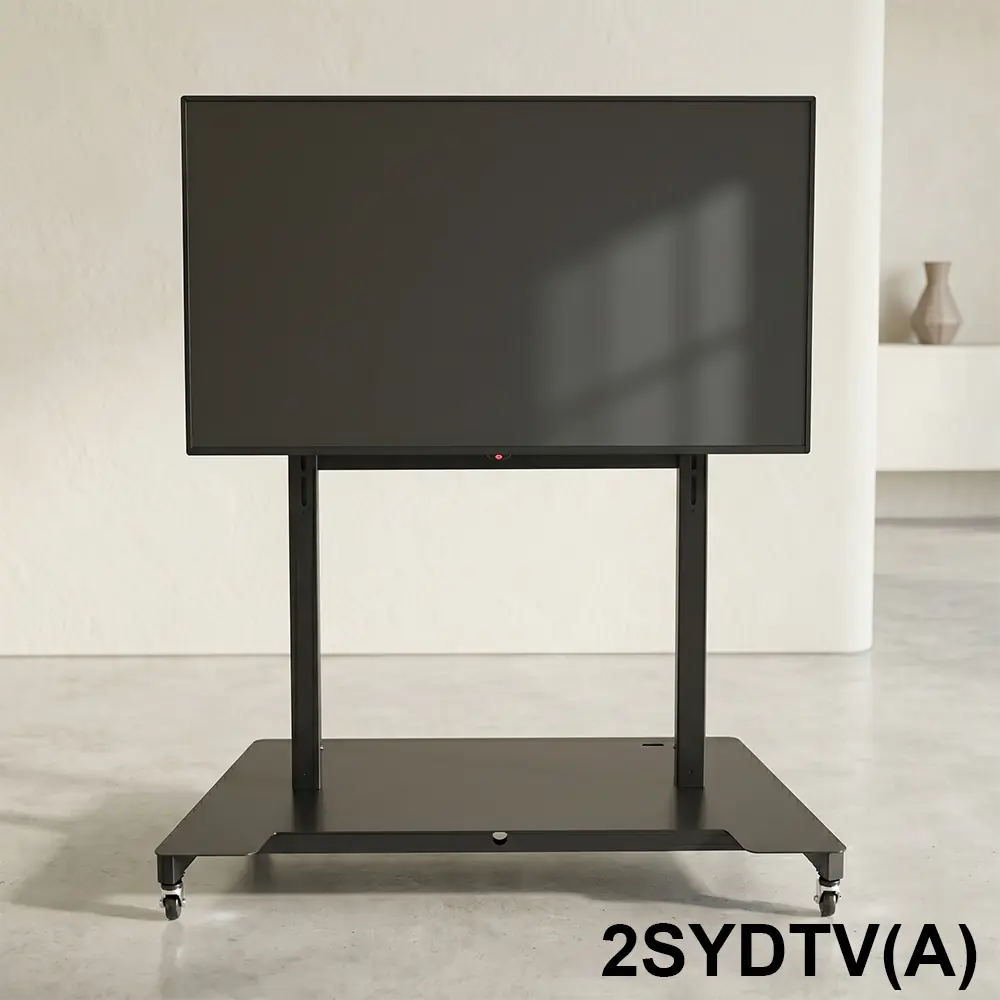

NT33-2SYDTV(A)
NATE
Single Motor
Brushed Motor
Standard Column
Two Stage Column
Description
Specifications
Type | TV Lift Stand | Model | 2SYDTV(A) |
|---|---|---|---|

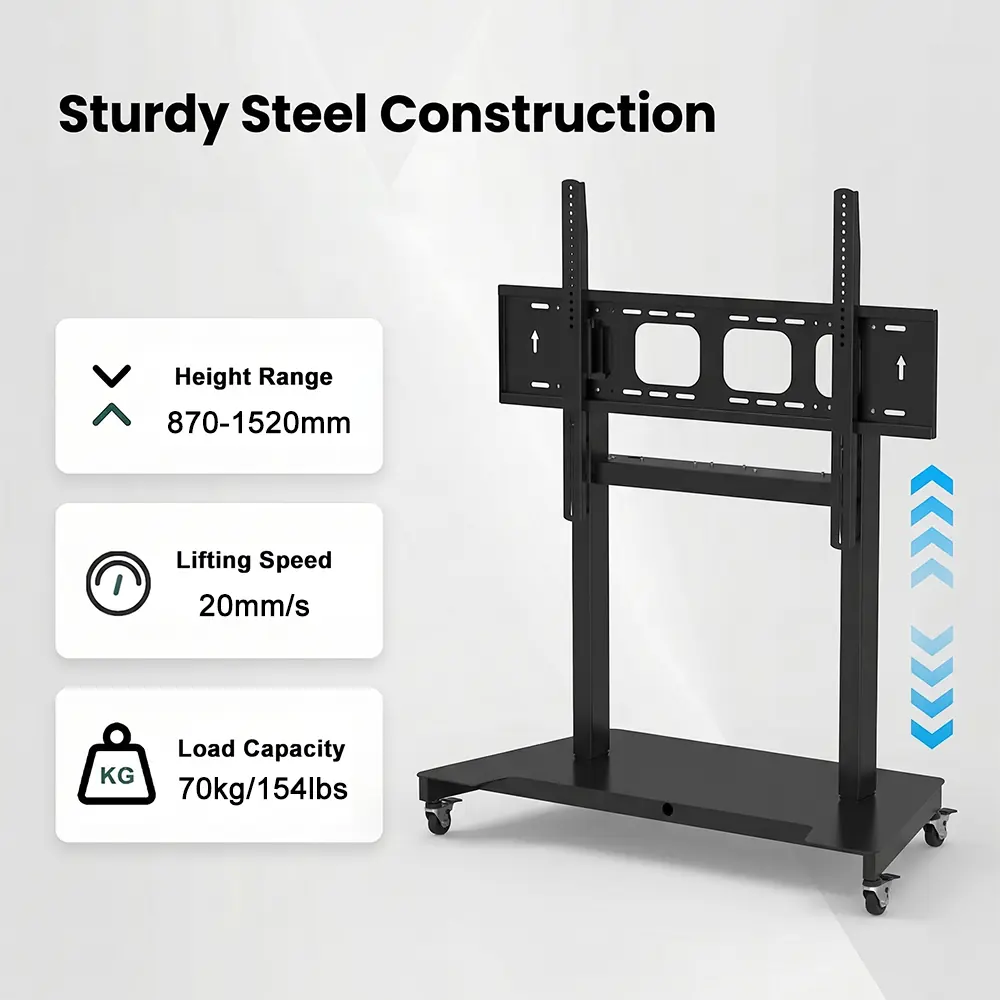

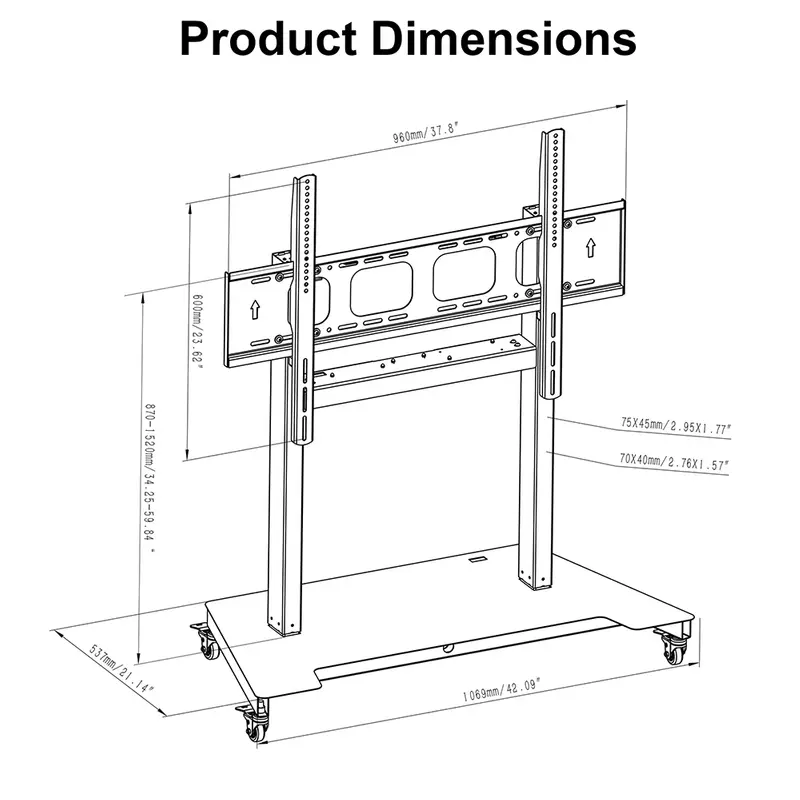

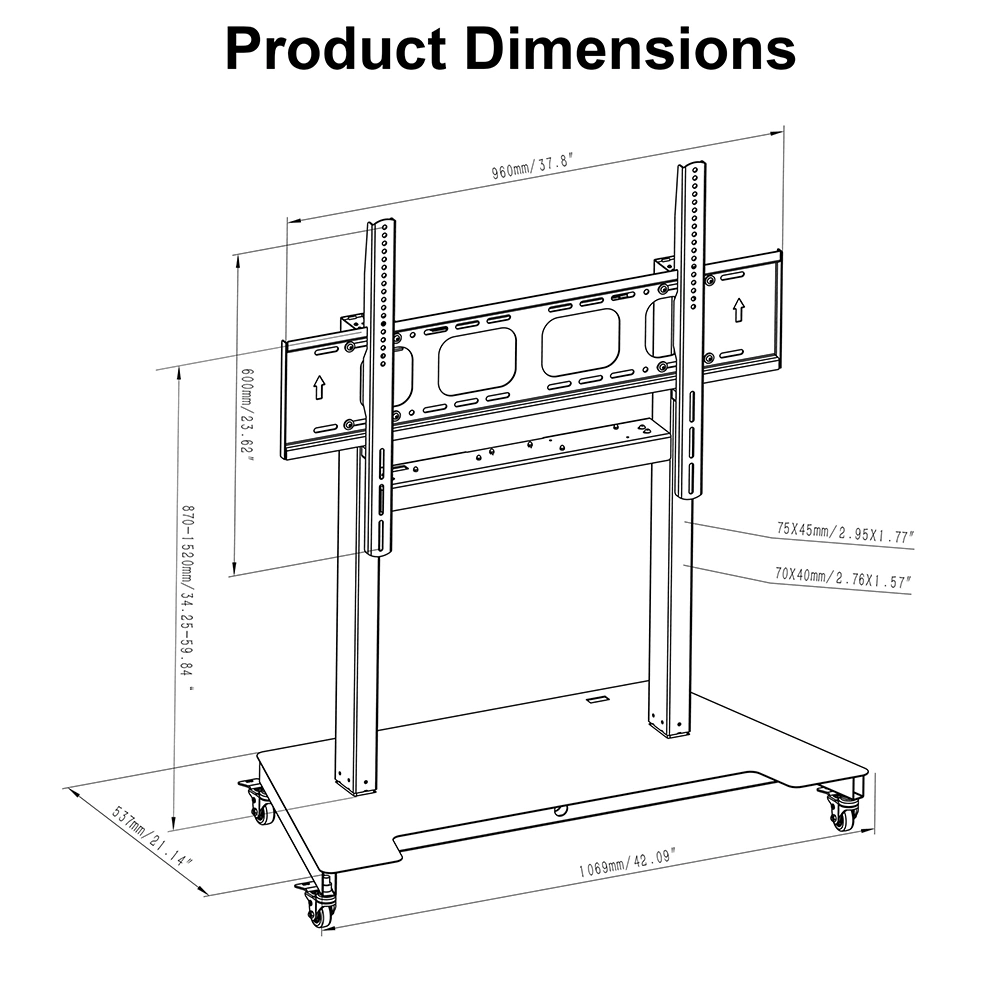

Material | SPCC | Height Range | 870–1520mm / Stroke: 650 mm |
Voltage | 100-240 V | Duty Cycle | 10% max. 2 minutes continuous use |
Mounting Frame Width | 960mm | Number of Motors | Single Motor |

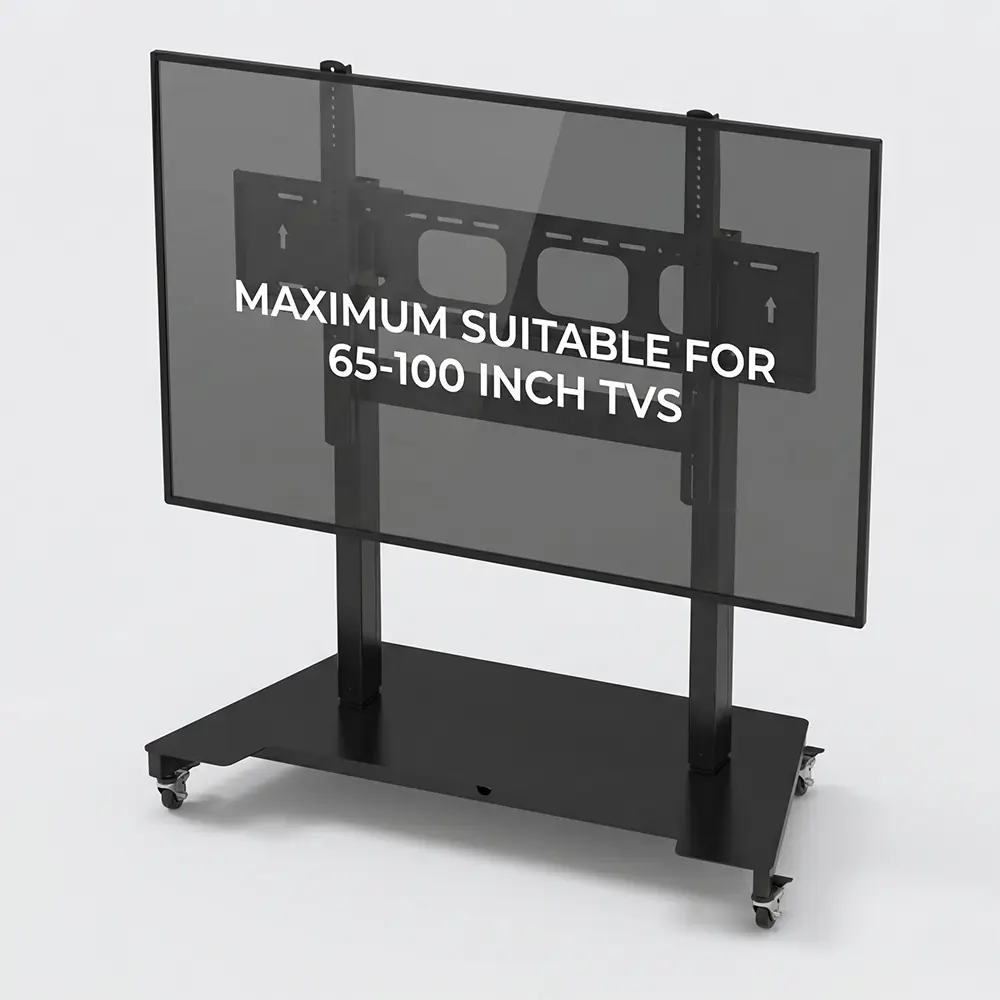

Compatible TV Size | 65–100 inch TVs | Lifting column | 75×45mm / 70×40mm |
Column Type | Rectangular Tube | Frame Color | White / Black / Gray, customized color available |
Speed | 20mm/s | Noise | <50 dB |
Load Capacity | 70kg / 154lbs | Certificate | CE / GS / UL / CB / SAA / FCC / ROHS / REACH / UKCA / EMC / BIFMA / BSCI / ISO9001 / ISO14001 / ISO45001 / ISO50001 |

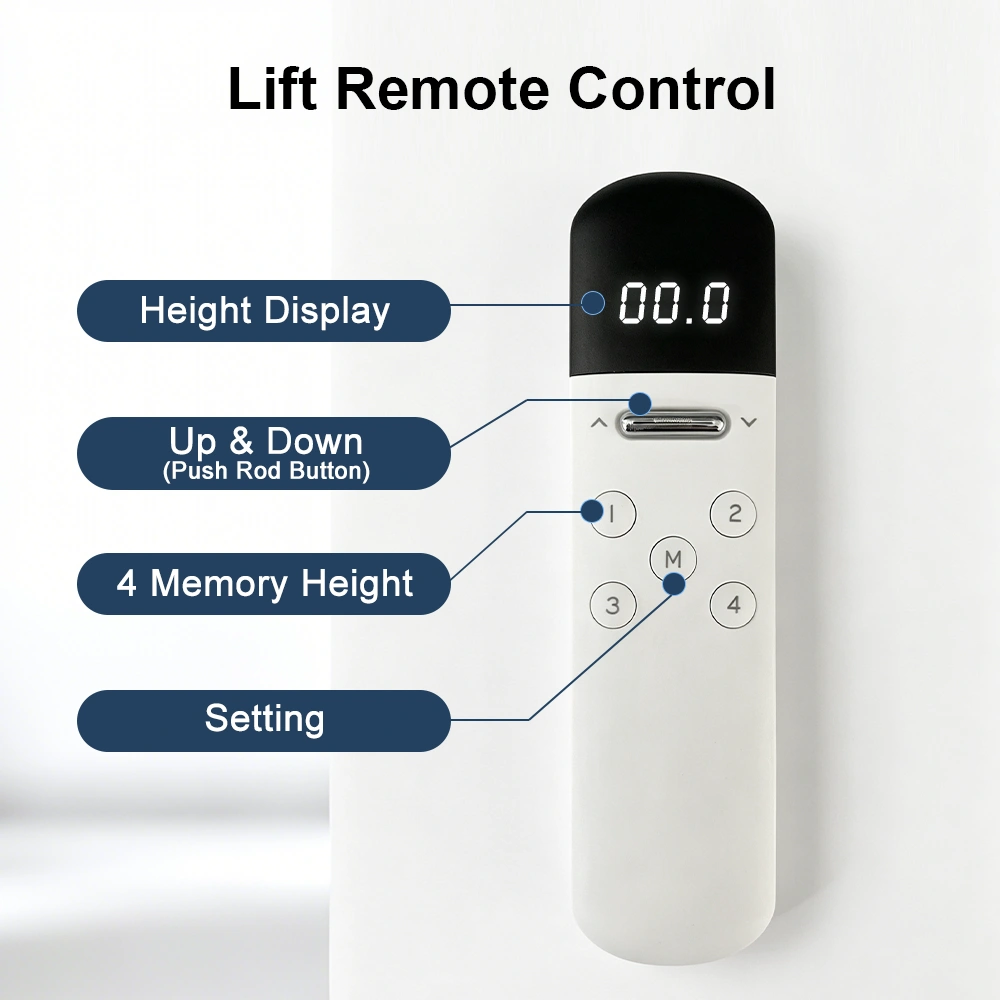

Control Method | hand controller + Lift remote control | Package | Complete set in one EPE carton / Eco-friendly Pulp Packaging |
Base Size | 1069×537mm | Package Size | 1135*610*188mm |
Base Design | Mobile caster base | Gross Weight | 35.95KG |

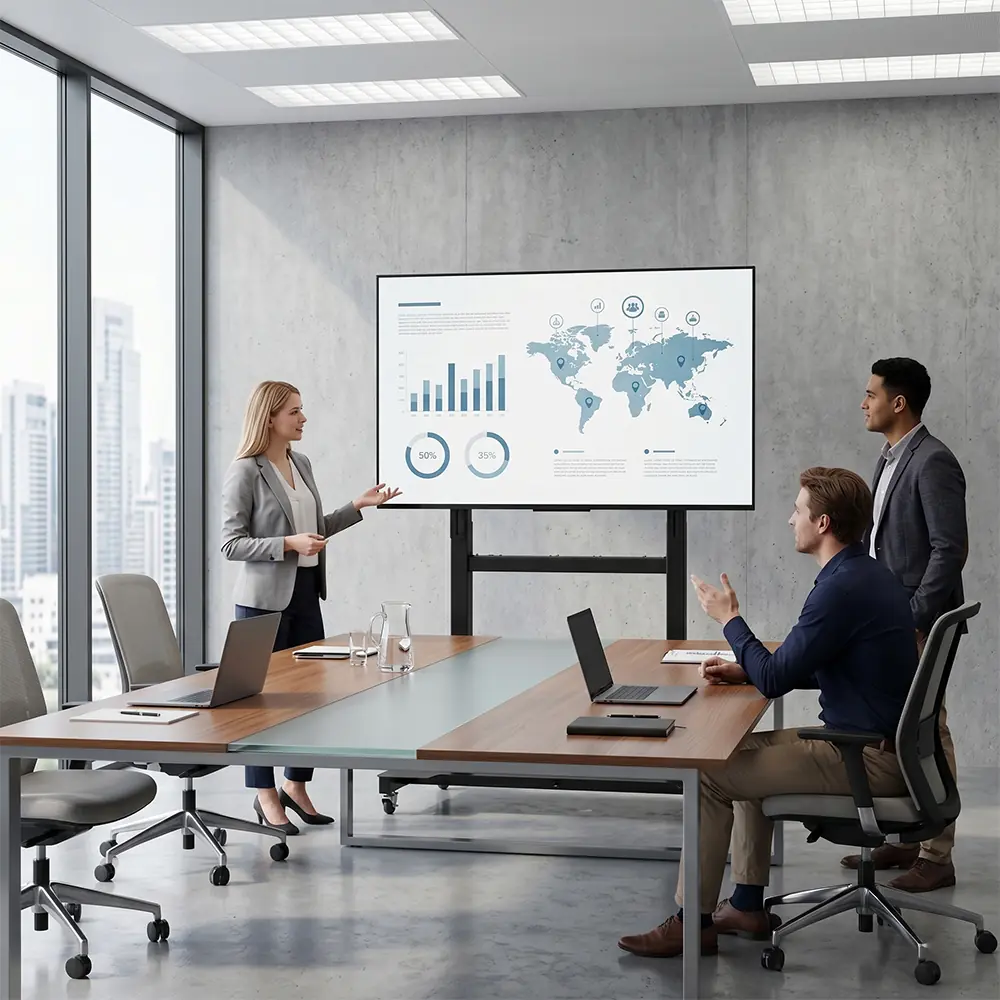

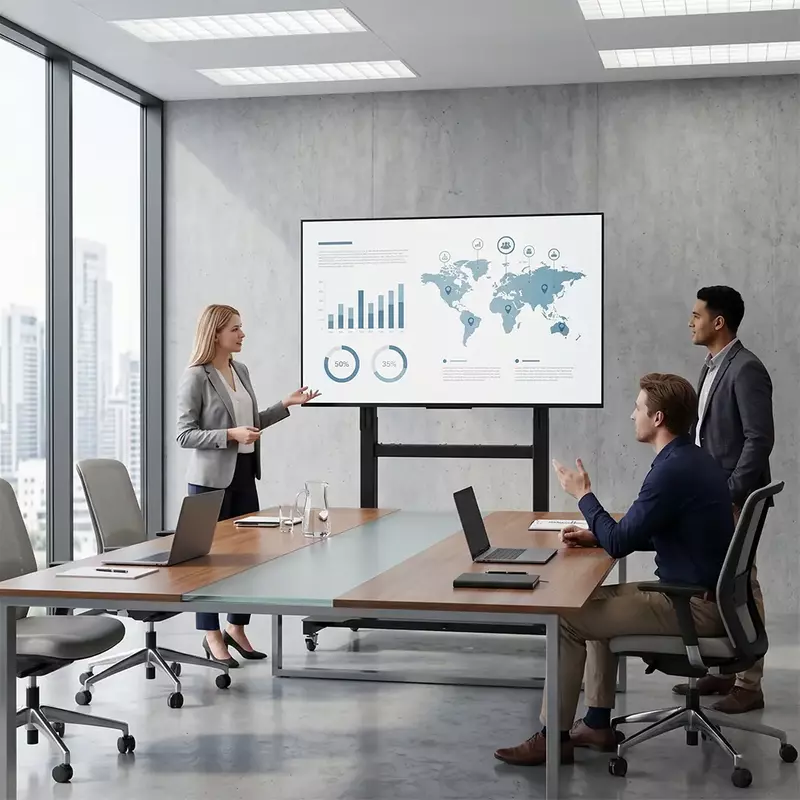

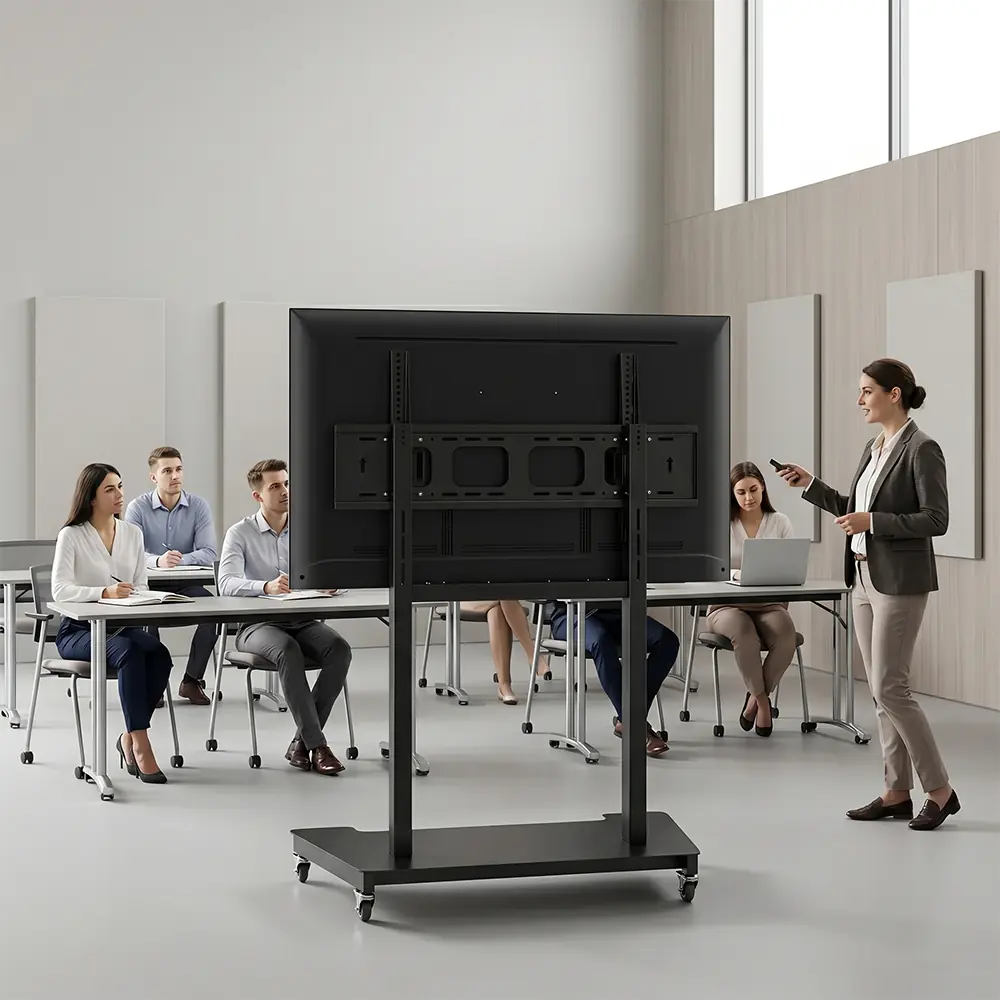

Warranty | 5 years on all parts | Application | Meeting rooms / Training spaces / Conference rooms / Commercial AV projects |
Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
Packing&FAQ
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
