NT33-2MABR2
NATE
hand crank
Reversed Column
Two Stage Column
10mm/s
910±5mm(Fixed)
Description
![A lifestyle image of the white 2MABR2 desk fully assembled and set up with a computer, lamp, and plants in a bright, modern office setting.]alt: The 2MABR2 white manual standing desk in a bright, modern home office with a computer and plants, showcasing a clean and productive workspace.](https://ilrorwxhmjllll5p.ldycdn.com/cloud/lqBpiKoqlnSRkllknqpriq/2MABR2_D00_1250.png)
Discover the simplicity and reliability of manual height adjustment. The 2MABR2 hand-crank standing desk frame allows you to create a healthier, more dynamic workspace without the need for electricity. Transition smoothly from sitting to standing throughout your day to boost energy, improve focus, and promote better posture.

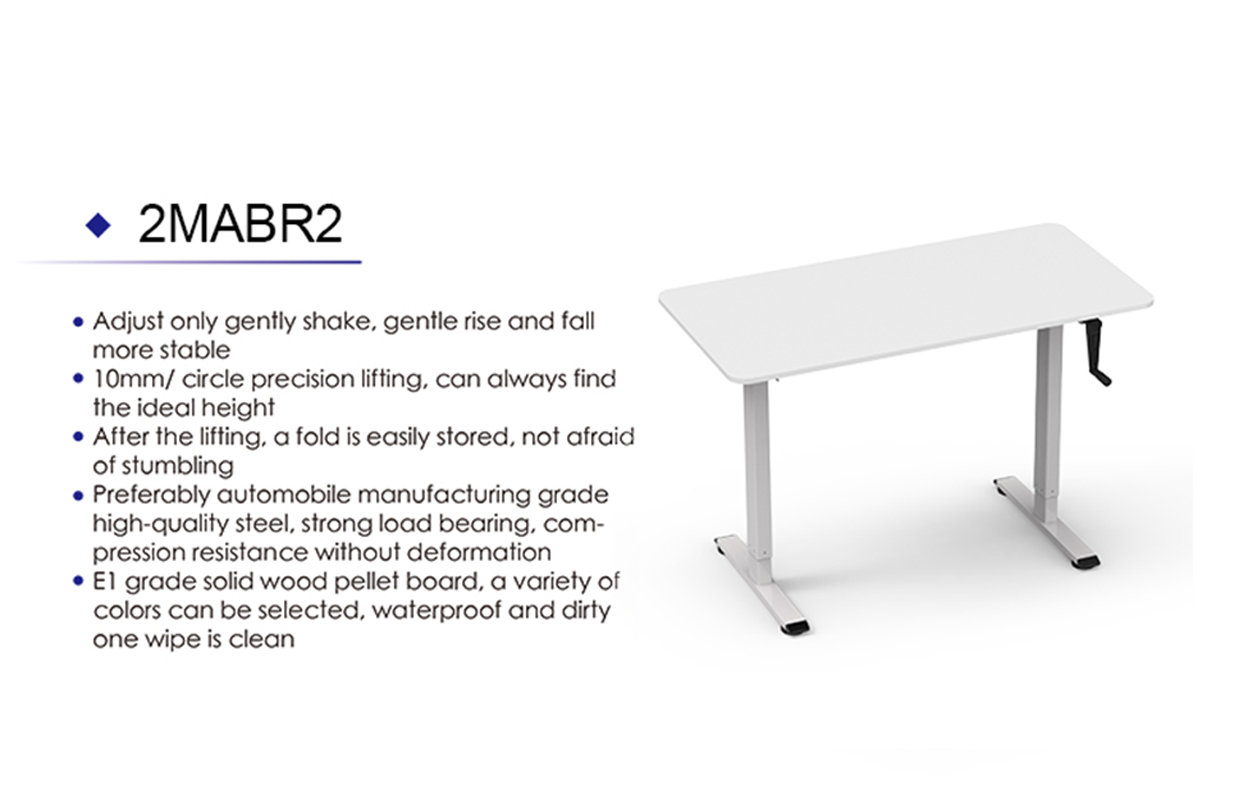

![A close-up image focusing on the foldable hand crank mechanism.] alt: A detailed view of the black, foldable hand crank used to control the table's height.](http://ilrorwxhmjllll5p.ldycdn.com/cloud/lrBpiKoqlnSRkllkjmjriq/2MABR2_D01_1250x800.jpg)
The core of the 2MABR2 is its precision-engineered manual lifting system, designed for a user-friendly experience that is both quiet and stable.

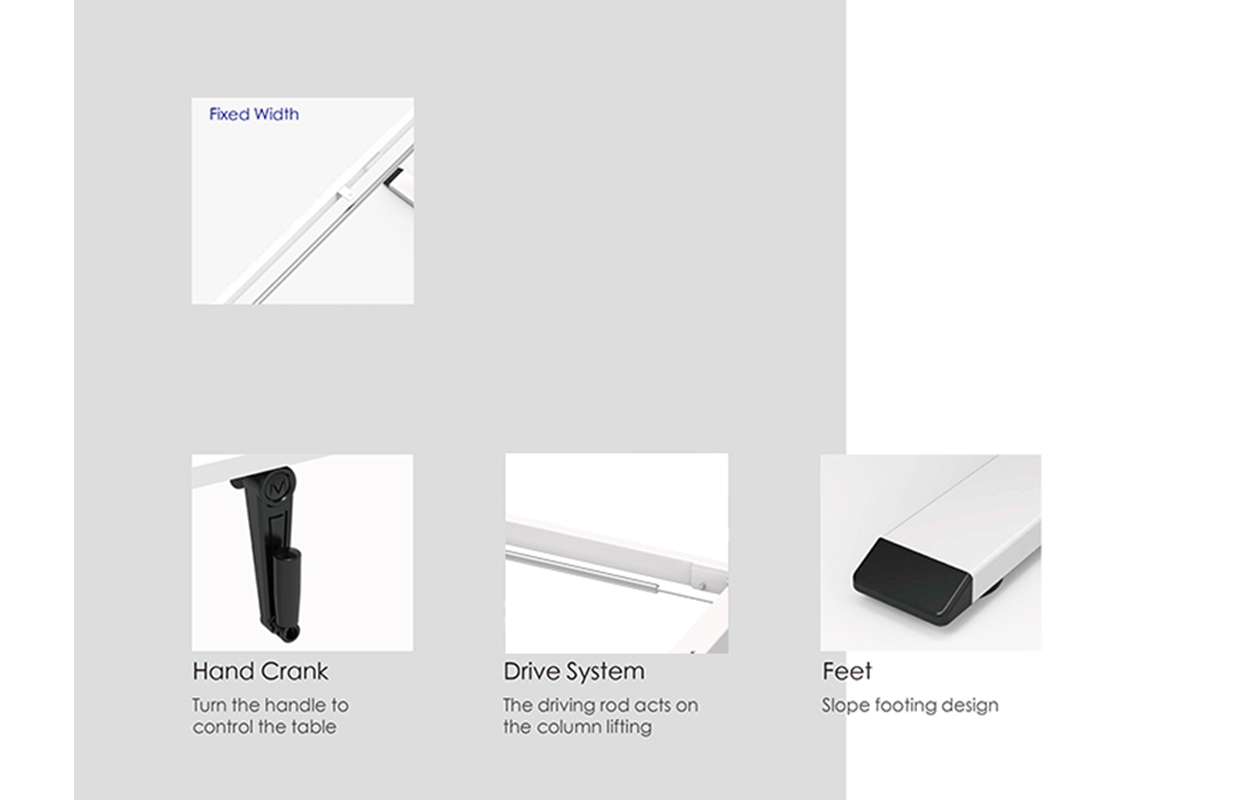

Precision Hand Crank & Foldable Handle
Achieve your perfect height with ease. After adjusting, the crank handle can be folded away neatly. This smart design prevents bumps and maintains the desk's clean lines, ensuring it doesn't get in your way.
The robust internal drive system ensures a gentle and stable rise and fall, keeping your computer and equipment secure while you make adjustments.
Constructed with high-quality materials, the 2MABR2 frame is built to be a dependable foundation for your work.
High-Grade Steel Construction & Stable Feet
The frame is made from automobile-grade steel, providing superior strength and resistance to deformation. This is supported by a sloped footing design for enhanced stability on any surface.
Robust Fixed-Width Design
The fixed-width beam enhances the frame's structural integrity, providing a solid, wobble-free workstation capable of supporting an 80kg static load. Enjoy a peaceful environment with its quiet (<50 dB) operation.

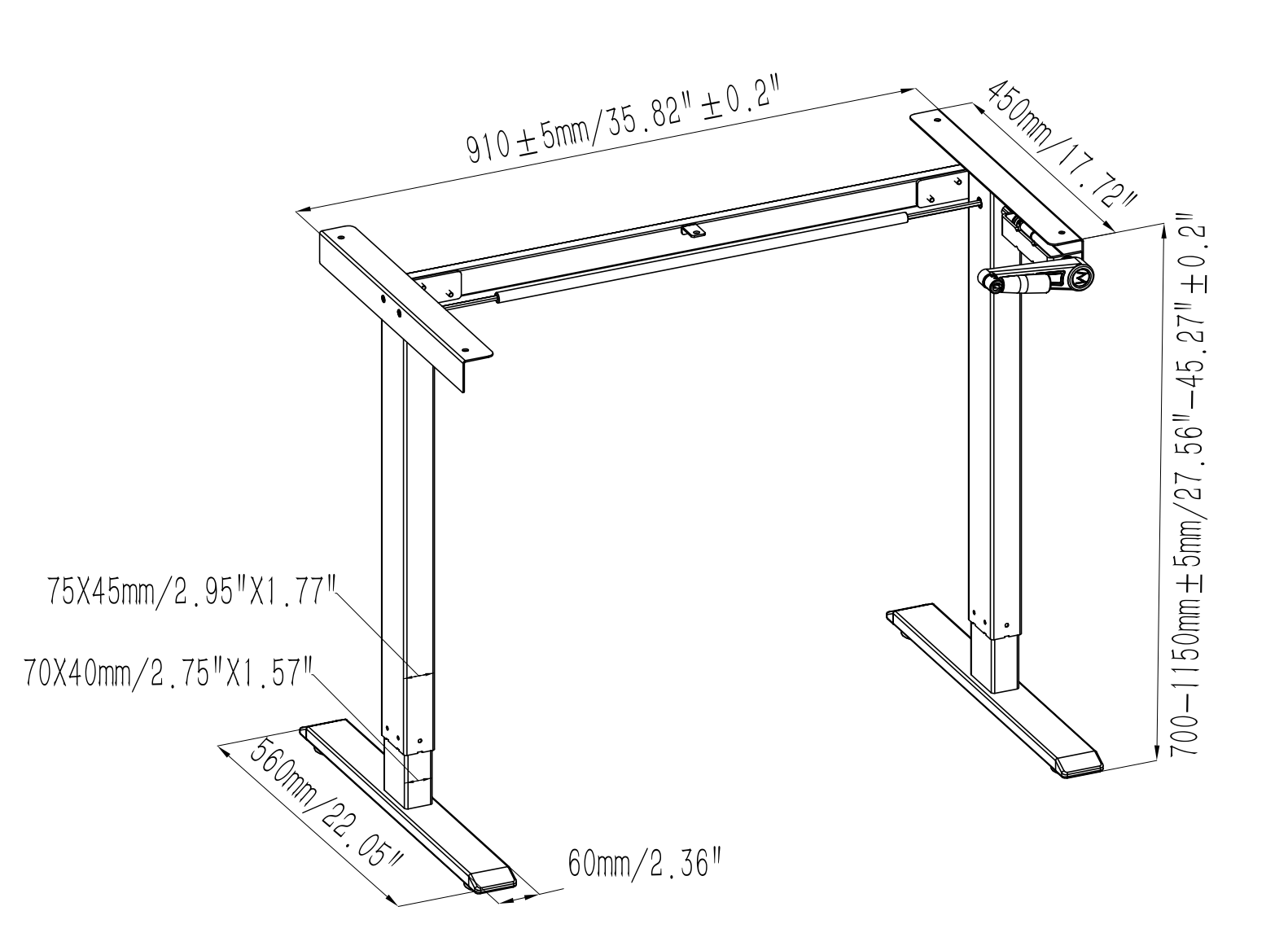

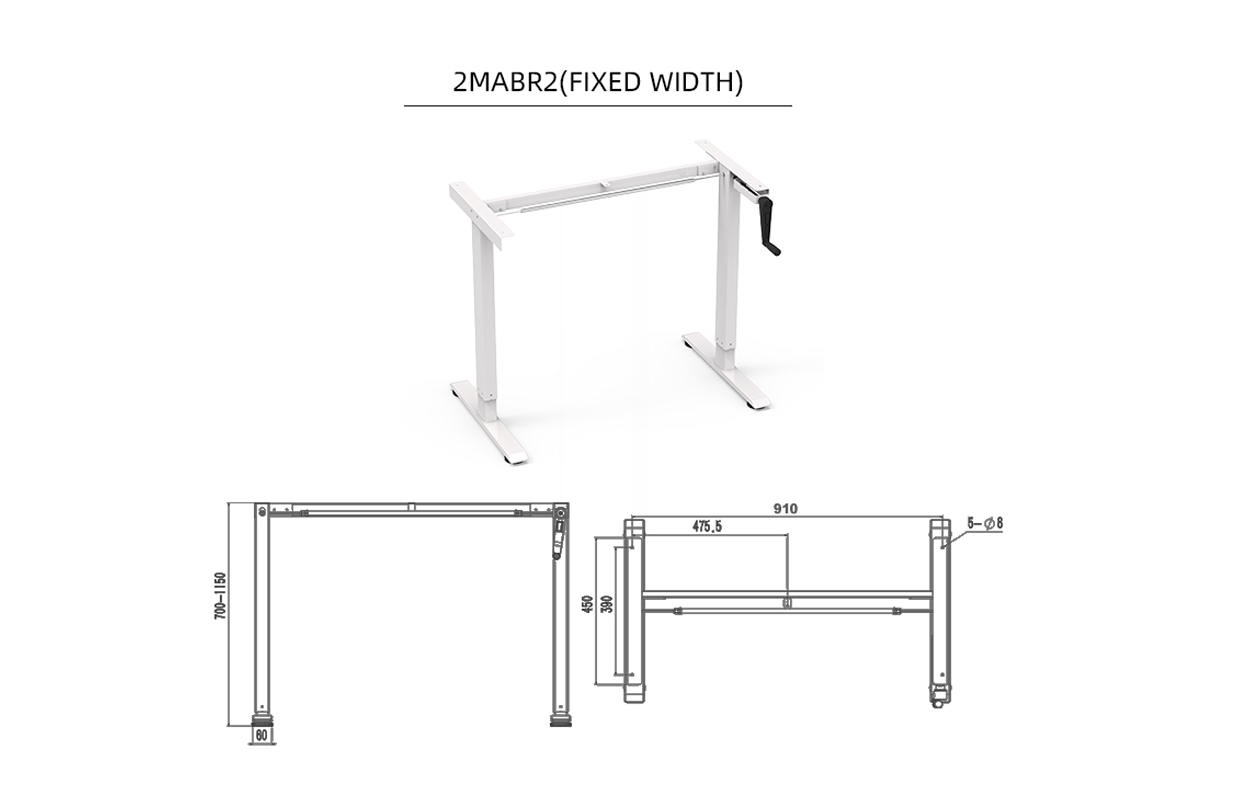

Detailed Specifications and Dimensions
Review the precise measurements to ensure a perfect fit for your space and chosen tabletop.

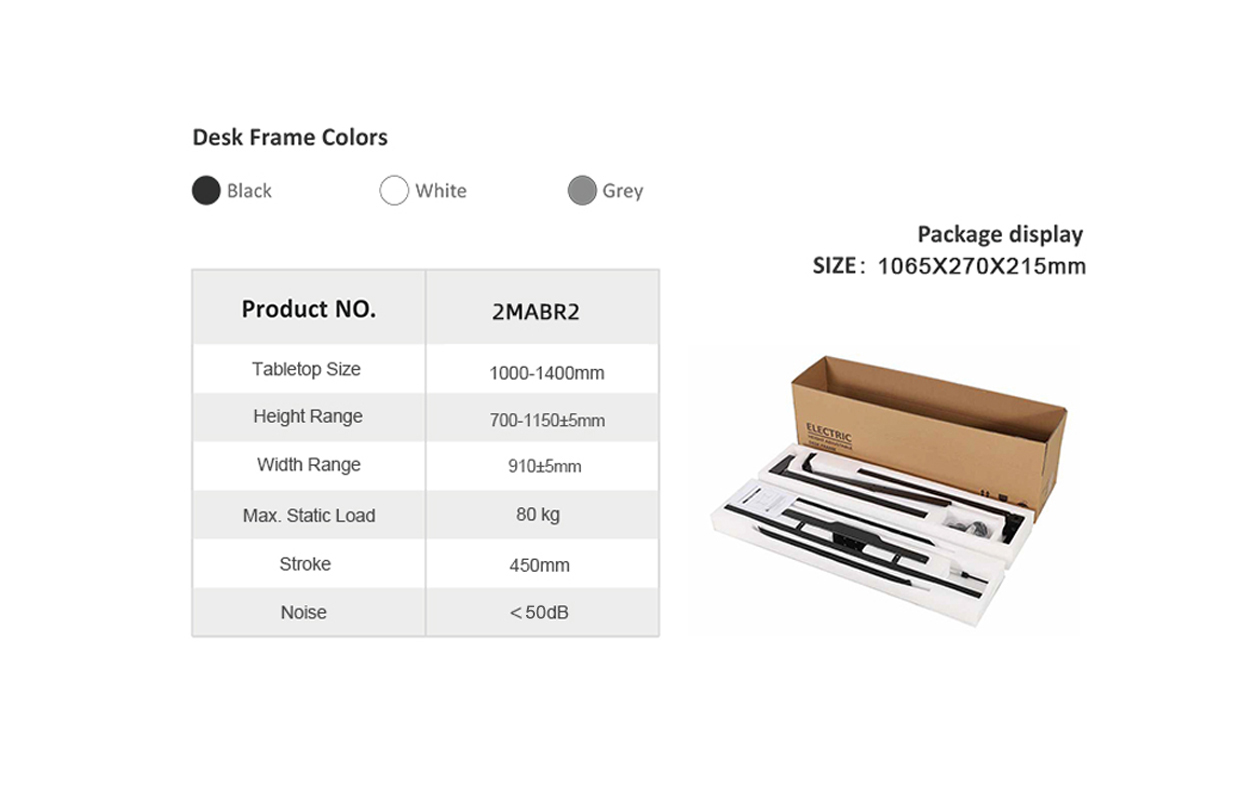

The 2MABR2 frame is available in multiple colors and comes securely packaged for safe delivery.
Specifications
Technical Specifications at a Glance:
| Model | 2MABR2 |
| Type | Desk Frame |
| Material | SPCC Cold-Rolled Steel |
| Height Range(Frame) | 700–1150 mm (27.56″–45.28″) / Stroke: 450 mm (17.72″) |
| Speed | 10mm/s |
| Load Capacity | 80 kg (176.4 lb) |
| Leg Count | 2 legs |
| Frame Color | White, Black, Grey, Customizable |
| Controller | Manual |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
| Customization | Accepted / Supports Full Desk |
| Width Range(Frame) | 910 ± 5 mm (35.83″ ± 0.20″) Fixed |
| Voltage | 100-240 V |
| Drive Mode | hand crank |
| Lift column | Reverse 2-Stage Rectangular Columns: 75×45 mm (2.95″×1.77″) / 70×40 mm (2.76″×1.57″) |
| Feet Size and Type | 560 mm (22.05"), equipped with leveling studs / customizable options |

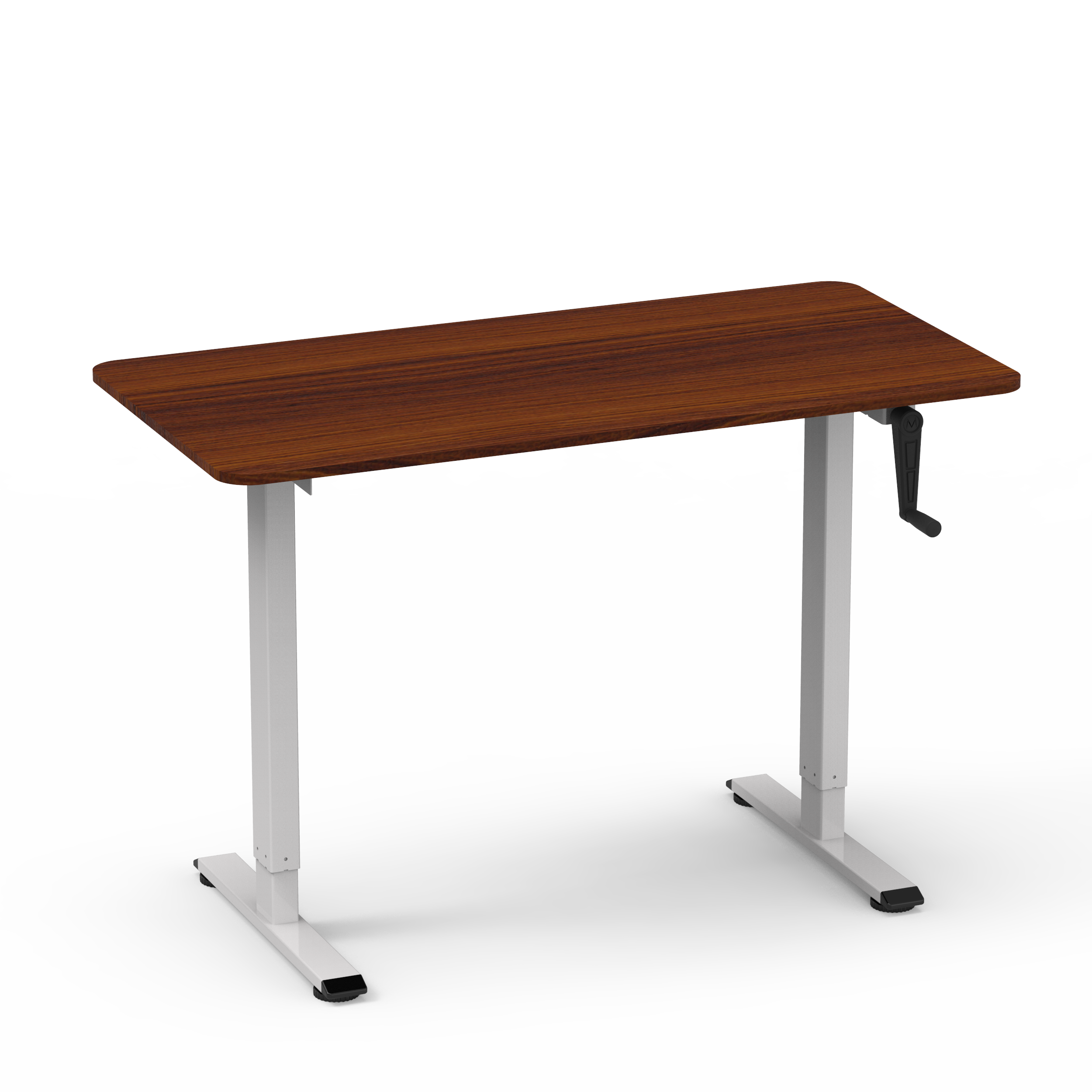

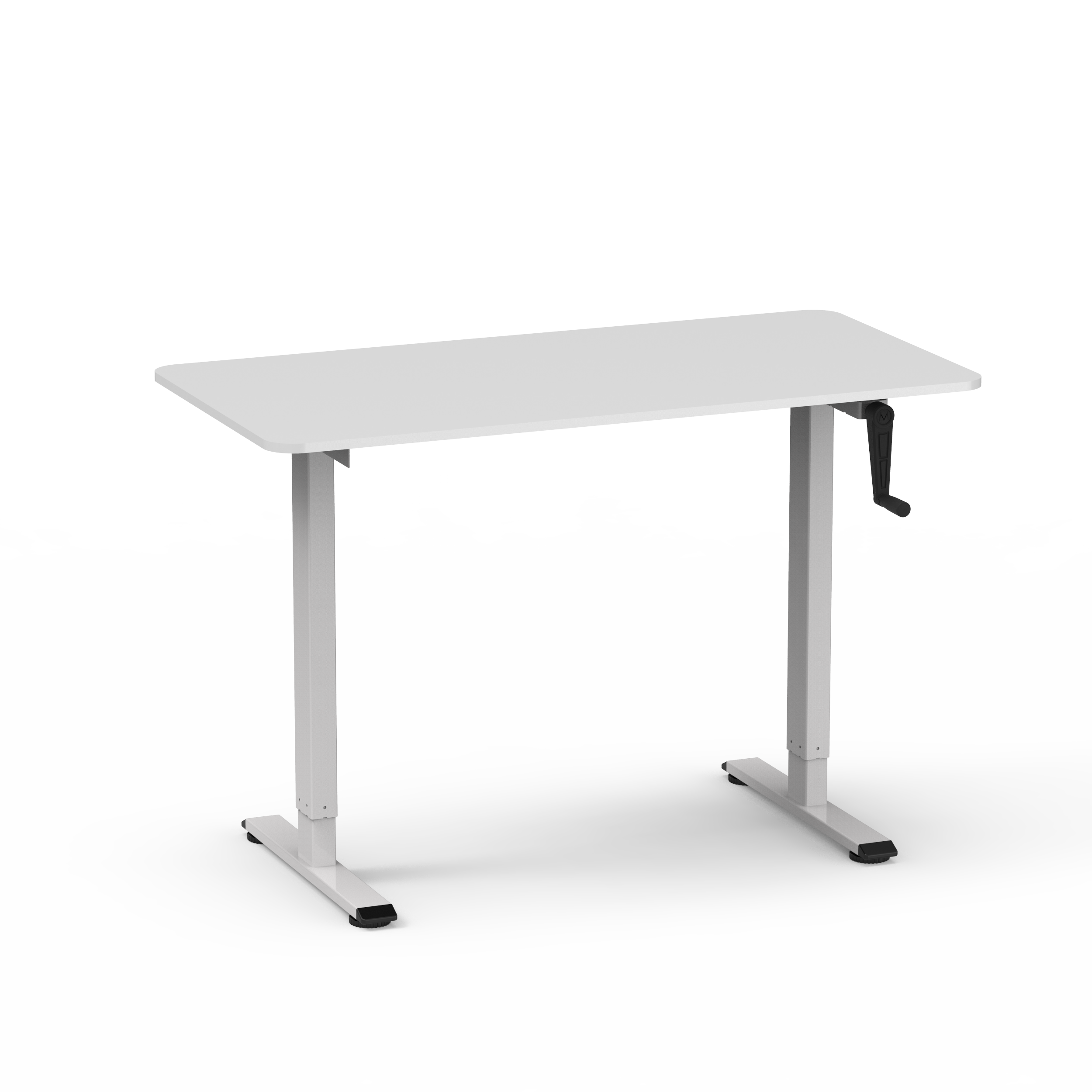

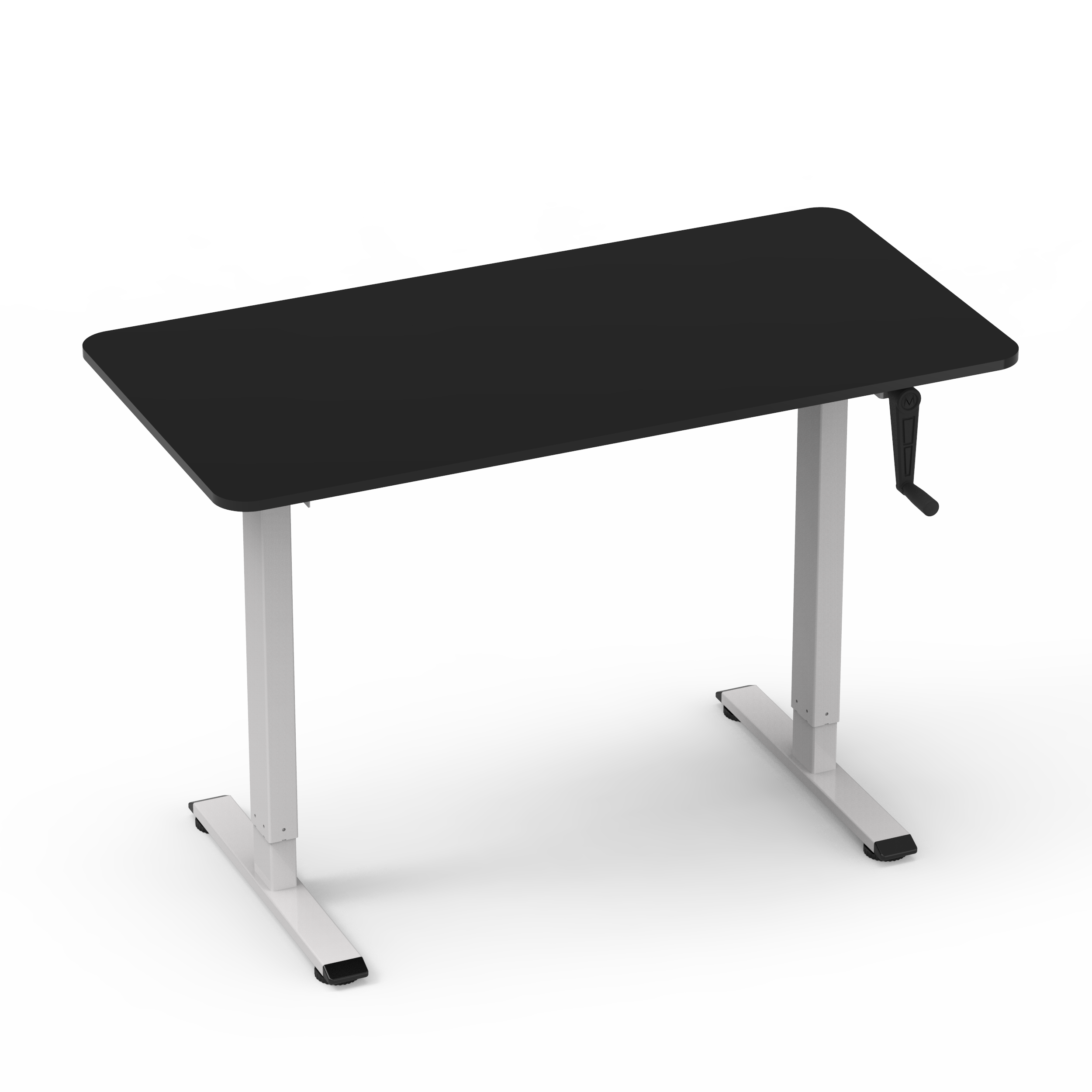

| Tabletop Color | White, Black, Grey, Walnut, Oak, Customizable |
| Tabletop Size(optional) | (W) 1000–1400 mm (39.37″–55.12″) × (D) 600–700 mm (23.62″–27.56″) / Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, BSCI, SAA, BIFMA, RoHS, etc. |
| Package | Complete set in one EPE carton and pallets for oversea shipment |
Customization

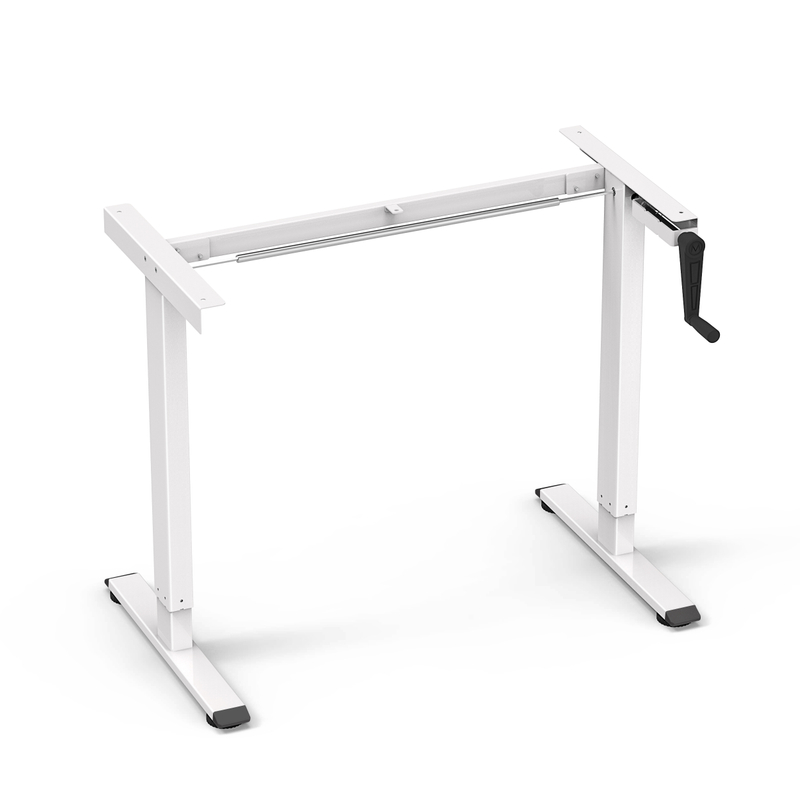

Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
Company Overview
Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
