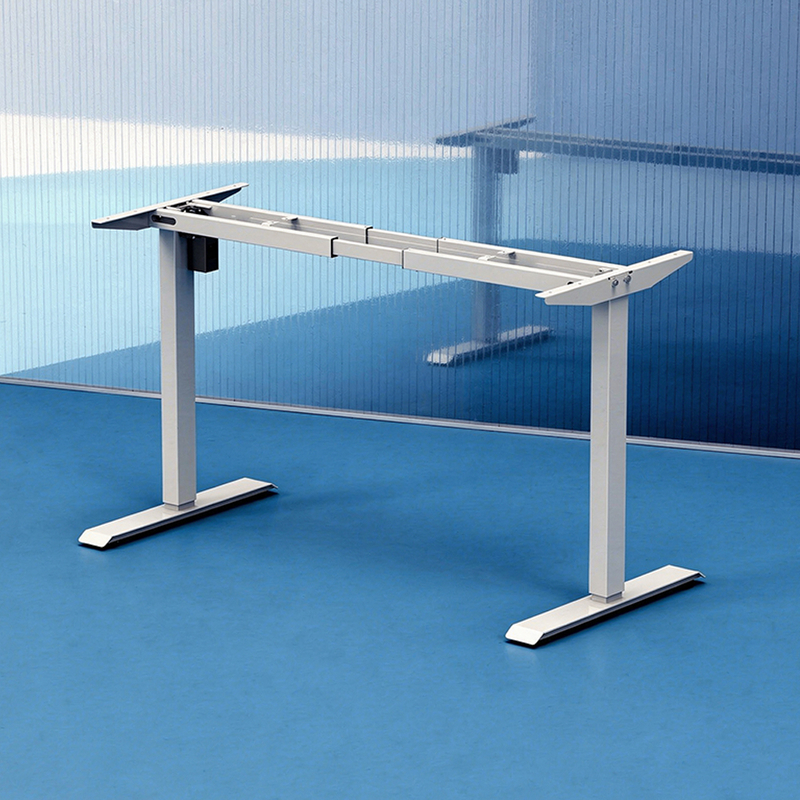

2SACRHF2(C) Brushless Single Motor Standing Desk Frame - Outstanding Cost Performance

Product Description



Display video



Installation video

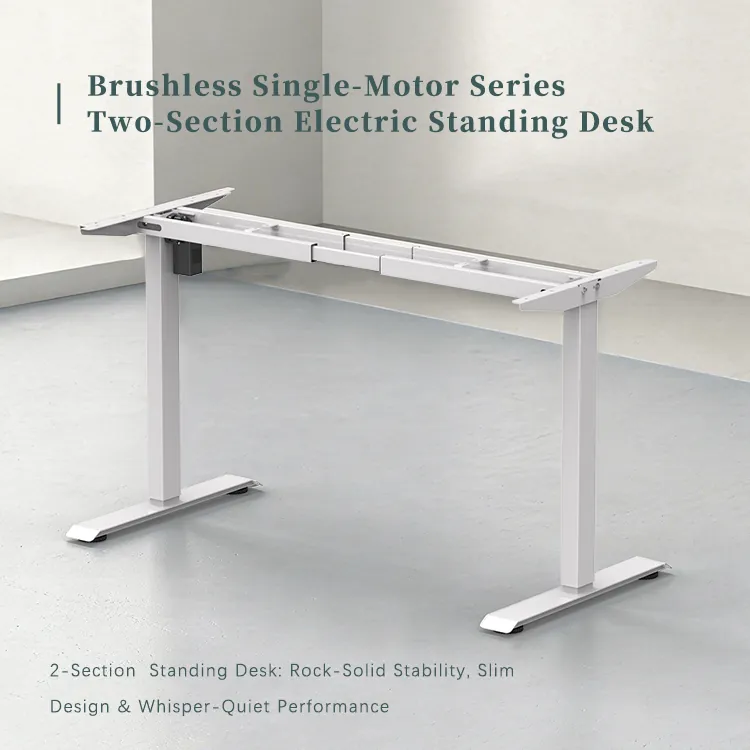

NATE 2SACRHF2(C): The Brushless Revolution

Rock-solid stability meets whisper-quiet performance. Experience the durability of next-gen brushless motor technology.

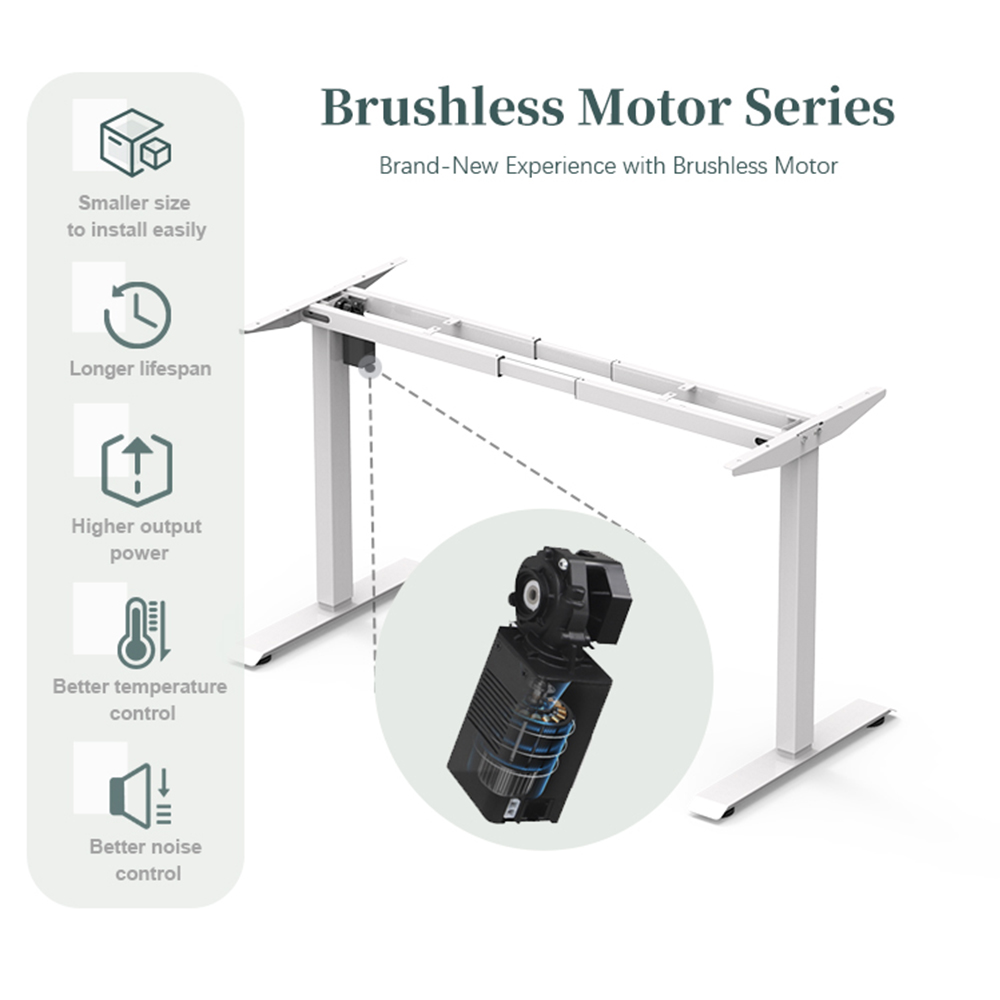

Why Choose Brushless Motor?

The 2SACRHF2(C) is powered by an advanced internal rotor brushless motor. Compared to traditional brushed motors, it offers:

• Longer Lifespan: No carbon brush wear ensures long-term reliability.

• Whisper Quiet: Operation noise below 50dB for a distraction-free office.

• ⚡ Higher Efficiency: Compact size with stronger output power.

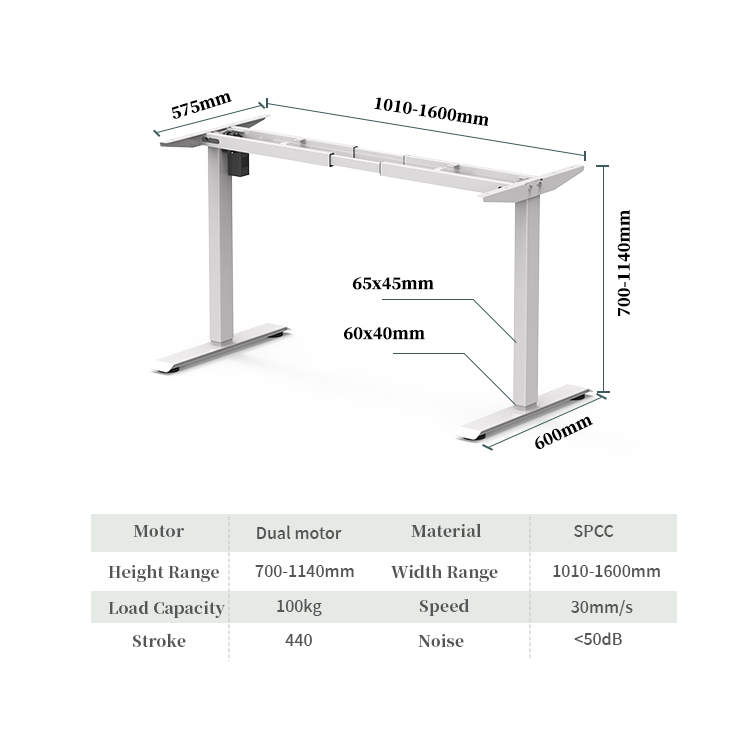

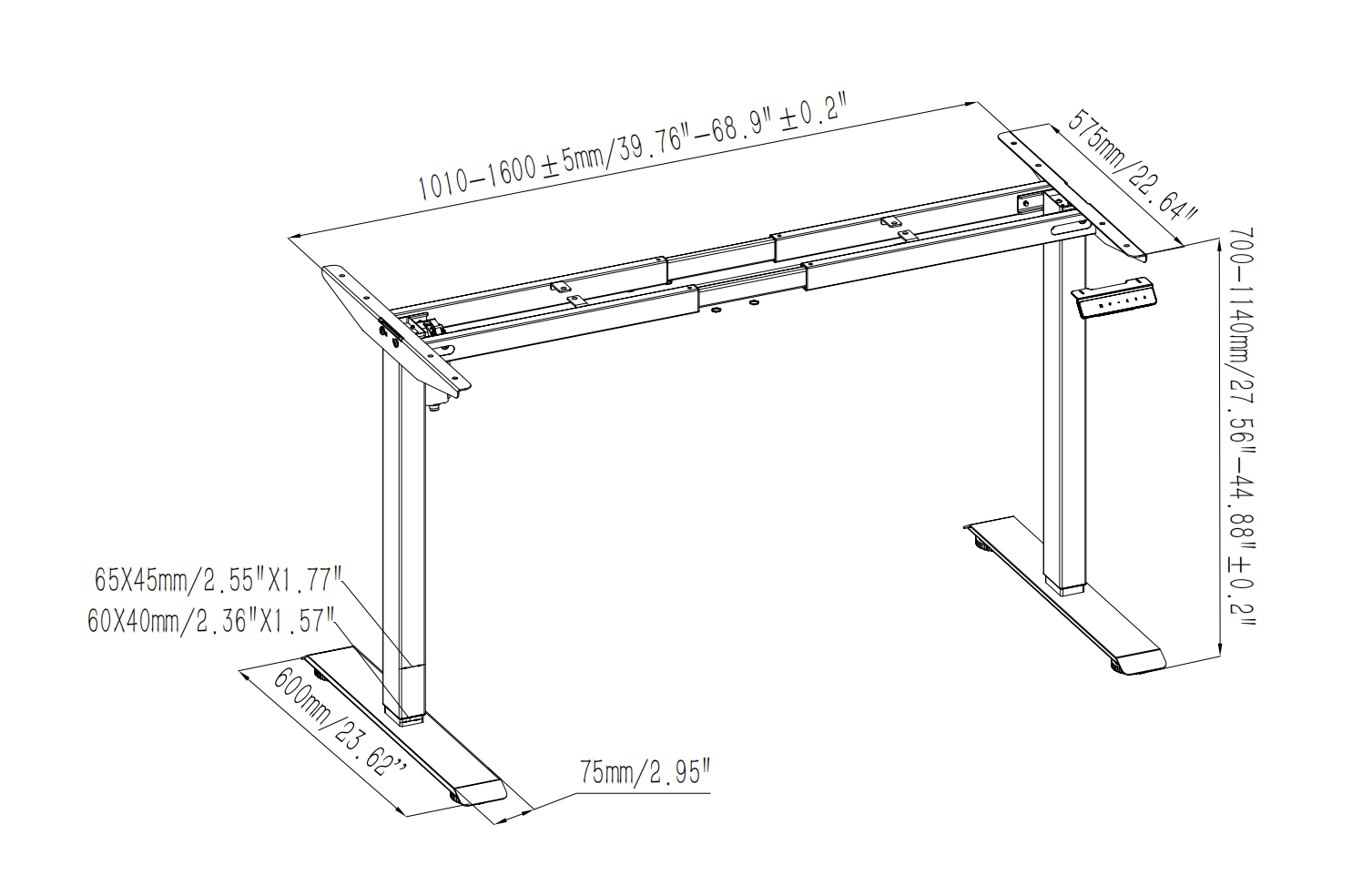

Specifications & Dimensions

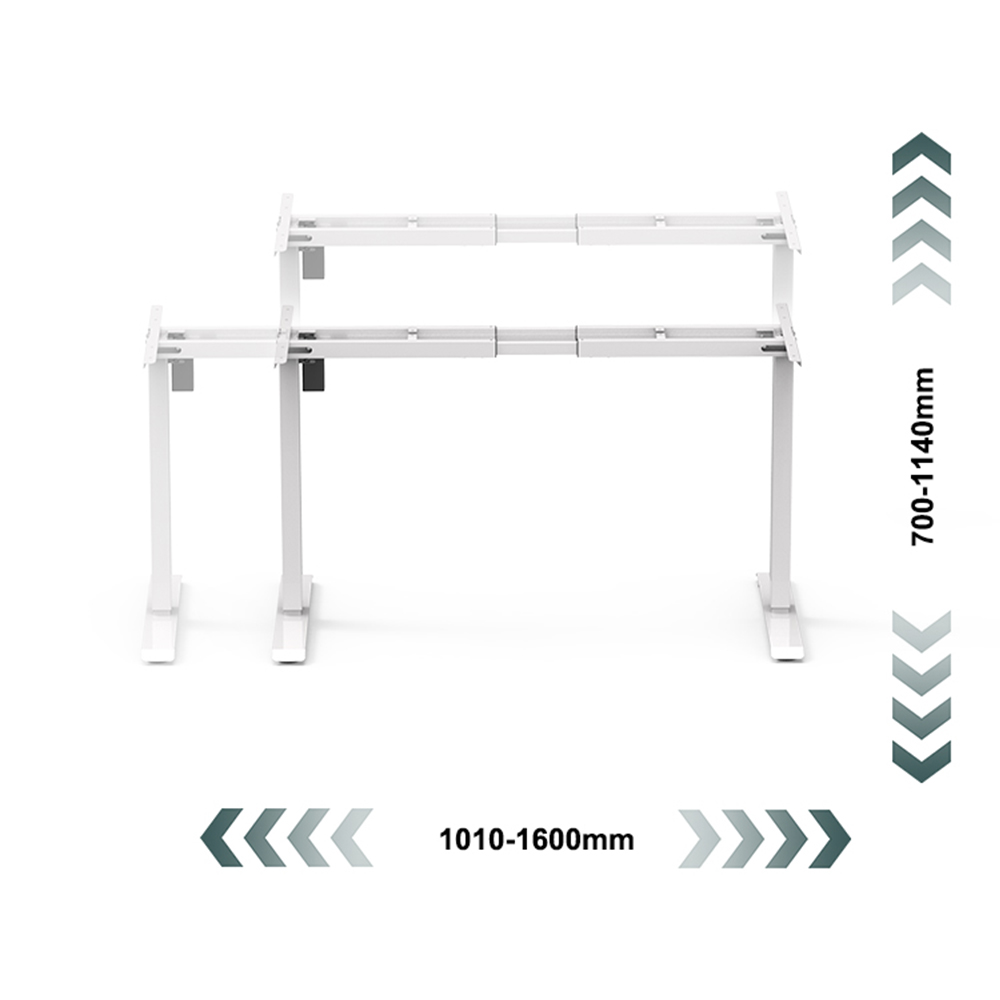

Designed for versatility. The 2-stage column design covers a standard ergonomic height range (700-1140mm) while supporting a substantial 100kg load.

Details & Customization

Smart Safety & Sustainability

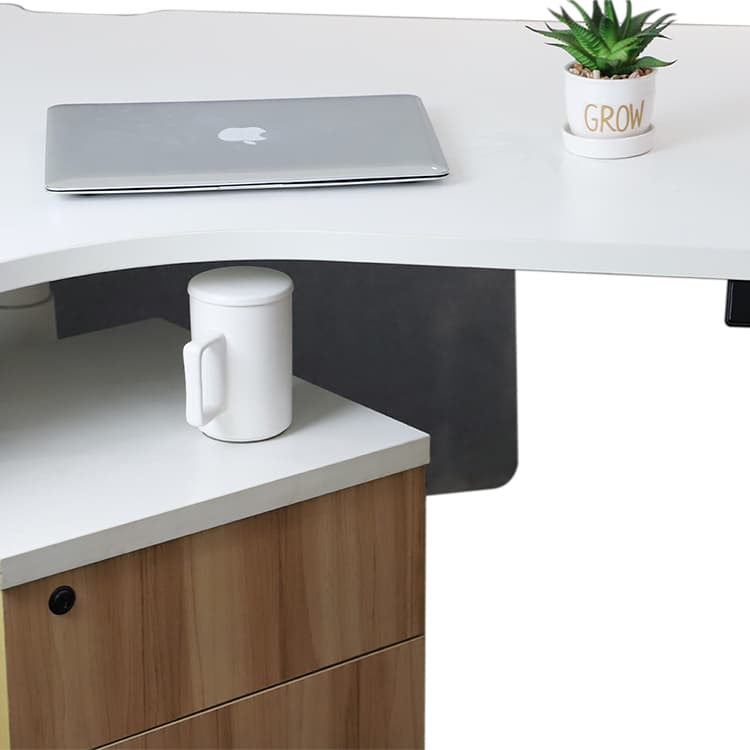

Custom Height Limits

Protect your surroundings. Users can define maximum and minimum height limits to avoid objects below (like cabinets) or above (like shelves) your desk.

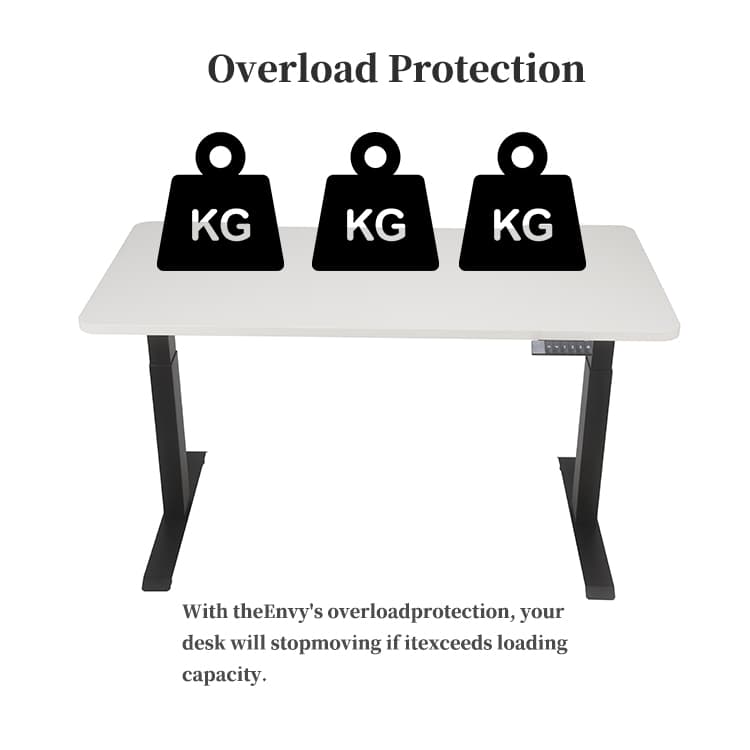

Smart Overload Protection

Built to last. With NATE Desk's overload protection, your desk will automatically stop moving if it exceeds the loading capacity. This ensures the longevity of the brushless motor.

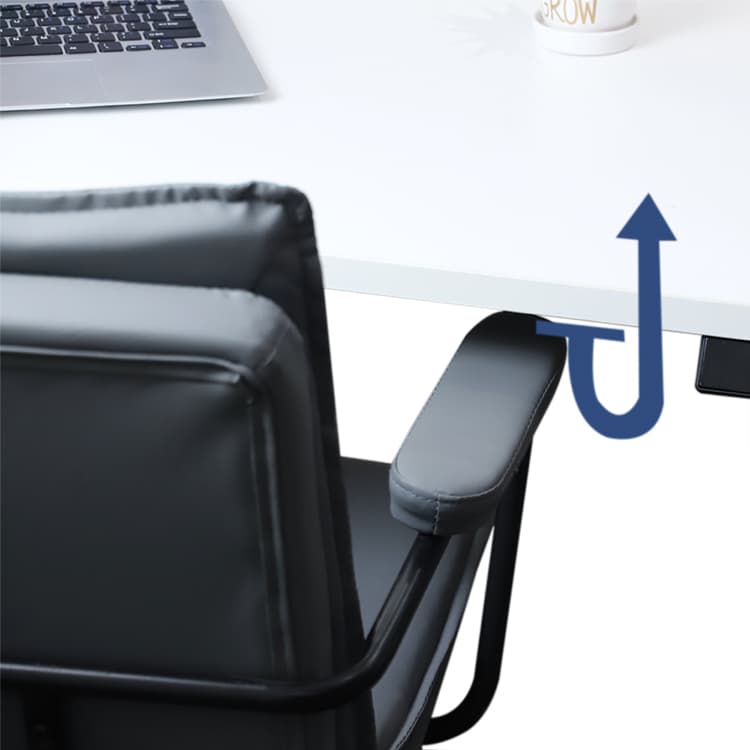

Anti-Collision Retreat

Enhanced safety for peace of mind. The intelligent gyroscope detects resistance during operation and automatically retreats to prevent collision damage.

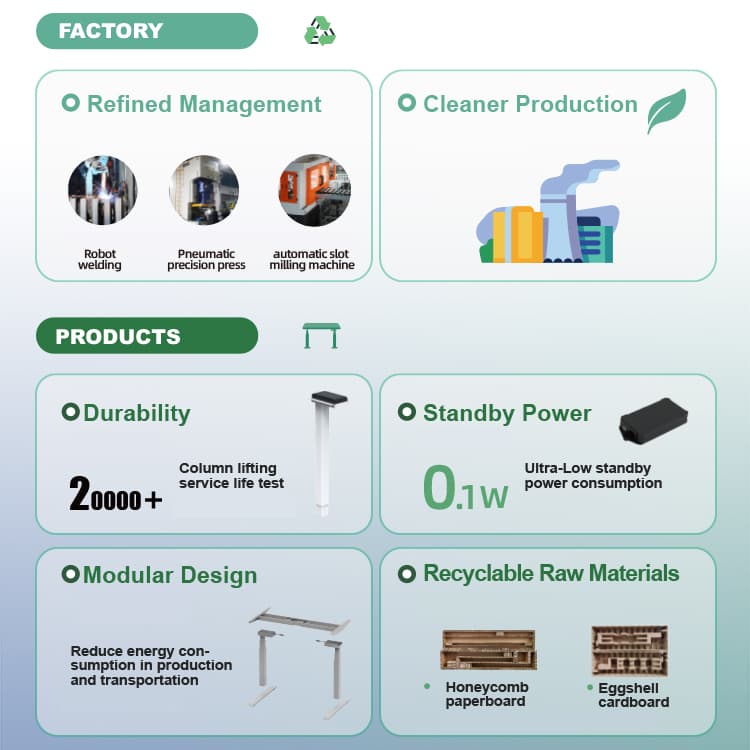

Commitment to Sustainability

NATE is dedicated to green manufacturing. Our brushless motors are more energy-efficient, and our products use recyclable materials and honeycomb packaging to reduce environmental impact.

Product Specifications

Model	2SACRHF2(C)
Type	Desk Frame
Material	SPCC Steel
Height Range(Frame)	700–1140 mm (27.56″–44.88″) / Stroke: 440 mm (17.32″)
Speed	30mm/s
Load Capacity	100 kg (220.5 lb)
Leg Count	2 legs

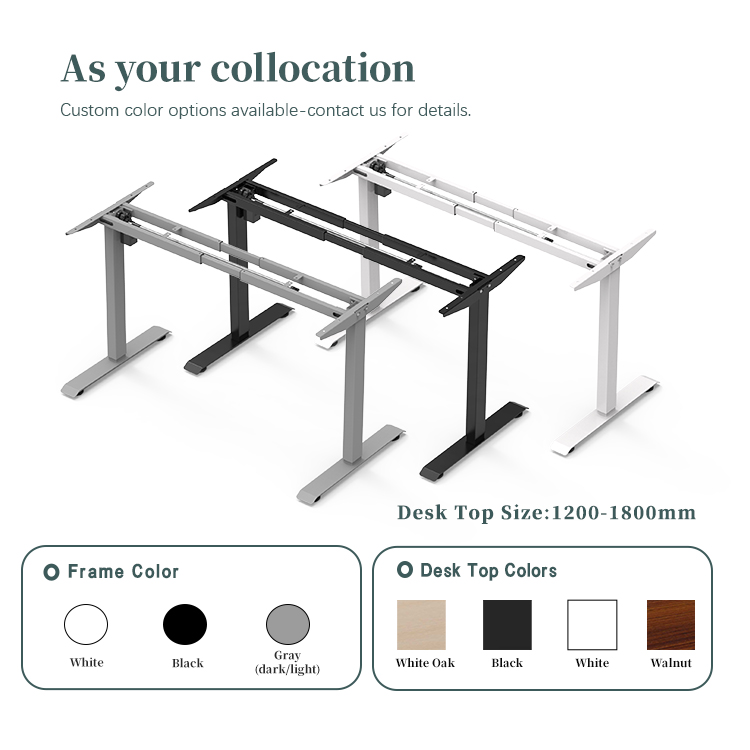

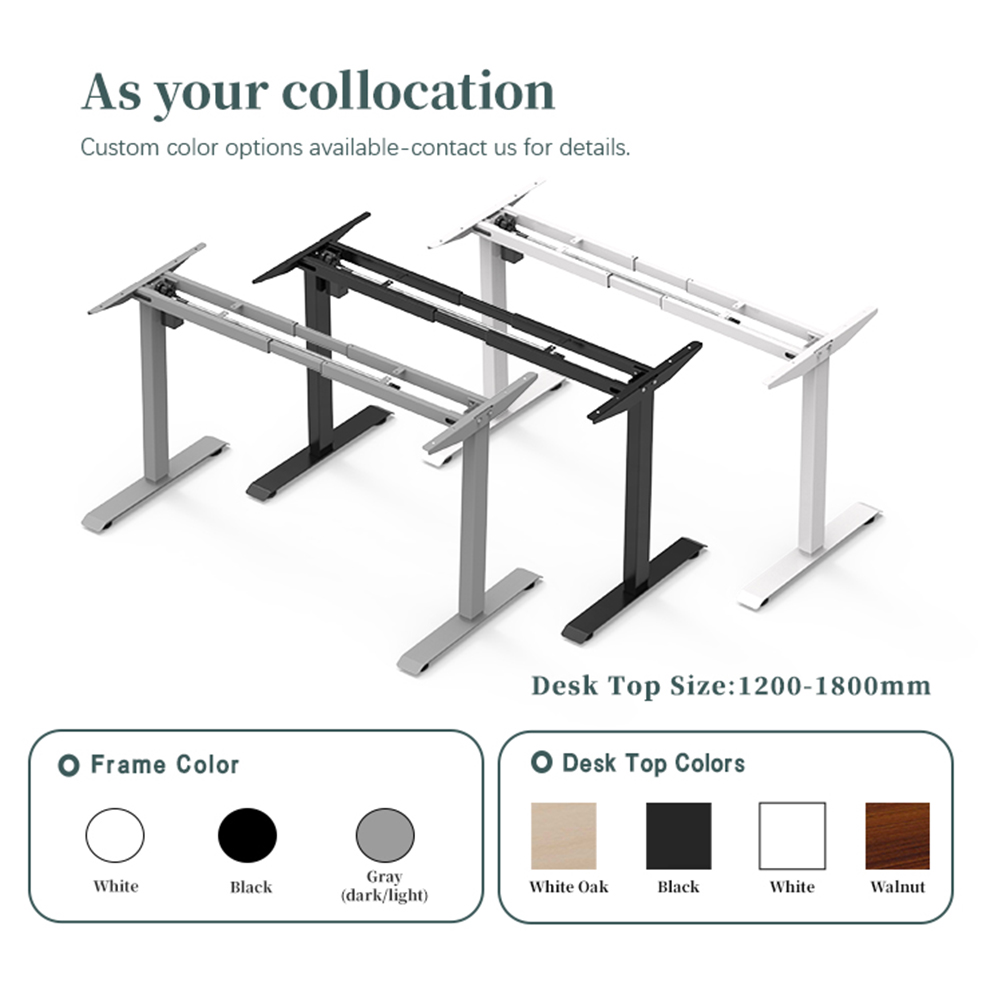

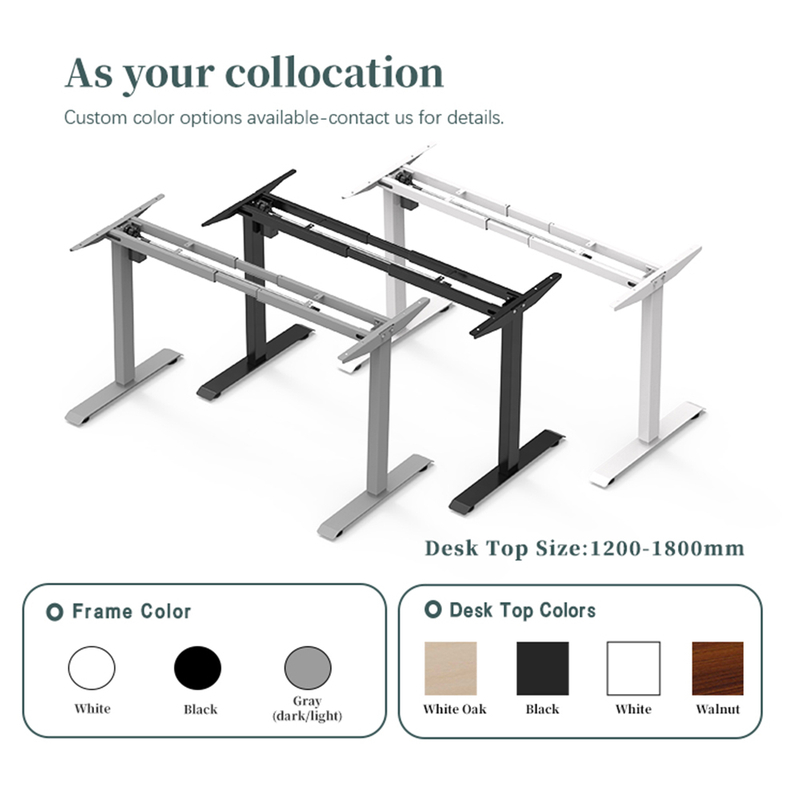

Frame Color	White, Black, Grey, Customizable

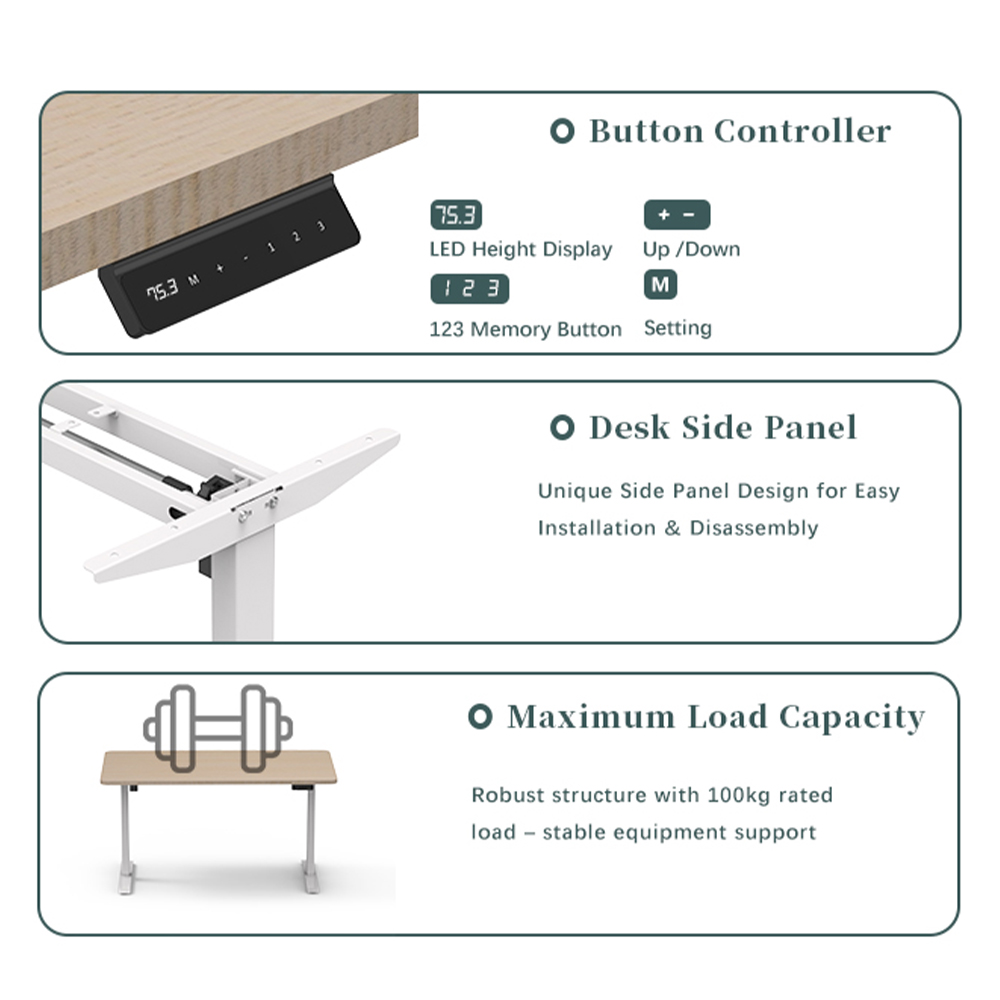

Controller	4 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable
Warranty	5 years on all parts
Delivery Time	Custom drawings in 24 hours; 30 days for standard orders

Width Range(Frame)	1010–1600 mm
Voltage	100-240 V
Drive Mode	Single Motor
Lift column	Reversed 2-Stage Rectangular Tubes (65*45mm + 60*40mm)
Tabletop Color	White, Black, Grey, Customizable
Tabletop Size(optional)	1200-1800mm (47-71") × 600–800 mm (23.62–31.50")  optional / Customizable
Noise	<50 dB
Certificate	CE, UL, GS,UKCA,BSCI, SAA, REACH, RoHS, etc.
Package	Complete set in one EPE carton and pallets for oversea shipment

Custom Support

For height-adjustable desks, we provide four customization solutions to meet different needs:

1. Frame Only
   – Purchase the core desk frame components only, and pair them with your own desktop.

2. Complete System
   – A fully equipped package with both frame and desktop.

3. Customized Options
   – Mix and match from our accessories to create a non-standard configuration.

4. OEM & ODM Development
   – Tailor-made product development based on your requirements.
   Note: OEM/ODM production may require longer lead time.

Custom Process

Support For Customization

Customer Satisfaction

Company Info

Quality Control

Product Process

Exhibition

packing & Shipping

Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:

• Single package size: 1065 × 270 × 215 mm

• Single gross weight: 29 kg

• Package type: one set per carton,complete set in one EPE carton
