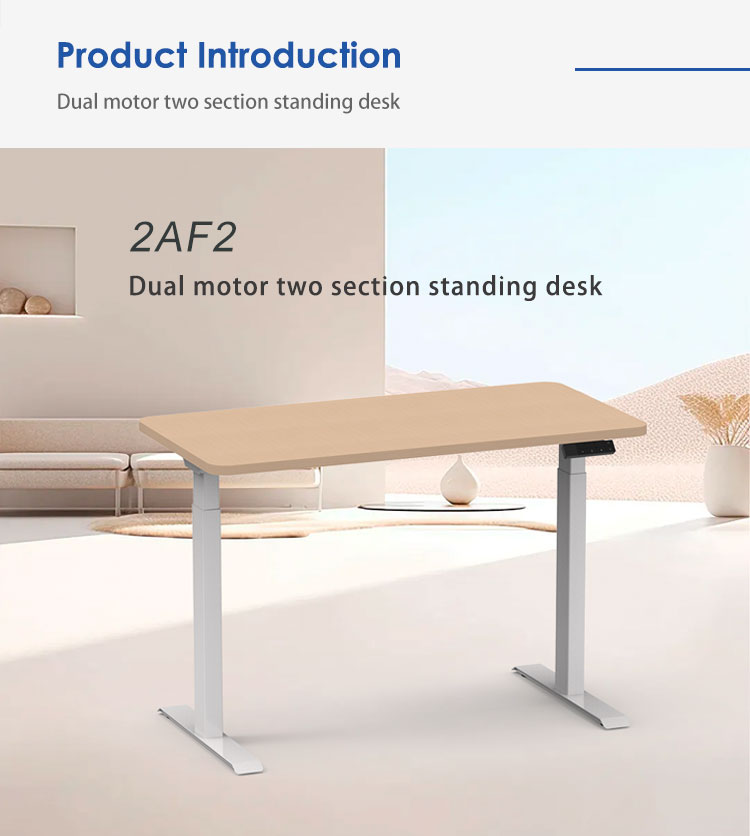

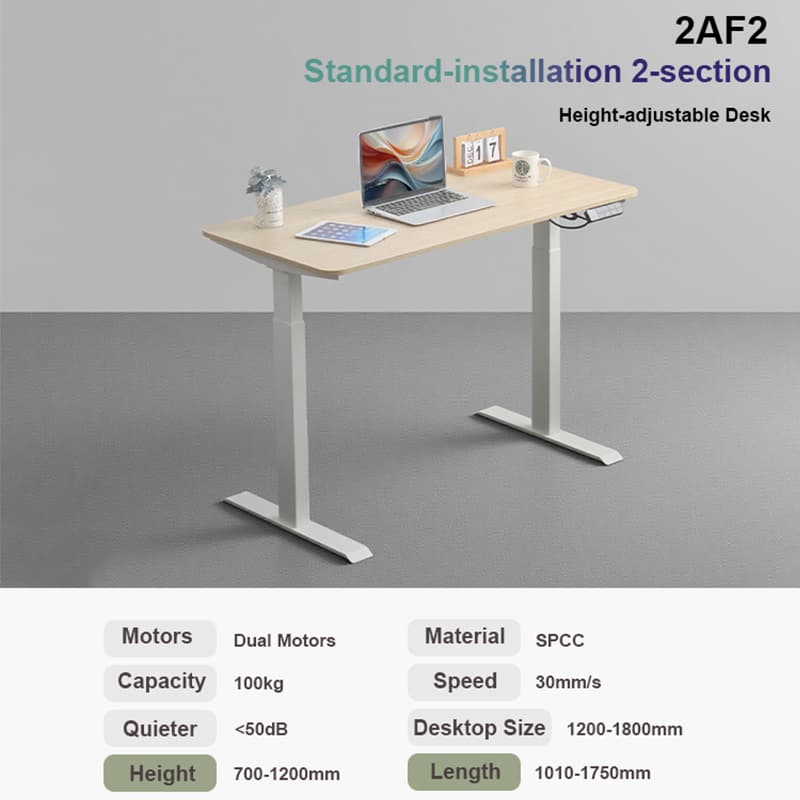

2AF2 Dual-Motor Electric Standing Desk – Standard 2-Stage Frame, Height Adjustable with Memory Presets & Anti-Collision Safety

Model: NT33-2AF2
☑️ OEM/ODM Accepted · Factory Direct
☑️ Low MOQ
☑️ Multi-Functional Design
☑️ Easy to Assemble and Adjust
☑️ Responsive Pre- & After-Sales Support
☑️ Fully Customizable End-to-End Solutions
  • NT33-2AF2

  • NATE

  • Dual Motor

  • Brushed Motor

  • 2 motors

  • Standard Column

  • Two Stage Column

Availability:
facebook sharing button
twitter sharing button
pinterest sharing button
whatsapp sharing button
line sharing button
linkedin sharing button
telegram sharing button
sharethis sharing button
Dual motor system of the 2AF2 standing desk

Power Your Productivity with Dual Motors

The 2AF2 is engineered with a powerful dual-motor system, ensuring incredibly smooth and stable height adjustments. Unlike single-motor desks, our dual-motor design provides enhanced lifting power and consistent movement, even under a full load. Experience effortless transitions between sitting and standing, boosting your focus and energy throughout the day.

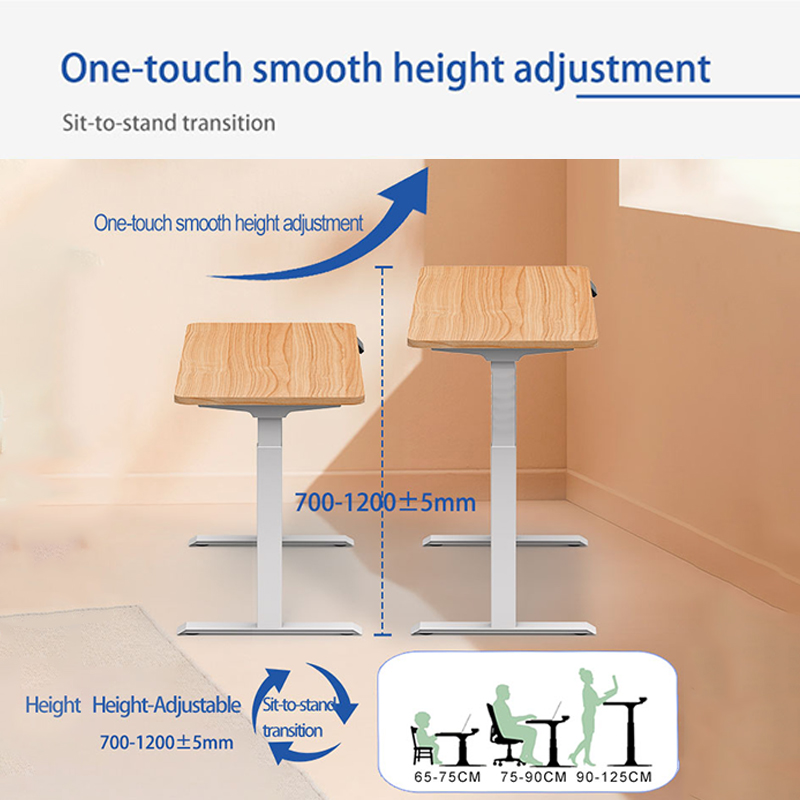

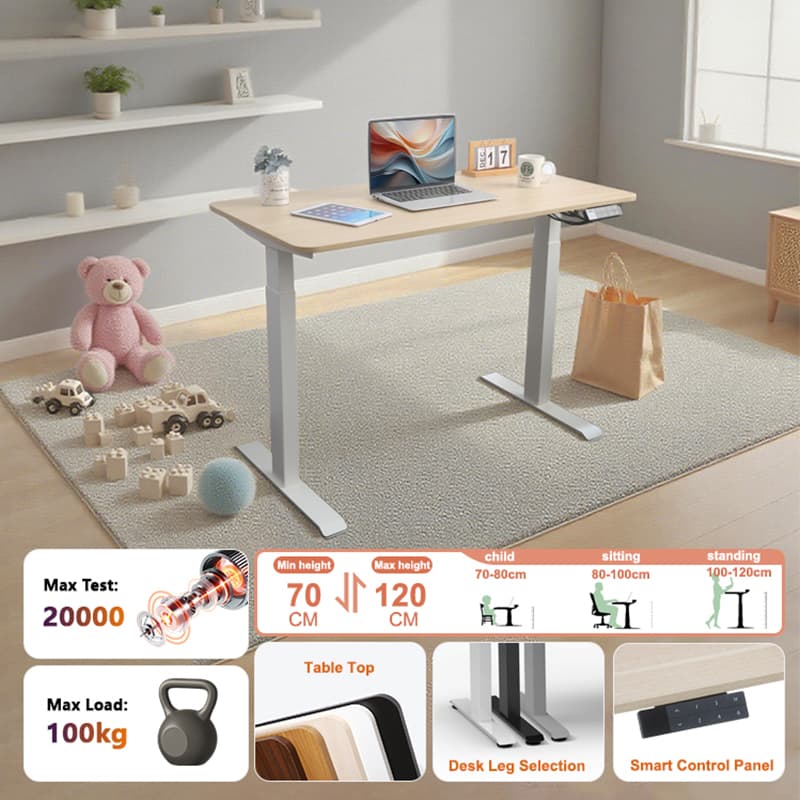

Desk showing one-touch height adjustment from 700mm to 1200mm

One-Touch Smooth Transition: 700-1200mm Range

Achieve your ideal ergonomic position with just one touch. The 2AF2 offers a wide height adjustment range from 700mm (27.56") to 1200mm (47.24"), catering to various user heights from children to adults. Seamlessly switch between sitting and standing to promote better posture, reduce back pain, and increase overall well-being.

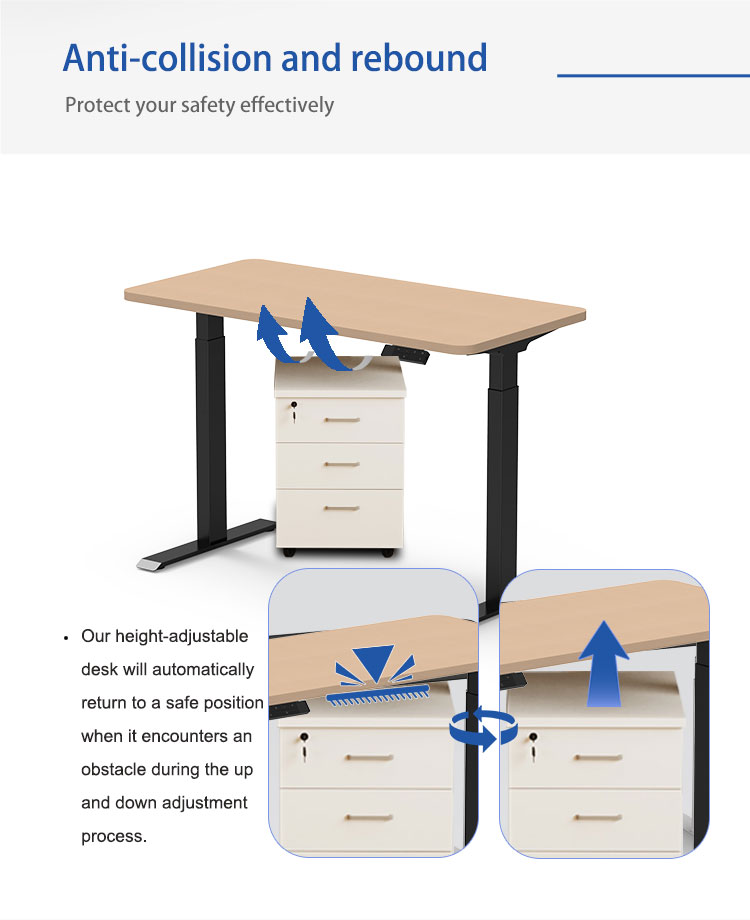

Demonstration of the anti-collision safety feature

Protect Your Space with Anti-Collision Technology

Our height-adjustable desk prioritizes your safety. The advanced anti-collision and rebound system automatically detects obstacles during upward or downward adjustments. Upon encountering an obstruction, the desk will instantly reverse its movement to a safe position, preventing damage to the desk, other objects, or even yourself. Work with peace of mind.

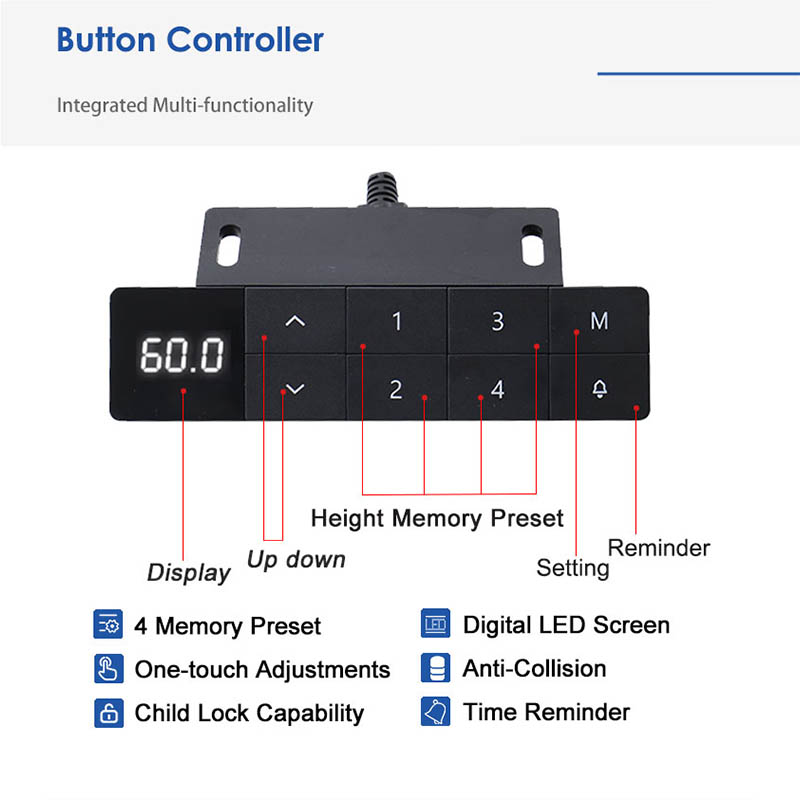

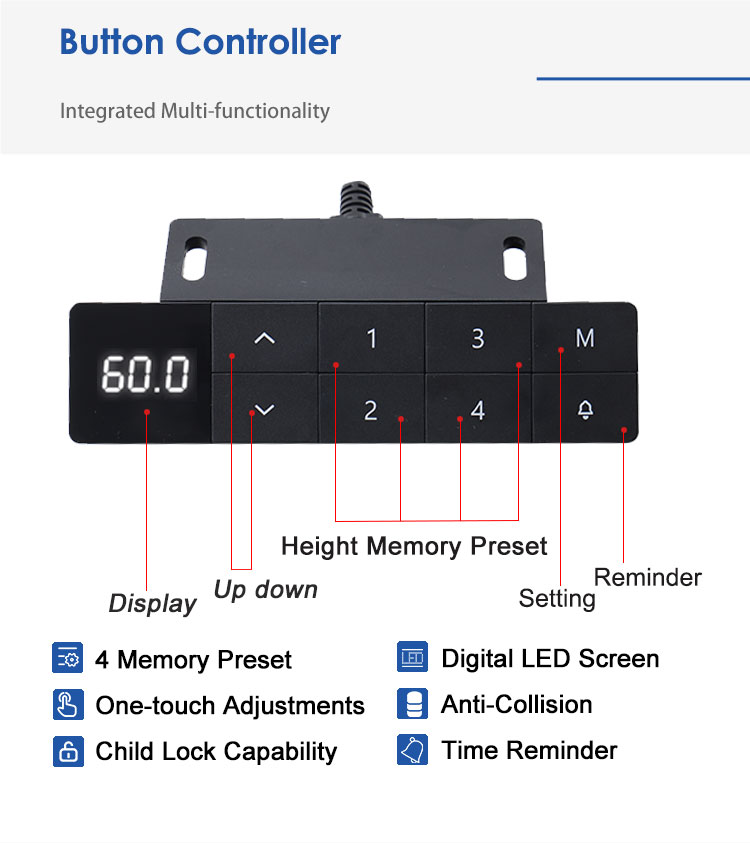

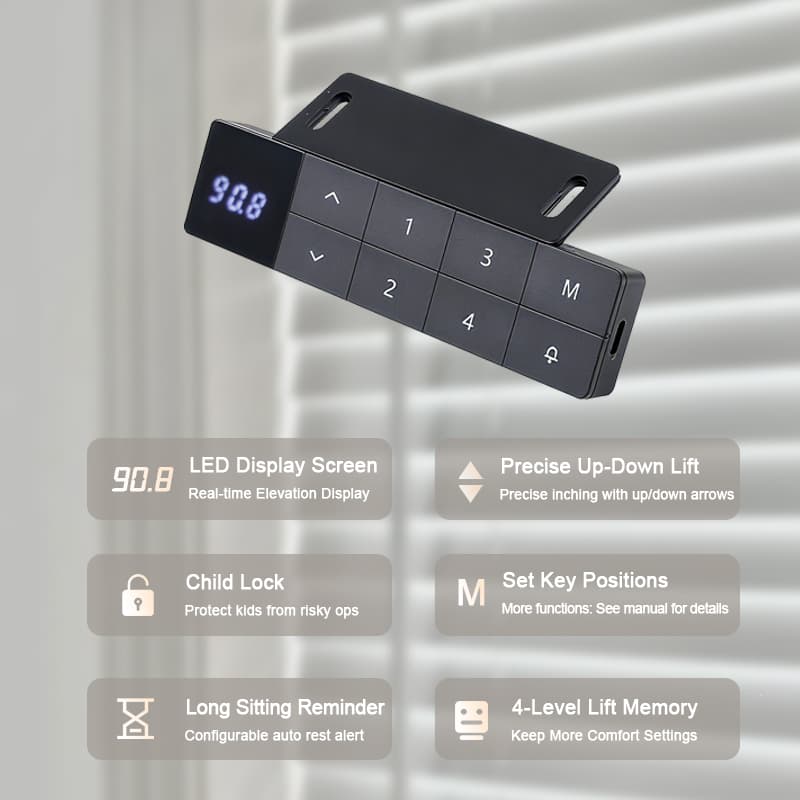

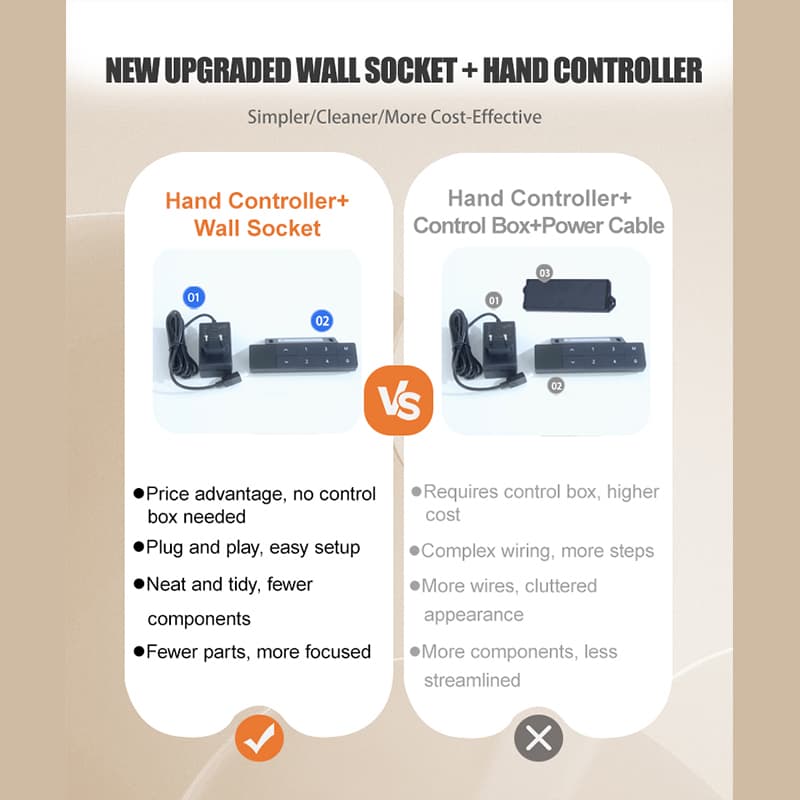

Smart control panel with 4 memory presets and child lock

Smart Control Panel: Your Personal Work Assistant

The intuitive button controller puts complete control at your fingertips. With a clear digital LED screen, you can precisely monitor the desk height. Save up to 4 of your favorite height memory presets for quick, one-touch adjustments. The integrated time reminder gently prompts you to switch postures, while the child lock capability ensures safety in family environments.

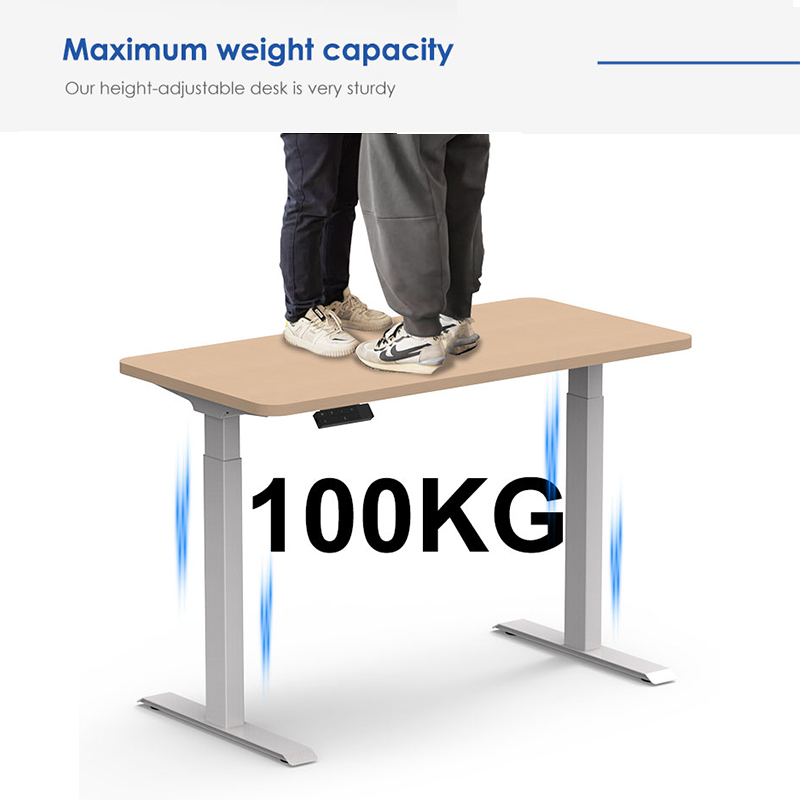

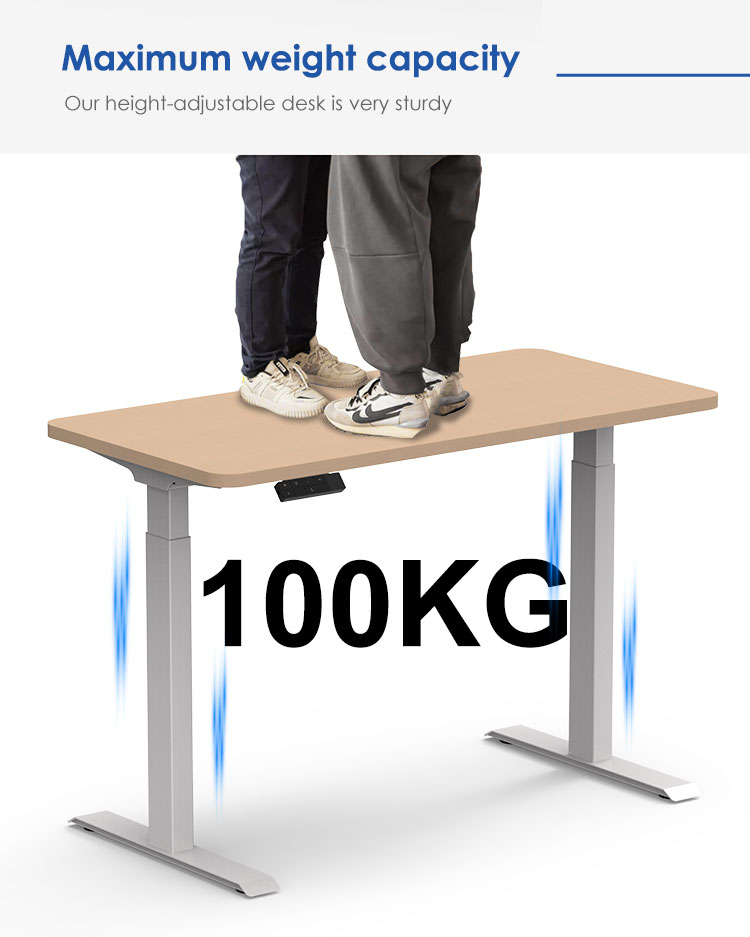

Desk supporting a heavy setup with multiple monitors, demonstrating 100KG capacity

Built to Last: Impressive 100KG Weight Capacity

Don't compromise on what you can place on your desk. The 2AF2 boasts a robust construction with an impressive maximum weight capacity of 100KG. This means you can confidently load your multi-monitor setups, heavy textbooks, and all your work essentials without any concern for stability. Crafted from high-quality SPCC material, this desk is designed for ultimate durability.

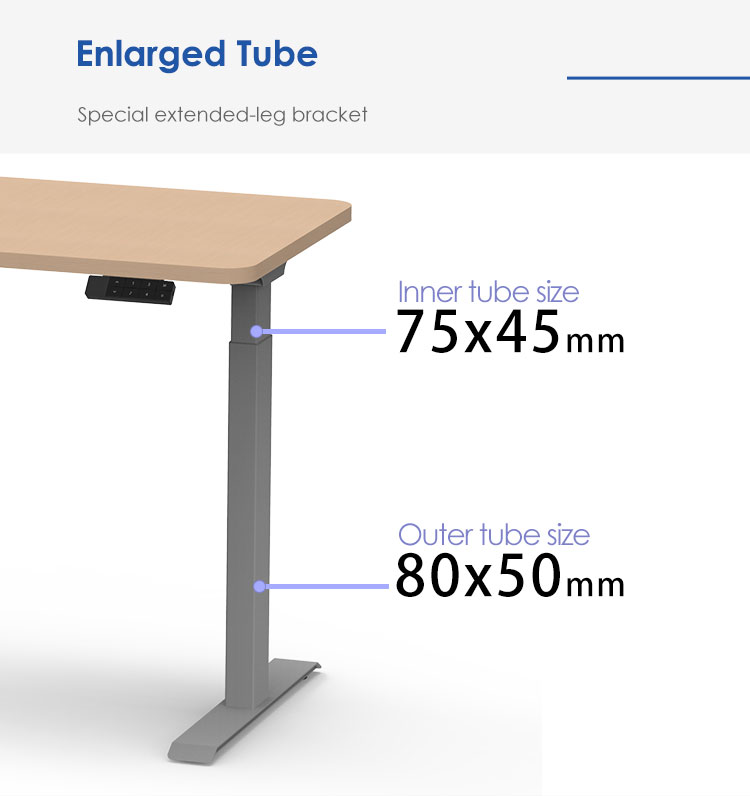

Close-up of the enlarged leg columns for enhanced stability

Enhanced Stability: Enlarged Leg Columns

The 2AF2 features specially extended-leg brackets with an enlarged tube design. The inner tube measures 75×45mm and the outer tube 80×50mm. This substantial construction provides exceptional stability, minimizing wobble even at its highest settings, ensuring a solid and reliable workspace for all your tasks.

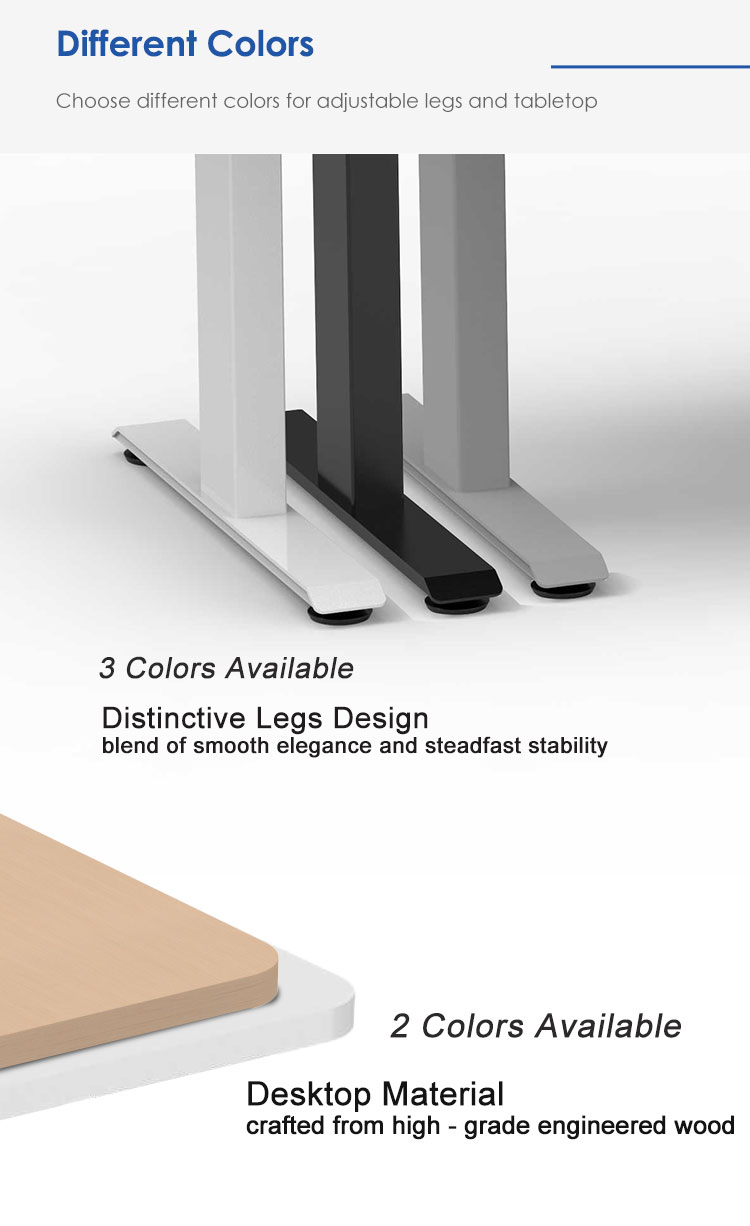

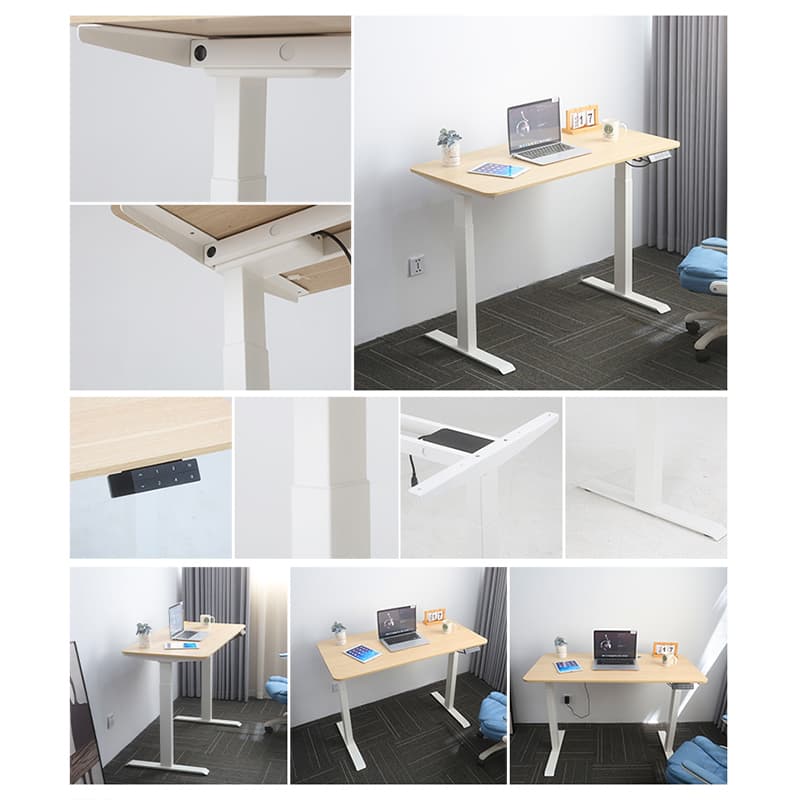

Multiple color options available for the desk legs and desktop

Personalize Your Workspace: Multiple Color Options

Design a desk that truly reflects your style. The 2AF2 offers 3 distinctive colors available for the adjustable legs (white, black, and light grey), blending smooth elegance with steadfast stability. For the desktop, choose from 2 available colors (light wood and white), crafted from high-grade engineered wood, ensuring both aesthetic appeal and durability.

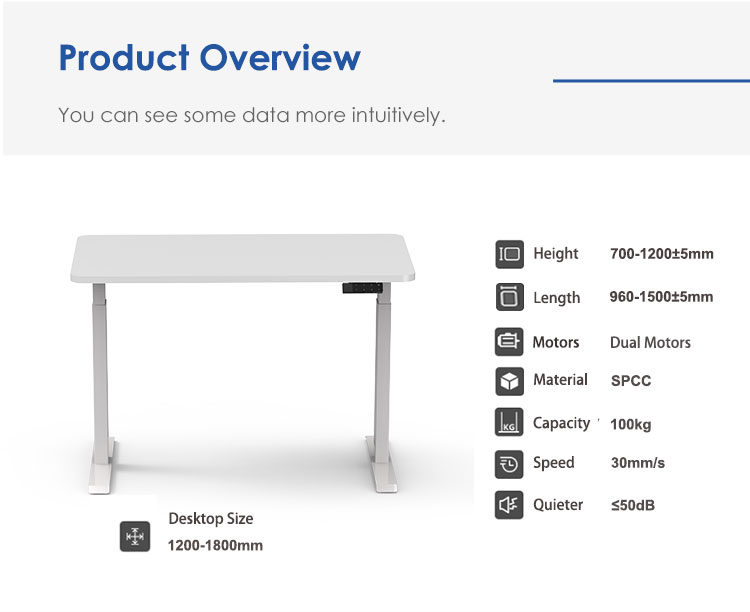

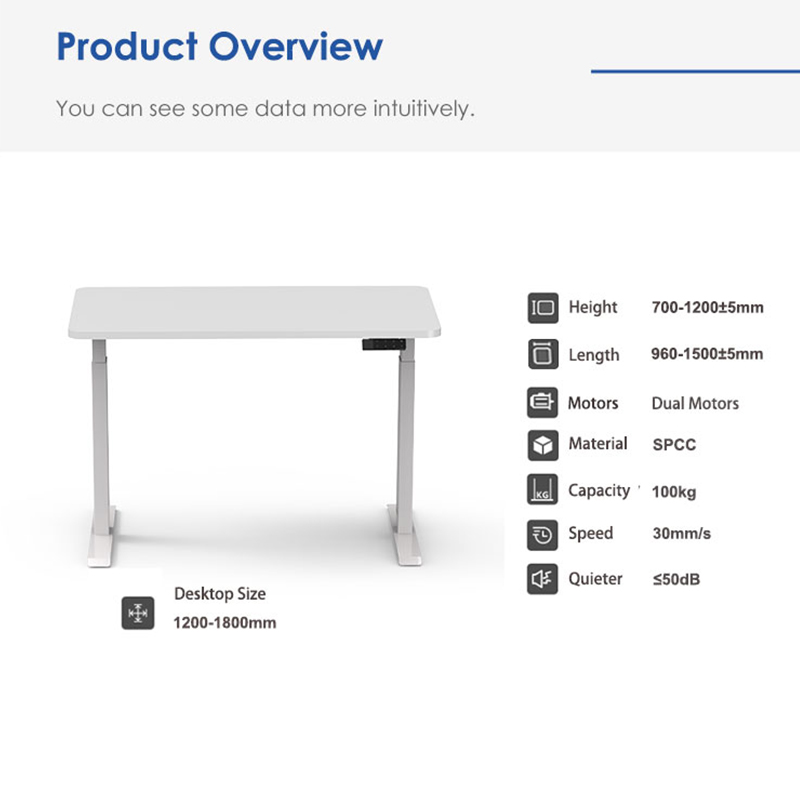

Specifications:


Type Desk Frame
Material SPCC
Voltage 100-240 V
Width Range (Frame) 960-1500 mm (37.8"-59.1"), ±5 mm tolerance
Speed 30mm/s
Load Capacity 100 kg (220.5 lb)
Tabletop Size(suitable) 1200-1800 mm (47.2"-70.9"), customizable
Tabletop Color White, Black, Grey, Customizable
Features Anti-collision safety protection
Warranty 5 years on all parts
Delivery Time Custom drawings in 24 hours; 30 days for standard orders
Customization Accepted
Model 2AF2
Height Range 695-1205 mm (27.4"-47.4") / Stroke: 510 mm (20.1")
Drive Mode Dual motor
Leg Count 2 legs
Lift column standard rectangle column - 75x45 mm (2.95"x1.77") / 80x50 mm (3.15"x1.97")
Feet Size and Type 600 mm (23.62"), equipped with leveling studs / wheels / customizable options
Frame Color White, Black, Grey, Customizable
Noise <50 dB
Certificate CE, UL, BSCI, SAA, BIFMA, RoHS, TÜV, etc.
Package Complete set in one EPE carton and pallets for oversea shipment

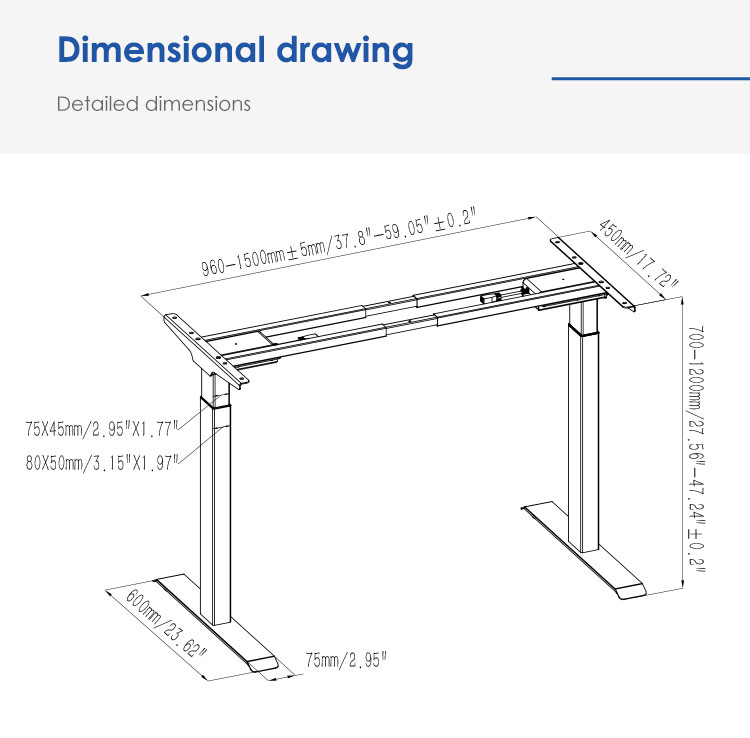

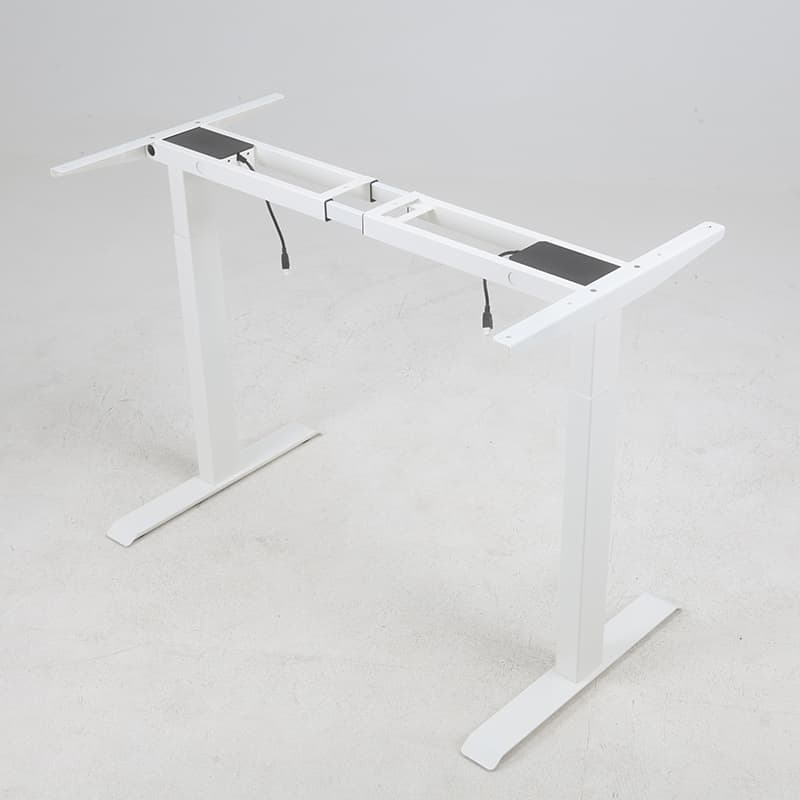

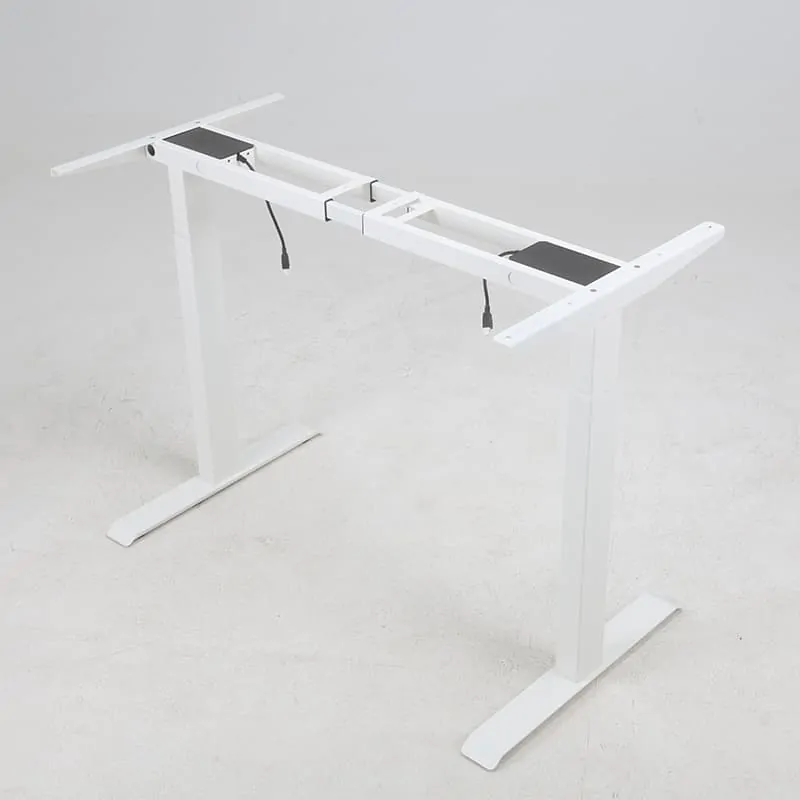

2AF2 frame dimensions: height 700–1200 mm, width 960–1500 mm, foot depth 600 mm.
