2SDAF2 Stand Up Desk Base with Round Tubes – Ergonomic Sit-Stand Workstation for Home Office | Under $85

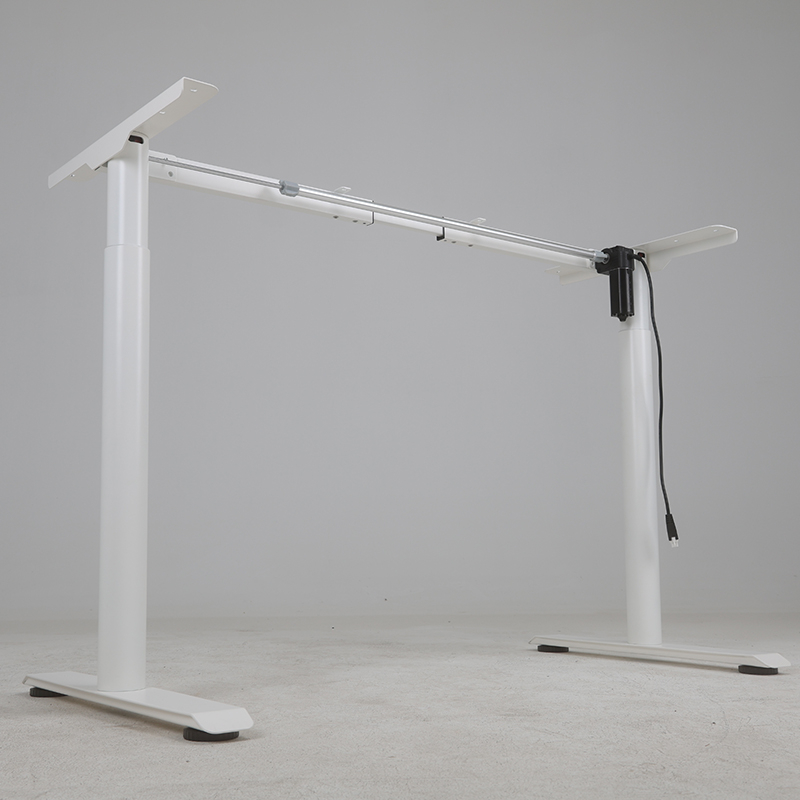

Model: 2SDAF2 Round Tube
✔ OEM/ODM Accepted · Factory Direct Supply
✔ Low MOQ
✔ Multi-Functional Design
✔ Easy to Assemble and Adjust
✔ Responsive Pre- & After-Sales Support
✔ Fully Customizable End-to-End Solutions
  • NT33-2SDAF2

  • NATEDESK

  • Single Motor

  • Brushed Motor

  • Standard Column

  • Two Stage Column

  • 20mm/s

  • 700–1140 mm (27.56″–44.88″) / Stroke: 440 mm (17.32″)

Availability:
facebook sharing button
twitter sharing button
pinterest sharing button
whatsapp sharing button
line sharing button
linkedin sharing button
telegram sharing button
sharethis sharing button

Product Introduction— 2SDAF2 (Round Tube Version)


How often should you stand up from your desk?


Health experts suggest that breaking up long periods of sitting is crucial for your well-being. A great goal is to switch between sitting and standing every 30 to 60 minutes. This simple change can boost circulation, improve posture, and increase energy levels. The 2SDAF2 Electric Standing Desk Frame is engineered to make this transition effortless, allowing you to create a dynamic and ergonomic workspace that adapts to your body's needs throughout the day.

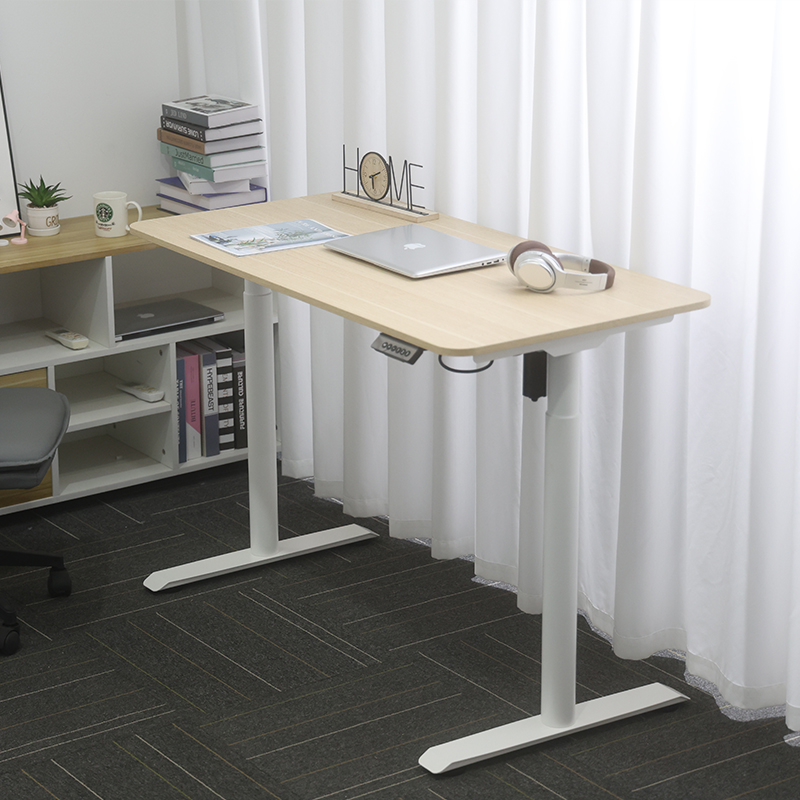

The 2SDAF2 intelligent height adjustable desk in a home office setting, promoting a healthier way to work by alternating between sitting and standing.



Transform Your Workspace with Smart Features

The 2SDAF2 desk base provides the foundation for a healthier and more productive workday. Built with quality materials and intelligent features, it’s the perfect upgrade for any home or office.

  • One-Touch Electric Lift: Experience smooth height adjustments with our reliable single-motor system.

  • Intelligent Hand Control: The intuitive LED control panel displays the exact desk height. With three programmable memory presets, you can switch to your favorite heights with a single touch.

  • Smart Safety Features: Designed with your safety in mind, the anti-pinch resistance system will automatically rebound if it detects an obstacle during movement.

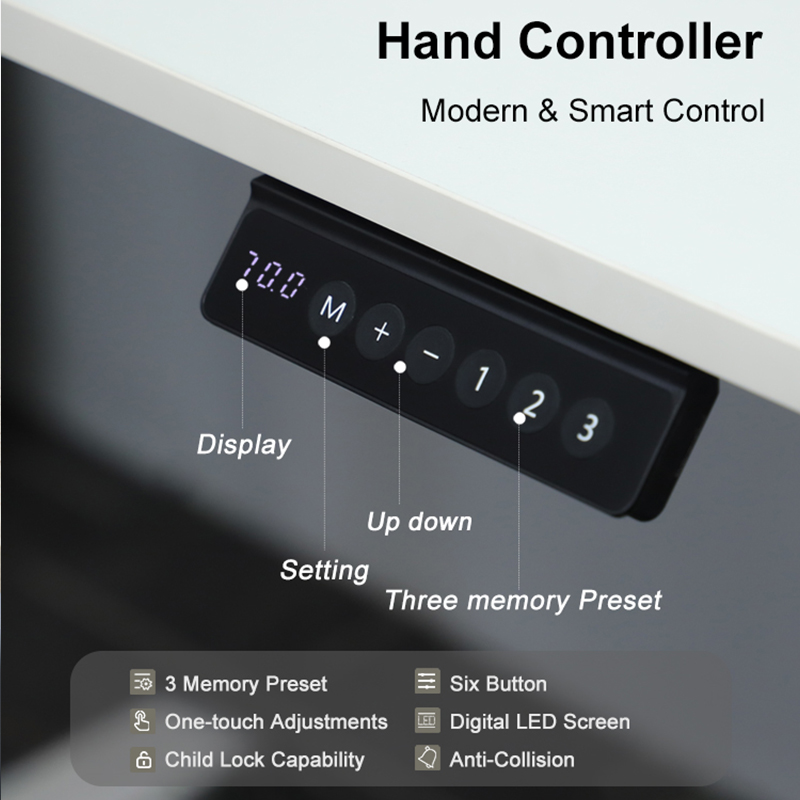

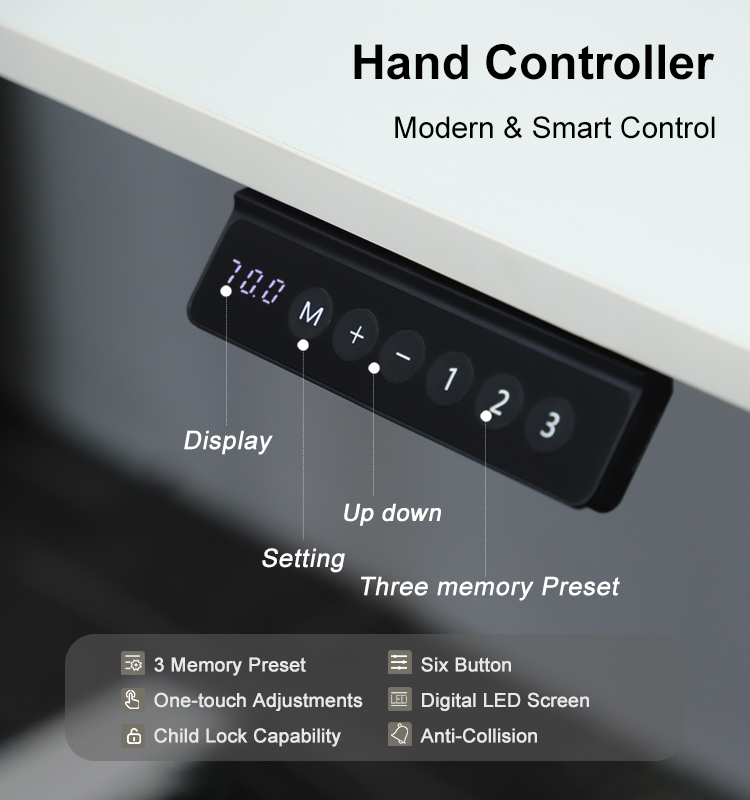

Detailed close-up of the hand controller, showing the LED display for real-time height, 3 memory preset buttons, and up/down keys for precise operation.

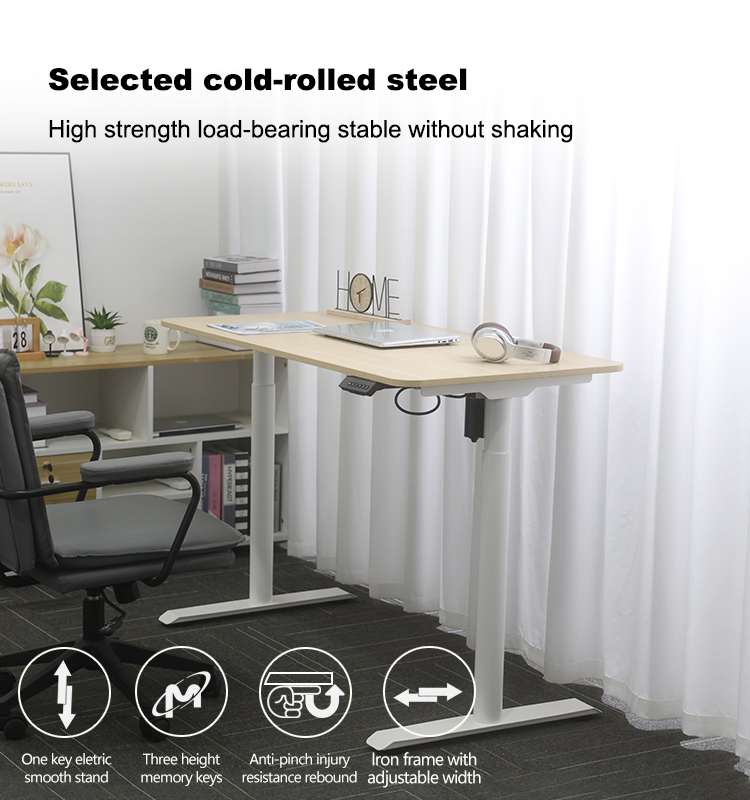

A summary of product features including one-key electric smooth stand, three height memory keys, anti-pinch injury resistance rebound, and an iron frame with adjustable width.


Premium Build Quality and Elegant Design

We use only high-quality materials to ensure your workstation is stable, durable, and stylish.

  • Automotive-Grade Steel: The frame is constructed from premium Baosteel SPCC cold-rolled carbon steel (1.5–2 mm thick) for maximum strength and stability, supporting up to 70 kg (154 lbs).

  • Durable Coating: A premium Aksu international powder coating provides lasting durability and rust resistance.

  • Aesthetic Round Tubes: The unique round tube design not only enhances stability but also provides a sleek, modern aesthetic appeal for your workspace.

    Infographic displaying the material specifications, including automotive-grade cold-pressed SPCC steel, round tube sizes of 42 × 75 mm and 50 × 83 mm, and a 70 kg load capacity.

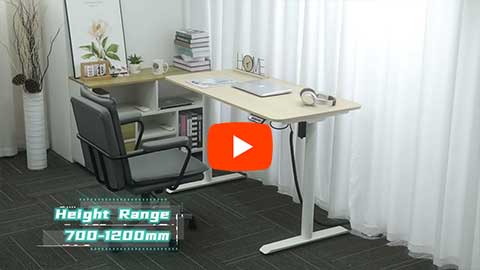

A lifestyle shot of the electric adjustable standing desk emphasizing its aesthetic round tube design for a healthy office and lumbar care.



Versatile and Adjustable for Your Space


This frame isn't just functional; it's designed to fit your unique space and desktop.

  • Adjustable Width: The frame width can be expanded from 990mm to 1400mm, making it compatible with a wide range of tabletops (recommended 1000mm to 1600mm).

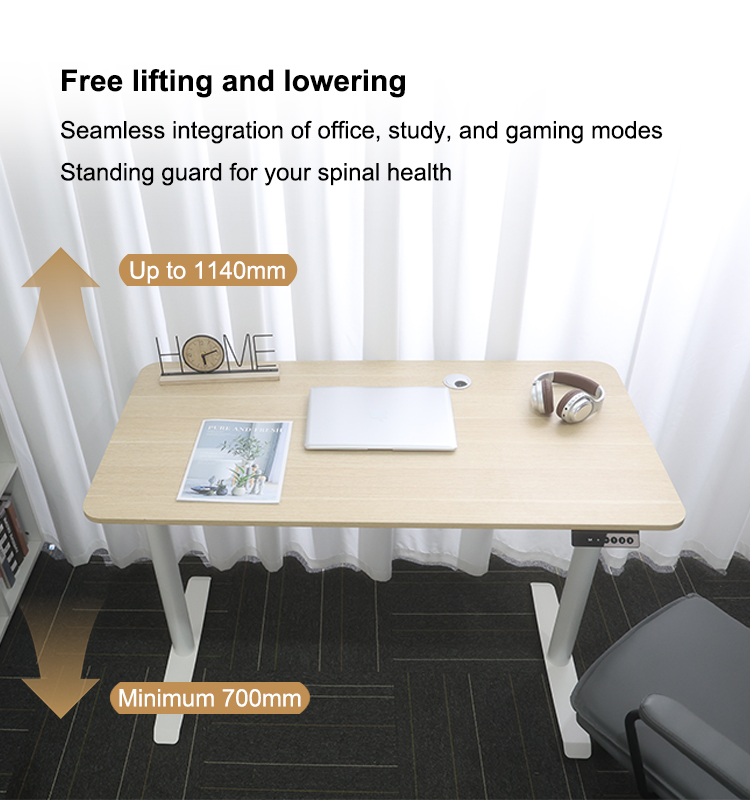

  • Impressive Height Range: Easily raise your desk height from a low of 700mm (perfect for sitting) to a high of 1140mm (ideal for standing), all at a quiet <50dB.

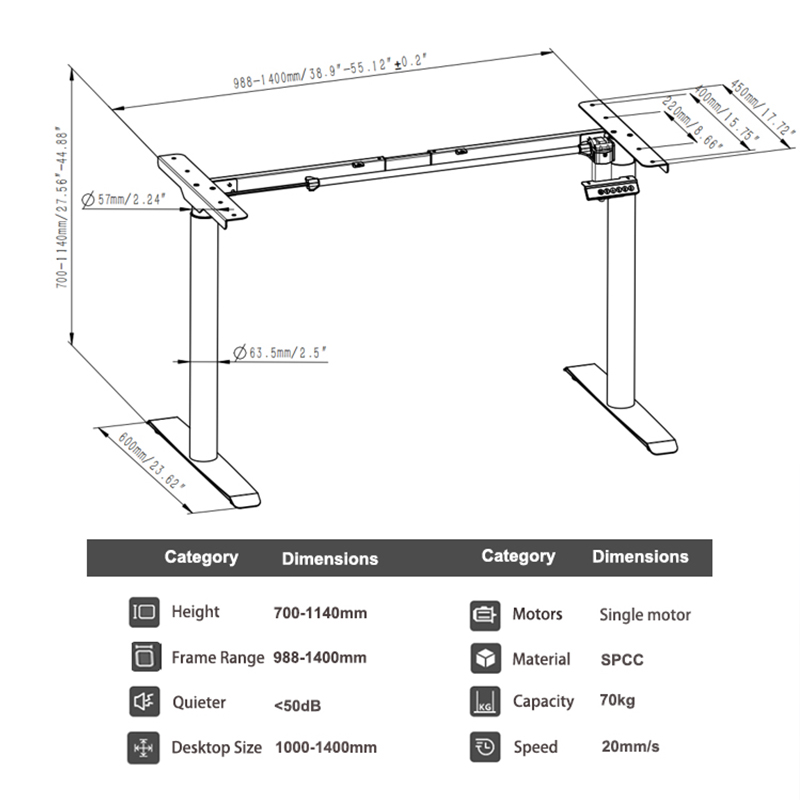

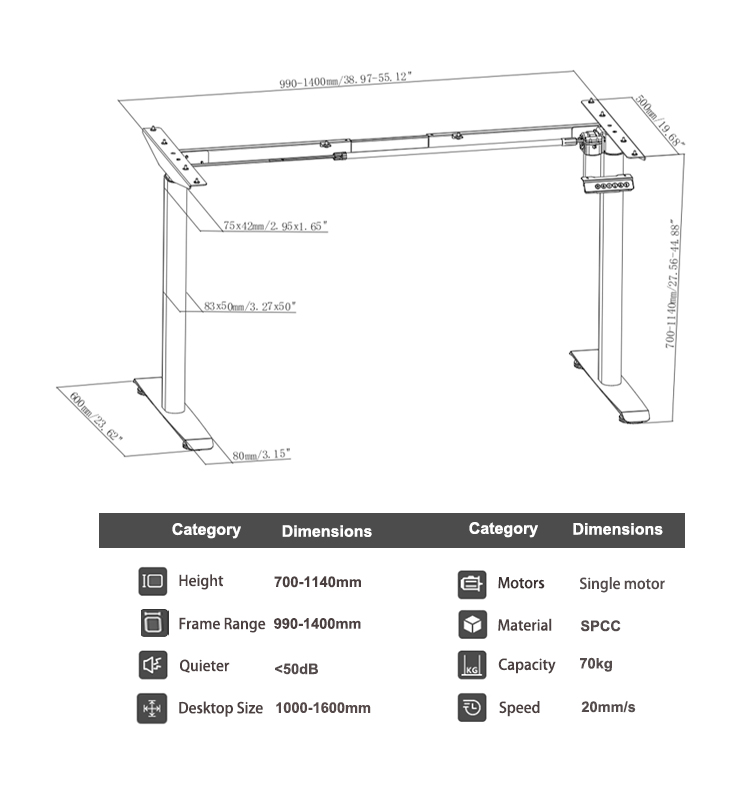

     A technical diagram showing the dimensions of the 2SDAF2 desk frame, with a height range of 700–1140 mm and a frame range of 990–1400 mm.

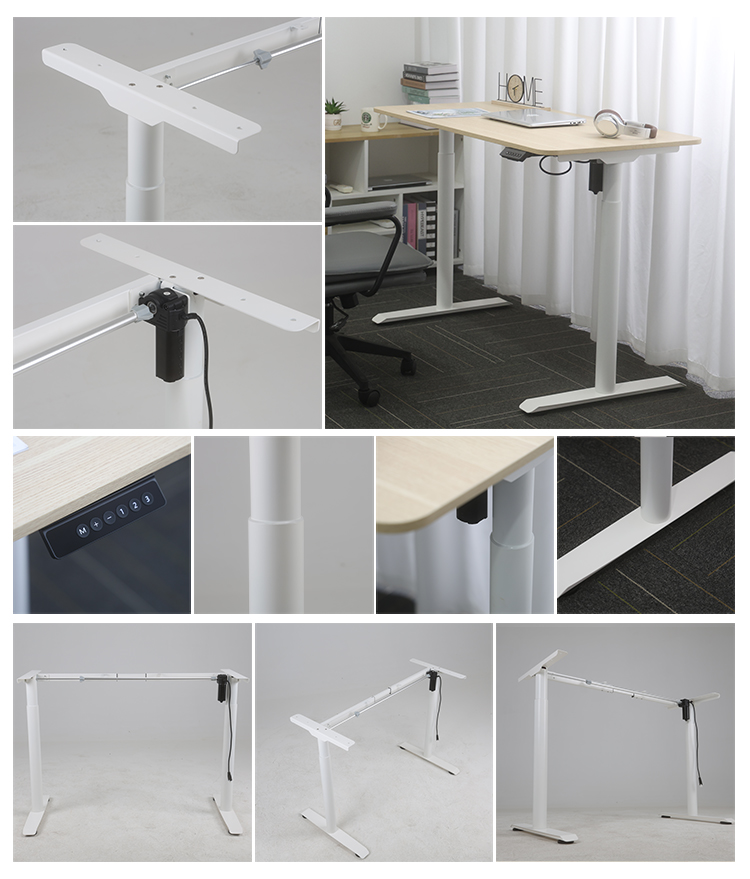

A collage showcasing multiple angles and close-up details of the standing desk frame, including the underside, the motor, the T-shaped feet, and the control panel.



Invest in your health and productivity today. The 2SDAF2 Standing Desk Frame is the affordable, high-quality solution for creating the ergonomic mobile computer workstation you deserve.

Technical Specifications at a Glance:


Model2SDAF2
TypeDesk Frame
MaterialSPCC Cold-Rolled Steel
Height Range(Frame)700–1140 mm (27.56″–44.88″) / Stroke: 440 mm (17.32″)
Speed20mm/s
Load Capacity70 kg (154.5 lb)
Leg Count2 legs
Frame ColorWhite, Black, Grey, Customizable
Controller3 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable
Warranty5 years on all parts
Delivery TimeCustom drawings in 24 hours; 30 days for standard orders
CustomizationAccepted / Supports Full Desk
Width Range(Frame)988–1400 mm (38.98″–55.12″)
Voltage100-240 V
Drive ModeSingle motor
Lift columnStandard Upright Oval Columns:  Ø 63.5 mm (2.5")
Feet Size and Type600 mm (23.62"), equipped with leveling studs / customizable options
Tabletop ColorWhite, Black, Grey, Customizable
Tabletop Size(optional)(W) 1000–1600 mm (39.37"–62.99") × (D) 600–700 mm (23.62"–27.56") / Customizable
Noise<50 dB
CertificateCE, UL, BSCI, SAA, BIFMA, RoHS, etc.
PackageComplete set in one EPE carton and pallets for oversea shipment
