2SABRF2(A)
NATE
Single Motor
Brushless Motor
Reversed Column
Two Stage Column
Description

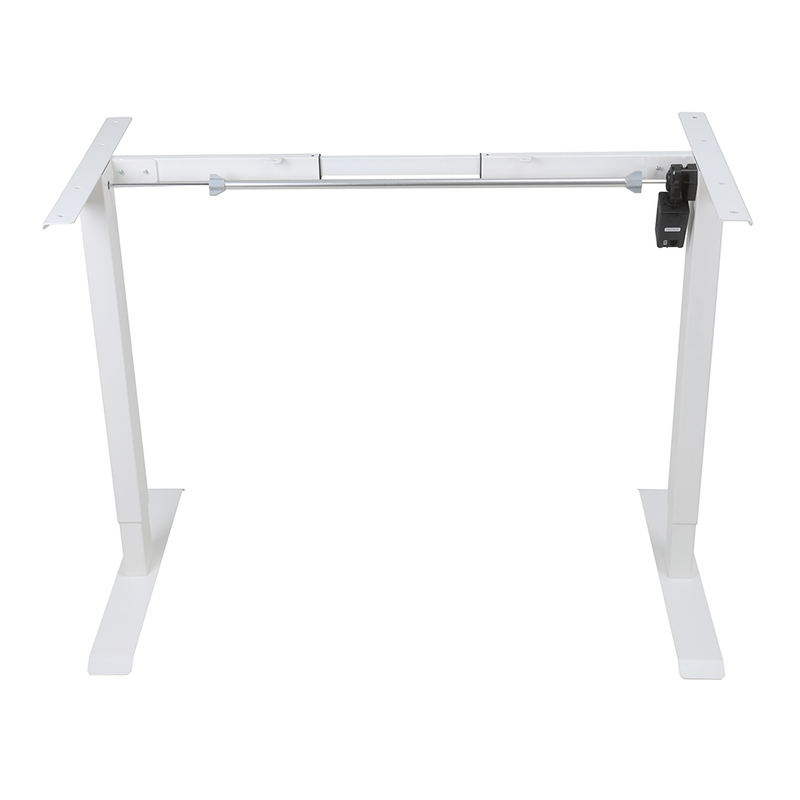

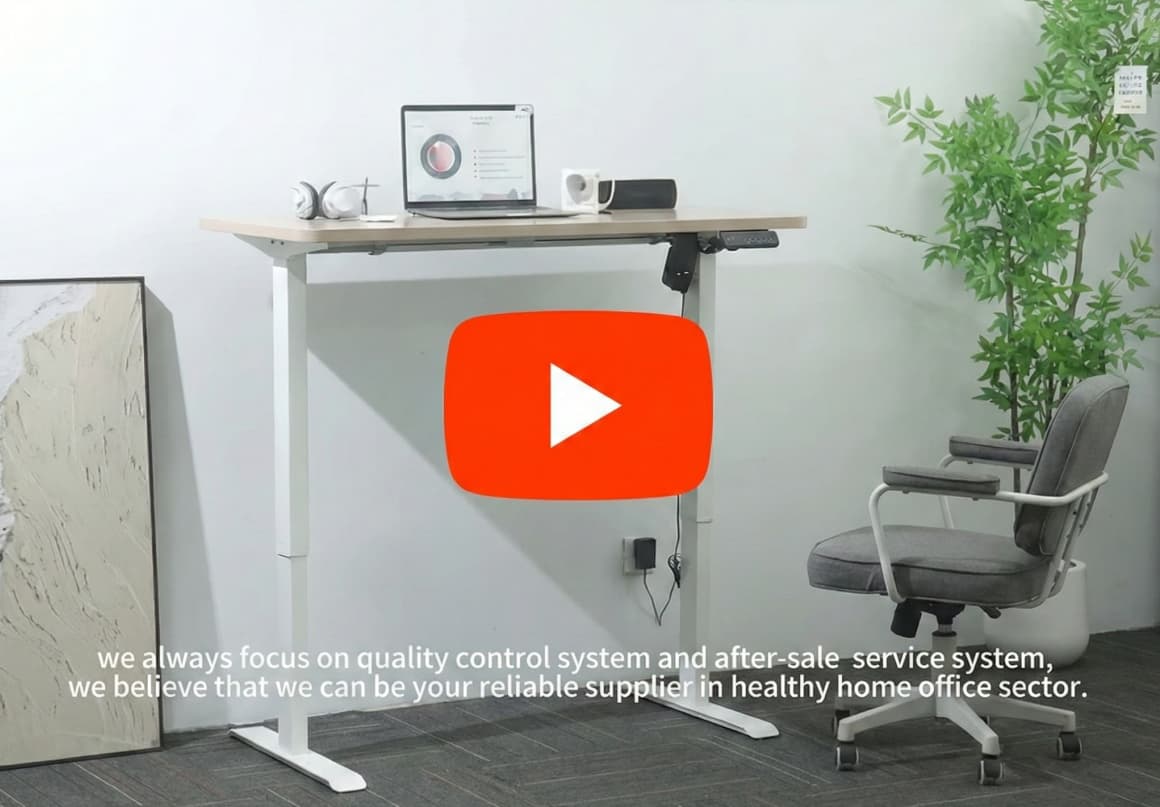

Meet the 2SABRF2(A)—the standing desk frame that disrupts the market. By integrating advanced Brushless Motor Technology into a streamlined single-motor design, we offer the durability of premium models at a price point that maximizes your profit margins.

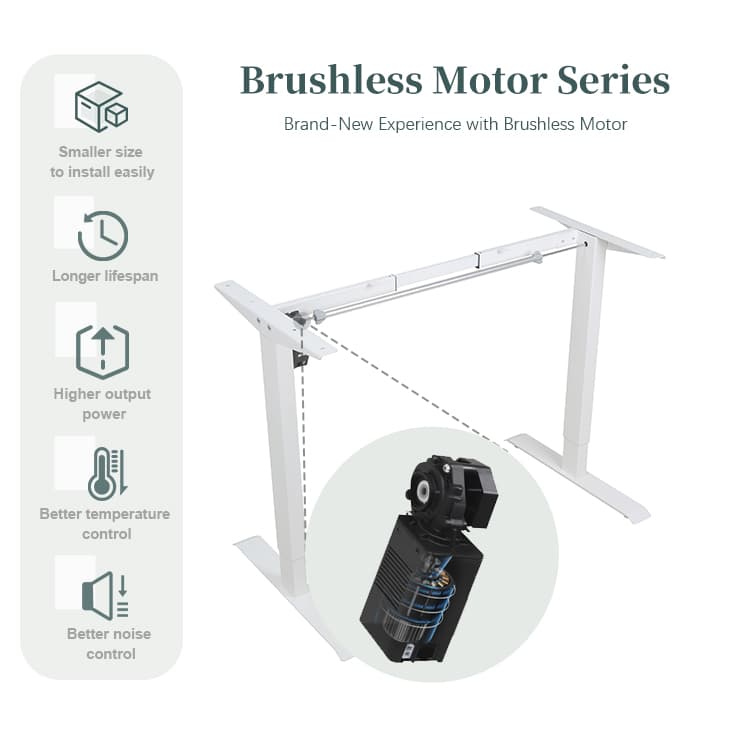

Silence & Durability: Unlike traditional brushed motors, our brushless system eliminates friction from carbon brushes. This results in a significantly quieter operation (<50dB) and a lifespan that is extended by over 50%.

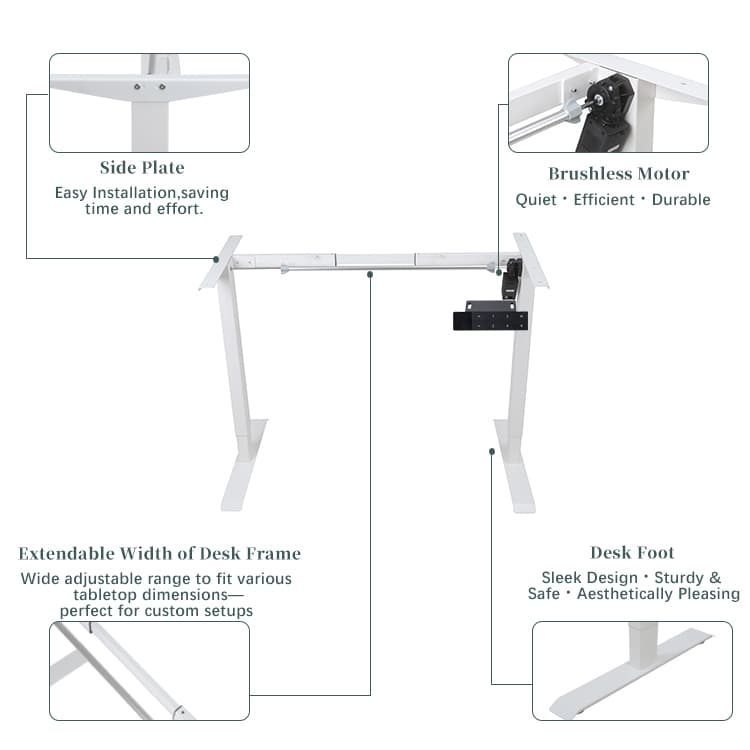

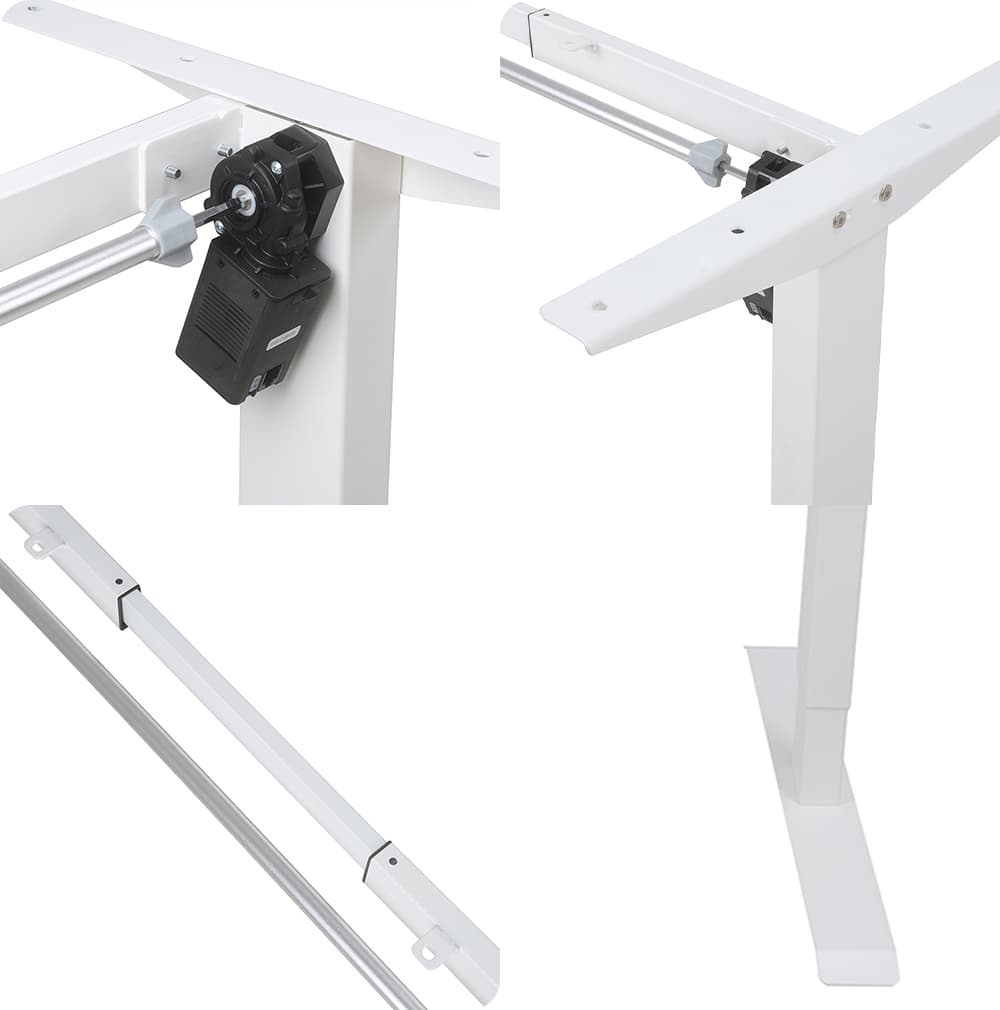

Compact Power: The smaller, more efficient motor housing allows for a sleeker frame design without sacrificing lifting power (70kg load capacity).
Smart Economy: The 2SABRF2(A) is engineered to be the perfect entry-level option for your catalog. It combines high perceived value (smart handset, smooth motion) with low manufacturing costs.
One Frame, Many Desktops: The width-adjustable frame (860-1300mm) supports a vast range of tabletops (1000-1400mm), reducing your inventory SKU complexity.

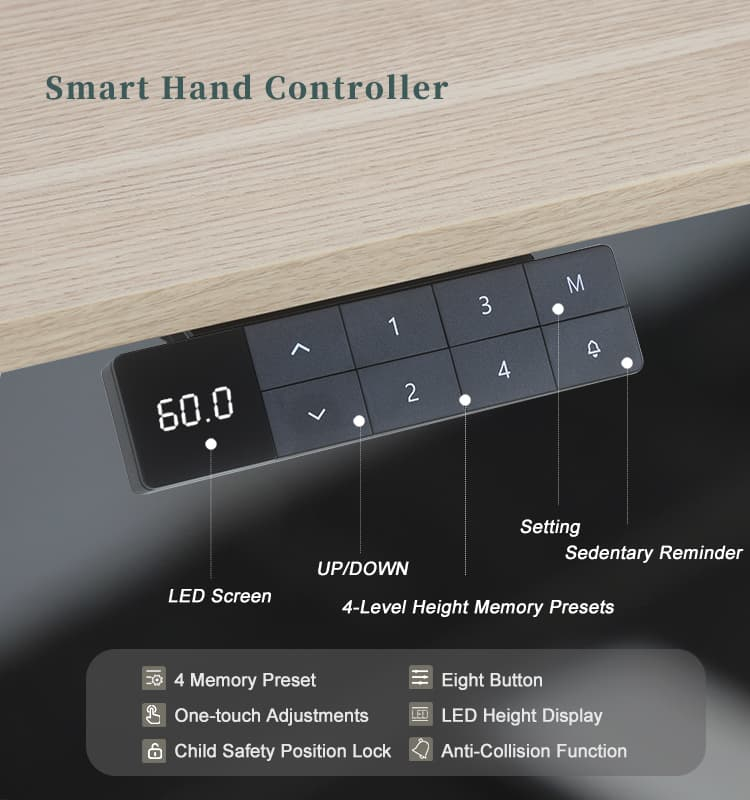

✓ 4 Memory Presets: One-touch adjustment for different users.
✓ LED Height Display: Real-time height feedback.
✓ Safety Lock: Child safety position lock included.
✓ Anti-Collision: Advanced sensor protects objects and equipment.
| Product Model | 2SABRF2(A) |
| Motor Type | Brushless Single Motor |
| Column Stage | 2-Stage (Rectangular) |
| Height Range | 700mm - 1180mm |
| Width Range | 860mm - 1300mm |
| Load Capacity | 70kg (154lbs) |
| Max Speed | 20mm/s |
| Noise Level | <50dB |
| Certifications | CE, UL, RoHS, BIFMA, ISO9001 |
| Warranty | 5 Years |
Protect your surroundings. Users can define maximum and minimum height limits to avoid objects below (like cabinets) or above (like shelves) your desk.
Built to last. With NATE Desk's overload protection, your desk will automatically stop moving if it exceeds the loading capacity. This ensures the longevity of the brushless motor.
Enhanced safety for peace of mind. The intelligent gyroscope detects resistance during operation and automatically retreats to prevent collision damage.
NATE is dedicated to green manufacturing. Our brushless motors are more energy-efficient, and our products use recyclable materials and honeycomb packaging to reduce environmental impact.
Specifications
| Model | 2SABRF2(A) |
| Type | Desk Frame |
| Material | SPCC Steel |

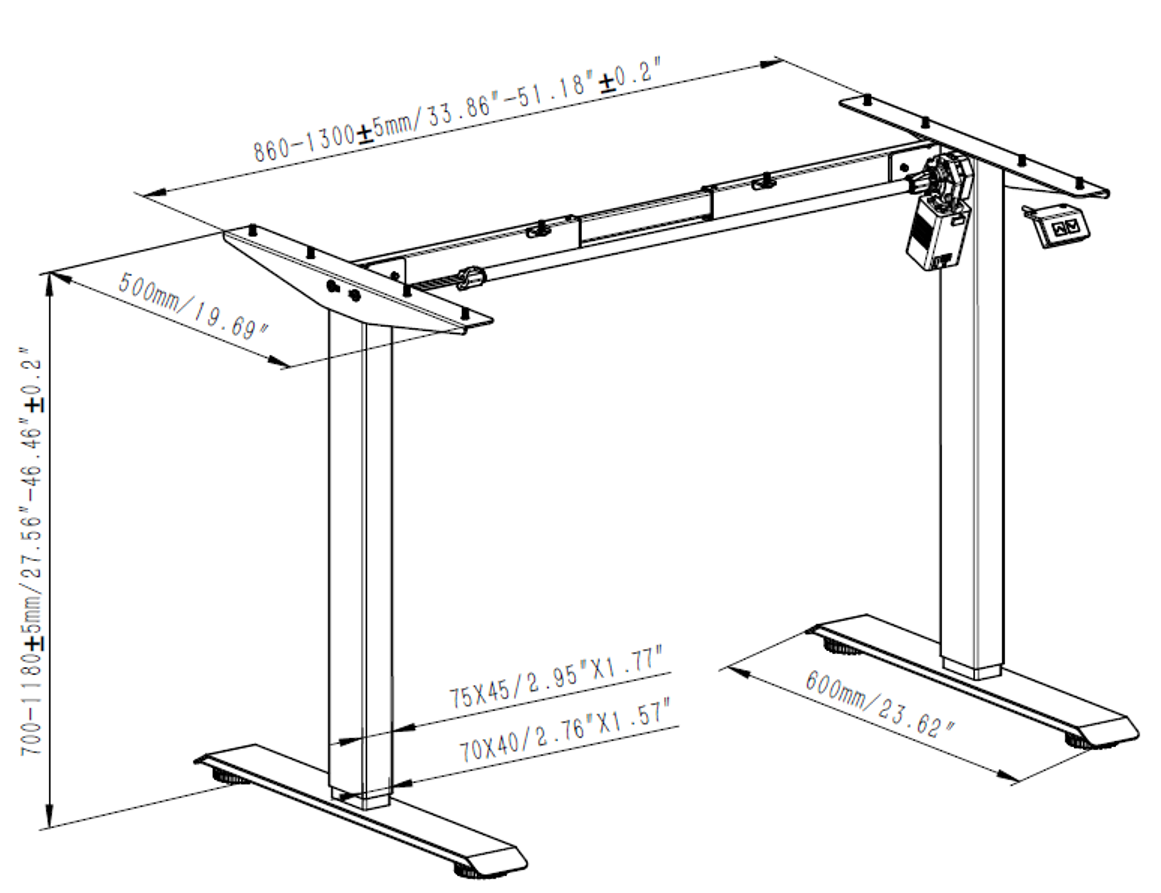

| Height Range(Frame) | 700–1180 mm (27.56″–46.46″) / Stroke: 480 mm (18.90″) |
| Speed | 20mm/s |
| Load Capacity | 70 kg (154.3 lb) |
| Leg Count | 2 legs |
| Frame Color | White, Black, Grey, Customizable |
| Controller | 4 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
| Width Range(Frame) | 860–1300 mm (33.86″–51.18″) |
| Voltage | 100~240 V |
| Drive Mode | Single Motor |
| Tabletop Color | White, Black, Grey, Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, GS,UKCA,BSCI, SAA, REACH, RoHS, etc. |
| Package | Complete set in one EPE carton and pallets for oversea shipment |
| Package Size | 815 × 270 × 190 mm (32.09″ × 10.63″ × 7.48″) |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
About Us
Shipping
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
