2SACRHF2(D)
NATE
Single Motor

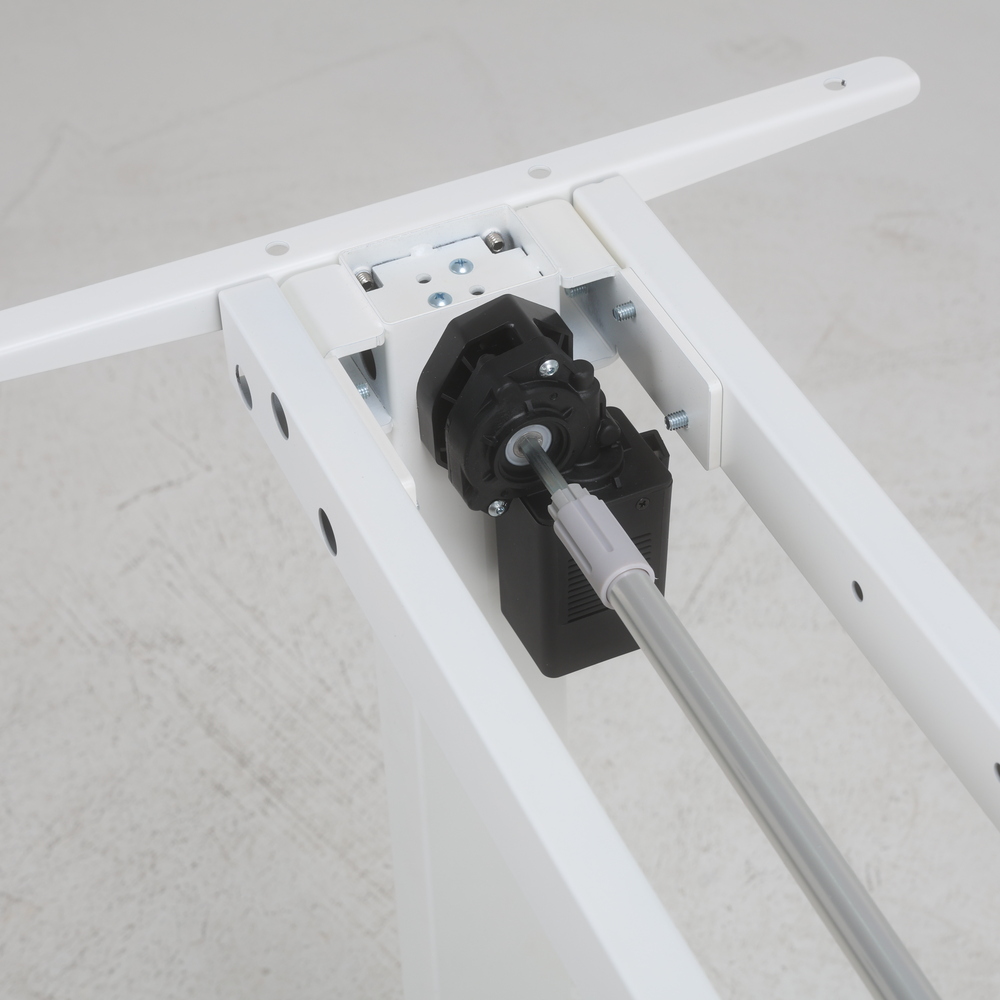

Brushless Motor
Reversed Column
Two Stage Column
Description
Designed for smoother operation, lower noise, and reduced maintenance needs.

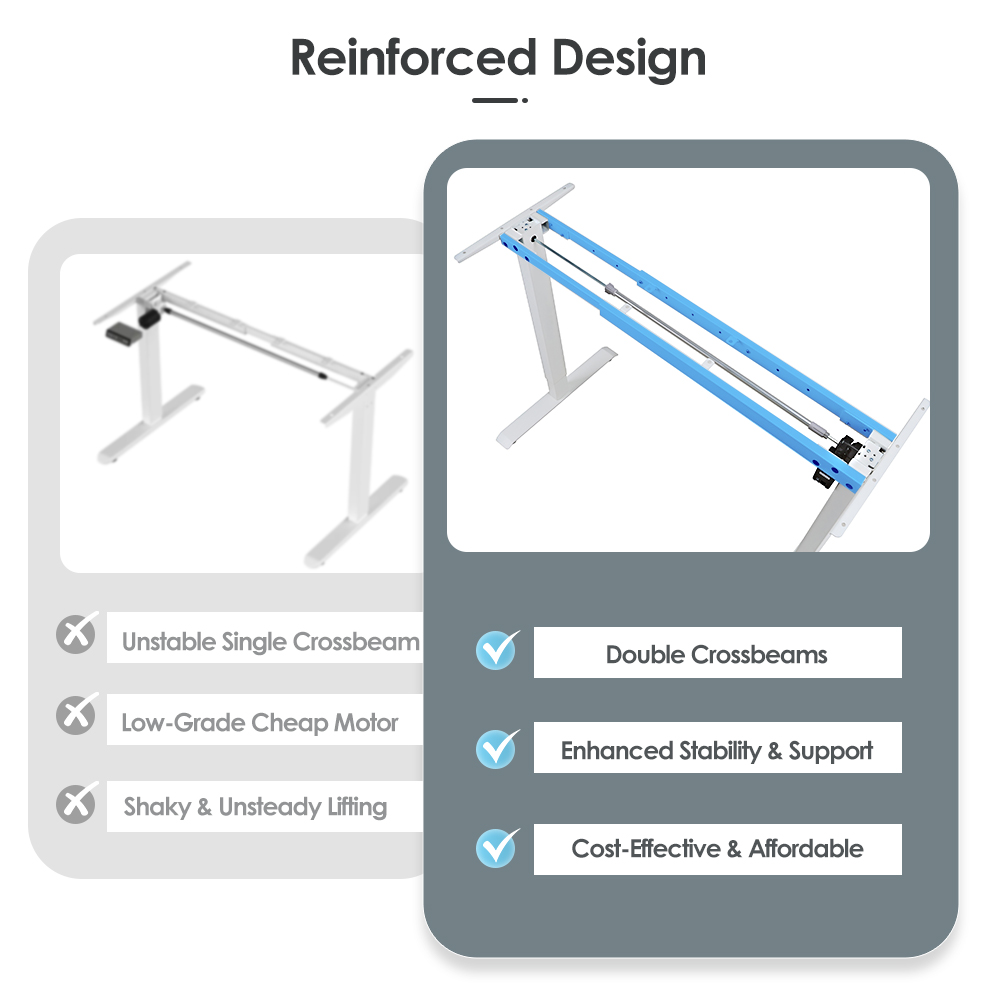

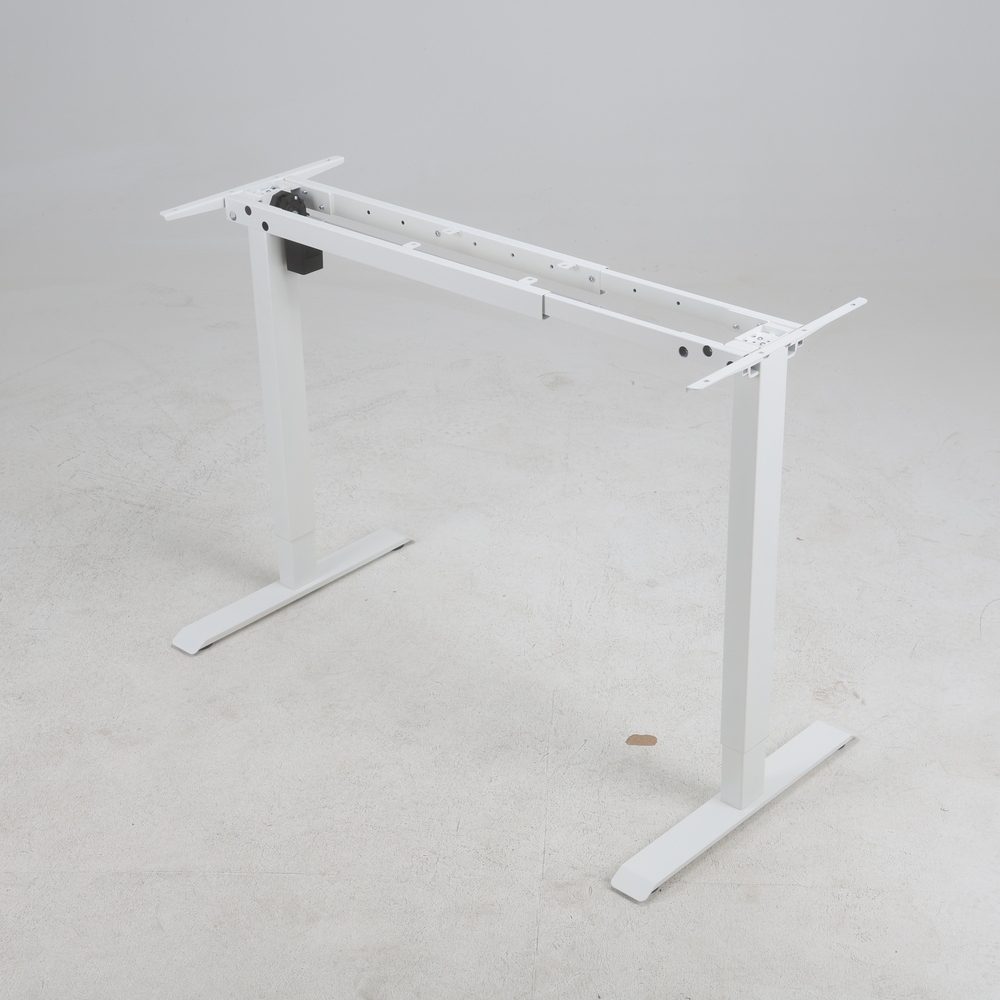

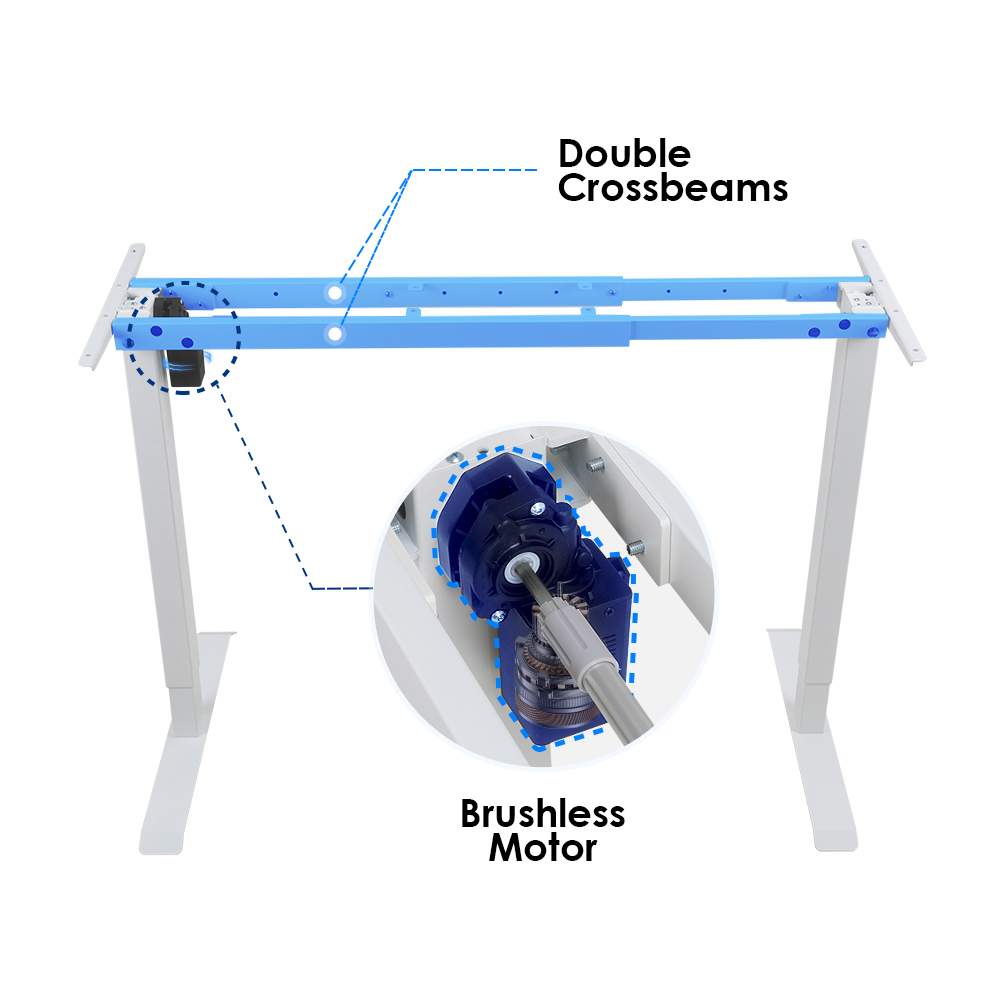

Added support structure helps improve frame stability compared with basic single-crossbeam designs.
A more economical option than higher-spec models, suitable for price-sensitive B2B markets.

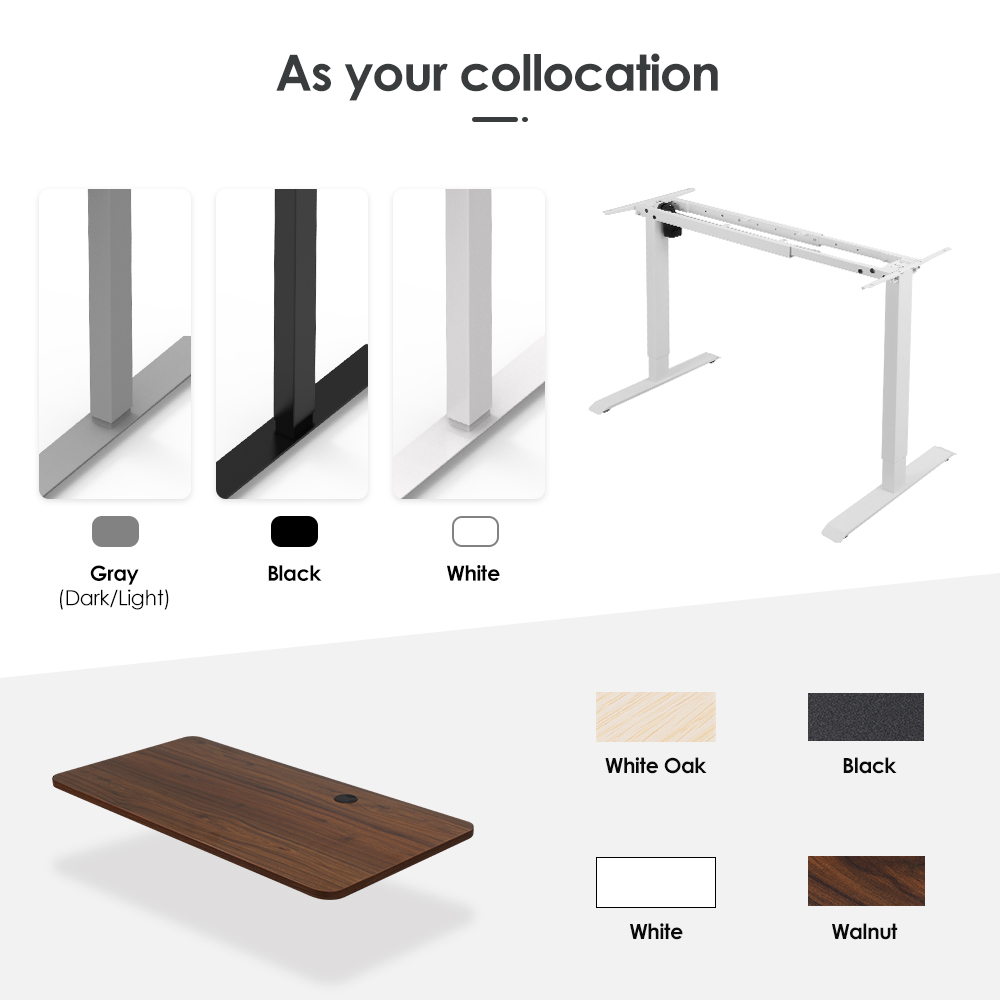

Supports color, tabletop, controller, packaging, and project-based customization.
Custom Height Limits: Define your safe zone by setting maximum and minimum height limits to help avoid collisions with nearby furniture or overhead obstacles.
Overload Protection: If your desk exceeds its weight capacity, it will immediately stop moving.
Anti-Collision Retreat: When the desk detects an obstacle during movement, it automatically reverses slightly for added safety.

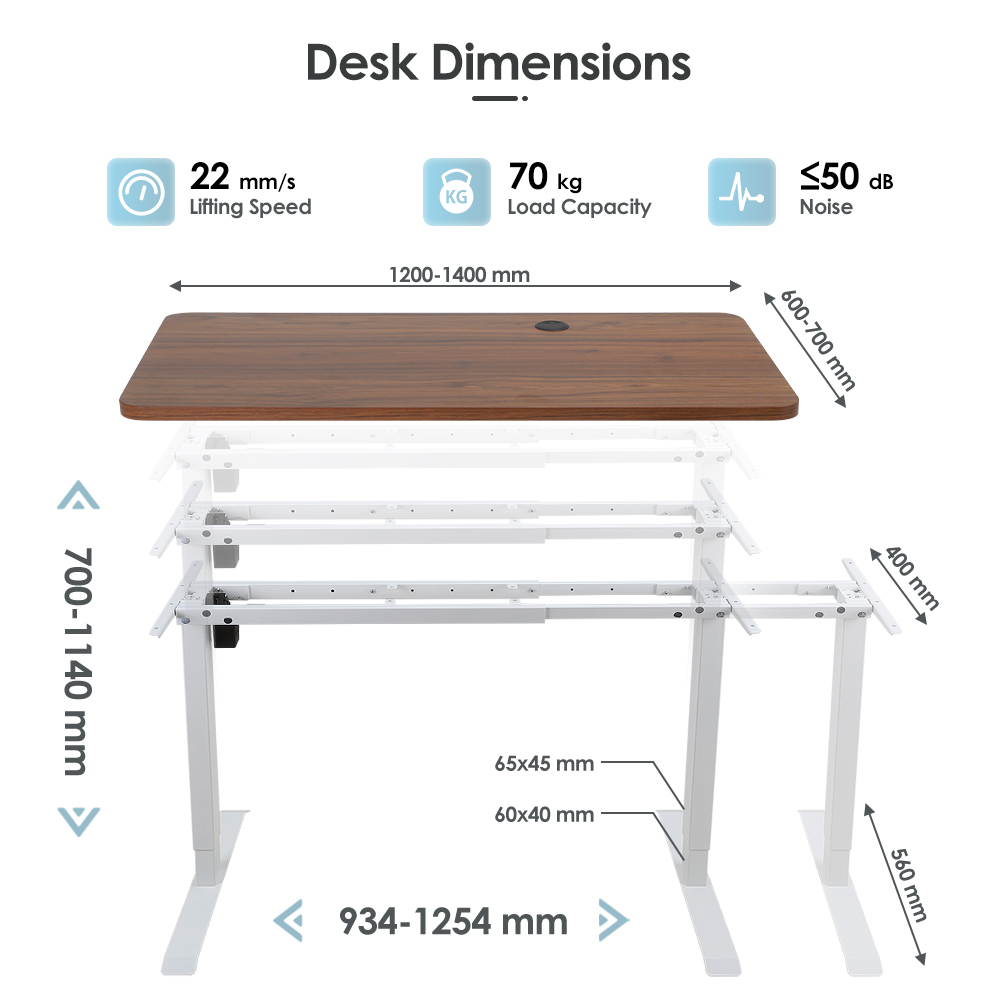

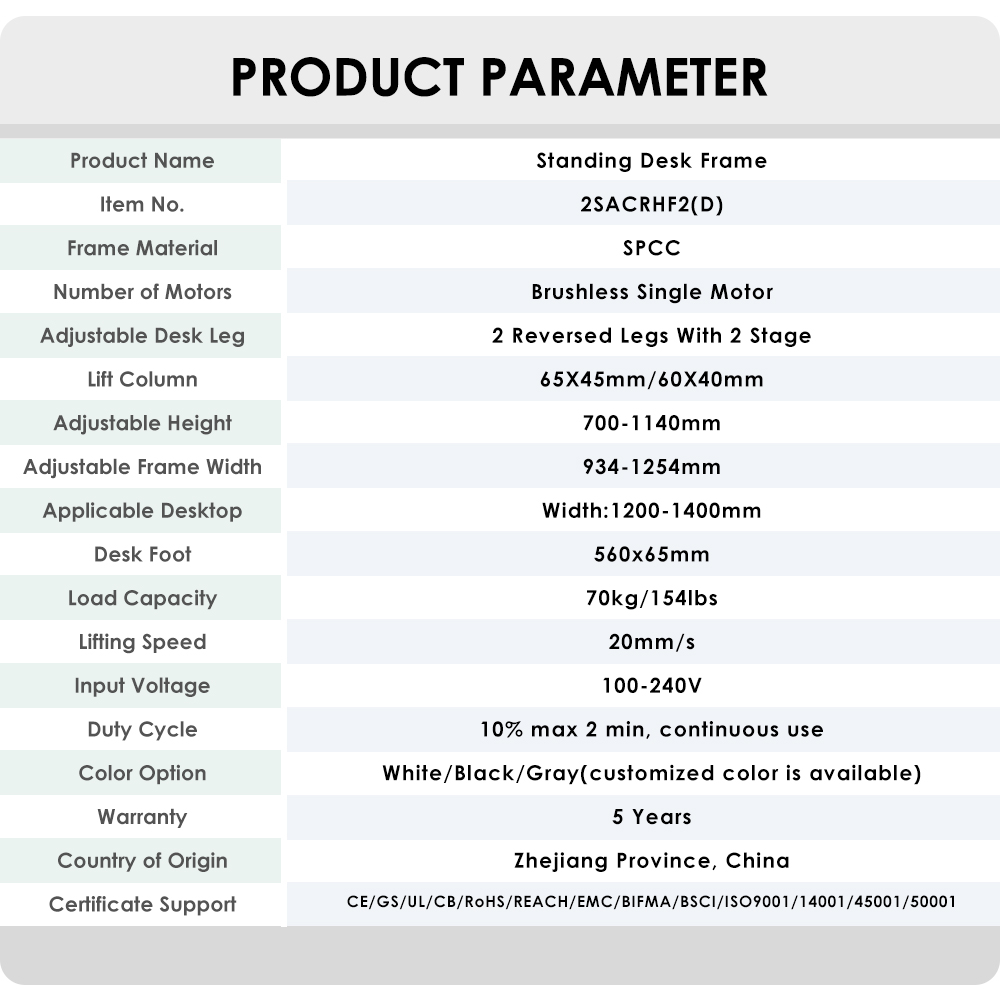

Specifications

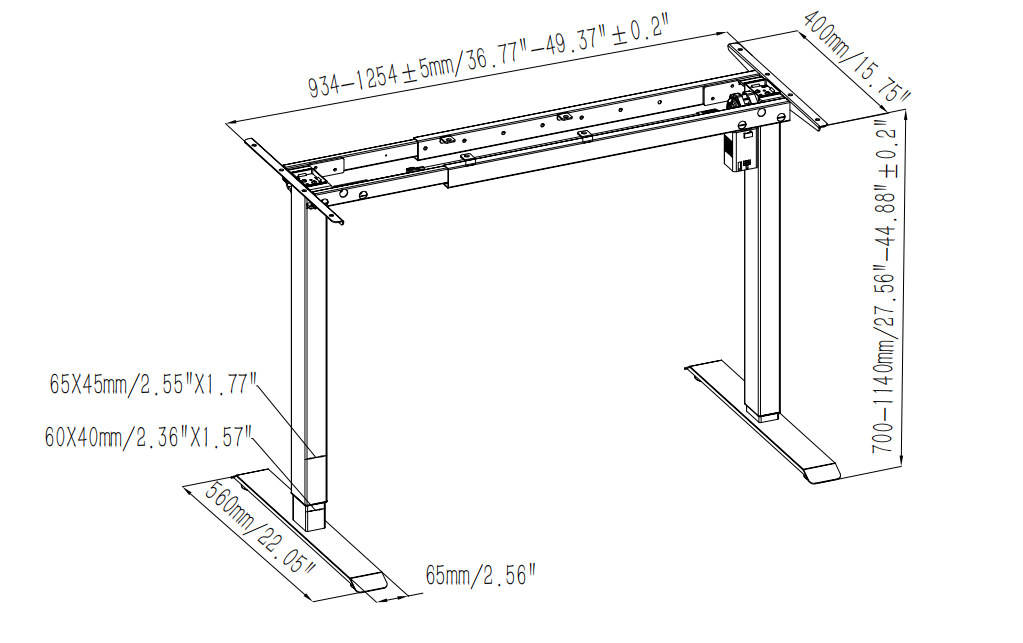

Type | Desk Frame | Model | 2SACRHF2(D) |
|---|---|---|---|
Material | SPCC | Height Range | 700–1140 mm / Stroke: 440 mm |
Voltage | 100-240 V | Number of Motors | Single motor |
Adjustable Frame Width | 934–1254mm | Leg Count | 2 Legs |
Speed | 20mm/s | Lift column | Reversed 2-Stage Rectangular Tubes- 65×45mm / 60×40mm |
Load Capacity | 70kg / 154lbs | Feet Size and Type | 560 x 65mm, equipped with leveling studs / customizable options |
Applicable Desktop | Width: 1200–1400mm, customizable | Frame Color | White, Black, Grey, Customizable |
Tabletop Color | White, Black, Grey, Customizable | Noise | <50 dB |
Features | Anti-collision safety protection | Certificate | CE / GS / UL / CB / RoHS / REACH / EMC / BIFMA / BSCI / ISO9001 / ISO14001 / ISO45001 / ISO50001 |
Warranty | 5 years on all parts | Package | Complete set in one EPE carton and pallets for oversea shipment |
Delivery Time | Custom drawings in 24 hours; 30 days for standard orders | Package Size | 1050*260*205mm |
Gross Weight | 15.28kg | Net Weight | 13.55kg |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
About Us
Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg

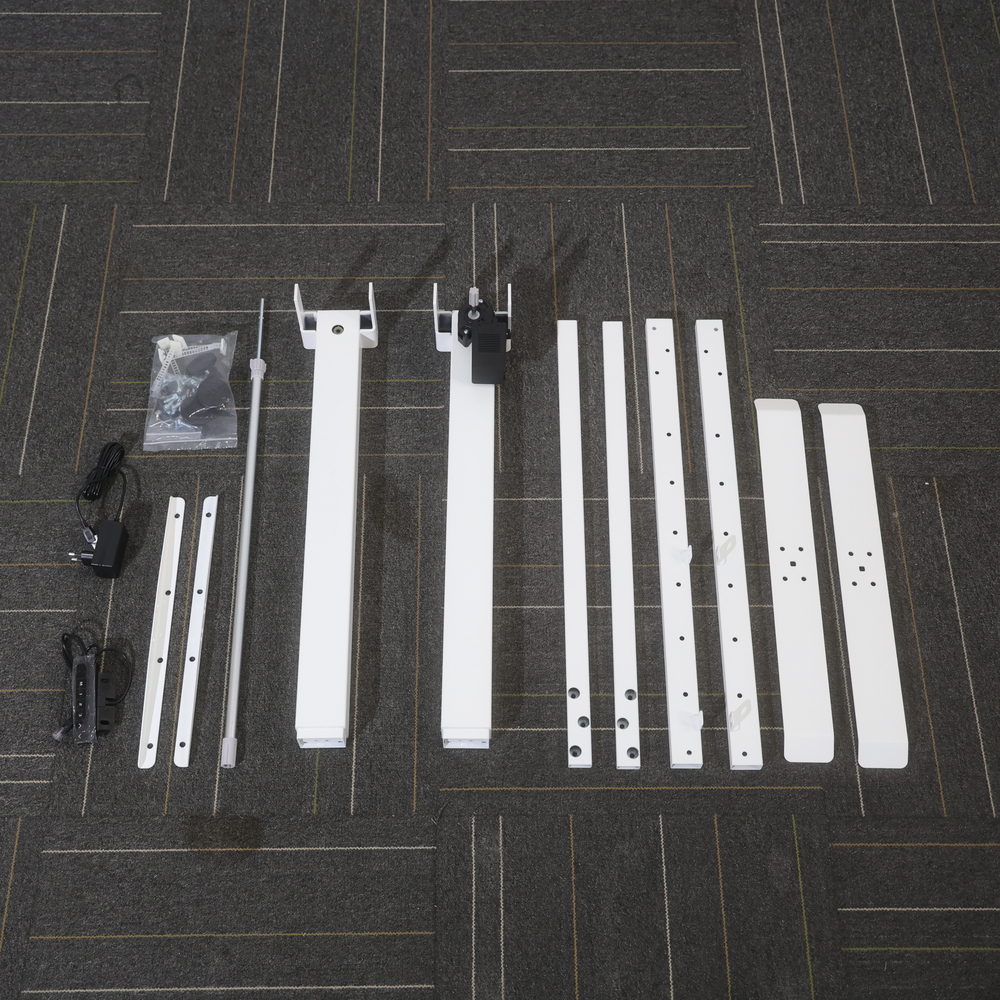

Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
