4DF2-V2
NATE
Dual Motor
Brushed Motor
Standard Column
Two Stage Column
Description

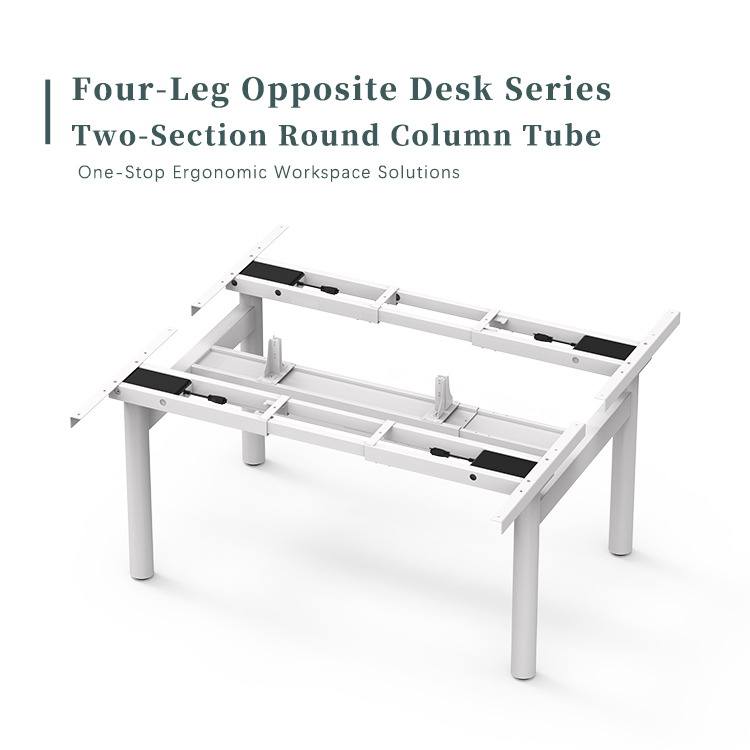

The V2 upgrade brings you a robust Quad-Motor System in a sleek, space-saving 4-leg configuration. Perfect for modern team environments.

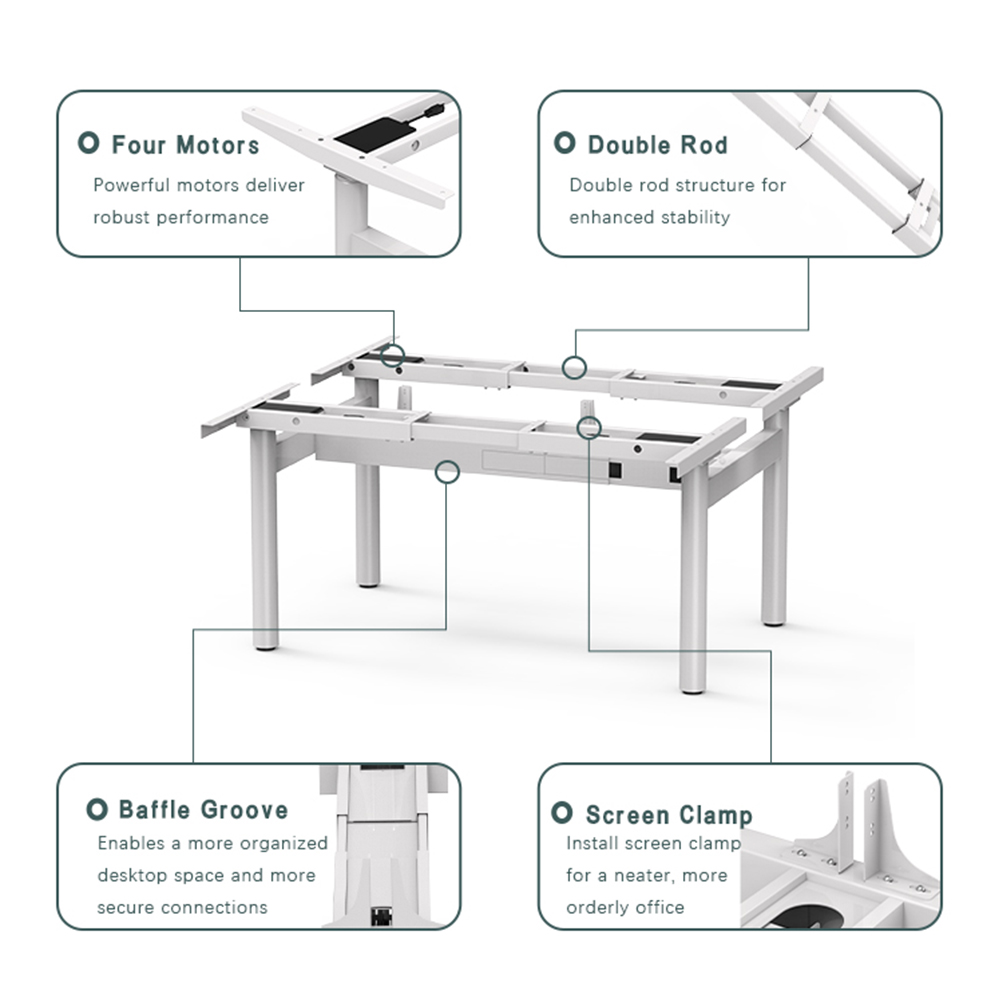

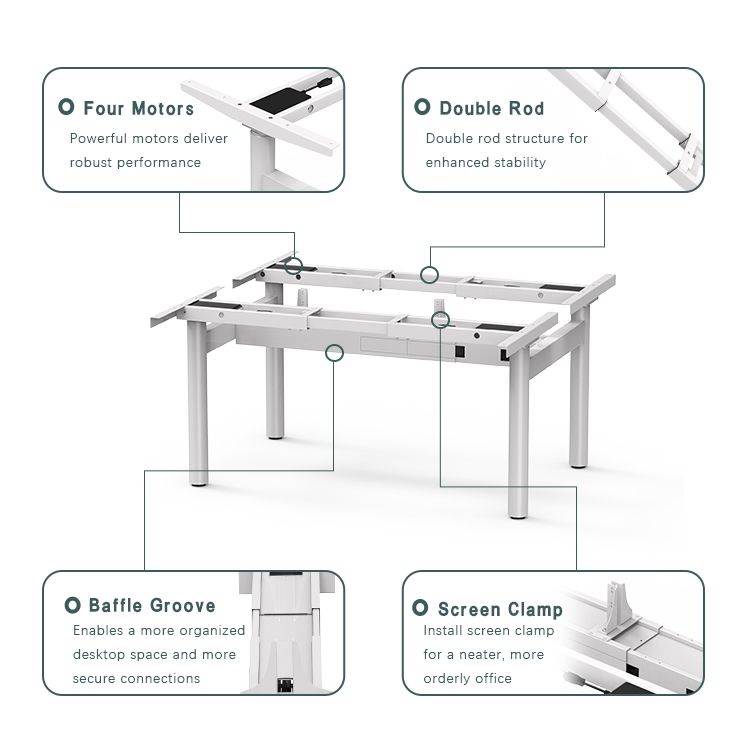

⚡ 4-Motor Drive: Each leg is powered by an independent motor, ensuring perfect synchronization and a massive 120kg load capacity (per side).
⭕ Round Tube Aesthetics: The cylindrical leg profile (70mm diameter) offers a softer, more premium look than standard square legs.
⚖️ Double Rod Beam: Reinforced double-beam structure guarantees stability even when fully loaded with monitors and equipment.
️ Screen Ready: Includes pre-drilled mounts for privacy screens, making it easy to create focused individual workspaces.
Quality you can trust. Certified by UL, CE, and BIFMA, backed by a comprehensive 5-Year Warranty on all parts.
Protect office assets. Easily set maximum and minimum height limits to prevent collisions with under-desk cabinets or overhead shelves.
Engineered for longevity. With NATE Desk's overload protection, the system automatically halts if the weight exceeds the 120kg limit. This protects the motors and gears from strain.
Safety first. The built-in gyroscope detects any resistance during movement and instantly retreats to avoid damage or injury to users.
NATE is committed to eco-friendly manufacturing. From recyclable raw materials to energy-efficient motors (0.1W standby power), we build with the planet in mind.

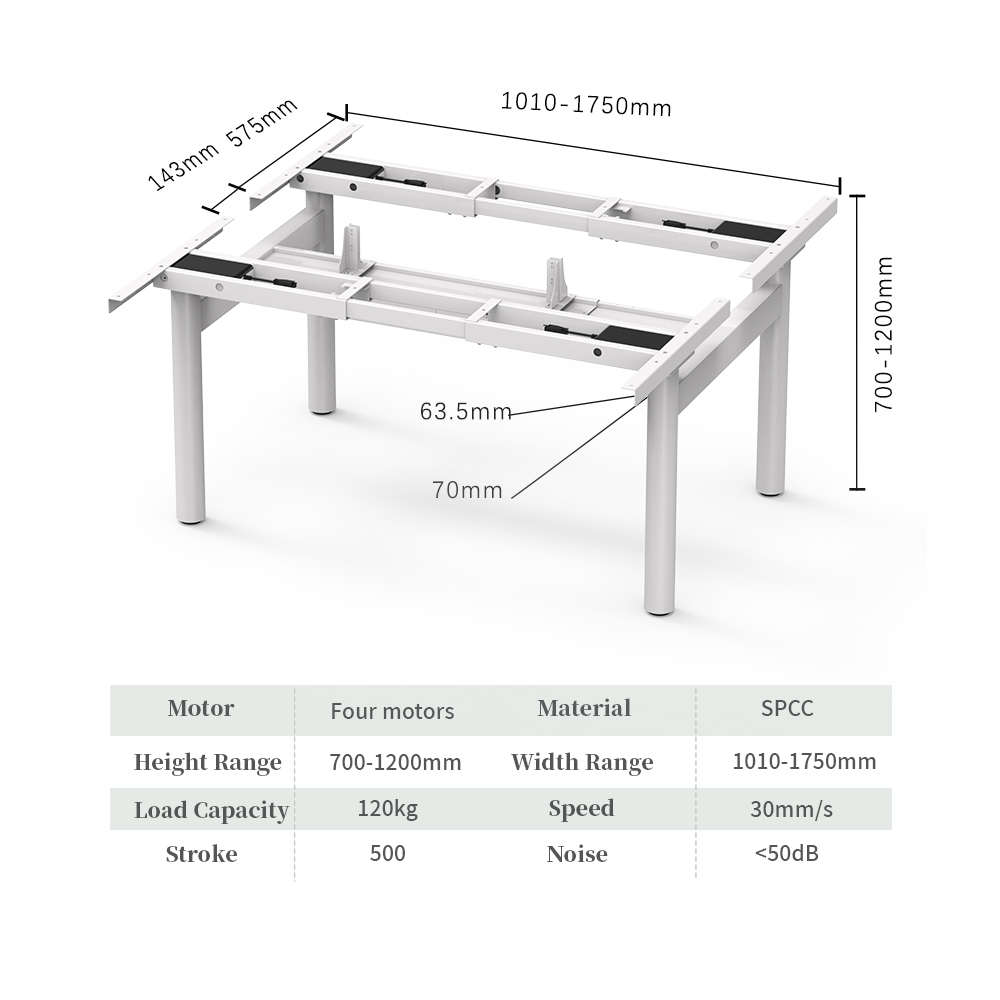

Specifications
| Model | 4DF2-V2 |
| Type | Desk Frame |
| Material | SPCC Steel |

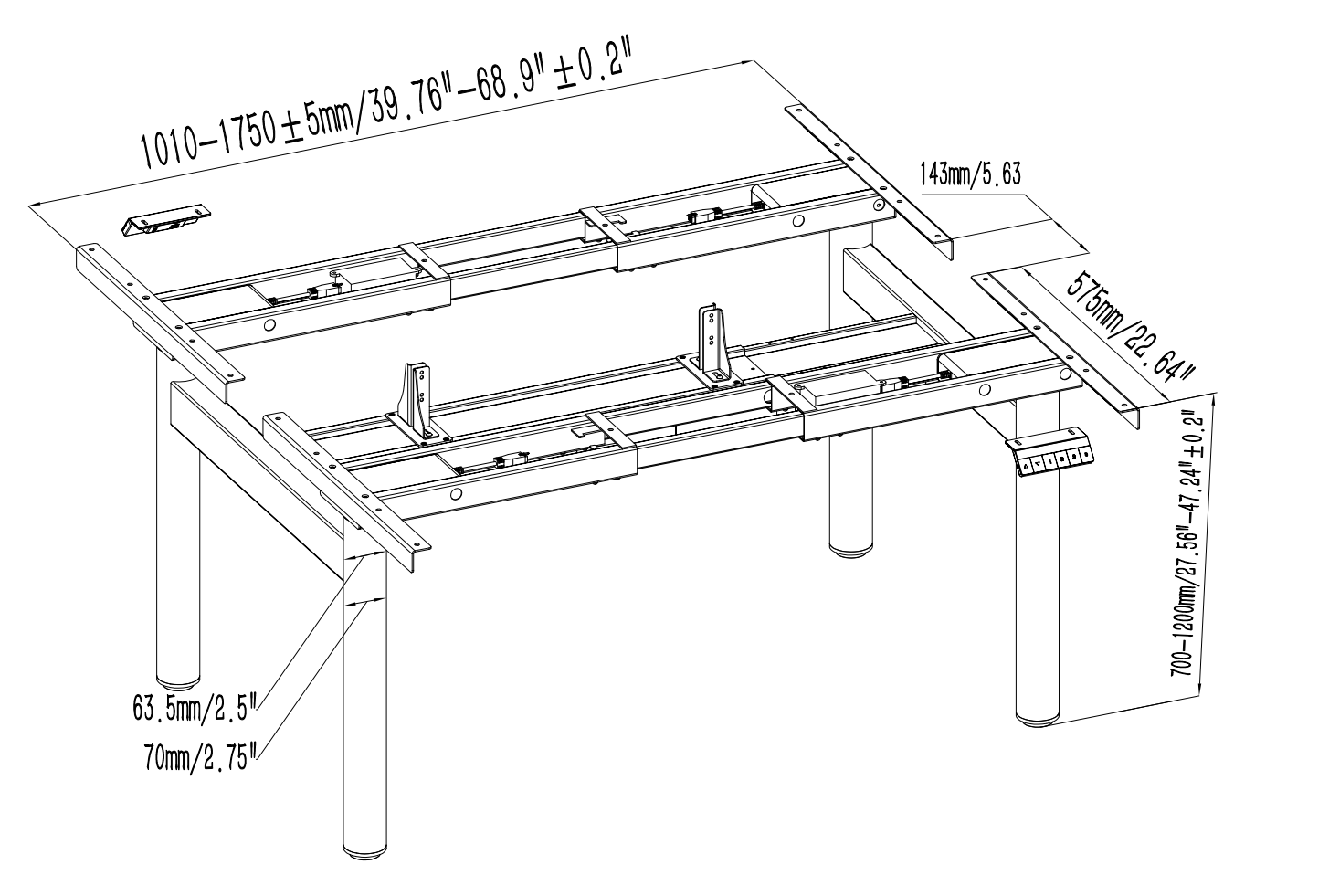

| Height Range(Frame) | 700–1200 mm (27.56″–47.24″) / Stroke: 500 mm (19.69″) |
| Speed | 30mm/s |
| Load Capacity | 120 kg (264.5 lb) per height position |
| Leg Count | 4 legs |

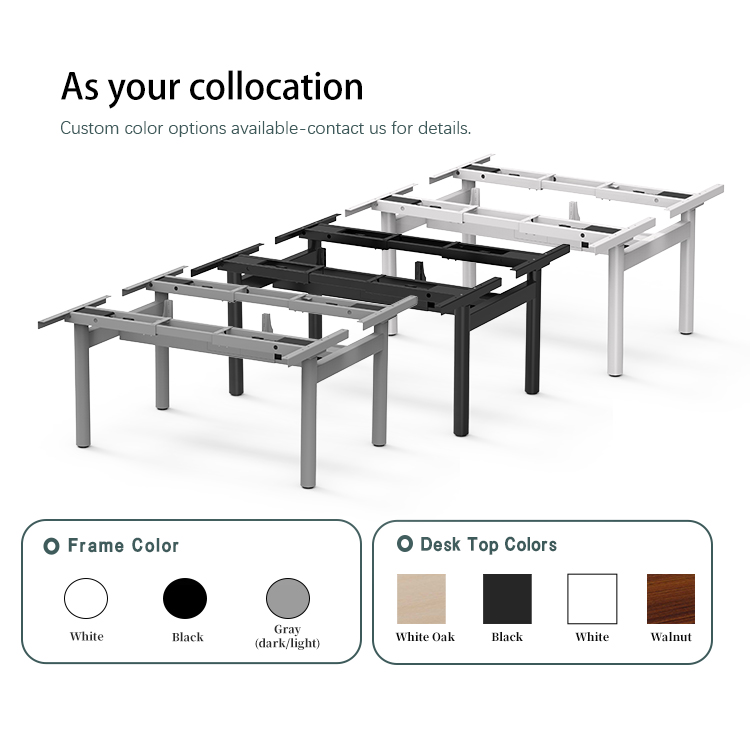

| Frame Color | White, Black, Grey, Customizable |

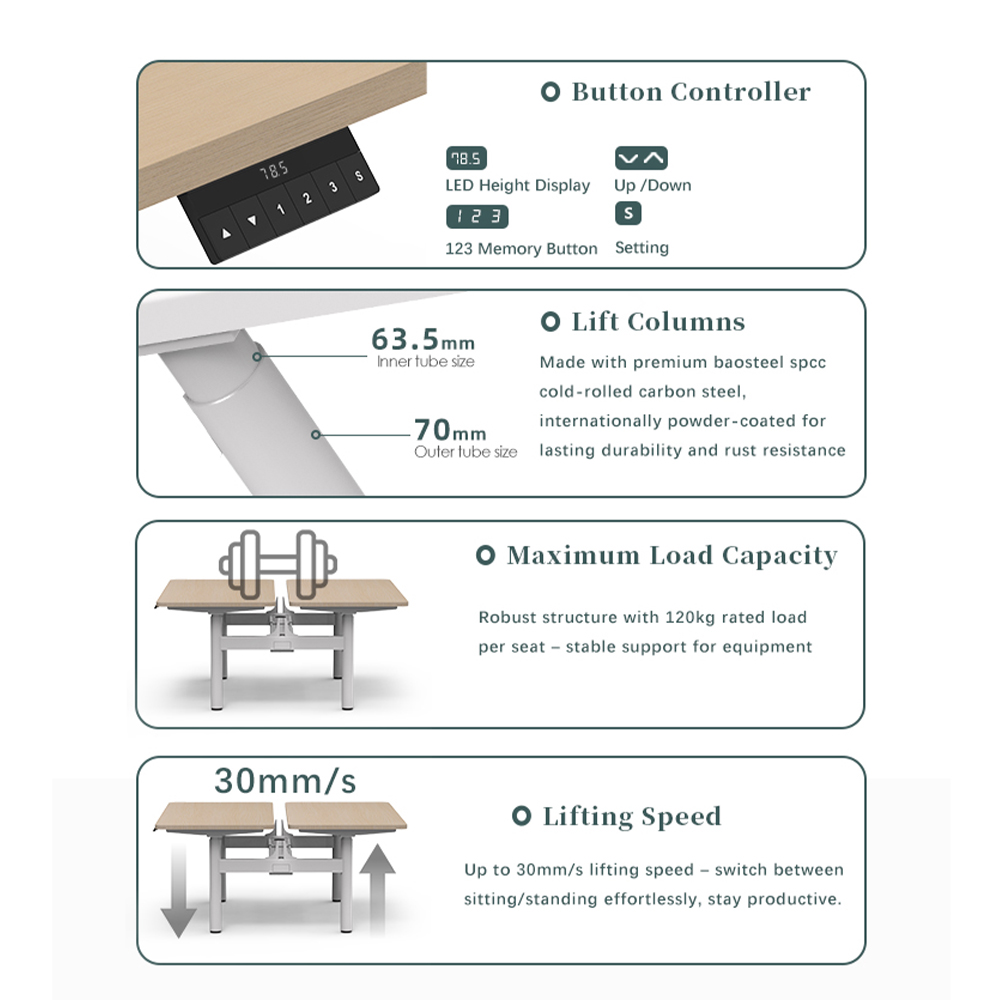

| Controller | 4 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
| Width Range(Frame) | 1010–1750 mm |
| Voltage | 100-240 V |
| Drive Mode | Dual motor |
| Lift column | Standard 2-Stage Round Tubes: 63.5 mm(2.50") x 70 mm(2.75") |
| Tabletop Color | White, Black, Grey, Customizable |
| Tabletop Size(optional) | 1200-1800mm (47-71") × 600–800 mm (23.62–31.50") optional / Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, GS,UKCA,BSCI, SAA, REACH, RoHS, etc. |
| Package | Complete set in one EPE carton and pallets for oversea shipment |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
About Us
Shipping&Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
