AD-VA2 Series
NATE
Brushed Motor
Linear Actuator
Standard Column, Reversed Column
Two Stage Column
Description

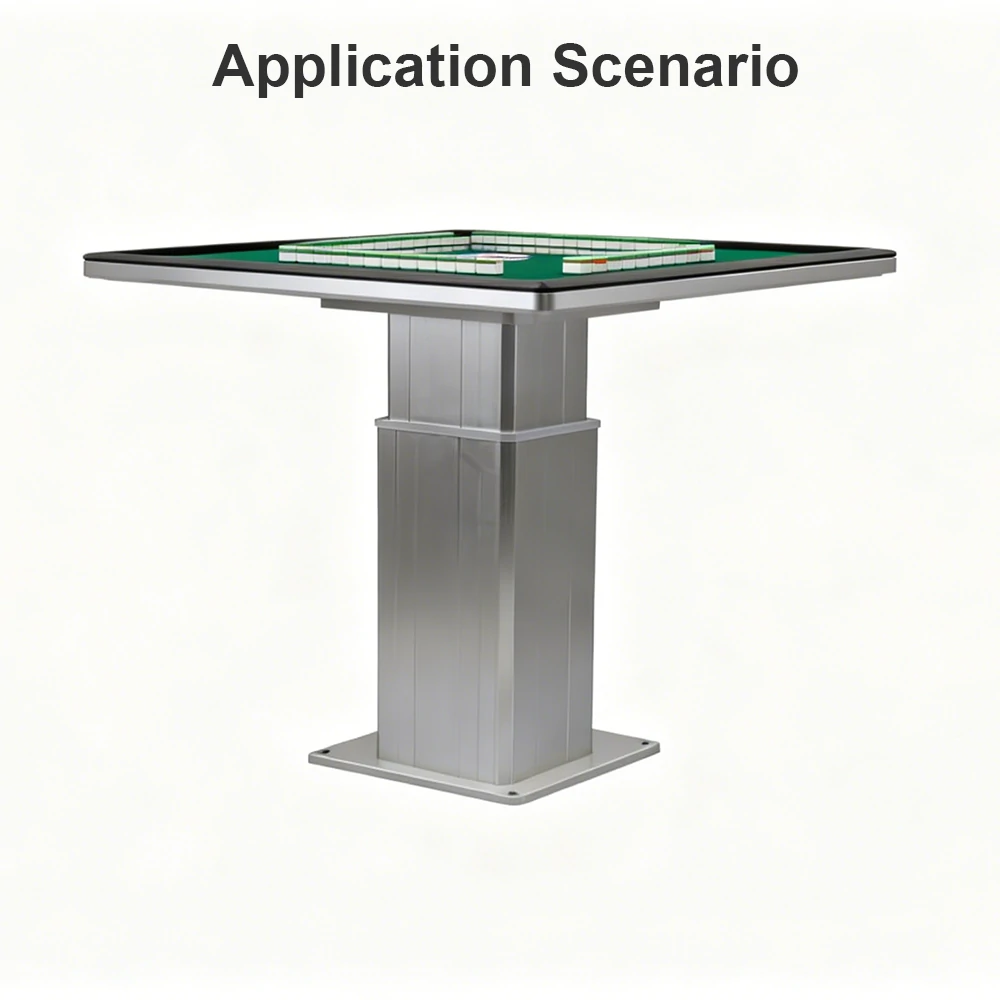

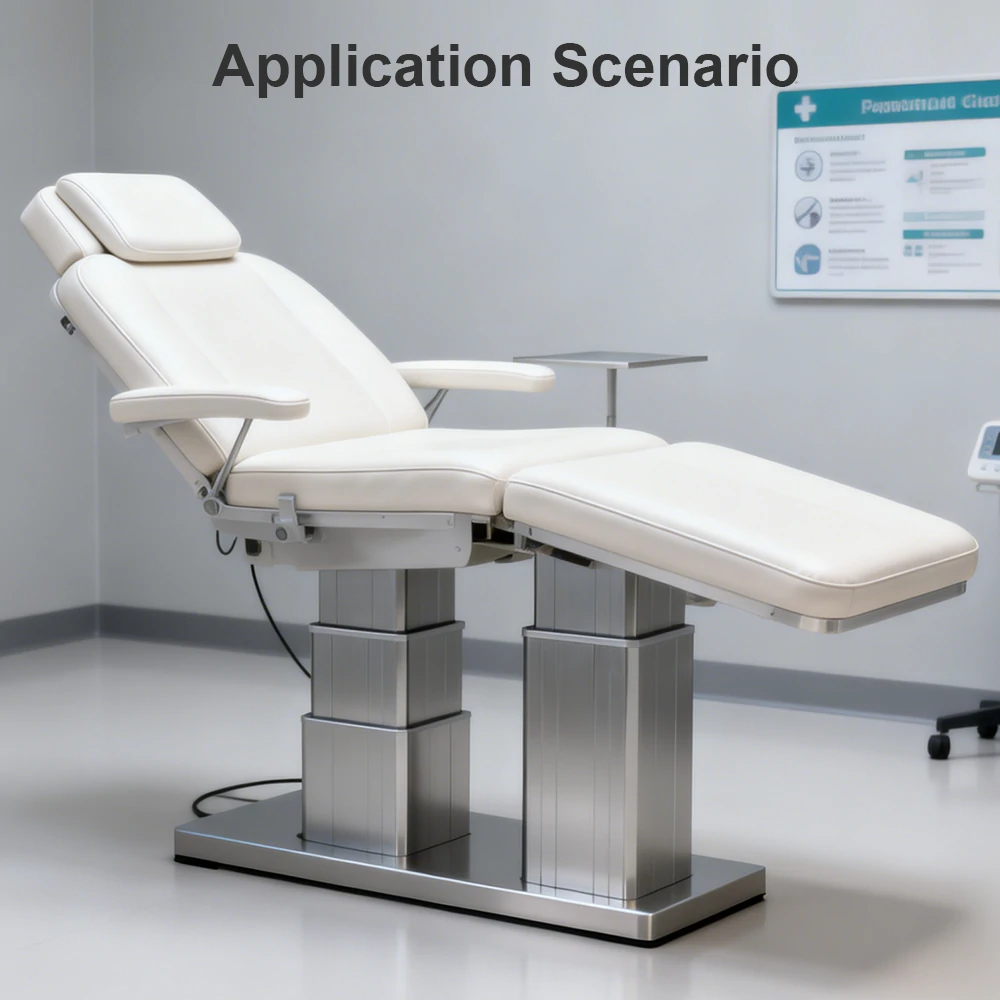

AD-VA2 is designed for projects that require stronger support, stable vertical lifting and a clean aluminum profile structure. With 200kg load capacity, 640–1120mm adjustable height and 15mm/s lifting speed, it is suitable for custom tables, medical equipment, industrial platforms and professional lifting systems.

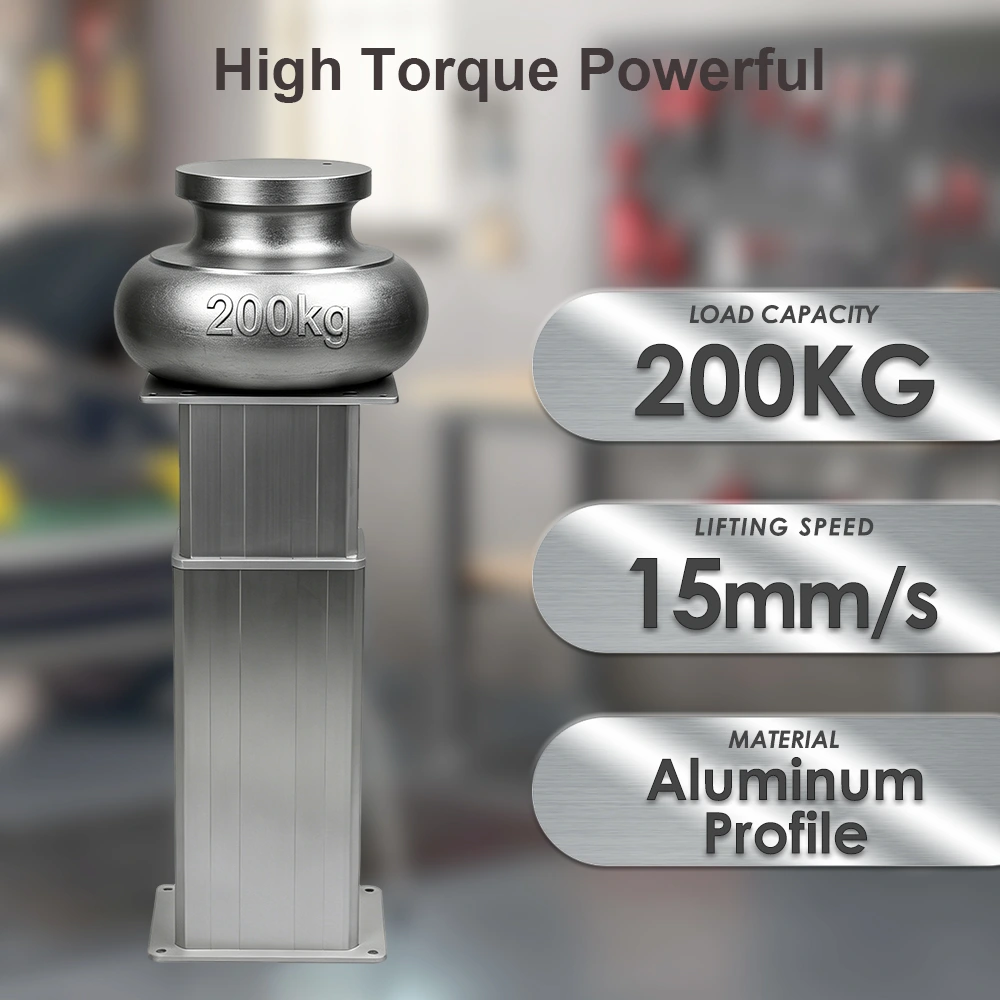

Supports up to 200kg, making it suitable for heavy table tops, equipment platforms, medical furniture and customized lifting structures.

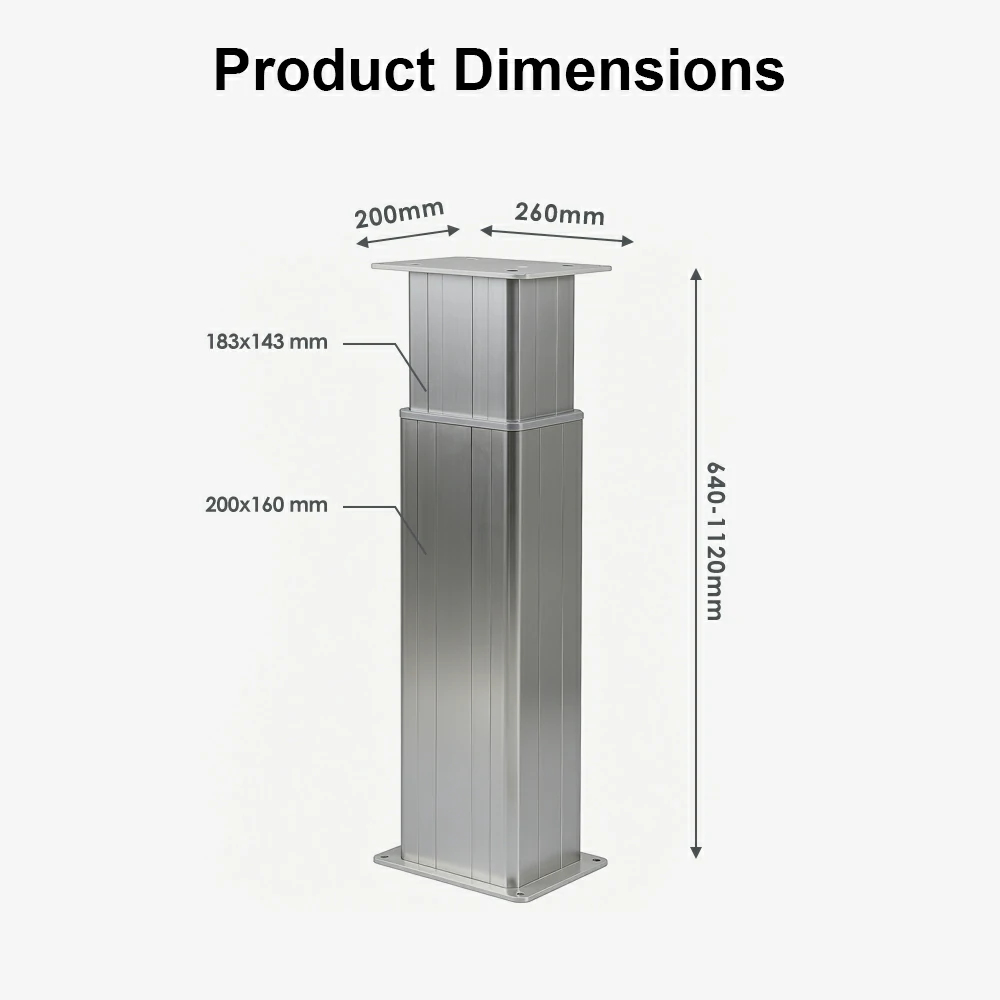

The 200×160mm / 183×143mm column profile provides a solid appearance and stable lifting support for professional applications.
100–240V input voltage supports flexible use across different market requirements and project configurations.
The AD-VA2 adopts a 1-leg 2-stage lifting structure with a large rectangular aluminum profile. It is suitable for systems where the lifting column is used as the central support or as part of a multi-column synchronized platform.

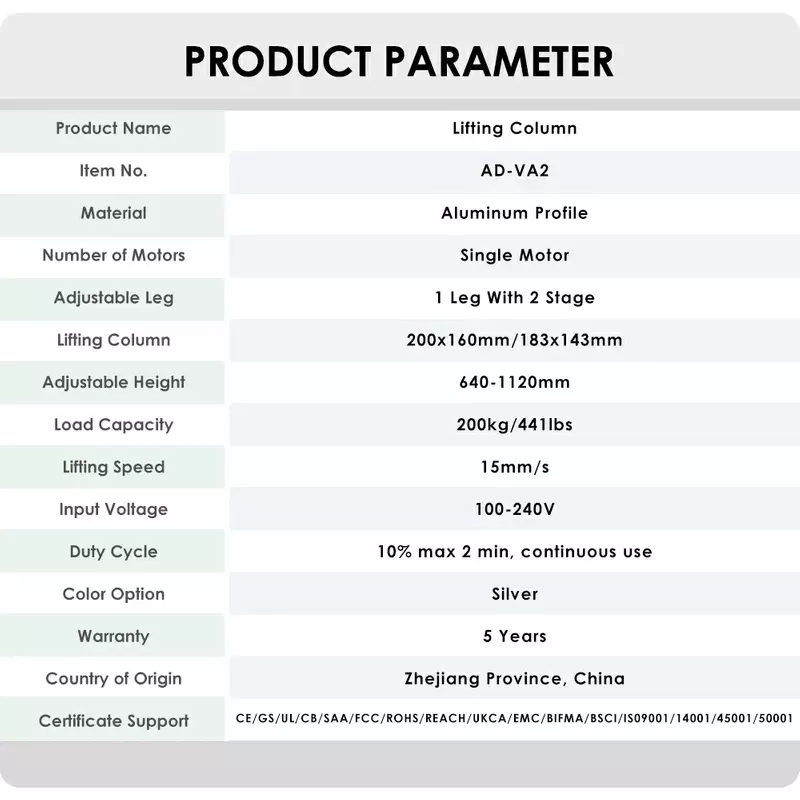

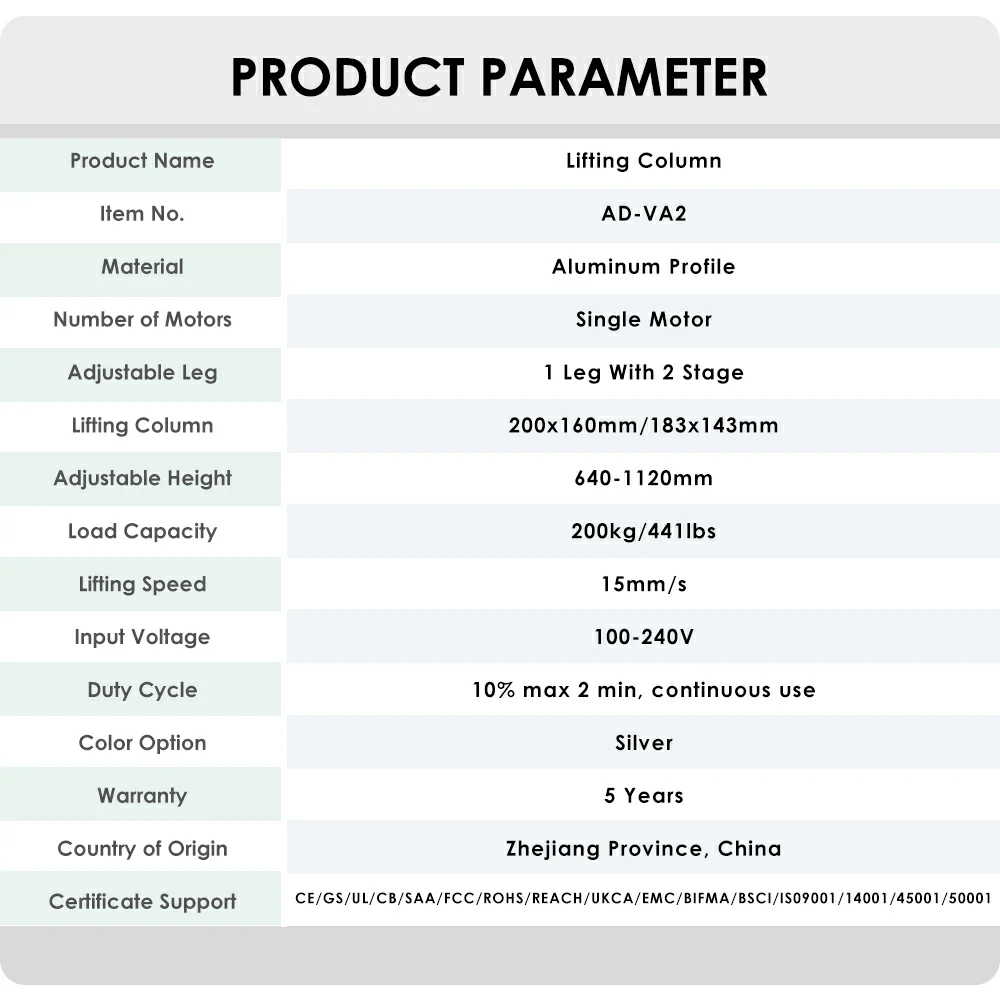

| Product Name | Lifting Column | Item No. | AD-VA2 |
| Material | Aluminum Profile | Number of Motors | Single Motor |
| Adjustable Leg | 1 Leg with 2 Stage | Lifting Column | 200×160mm / 183×143mm |
| Adjustable Height | 640–1120mm | Load Capacity | 200kg / 441lbs |
| Lifting Speed | 15mm/s | Input Voltage | 100–240V |
| Duty Cycle | 10% max, 2 min continuous use | Color Option | Silver |
| Warranty | 5 Years | Country of Origin | Zhejiang Province, China |

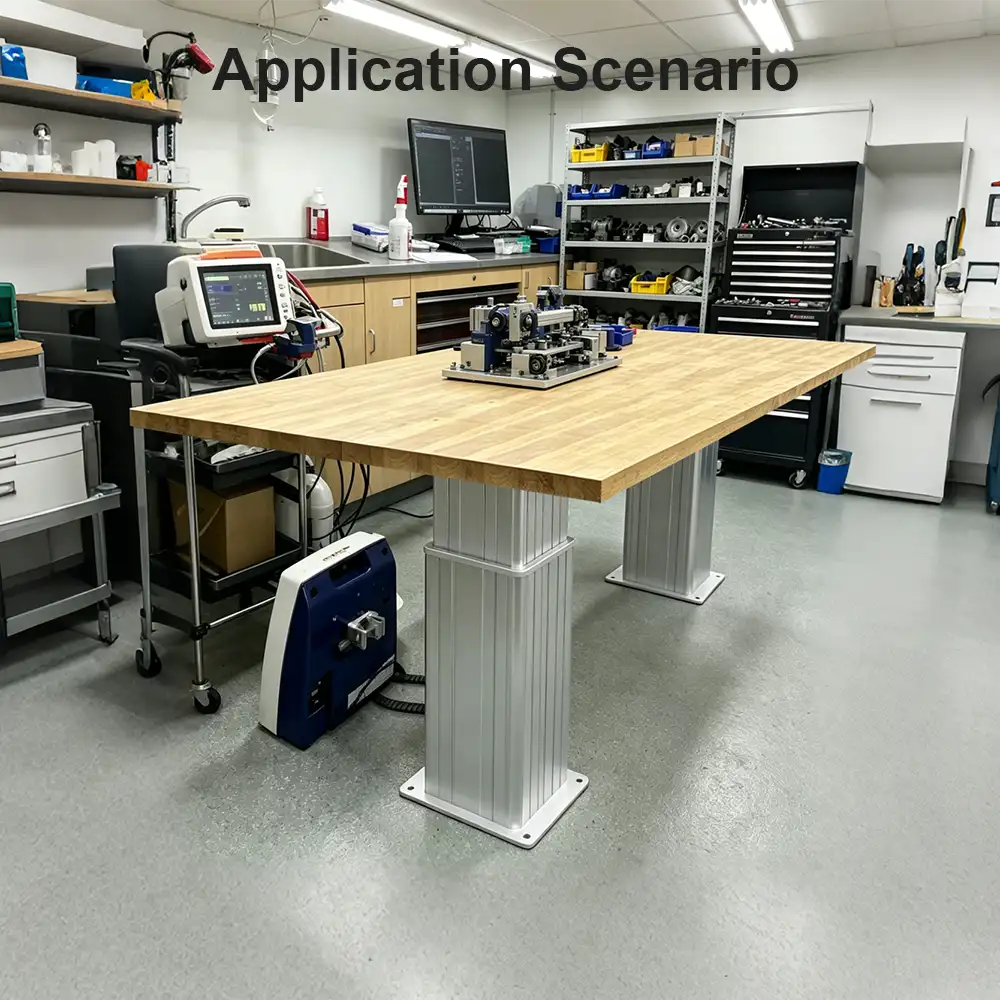

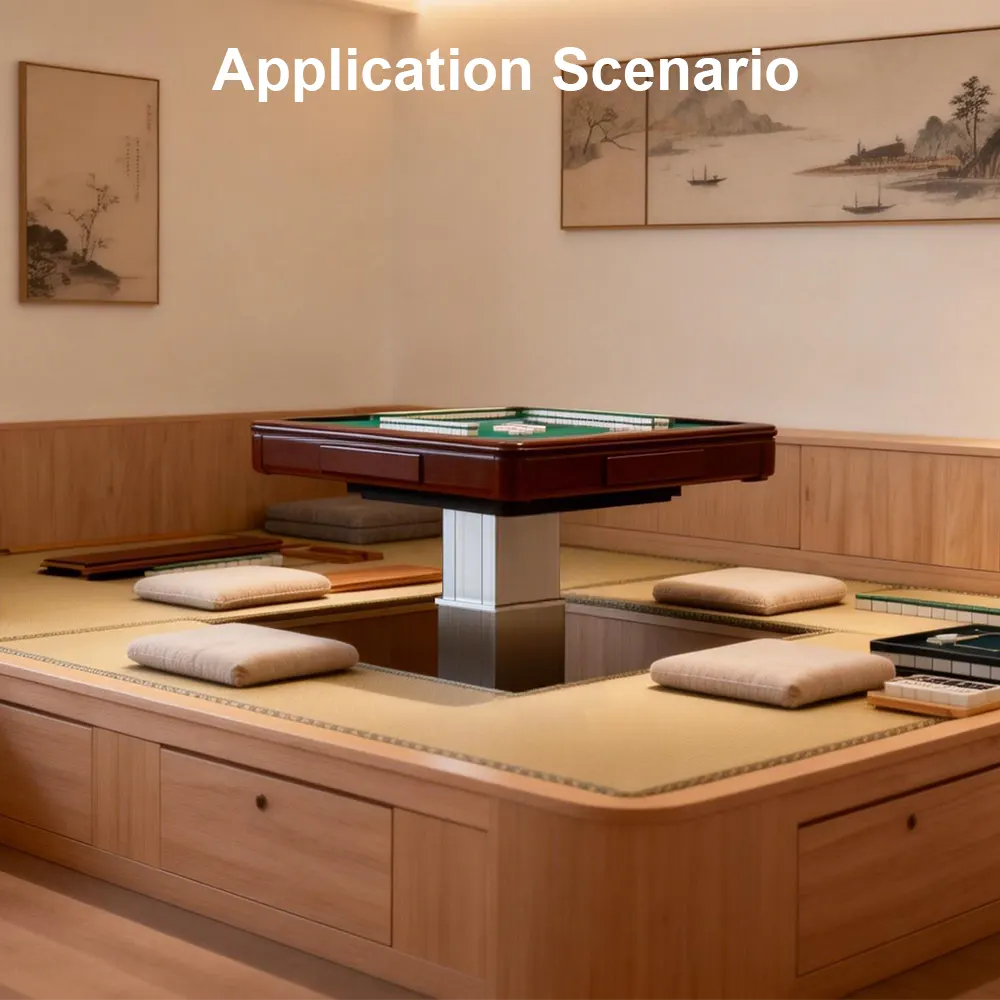

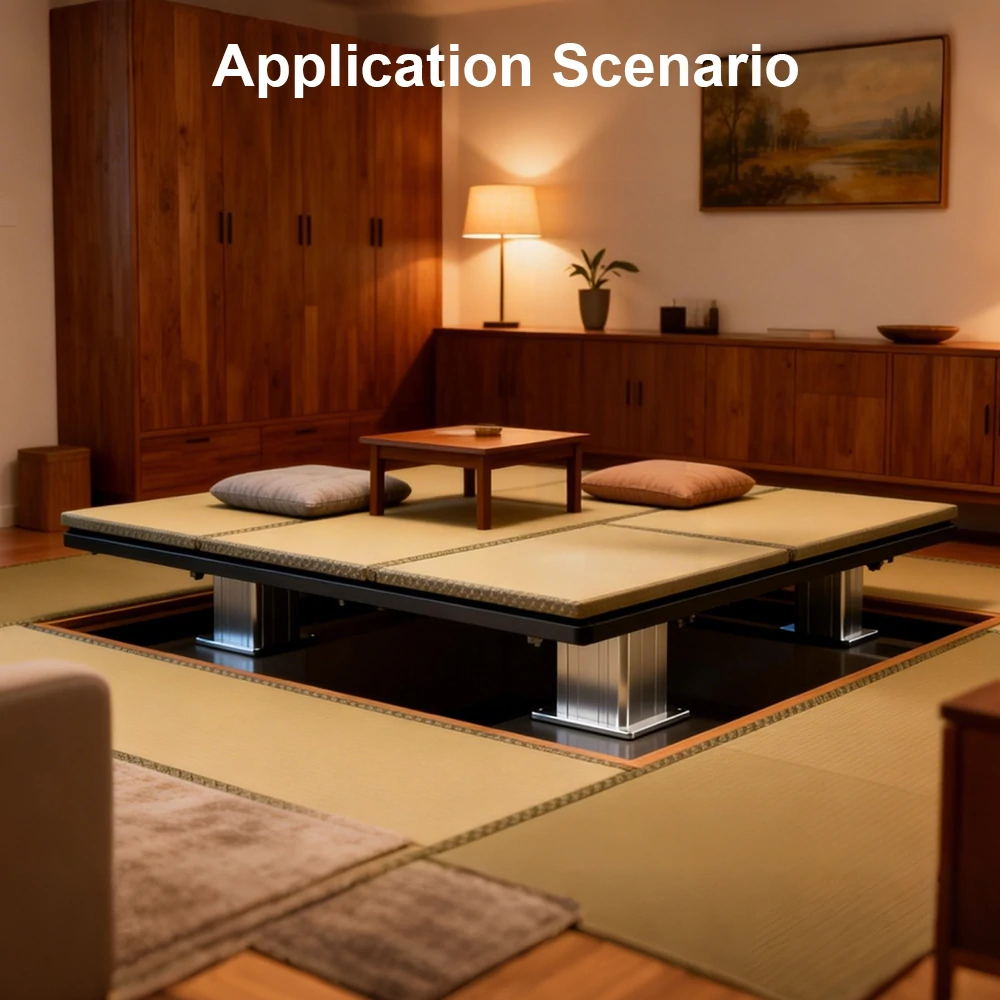

AD-VA2 can be integrated into different lifting systems where strong load support, vertical adjustment and customized equipment design are required.

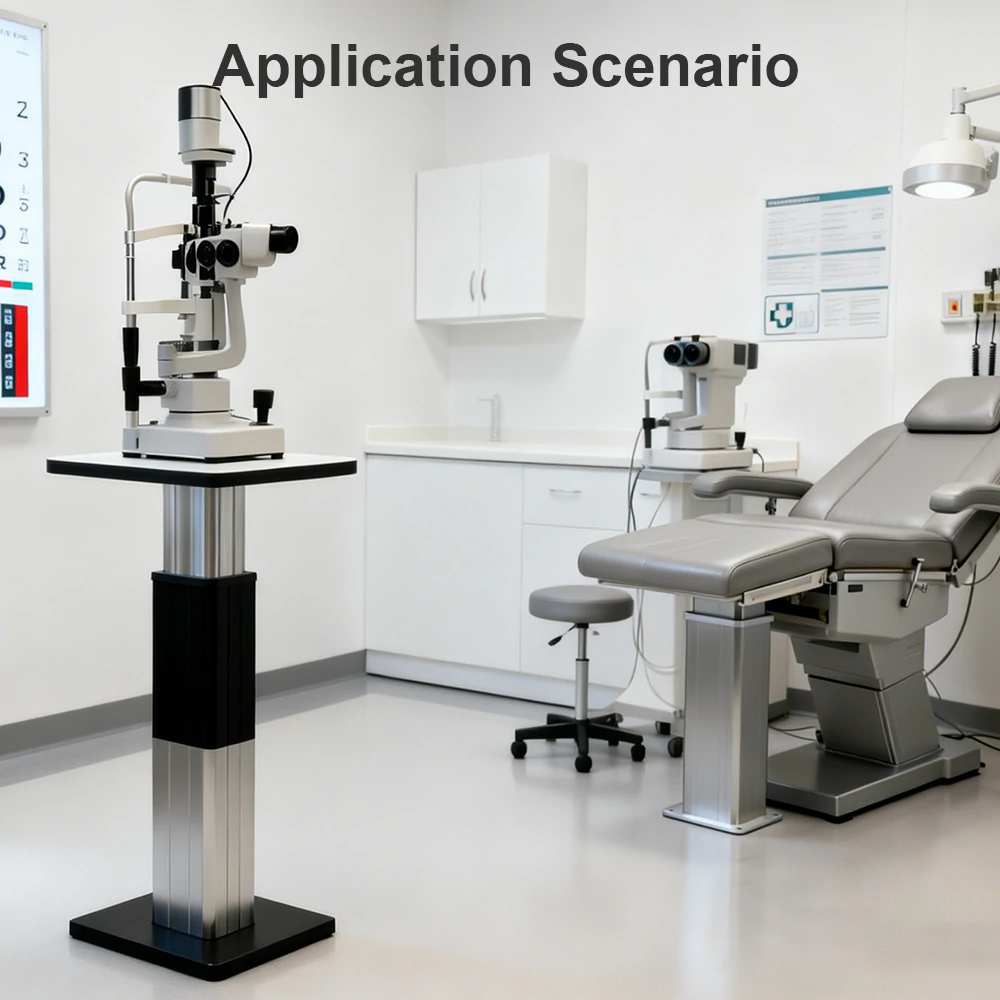

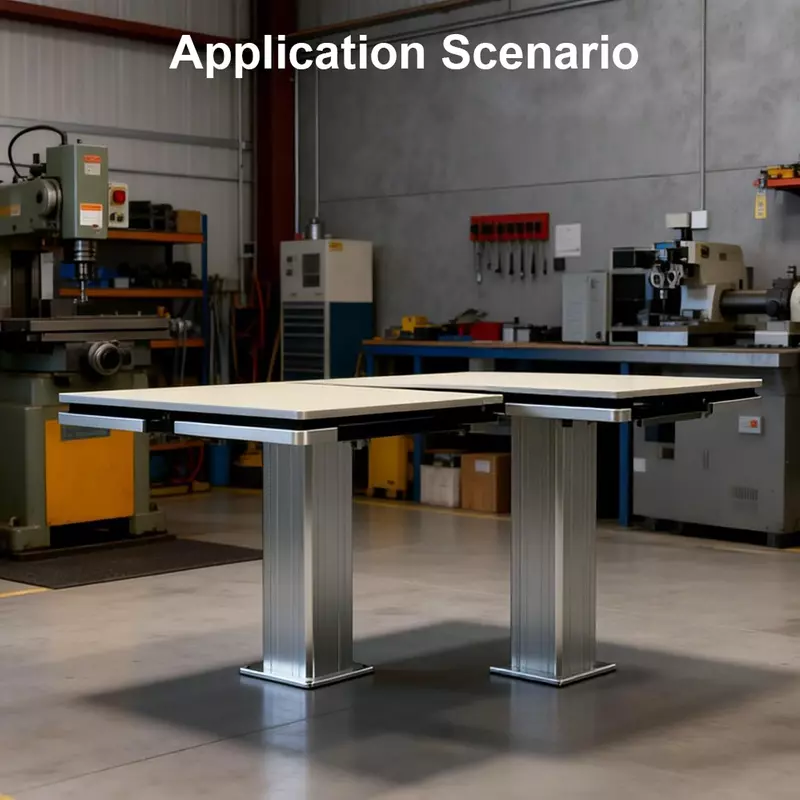

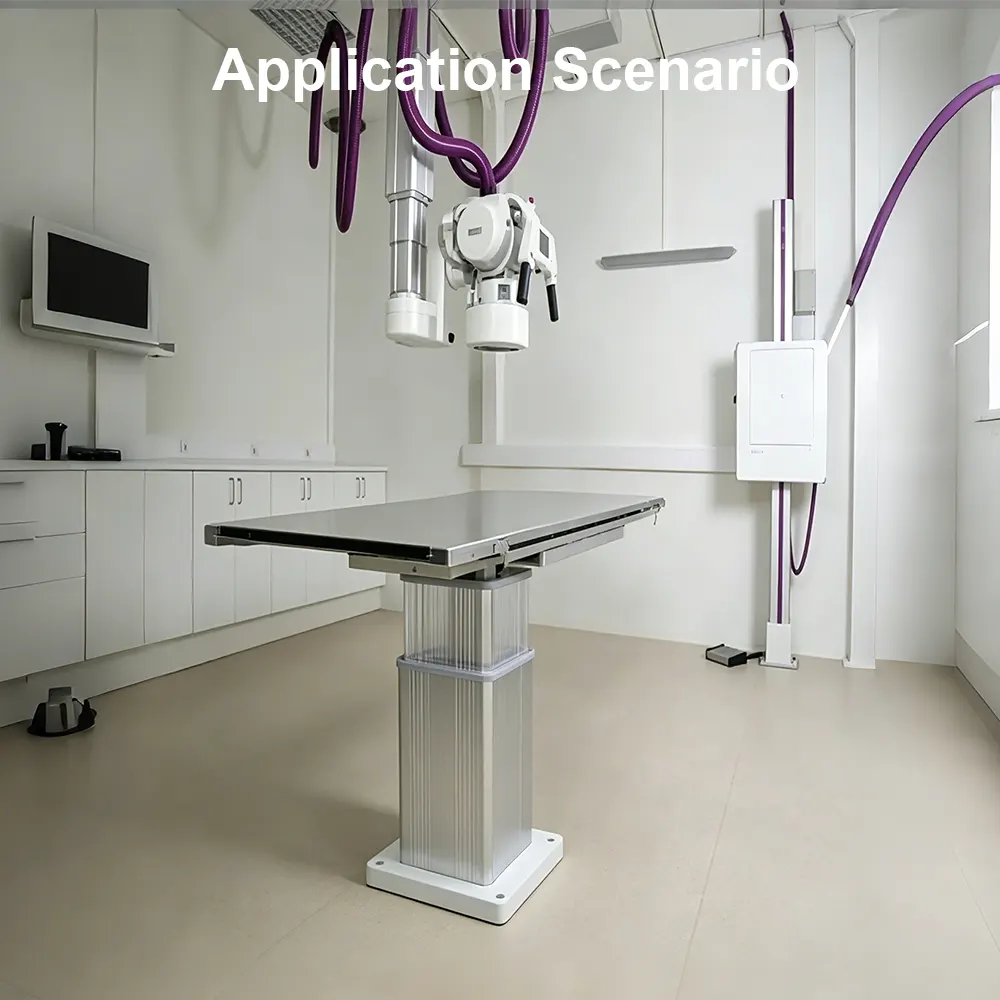

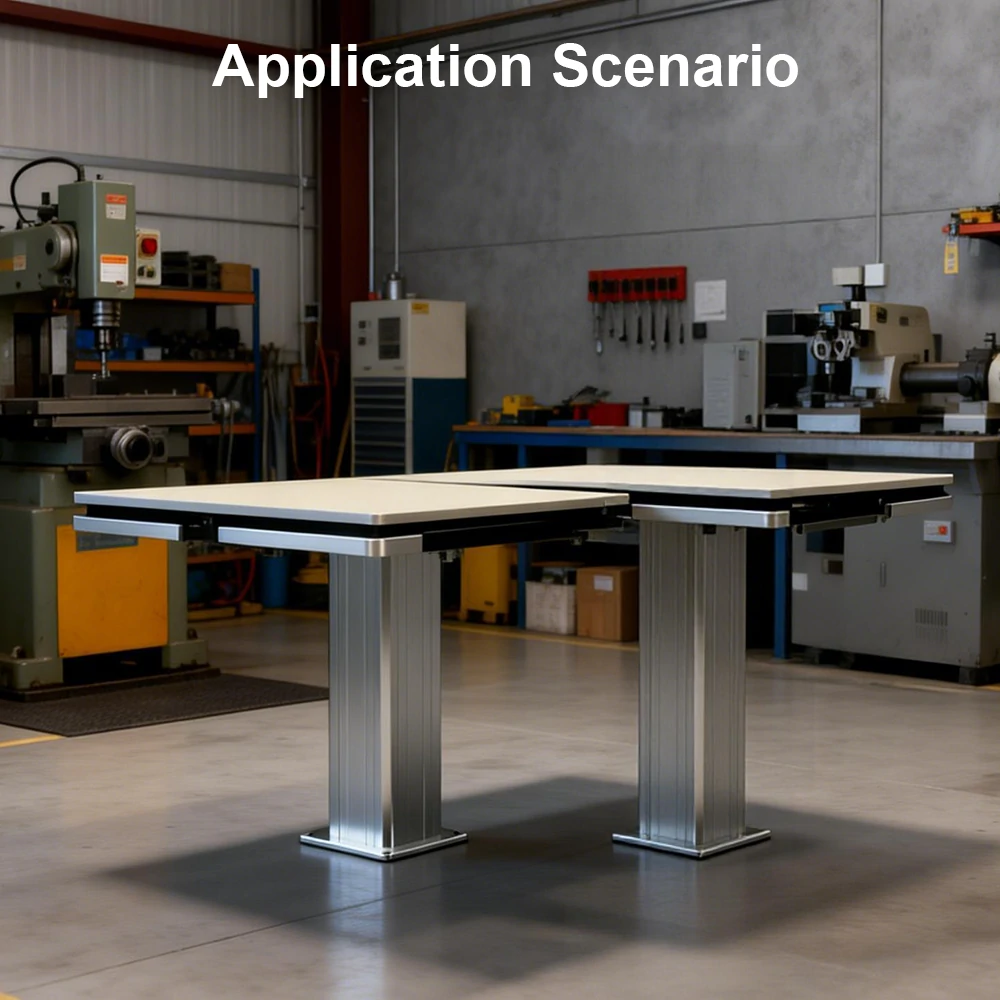

With its heavy-duty structure and clean aluminum profile, AD-VA2 is suitable for manufacturers and project buyers who need a lifting column that can be integrated into customized furniture, medical devices, workstations or equipment platforms.
