2HF2A-KZB-V2
NATE
Dual Motor
Brushed Motor
Standard Column
Two Stage Column
Description
Designed for efficiency. The Telescopic Structure redefines assembly speed without compromising stability.
Why Telescopic Structure? The pre-assembled expandable beam design allows for instant width adjustment without complex assembly. This significantly reduces on-site installation time while optimizing packaging volume for e-commerce logistics.

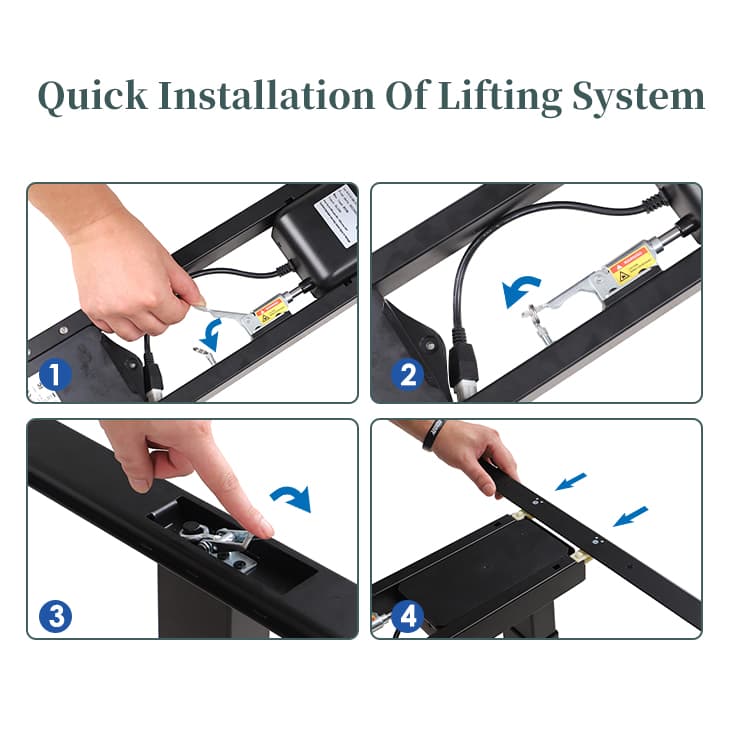

4-Step Quick Assembly. Forget complex screws and manuals. Simply unfold the frame, lock the quick-release buckles, and secure the desktop.
⚡ Dual Motor System: Powerful, synchronized lifting for heavy desktop setups (120kg Load).

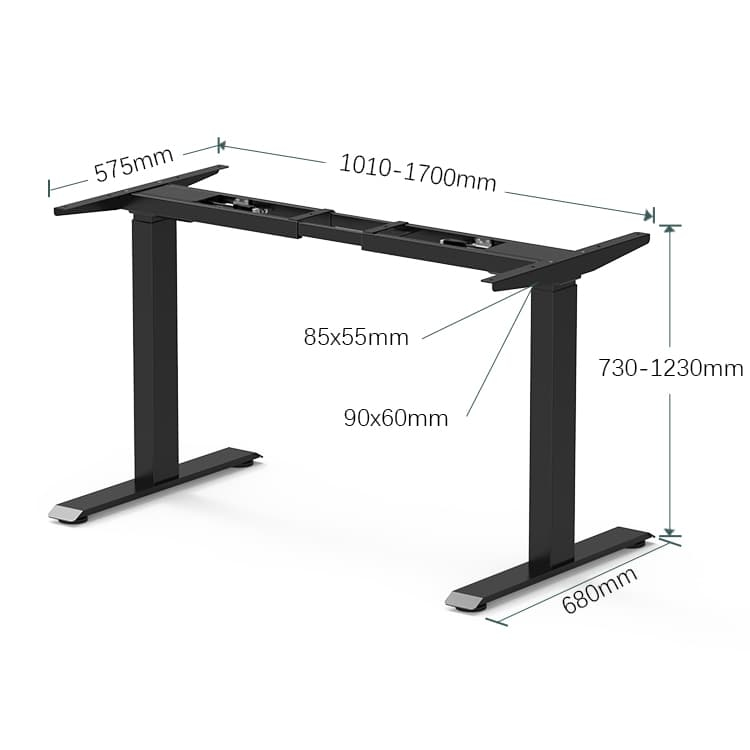

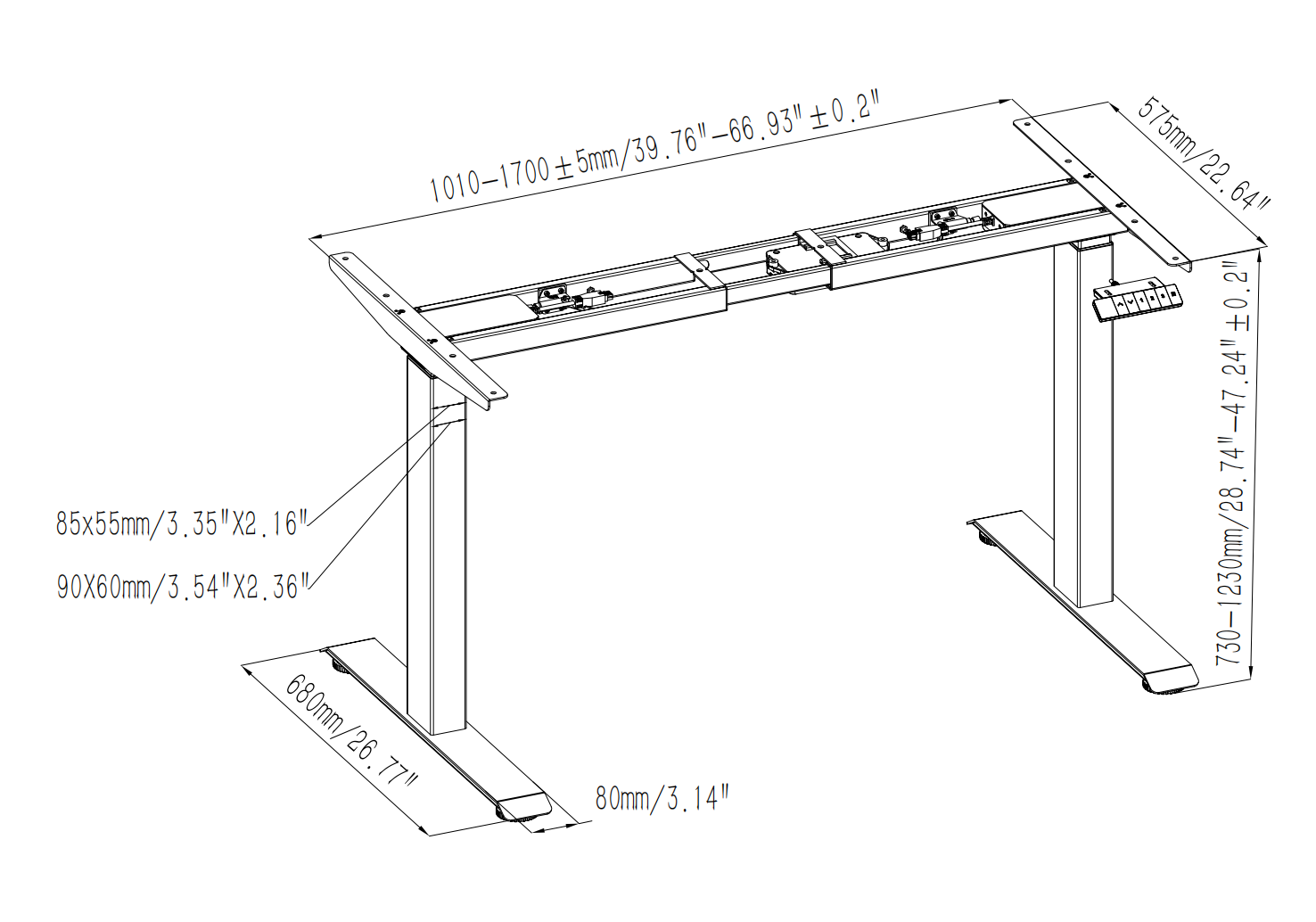

Rectangular Stability: Classic 85x55mm / 90x60mm column profile ensures maximum rigidity.
Extended Range: 2-Stage height adjustment (730-1230mm) fits most standard office needs.
Built for durability. With NATE Desk's overload protection, your desk will automatically stop moving if it exceeds the loading capacity. This smart feature protects the motors and ensures a longer product lifespan.
Enhanced safety for active workspaces. The gyroscope sensor detects resistance during lifting or lowering and instantly retreats to avoid collision damage or injury.
Define your safe zone. Users can easily set maximum and minimum height limits to prevent the desk from hitting objects below (like cabinets) or above (like shelves) your desk.
Our manufacturing process adheres to strict international standards (UL, CE, BIFMA). We stand behind our quality with a comprehensive 5-Year Warranty.
Specifications
| Model | 2HF3A-KZB2-V2 |
| Type | Desk Frame |
| Material | SPCC Steel |
| Height Range(Frame) | 730–1230 mm (24.80″–50.39″) / Stroke: 650 mm (25.59″) |
| Speed | 30mm/s |
| Load Capacity | 120 kg (264.5 lb) |
| Leg Count | 2 legs |

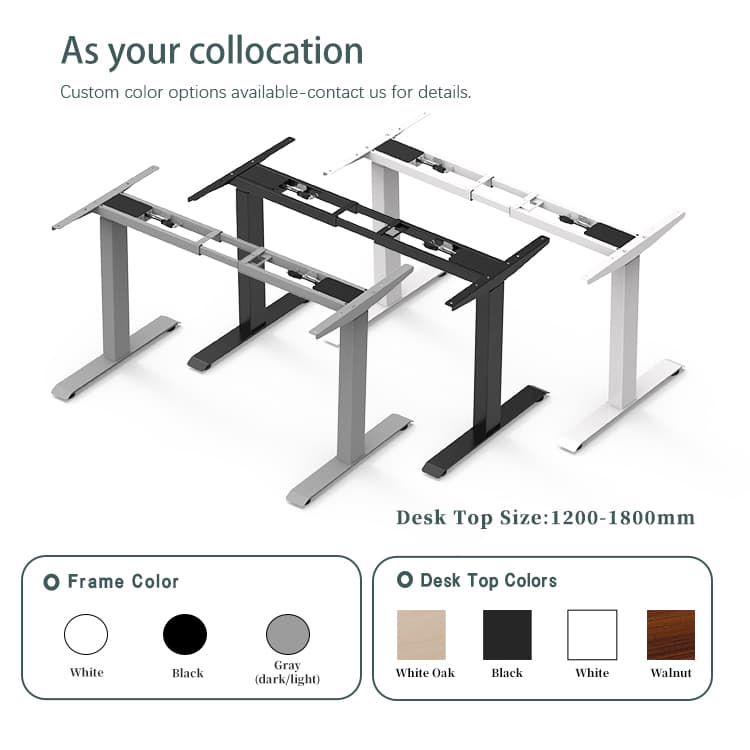

| Frame Color | White, Black, Grey, Customizable |

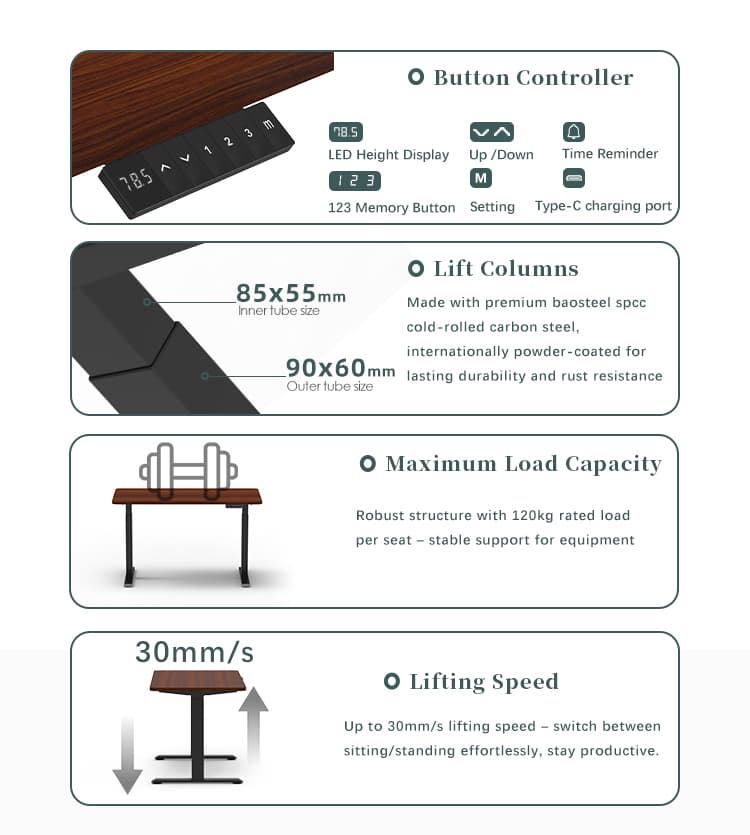

| Controller | 4 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder / Customizable |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |

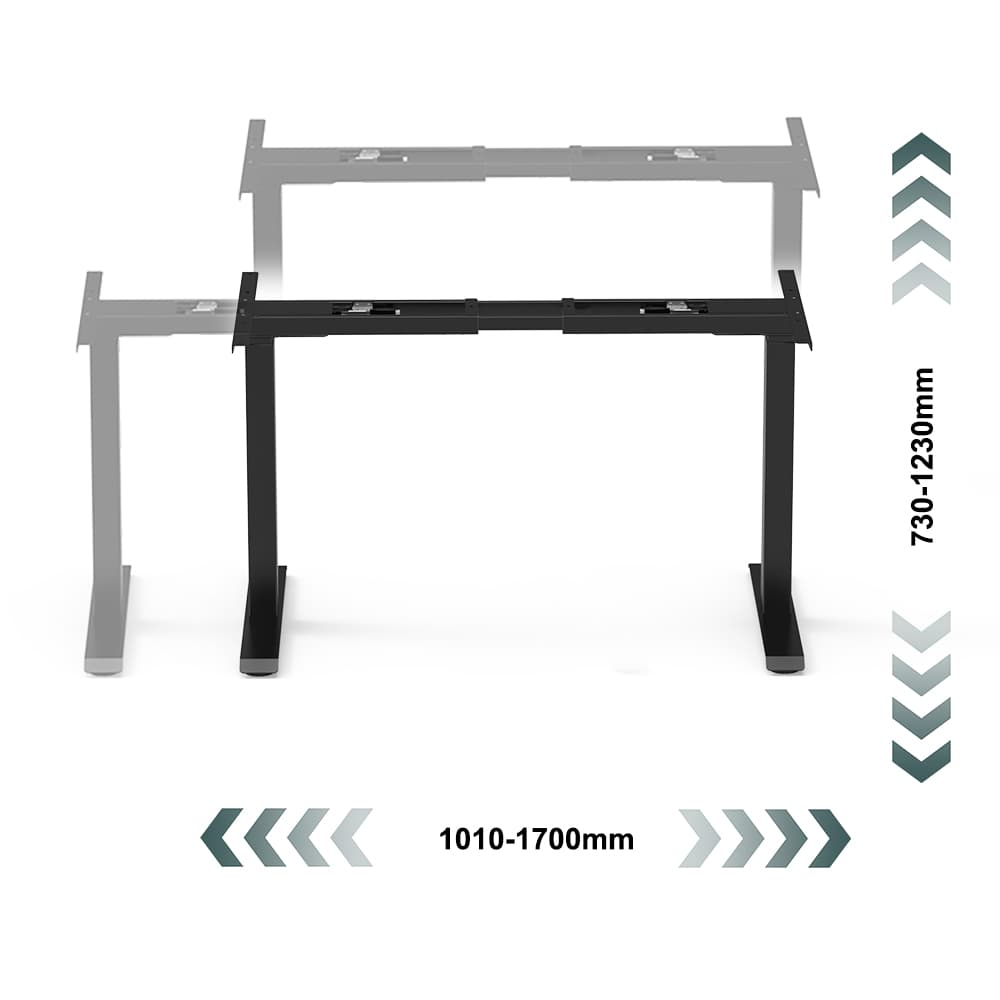

| Width Range(Frame) | 1010–1700 mm |
| Voltage | 100-240 V |
| Drive Mode | Dual motor |
| Lift column | Standard 2-Stage Rectangular Tubes:
|
| Tabletop Color | White, Black, Grey, Customizable |
| Tabletop Size(optional) | 1200-1800mm (47-71") × 600–800 mm (23.62–31.50") optional / Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, GS,UKCA,BSCI, SAA, REACH, RoHS, etc. |
| Package | Complete set in one EPE carton and pallets for oversea shipment |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.

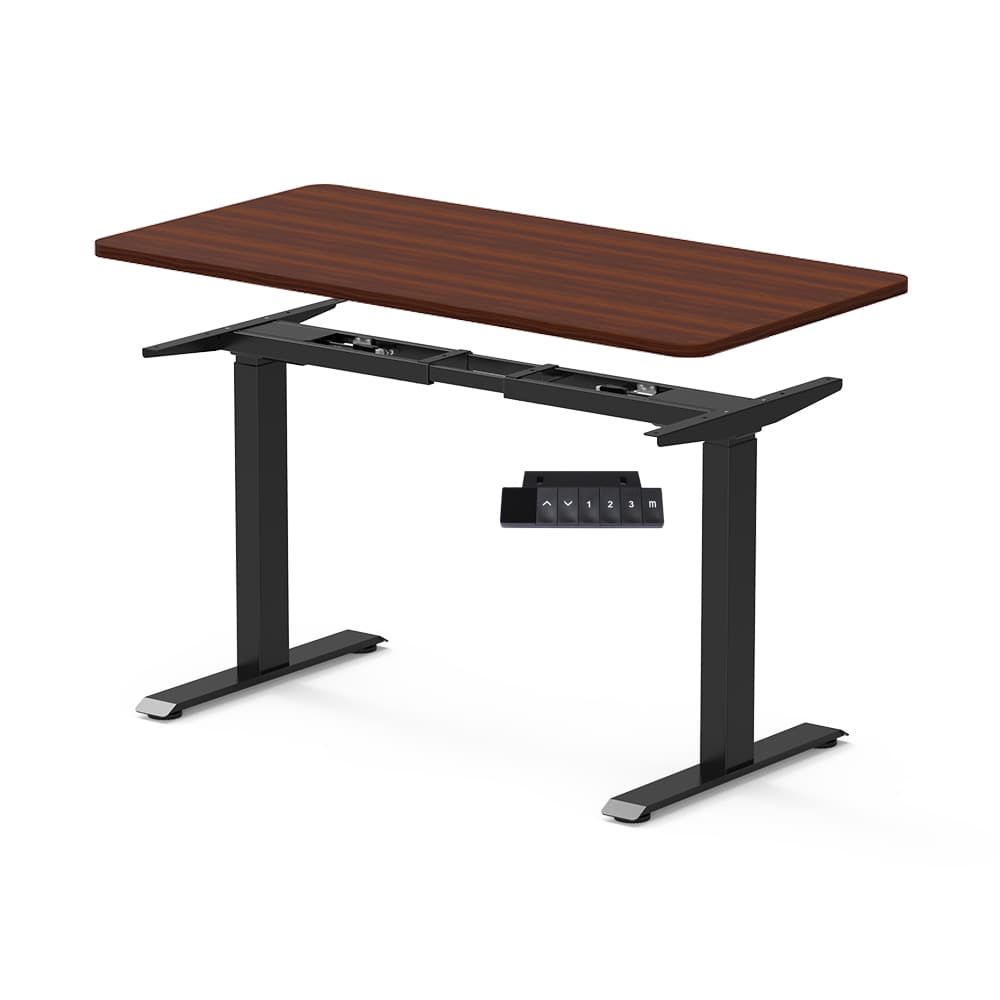

Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
About Us
Shipping&Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
