2AF3 Brushless Mid-Power
NATEDESK
Dual Motor
Brushless Motor
Standard Column
Three Stage Column
Description
At the core of the 2AF3 frame are two high-performance brushless motors. Compared to traditional motors, this advanced system offers a significantly longer lifespan, higher power efficiency, and superior performance. Experience smoother, faster (40mm/s), and quieter (<50dB) height adjustments with better temperature and noise control.

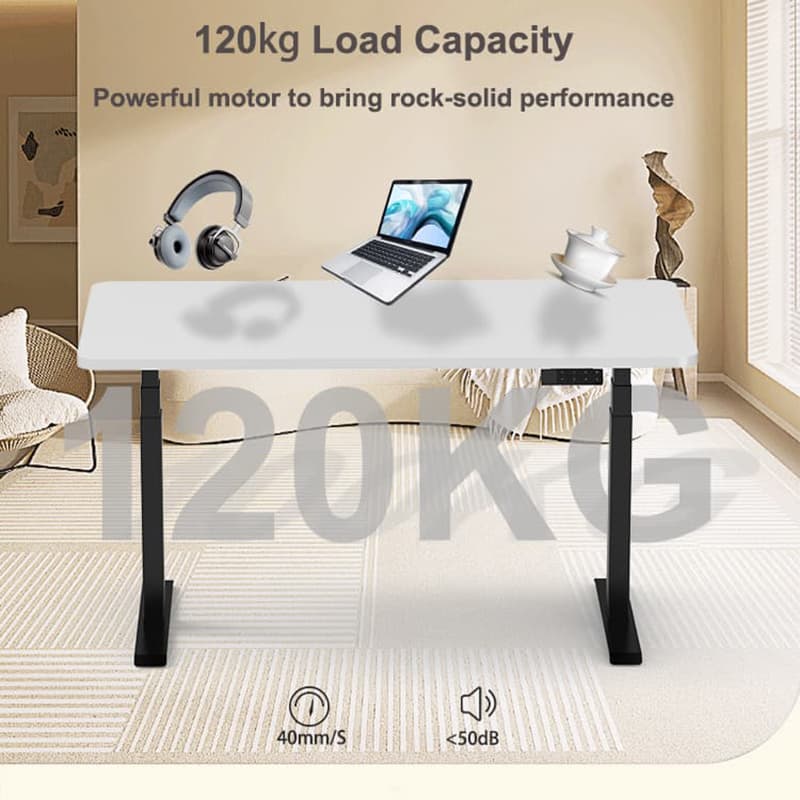

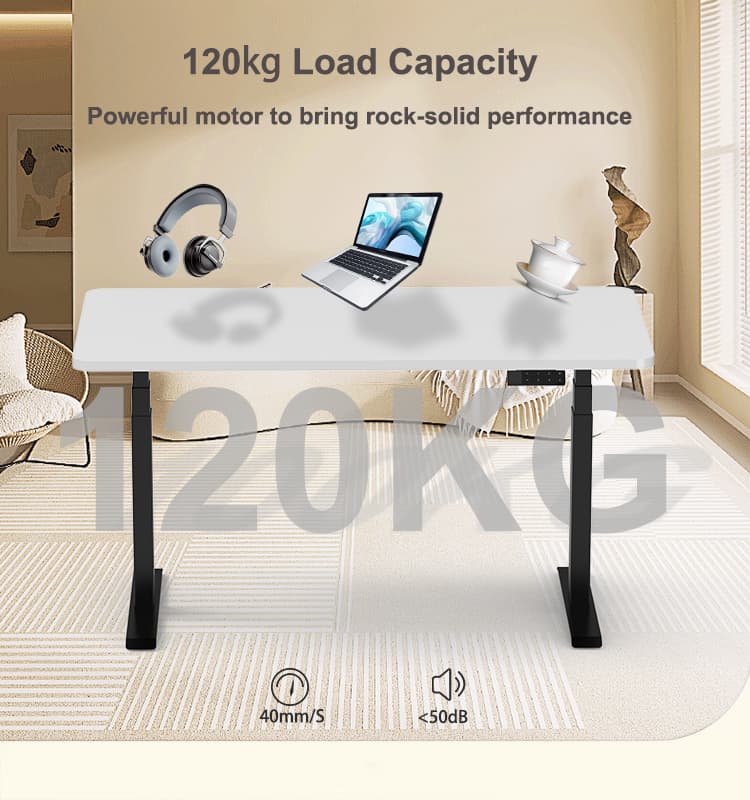

Engineered for stability, the 2AF3 desk frame is built from high-grade steel and boasts a maximum static load capacity of 120kg. This robust construction ensures your entire setup, including multiple monitors, a laptop, and other accessories, remains stable and secure, even at its maximum height.

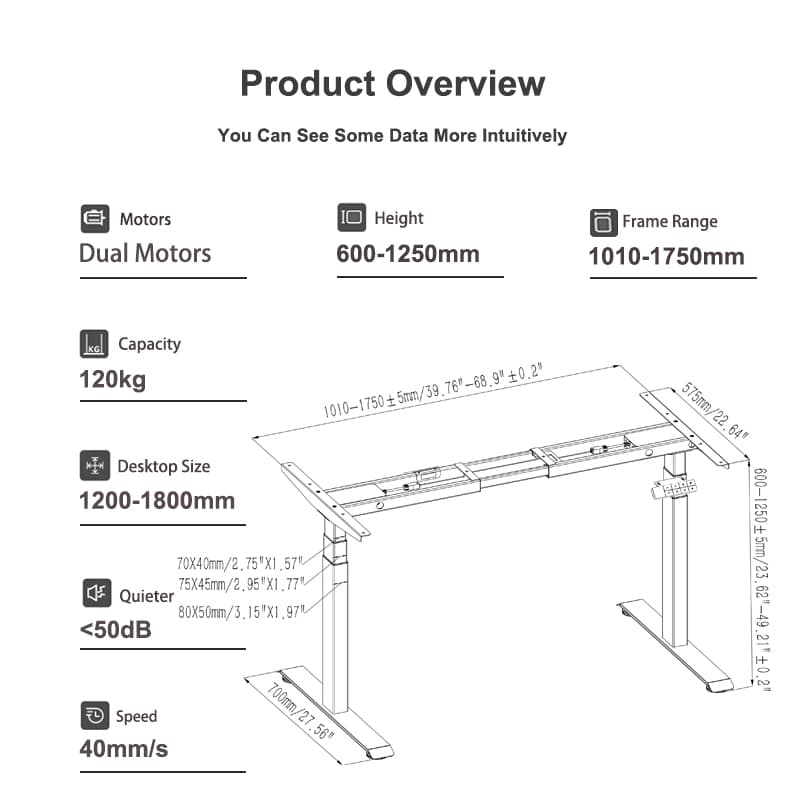

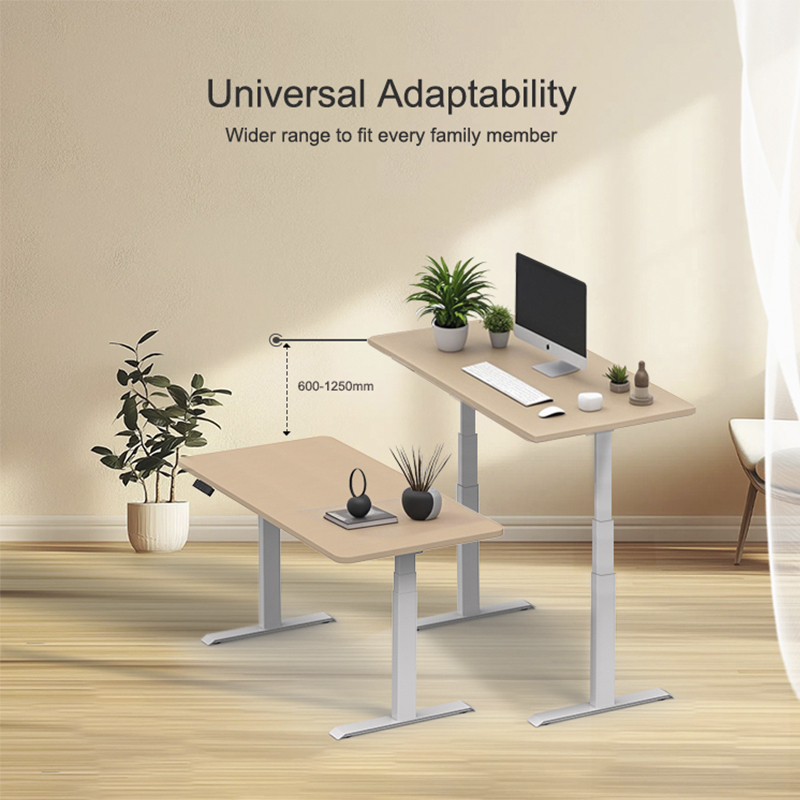

The 2AF3 frame offers exceptional flexibility to create a personalized and ergonomic workspace. The height can be adjusted from 600mm to 1250mm, and the frame width is expandable from 1010mm to 1750mm. This makes it suitable for a wide range of users and compatible with various desktop sizes (1200mm - 1800mm recommended).

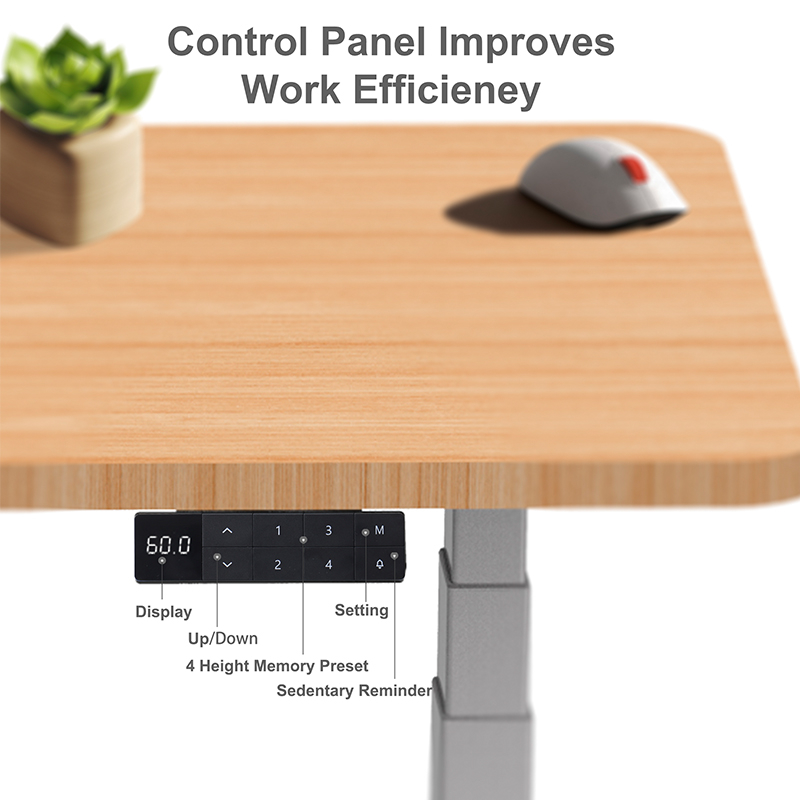

Boost your efficiency with the smart control panel. The digital display shows the exact height, while 4 programmable memory presets allow you to save your favorite positions. Switch between sitting and standing with a single touch. The built-in sedentary reminder helps you stay active by prompting you to change posture throughout the day.
Safety is paramount. The 2AF3 frame is equipped with an anti-collision system that automatically stops and reverses when it detects an obstacle, protecting your equipment. A safety child lock feature is also included to prevent unintended adjustments by children or pets.

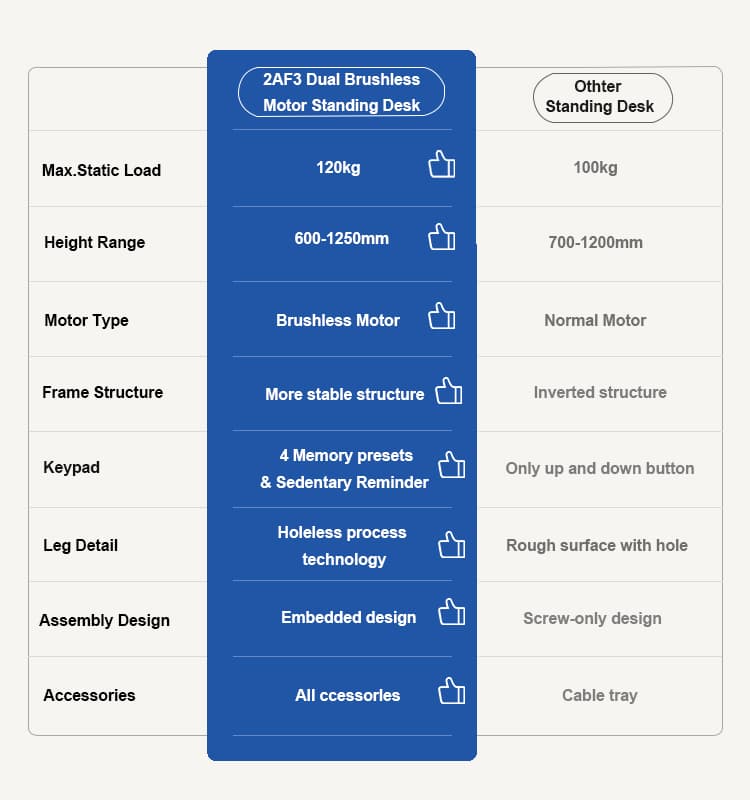

Compared to standard standing desks, the 2AF3 offers superior features across the board. From a stronger brushless motor and higher load capacity to a more advanced keypad and refined leg design, it is engineered for a better user experience and long-term durability.
Specifications
| Model | 2AF3 Brushless Mid-Power |
| Type | Desk Frame |
| Material | SPCC Steel |
| Height Range(Frame) | 600–1250 mm (23.62"–49.21") / Stroke: 650 mm (25.59") |
| Speed | 40mm/s |
| Load Capacity | 140 kg (308.6 lb) |
| Leg Count | 2 legs |
| Frame Color | White, Black, Grey, Customizable |
| Controller | 4 Memory Presets, Anti-Collision, Child Lock, Sit-Stand Reminder,Mobile App Control / Customizable |
| Warranty | 5 years on all parts |
| Delivery Time | Custom drawings in 24 hours; 30 days for standard orders |
| Customization | Accepted / Supports Full Desk |
| Width Range(Frame) | 1010–1750 mm (39.76"–66.93") |
| Voltage | 100-240 V |
| Drive Mode | Dual motor |
| Lift column | Standard Rectangle Columns: 70×40 mm (2.76"×1.57"), 75×45 mm (2.95"×1.77"), 80×50 mm (3.15"×1.97") |
| Feet Size and Type | 700 mm (27.56"), equipped with leveling studs / customizable options |
| Tabletop Color | White, Black, Grey, Customizable |
| Tabletop Size(optional) | 1200–1800 mm (47.2"–70.9"), Customizable |
| Noise | <50 dB |
| Certificate | CE, UL, BSCI, SAA, BIFMA, RoHS, TÜV, etc. |
| Package | Complete set in one EPE carton and pallets for oversea shipment |
Customization
Frame Only
– Purchase the core desk frame components only, and pair them with your own desktop.
Complete System
– A fully equipped package with both frame and desktop.
Customized Options
– Mix and match from our accessories to create a non-standard configuration.
OEM & ODM Development
– Tailor-made product development based on your requirements.
Note: OEM/ODM production may require longer lead time.
About Us
Support
Packaging size and weight may vary slightly depending on the product model. For reference, the 2-leg, 3-stage, dual-motor height-adjustable desk is packaged as follows:
Single package size: 1065 × 270 × 215 mm
Single gross weight: 29 kg
Package type: one set per carton,complete set in one EPE carton
Q1: Is product quality reliable ?
A1: We sold our products to over more than 80 countries, many of our products have passed theCE,ROHS,GS,CB,SAA,FCC, UL,EMc,LVD etc test and our factory also have Is09001,14001,45001 and BscI certificates
Q2: How about the Warranty of stand up desk ?
A2: 5 Years from factory directly.
Q3. May I have a sample order before bulk one?
A3: Sample evaluation is welcome.When we place the bulk order, we will apply return sample fee to support you.
Q4. Can I print my logo?
A4: Custom branding (logo on Handset/Package/instruction) Provide specifications during inguiry for a tailored quote
Q5. How about MOQ?
A5: We accept 1pc sample for first-time buyers to evaluate product quality, Customization orders require 20pcs MOQ.
Q6. How about production time?
A6: We optimize for customers: 1 sample:10-15 days; Less than 100pcs: 20-25 days; Container orders: 30-35 days.
Q7: How about the after service ?
A6: We will send out the product by free with customer's next order by sea if the problem caused from us. We advice you do 2% extra quantity than the order, it will help you do the after service more quickly.
Q8: What's your payment term ?
A7: T / T, 30% deposit when confirm the order, 70% as balance before the container loading.
Any questions, please don' t hesitate to contact us then. Thanks~
